Help CenterResin Casting Machine APG Machine for Epoxy Resin Electrical Transformer Insulator Bushing Spout
Related Products
-
APG Clamping Machine Vacuum Clamping Pressure With Mixing Injection Stirrer for Epoxy Resin Chinese ManufactureUS$ 35000 - 45000MOQ: 1 Set -
APG Automactic Pressure Gelation Machine Vacuum Clamping Casting Machine for Epoxy Resin Mould Chinese ManufactureUS$ 35000 - 48000MOQ: 1 Set
-
APG Clamping Machine Double Station for Epoxy Resin CP/VP Insulator Bushing SpoutUS$ 35000 - 46000MOQ: 1 Set
-
APG Epoxy Resin Casting Machine for Electric Transformer PT/CT Chinese ManufactureUS$ 35000 - 45000MOQ: 1 Set
-
APG Automatic Pressure Clamping Machine for Transformer Insulator Bushing SpoutUS$ 35000 - 45000MOQ: 1 Set
This machine is designed with 2 work station, clamp plate size is 600×800mm, support 2 moulds work on same machine, greatly improved the efficiency, it is special used for produce simple designed products, such as insulator, bushing and sensor.
Our engineers have over 30 years of technical experience and are highly renowned in the industry.
We offer overseas on-site technique training:
1. Offer epoxy resin production line consulting service.
2. Supply High quality APG machine, mixing device, APG&casting Mold, CT/PT winding machine.
3. Produce qualified samples with APG machine and molds before dispatch, guarantee APG machine and molds are in good condition.
4. One-site training APG technique till you control produce products by yourself.
Advantages:
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product dates.
4. Fully automatic design
- Auto start machine & heating clamp plate.
- Auto setting hydraulic pressure
- Auto setting heating temperature
- Auto setting valve flow

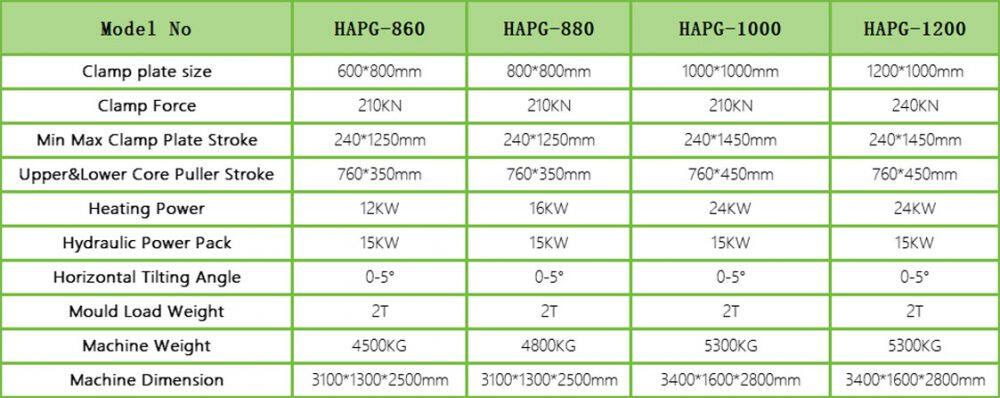

| Model No. | HAPG-860-2 |
| clamp plate size | 600X800mm |
| clamp force | 18T |
| Min Max clamp plate stroke | 240X1250mm |
| Upper&lower core puller stroke | 760X350mm |
| Heating power | 24KW |
| hydraulic power pack | 7.5KW |
| Horizontal tilting angle | 0-5° |
| mould load weight | 2T |
| Machine weight | 7500KG |
| Machine dimension | 7300X1300X3100mm |
