The Heavy Duty 5-Drawer Flat File Cabinet from Hengna Office.
This isn’t just a storage unit; it’s a systematic, secure, and robust filing system built from the ground up for professional use. Constructed from durable SPCC cold-rolled steel and featuring a stackable, modular design, it brings military-grade organization to your office or jobsite trailer.
Why This Cabinet is Essential for Your Houston Projects:
Eliminates Clutter & Damage: Store large-format A0, A1, and ANSI D/E drawings flat, preventing creases, tears, and edge damage that occur with rolled storage.
Saves Critical Time: Find any plan in seconds with clear, labeled drawers. No more unrolling dozens of documents to find the one you need.
Secures Sensitive Information: A single, robust steel lock secures all five drawers simultaneously, protecting proprietary project details.
Grows With Your Firm: The modular, stackable KD (Knock-Down) design lets you add units as your project archive expands, creating a wall of organized storage.

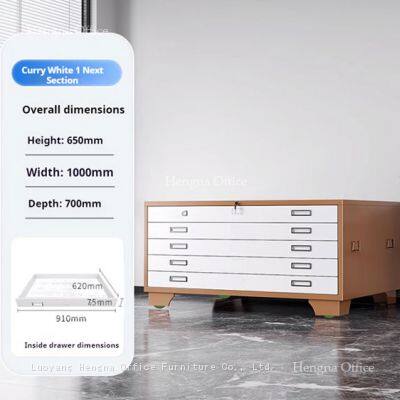

Built for the Long Haul: The powder-coated finish (in Curry White or other colors) resists scratches, rust, and moisture, ensuring years of reliable service.
Engineered for Performance: Key Features
1. Unshakeable Steel Construction
The cabinet is formed from high-grade SPCC cold-rolled steel, providing a rigid frame that won’t wobble or sag, even when fully loaded with heavy vellum or mylar sheets.

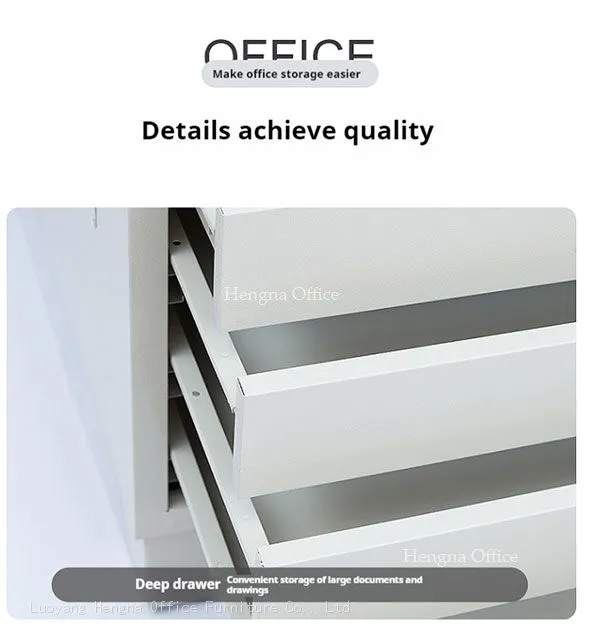

2. Smooth-Action Drawer System

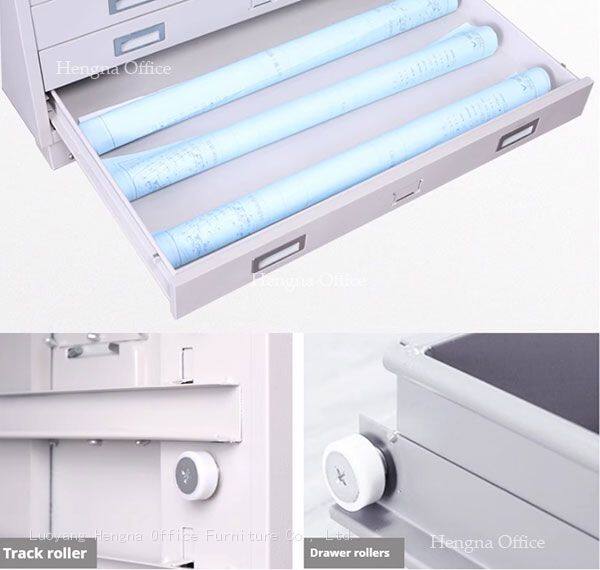

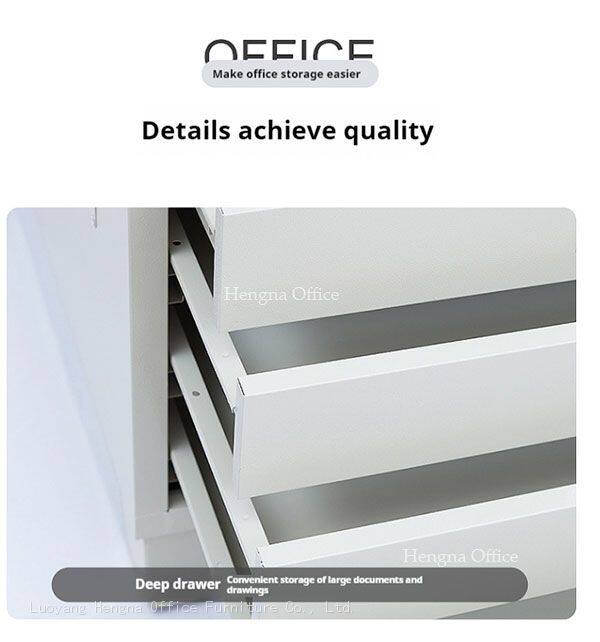

Each drawer rides on a premium cold-rolled double roller track. The reinforced back beam ensures the drawer tray remains perfectly rigid, guaranteeing smooth operation every time, without jamming or sticking.
3. Modular Stacking System

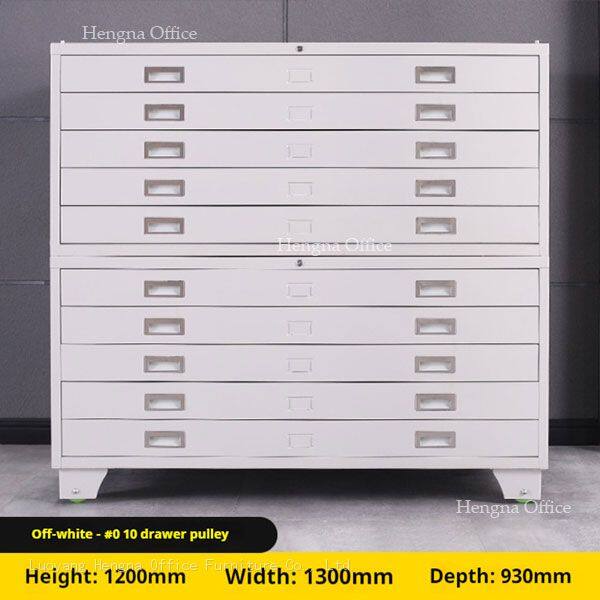

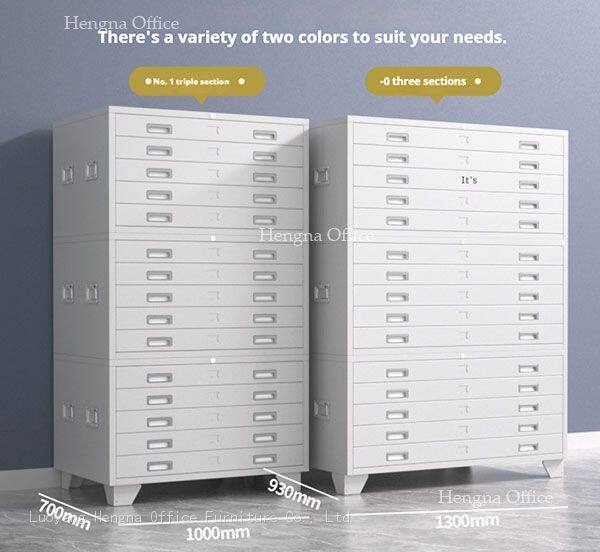

The genius is in the flexibility. Each 5-drawer section is a self-contained unit. Use it alone, or stack multiple sections vertically using the integrated anti-slip design. Four top screws lock stacked units together, preventing any dangerous shifting or offset.
4. Practical Mobility & Stability
Removable bottom wheels with pedals allow you to move this heavy cabinet easily when needed. Once in place, the sturdy feet and anti-slip design keep it firmly grounded.

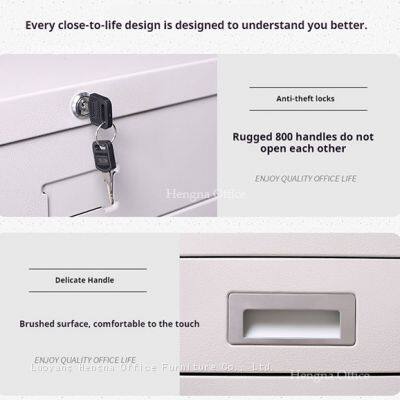

5. Streamlined Security

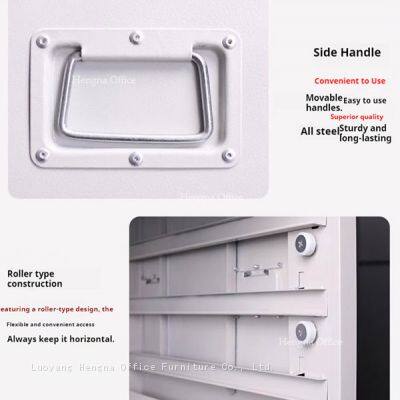

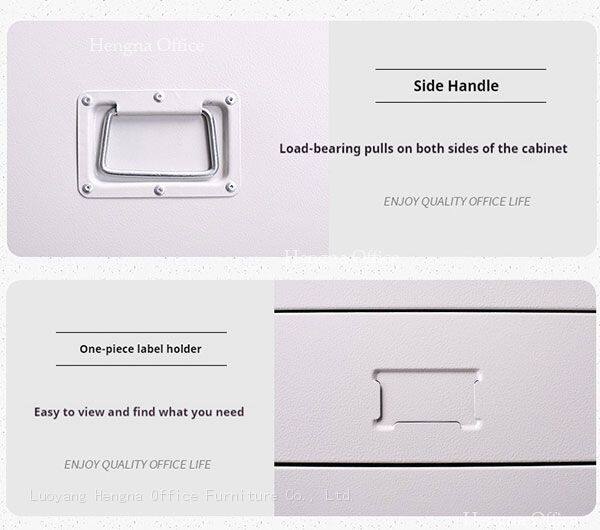

A high-quality central lock mechanism controls all drawers with one turn. The stainless steel handles are ergonomic and built to last.
Technical Specifications at a Glance
| Parameter | Specification | Notes |
|---|---|---|
| Overall Dimensions (Single Unit) | 1300mm (W) x 930mm (D) x 650mm (H) | Compact footprint, large capacity. |
| Height with Wheels Attached | 750mm (H) | Adds 100mm for easier access. |

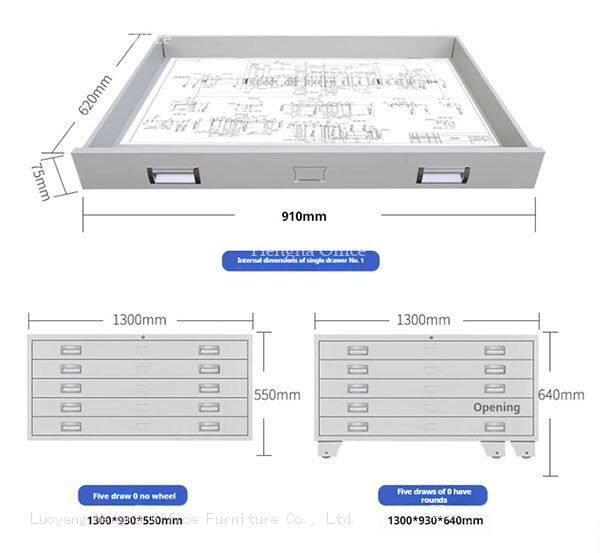

| Internal Drawer Dimensions | 910mm (W) x 620mm (D) x 75mm (H) | Perfectly fits A0 sheets flat. |
| Drawer Count per Section | 5 | Ample, organized layering. |
| Material | SPCC Cold Rolled Steel | Powder-coated for durability. |
| Locking | Centralized Steel Lock | One key for all drawers. |
| Assembly | KD (Knock-Down) | Easy setup, cost-effective shipping. |
Ideal for:
Civil Engineering Firms
Construction & General Contractors
Urban Planning Departments
Land Surveying Companies
Architectural Studios working on large-scale projects
Invest in the organization that matches the scale of your Houston infrastructure ambitions. The Hengna Heavy Duty Flat File Cabinet is the professional choice for securing your project’s most important documents.
FAQ
Q: What large paper sizes will this cabinet hold?
A: The internal drawer dimensions (910mm x 620mm) are designed to hold standard ISO A0 and A1 sheets flat. It also comfortably fits ANSI D (22"x34") and can accommodate ANSI E (34"x44") sheets when placed diagonally or horizontally.
Q: How safe is it to stack multiple cabinets?
A: Extremely safe when assembled correctly. The design includes specific anti-slip screw points on the top of each unit. When stacking, you securely fasten the cabinet above to the one below using these points, creating a single, stable structure that prevents tipping or shifting.
Q: Does the lock come with keys, and can it be re-keyed?
A: Yes, each cabinet is shipped with a set of keys for the central lock. For security and convenience, we can often provide units keyed alike upon request for larger orders, so one key opens all your cabinets. Please inquire with your order.
