Industrial-Grade Protection: Rugged Blueprint Storage for Harsh Environments
In the demanding job sites of Arizona—from sprawling mining facilities to active industrial construction zones—the office environment is as tough as the field. Dust, extreme temperature fluctuations, and constant wear and tear can quickly compromise standard office furniture.
Our Industrial-Grade Heavy-Duty Flat File is engineered for the trenches. Built with reinforced steel, a modular stackable design, and superior protective finishes, it’s not just a cabinet—it’s a durable vault designed to safeguard your mission-critical project data in the harshest conditions.
Core Advantages: Engineered for the Industrial Frontline
| Challenge | Our Solution |
| Extreme Environments | All-Steel & Industrial Coating: SPCC cold-rolled steel with a scratch-resistant powder finish that repels dust, moisture, and chemical exposure. |
| Frequent Relocation | Reinforced Base & Mobility: A heavy-duty protective base (accommodating 100mm casters) protects the unit from ground moisture and accidental impacts from tools or forklifts. |
| Heavy Loads | Precision Rail System: Cold-rolled double ball-bearing slides paired with Internal Reinforcement Beams ensure smooth operation even when loaded with 130+ lbs of blueprints or metal sheets. |
| Space Constraints | Modular Stacking: Each unit functions independently or can be securely stacked via anti-shift screw ports to maximize vertical space in mobile trailers or site offices. |

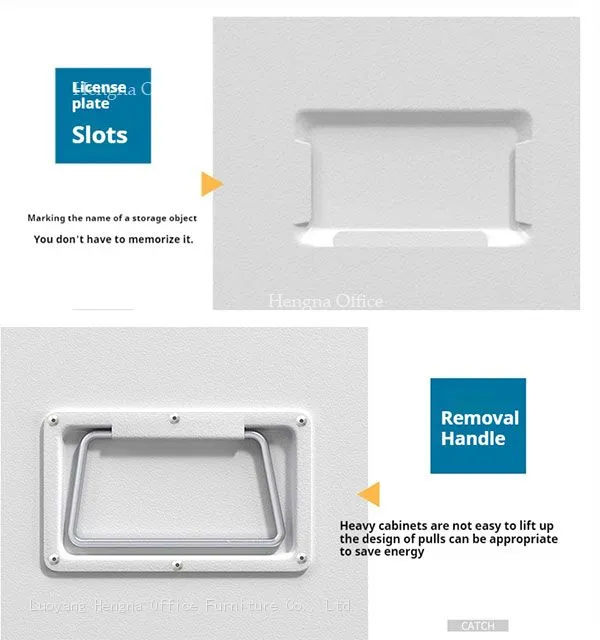

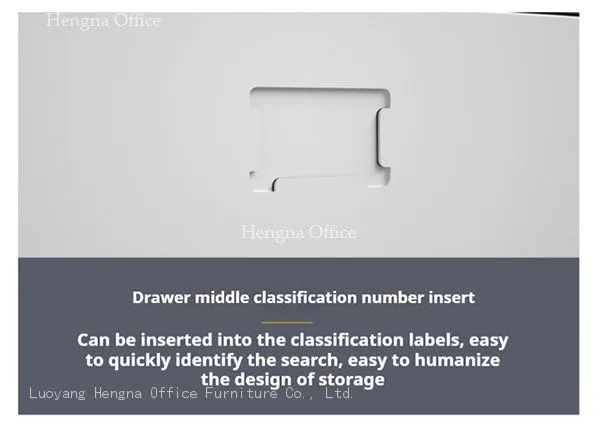

| Asset Management | Central Locking & Labeling: A single-key system secures all 5 drawers instantly, while front-facing label slots allow for rapid site-zone or project-phase categorization. |
Deep Dive: OEM/ODM Customization Capabilities
As a factory-direct supplier, we specialize in tailoring our rugged storage solutions to fit your specific supply chain or project requirements.
OEM (Original Equipment Manufacturer): Fully brand our cabinets with your logo, corporate colors, and custom packaging. Seamlessly integrate our hardware into your existing product line.
ODM (Original Design Manufacturer): Leverage our engineering platform to create a bespoke solution.
Dimensional Scaling: Modify cabinet width or drawer depth for non-standard sheets or specialized industrial plates.
Material Specs: Upgrade steel gauge thickness or request specific RAL color matching for corporate VI or site safety compliance.
Functional Upgrades: Add internal dividers, electronic keypad locks, or ultra-heavy-duty casters for high-mobility environments.
Logistics Optimization: Custom KD (Knock-Down) packaging designed for efficient bulk shipping to remote project sites.
Technical Specifications
| Item | Specification | Industrial Value |
| Model | Heavy-Duty Single-Section Flat File | Built for high-traffic industrial use. |
| Ext. Dimensions | Approx. 1000mm x 700mm x 650mm | Includes high-profile protective base. |

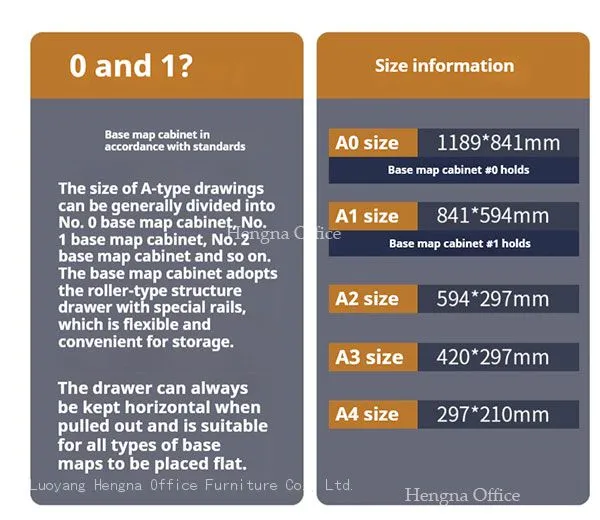

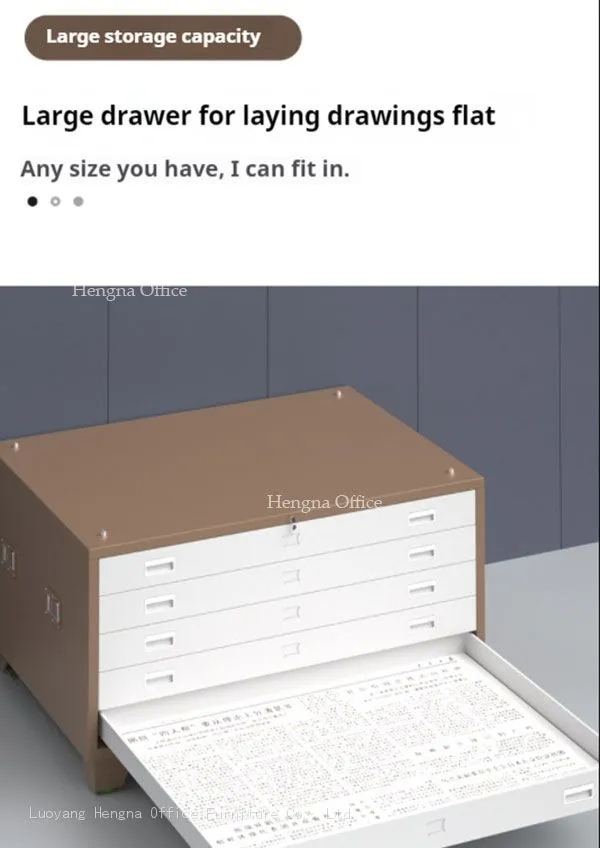

| Drawer ID | 910mm(W) x 620mm(D) x 75mm(H) | Fits standard ARCH D/E and large maps. |
| Material | 1.0mm+ SPCC Cold-Rolled Steel | Superior structural rigidity. |
| Surface Finish | Scratch-Resistant Industrial Powder | Resists chipping and environmental wear. |
| Slide System | Reinforced Beam + Double Ball Bearings | 60kg (132 lbs) load capacity per drawer. |
| Safety | Anti-Shift Ports + Central Lock | Secure stacking and IP protection. |
Typical Applications
Construction Site Trailers: For active project management and blueprint access.
Mining & Energy Facilities: Archiving site maps and utility schematics.
Heavy Manufacturing: Organizing engineering drawings on the factory floor.
Government Infrastructure: Long-term archiving for public works departments.
B2B System Integrators: As a rugged component for full-scale site office fit-outs.
FAQ
Q: Is this cabinet suitable for outdoor use in temporary site offices?
A: Absolutely. It is designed to withstand the dust and heat of site trailers. While the powder coating is rust-resistant, we recommend use in sheltered or indoor environments to prevent direct exposure to extreme weather.
Q: What is the exact load capacity of the drawers?
A: Thanks to our reinforced beam system and heavy-duty rails, each drawer is rated for a static load of 60kg (approx. 132 lbs), easily handling thick vellum stacks or metal drafting plates.
Q: What is the MOQ for OEM/Custom orders?
A: We are flexible. let’s discuss your specific needs for a tailored quote.
