Overview

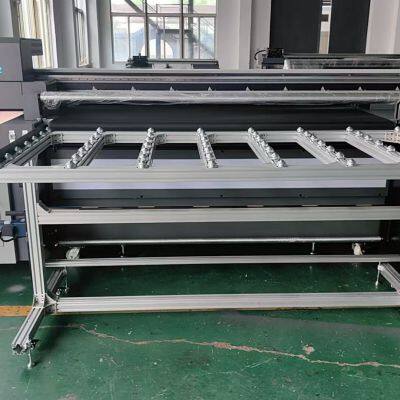

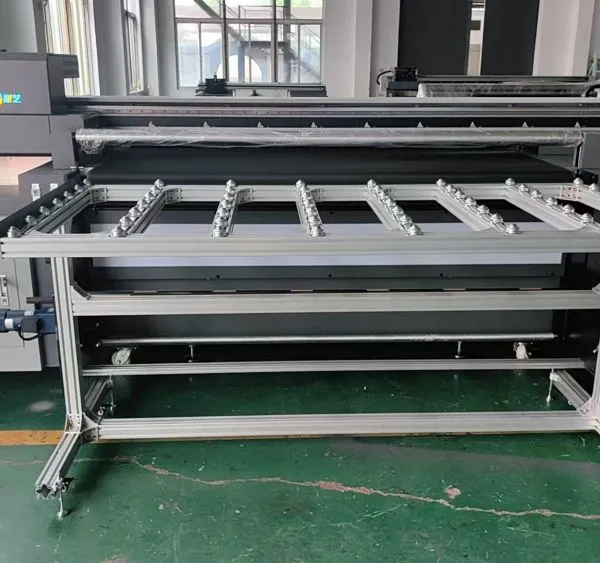

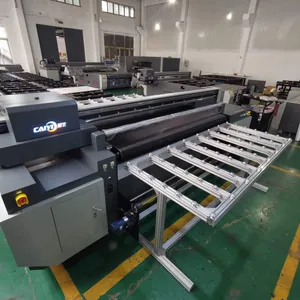

To meet the demands of more customers, and with our experience in the 3.2m hybrid printer, now we have launched our 2.0m UV Hybrid Printer. With extension tables at the back and front, they can print unlimited length of rigid and flexible medias thanks to the vacuum belt feeding and conveying system.
Different from others' light-body structure, this 2.0m hybrid printer is designed with a heavy-body frame to ensure stable performance.
☑ 2.0m printing width
☑ 5PL/7PL variable ink droplet, high resolution printing
☑ All steel print head with a longer life time and it is corrosion resistant
☑ Imported silent linear guide railway, stable operation
☑ Intelligent ink alarm system
☑ Automatic height detecting and positioning system
☑ Independent control of Color and White negative pressure systems
☑ White, KC MY, Varnish all supported.
Features
VARIOUS WAYS OF PRINTING WHITE
Combines sheet-to-sheet with roll-to-roll printing functions. The vacuum belt table delivers accurate feeding and convey of rigid and flexible materials. Automatic rotary motor provides optimal tension distributing.
Pressing Roller
The pressing roller on the convey belt provides reliable friction between the material and the belt to ensure the feeding of material will not deviate.
The machine adopts branded water cooling LED uv lamp that complies with the UL standards. The light is environment-friendly, and the lamp has a long life time of 35000 hours. Thanks to the low hear of the light, heat-labile medias are also applicable.
Imported Linear Motor and Maglev Railways, and Metal Raster Tape
For the carriage movement, the machine is equipped with excellent-quality Linear Motor and Maglev Railways, and Metal Raster Tape. Thus, the carriage runs more accurately and steadily without vibration, which in turn makes the printing at a good quality even at high-speed running.
The X-axis gantry is made of 200px*400px aviation aluminum profile, which has high tensile strength and large bearing capacity. It is stable enough and will not deform for long-term use.
Automatic Height Detector
The optimal distance between the head and the media can be adjusted just by one click! This easy and quick way avoids the ink spray and helps the machine delivers good printing quality.
The machine is equipped with good towline. It is wide enough to enable wires long-term work without rubbing against each other, and reduce the noise during the movement.
Anti-Static Device and Crash Sensor
The Anti-Static Device removes the static from the media and perfectly avoids ink spray. The sensitive Crash Sensor on both sides will prevent the print head from being damaged.
The ink Alarm system will give alert via signal light and sound when the ink volume is low. Alert will also be shown in the software interface. The white ink tank has automatic stirring system so that the white print head will not be clogged.
The ink Heating System will heat the ink to an appropriate temperature before it goes into the print head, which makes the ink run more smoothly and avoids the nozzle clogging in cold working environment. Thus, the printing is vivid and bright.
Disk filter
Before going into the print head, the ink will be further filtered by the Disk filter so that the tiny impurities can be filtered out. The printhead will work in a good condition and its life time will be extended.
There is an independent valve on each Sub Ink Tank to control the ink flow. When the machine is off, the valve can be closed in order to avoid ink waste.
Independent Ink Purging for White and Color enables purging color and white separately, which ensures smooth ink flow and more stable ink supply when the machine is printing at a high speed.
Negative Pressure System
With the NC pressure display instrument, the machine can do high quality printing at as a high fire frequency as possible to increase the printing speed; With an additional air sub tank to make the change of negative pressure more stable and ensure the stable ink supply at a high-speed nonstop printing.
Panasonic Servo System
Adpots Japanese Panasonic Servo Driver and Servo Motor to realize the closed-loop control of location, velocity and torque, and overcome the out-of-step problem of the stepping motor. They System delivers good performance when running at a high speed and runs steadily when working at a low speed. Also, the System gives timely dynamic response, low running noise, and low heat.
TECHNICAL PARAMETERS
Model No., Measurement and Weight |
||
Model No. |
CY-RF2000 |
|
Measurement |
4,20m*1,00m*1,65m | |
Weight |
980kg | |
Printing |
||
Printing Width |
2.0m |
|
Media Thickness |
Flexible Media: 0~10mm; Rigid Media: 0~60mm |
|
Feeding System |
Inflatable Rollers + Automatic Rotary Motor |
|
Taking up System |
Inflatable Rollers + Automatic Rotary Motor |
|
Printing Speed (8 heads, CMYK only) |
Ricoh Gen5 head |
Ricoh Gen6 head |
|
draft mode：100m²/h Prodution mode：60m²/h Quality mode：40m²/h |
draft mode：130m²/h Prodution mode：78m²/h Quality mode：52m²/h |
|
Ink Drop Size |
7PL |
5PL |
Ink |
Imported UV Ink |
|
Color Configuration |
C M Y K Lc Lm W V |
|
Color Management |
International ICC standard with adjusting function for profiles and density |
|
Image Format |
TIFF, JPEG, CMX, AI, PSD, PS, PDF, EPS |
|
Curing |
Water cooling UV led lamp |
|
Printing Materials |
Flexible Media: ceiling film, banner, vinyl, reflective film, wall cloth, canvas, leather, carpet, PET, etc Rigid MediaL ceramic, glass, PVC board, acrylic, bamboo fibreboard, steel, aluminium, etc. |
|
Data Interface |
High speed USB3.0 / LAN Cable |
|
Operation System |
Microsoft Windows7(x64) /Windows10 (X64) |
|
RIP Software |
PhotoPrint |
|
Environment Requirement |
||
Recommended Humidity |
40%~70% Relative humidity |
|
Recommended Temperature |
15℃~30℃ |
|
Power Supply |
Single Phase AC 220v（±5%），50/60Hz，18A, earth line is a must |
|
Power Consumption |
4000W |
Applications
