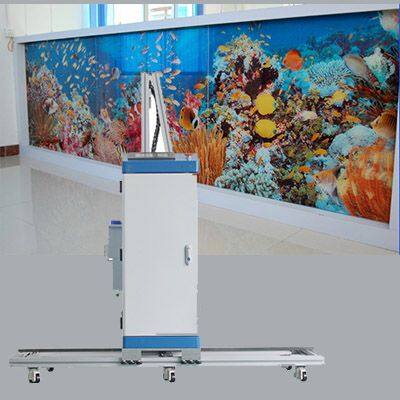

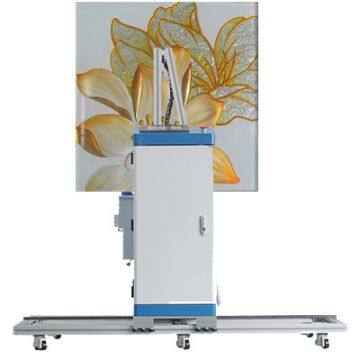

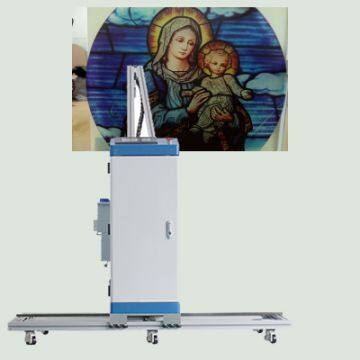

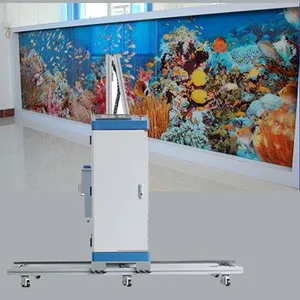

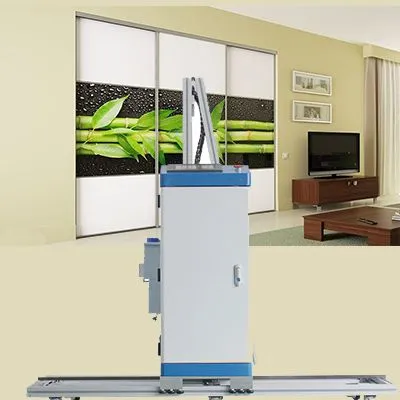

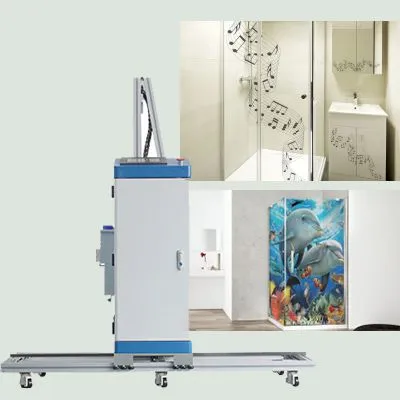

UV Ceiling Printer,UV Door Printer
US$ 6000 - 6308
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hanhuang
Place of Origin:
China
Model Number:
HH-QT60
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
5 days
Related Products
-
UV Glass Wall Inkjet Printing MachineUS$ 6000 - 6308MOQ: 1 Set -
Start Your Business With Hanhuang Wall Printing MachineUS$ 4500 - 5500MOQ: 1 Set
-
UV Shower Cabinet Printer,UV Aluminum Panels Metal Sheet PrinterUS$ 6000 - 6308MOQ: 1 Set
-
Automatic Direct UV Wall Image Painting Printing On Wall Machine PriceUS$ 6000 - 6308MOQ: 1 Set
-
UV Mural Wall Printer for Church Wall DecorationUS$ 6000 - 6308MOQ: 1 Set
Brand Name
Hanhuang
Place of Origin
China
Model Number
HH-QT60
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
150KG
Voltage
110-220V
Usage
Other, Vertical Wall Printer
Condition
New
Automatic Grade
Automatic
Dimensions(L*W*H)
6000*625*2700MM
Gross Power
500W
Color & Page
Multicolor
Plate Type
Other, Vertical Wall Printer
|
UV Ceiling Printer,UV Door Printer,UV Printer
| ||||||
| Model NO. | HH-QT60 | |||||
| New developed | 2019 | |||||
| Material of machine | Aluminium-magnesium alloy | |||||
| Installation accessories | Fastner,screws,pulley etc | |||||
| Operation system | Manual control intelligent system | |||||
| Print head | TX800 * 2PCS | |||||
| Ink type | Synthetic pigment wall painting special color paste(wall painting dedicated ink) | |||||
| Servo motor | DC brushless servo motor, vector positioning, no grating |
|||||
| Data transmission | Integrated telecommunication-level optical fiber data transmission system | |||||
| Curved surface tracking | Load dual ultrasonic sensor, up dand down two-way sensor | |||||
| Supply system | There is 340ml in pigment store box to be offered automatic under power presure,one shower nozzle supply one color,which is controled by the operate system,this whole supple system was protected by seal plug and dust cover. | |||||
| Applying technology | Using advanced ink droplet control and high fault-tolerant feathering technology to ensure that the output quality is more perfect,can adapt to more special materials, such as tiles,glass etc. | |||||
| Printing speed | Adajustable with high speed,medium speed, low speed. | |||||
| Printing resolution | 720x2880dpi/720X1440dpi/720X1080dpi | |||||
| Support the formate | JPG、BMP、TIFF、PDF、AI、PSD、CDR etc | |||||
| Printing size | Max height:2000mm,no limit to width. | |||||
| Power | AC110V（90-132V）/AC220V（180—264V)，47-63HZ | |||||
| Power consumption | Standby:20W，Working: 75W，Max:250W | |||||
| Noise | Standby＜20dBA，Printing＜50dBA | |||||
| Operating | temperature | -10℃-60℃（14°F-140°F）10 %-80 %Relative humidity, non-condensing state | ||||
| Storage | temperature | -30℃-60℃（-22°F-140°F）10 %-80 %Relative humidity, non-condensing state | ||||
| Operation system | WindowsXP/Win7/Win8/Win9/Win10 | |||||
| Mainboard specification | 4 core CPU， 4GB memory， USB2.0/3.0 | |||||
| Support language | Chinese、English（can be custom made if special requirement） | |||||
| Application wall | putty powder wall,latex paint wall, big white, imitation porcelain wall,ceramic tile,canvas, | |||||
| rice paper,glass,coating glaze surface, shell powder coating, color grain paint coating, etc. | ||||||
| Certification | Environmental certification, CE certification | |||||
| Printing mode | Pass | speed（m²/h） | ||||
| Fast mode | A | 18 m²/h | ||||
| Production mode | B | 12 m²/h | ||||
| Quality mode | C | 9 m²/h | ||||
| High precision mode |
D | 6 m²/h | ||||
| Measurement | Machine | Packaging(vertical) | Track(horizontal) | |||
| Lenght | 6000mm | 2000mm | 1700mm | |||
| Width | 1250mm | 500mm | 800mm | |||
| Height | 2700mm | 600mm | 500mm | |||
| Weight | 60kg | 65kg | 25kg | |||
| Package | wooden box（export standard） | |||||
| Note:above is design theory data,there will be difference with machine actural performance. | ||||||
