● **Intelligent Operation Interface:** 7-inch touchscreen operation with switchable Chinese/English menus, one-touch power on/off.
● **Adjustable Ink Droplet Size:** Ink droplet size can be adjusted according to production needs to achieve dot-matrix or solid font effects.
● **Automatic Cleaning, One-Touch Switching:** Built-in cleaning solenoid valve enables automatic cleaning and one-touch switching, eliminating nozzle clogging issues.
● **Quick Aviation Connectors:** Equipped with dustproof, waterproof, and shockproof aviation connectors for plug-and-play operation, suitable for harsh environments such as dust, humidity, high temperature, and vibration.
● **Rotatable Printhead Design:** Adjustable printhead angle allows flexible adjustment of font size according to production needs, with a maximum height of 189mm.
● **Gemstone Nozzle for Smoother Operation:** Independently controlled gemstone nozzles with optional diameters of 80μ, 120μ, 150μ, or 180μ.
● **External Connectivity:** Can connect to a computer for downloading icons and customized external transmission software to enable data import and remote control.
● **360° Printing at Any Angle:** The printhead can print upward, downward, horizontally, or in any direction.

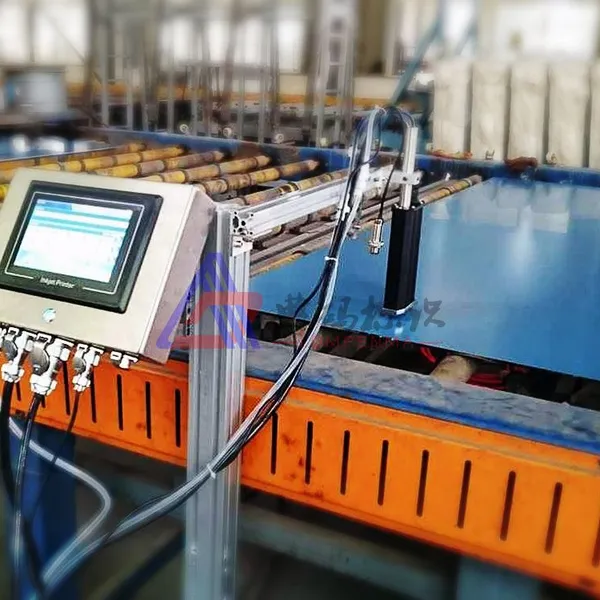

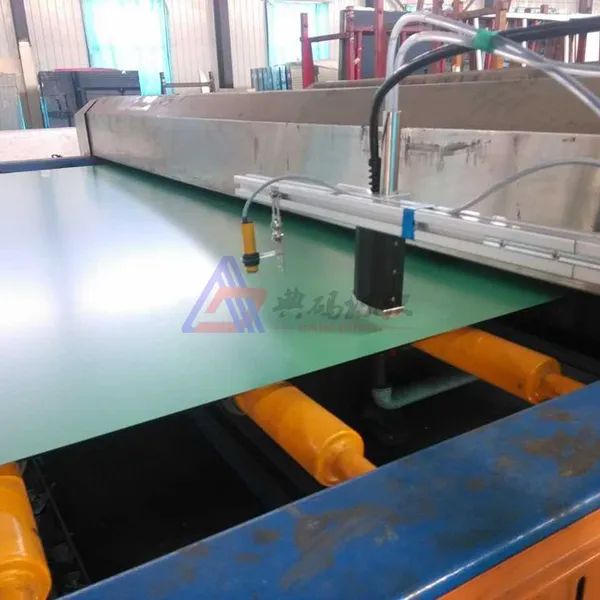

● **Application Range:** Widely used in industries such as food, beverages, pipes, building materials, steel, wood, pharmaceuticals, chemicals, cement, stone, glass, tires, cartons, and packaging printing. Suitable for printing on permeable surfaces (e.g., cartons, templates, textiles, gypsum boards, wood) and non-permeable surfaces (e.g., glossy cartons, metal pipes/steel, plastic pipes, ceramics, woven bags, etc.).
● **Technical Parameters:**
Model: LS32
Printhead Specification: 7-dot / 16-dot
Printing Height: 10-27mm / 15-63mm
Printing Rows: 1 row for numbers/letters; 1-2 rows for alphanumeric, 1 row for Chinese characters
Dot Matrix: 5×5, 5×7 / 5×5, 5×7, 6×9, 8×12, 12×16
Printing Content: Letters, numbers / Letters, numbers, Chinese characters, icons
Printing Speed: 0-220 meters/minute
Printing Distance: 5-30mm
Storage Capacity: 100 message files
Power Supply: 220V AC ±10%, 50Hz
Printing Functions: Horizontal/vertical inversion, forward/reverse string order, 1-8-digit ascending/descending product counting, real-time clock, date/shift settings, automatic repeat printing, adjustable printing delay (counting/metering supported).
Environmental Conditions: Temperature 0-45°C, humidity 10-90% (non-condensing) (customizable for below 0°C).
Printing Materials: Compatible with both permeable and non-permeable materials.
Trigger Methods: Automatic, photoelectric, encoder, photoelectric encoder, optical auto (optional).
Printing Direction: Normal, mirrored, inverted, reverse.
Printhead Angle: Adjustable (0°, 15°, 30°, 45°, 60°, 75°).
Printhead Orientation: 360° adjustable.
Font Boldness: 1-15x adjustable.
Ink Droplet Size: Adjustable from 10 to 255.
External Port: RS-232.
We offer free delivery, installation, and training.
**After-Sales Service:**
● One-year free warranty for the entire machine, with lifelong service support.
● For customer repairs, we provide telephone guidance + on-site maintenance to resolve equipment-related issues.
● For on-site maintenance and repairs:
If a repair request is submitted on a weekday morning, our technicians will arrive within 48 hours.
● Regardless of warranty status, all equipment sold by our company is followed up with a quarterly visit by our staff to address after-sales concerns.
● For subsequent services requiring fees, customer authorization is required. Payment may be refused by the customer if unauthorized charges occur.
