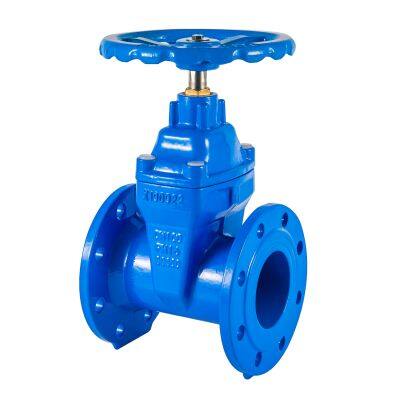

Home > Industrial Equipment & Components > Valve > Gate Valve > Non Rising Stem Gate Valve Flanged Gate Valve Water Gate Valve
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Stainless Steel
Application:
Other, High-Pressure Industrial Pipelines
Valve Type:
Resilient Seated Gate Valve
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Direct Acting Pressure Reducing Hydraulic Steering Control ValveNegotiableMOQ: 1 Piece -
EMS Certification Cast Iron Gate Valve for Oil and Gas Pipeline Shutoff ApplicationsNegotiableMOQ: 1 Piece
-
Industrial CF8 Gate Valve for Industrial UsageNegotiableMOQ: 1 Piece
-
Flanged Type, Dn50-1000 Resilient Seated Gate ValveNegotiableMOQ: 50 Sets
-
Non-Rised Resilient Seated Sluice ValveNegotiableMOQ: 1 Piece
Material
Stainless Steel
Application
Other, High-Pressure Industrial Pipelines
Valve Type
Resilient Seated Gate Valve
Size Range
DN50 to DN300
Pressure Rating
PN10 to PN40
Connection Type
Flanged End
Operation Method
Manual Handwheel
Brand
Shanghai Sote Valve Co., Ltd.
Color
Silver
Function
Flow Control and Isolation

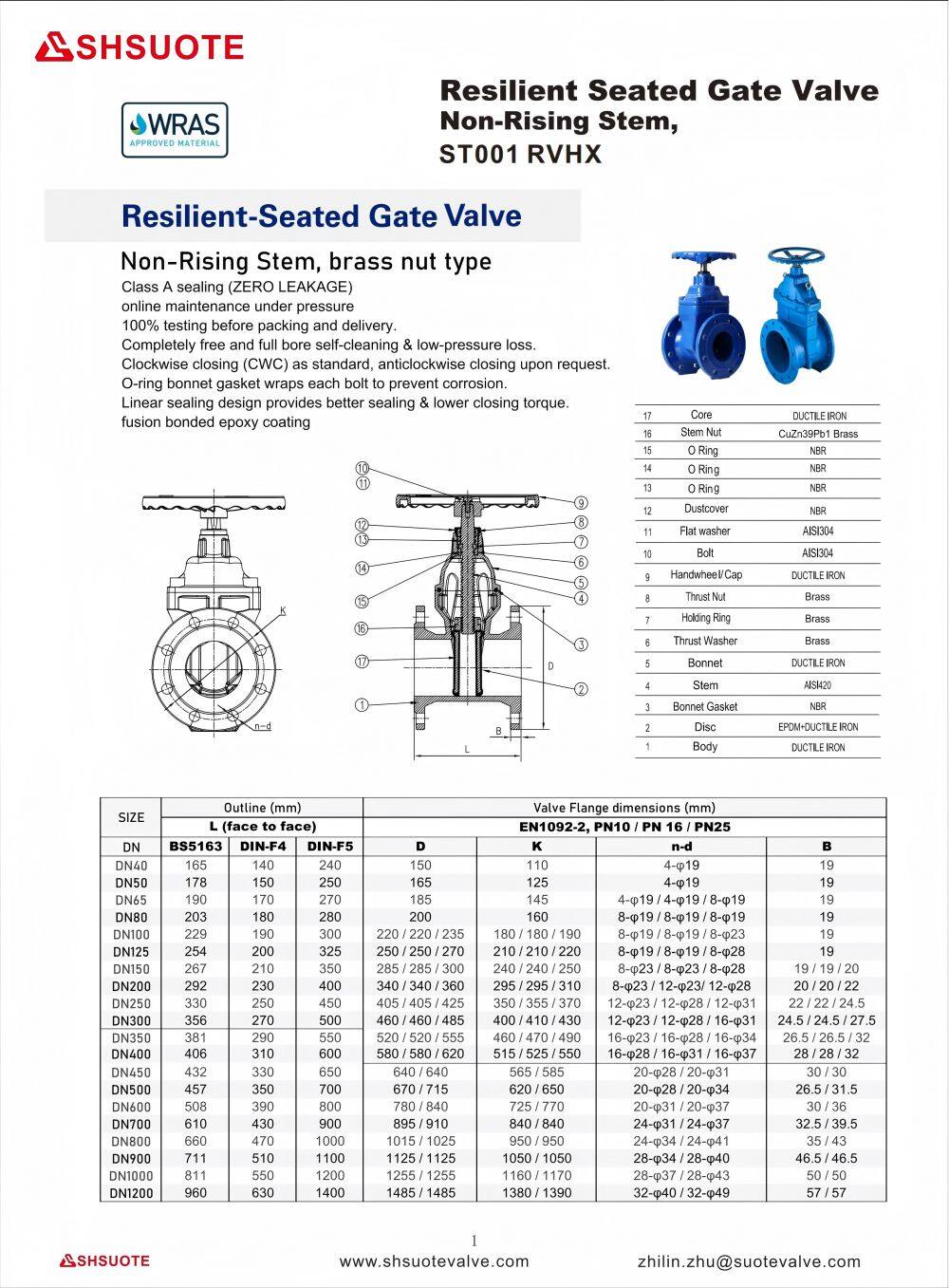

Resilient-Seated Gate Valve
1、 Purpose:
Installed in various types of water supply and drainage pipelines to control the flow and on/off of media.
2、 Characteristics:
1. Good sealing effect. Adopting a fully rubber valve plate, the valve body has no grooves, which is not easy to deposit mud and sand, and the seal is reliable.
2. Flexible operation. The valve stem adopts thrust bearings and "O" ring seals, reducing friction during switching and solving the problem of water leakage in the packing box.
3. Low resistance loss. The valve body is a straight through type, which reduces the degree of turbulence generated by the fluid.
4. Key components are made of special materials, which require minimal maintenance and have a long service life.
