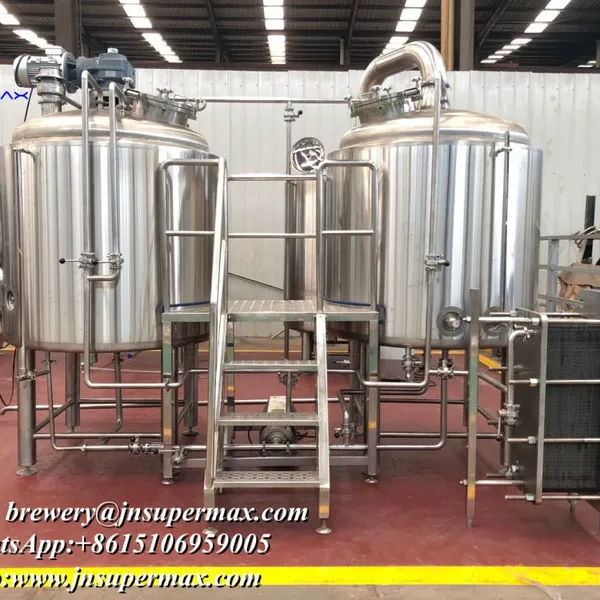

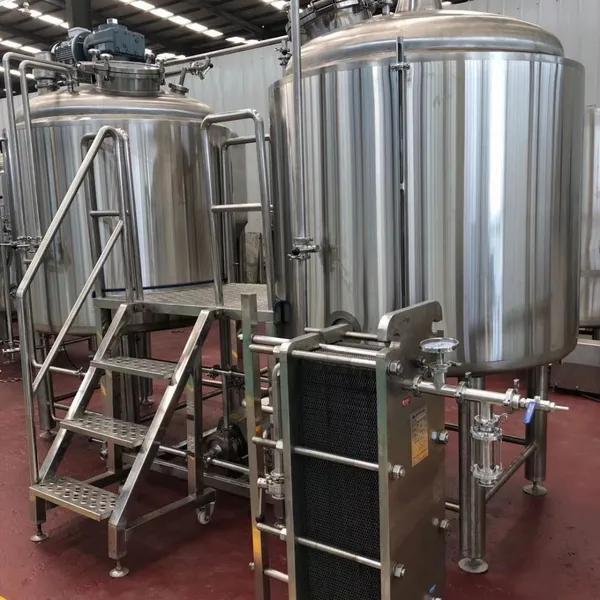

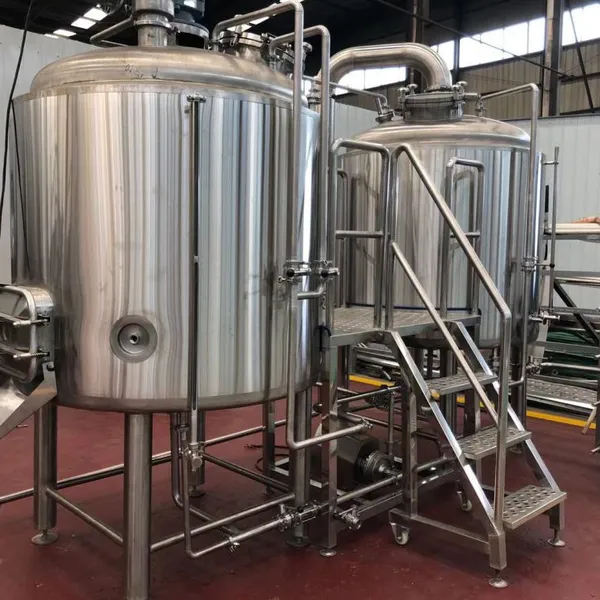

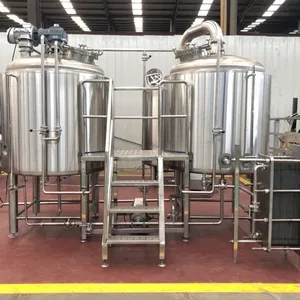

Help Center1000L 2Vessles Brewhouse+Hot Water Tank Craft Beer Equipment With Fermentation
Related Products
-
10BBL2Vessles Saccharification System+ Hot Water Tank + Fermentation TanksNegotiableMOQ: 1 Set -
5BBL American Style Brewhouse With 5BBL and 10BBL Fermentation Tanks for BreweryNegotiableMOQ: 1 Set
-
Semi-auto Beer Filler Bottle Capper Machine With 4 Heads 6 Heads 8 Heads 10 HeadsNegotiableMOQ: 1 Set
-
Semi-auto Beer Keg Washer Machine Double Heads With 3 Water TanksNegotiableMOQ: 1 Set
-
Industrial Fermentation Tank Small Beer Brewery Equipment Red Copper MaterialNegotiableMOQ: 1 Set
▷Specification
Two Vessles:Mash/latuer tank & Kettle/whirlpool tank & Hot water tank.
▷Aadvantages
1.High cost performance.
2.Good abrasion resistance materialcopper beer equipment.
3.We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
4.Polishing accuracy up to Ra0.4μ m .
5. Strict tank pressure test.
6. Energy conservation and pollution emissions.
Output/Brew |
|
Brew/Week | 6~12 |
Output/Week | 60~120HL |
Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz |
Heating Source | Steam/Directly Fired |
Area Request | >70M2 |
Brewmaster | 1 |
▷Introduction
Microbrewery or minibrewery is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. Such breweries are generally characterized by their emphasis on flavor and brewing technique. We offer a Microbrewery (mini brewery) with the productivity of 1000L (10 hl) to 5000L (50hl) per brew. The service includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete "turnkey" The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.
▷Configuration
1.Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger to directly lift the milled grain to mash tun
2.1000L Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel are popular because of easy maintenance and clean, copper cladding for optional
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings

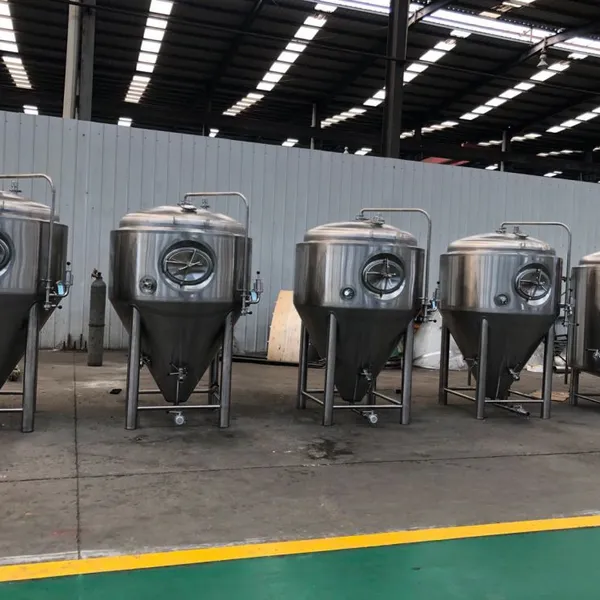

3.1000L or 2000L Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size or double size as brewhouse is common used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
4.Beer Filter Unit
Craft beer is no need filtration which will keg filling for quickly consumption
Plate-Frame or Candle type DE (diatomite earth) filter is used for clarify the beer
5.1000L or 2000L Bright Beer Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size or double size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included
6.Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryon to supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
7.Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
8.Beer Dispense
Keg filling and rinsing machine
Semiauto bottling machine with rinsing, filling, capping, labeling etc
Flash pasteurizer or tunnel pasteurizer is available
9.Other Facilities
Portable or fixed CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor
Brewery lab instruments for beer quality test
