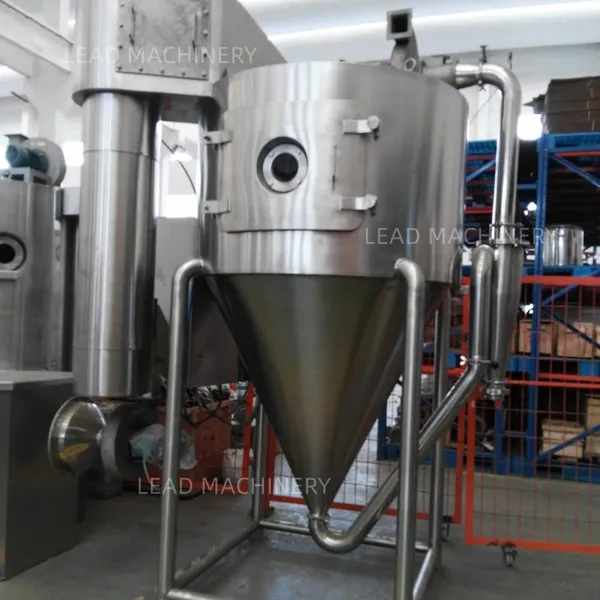

Help CenterGanoderma Lucidum Polysaccharide Centrifugal Spray Dryer, Polysaccharide Material Spray Dryer
Related Products
-
Amino Acid Rotary Flash Dryer. Flash Drying Equipment for the Food IndustryNegotiableMOQ: 0 Unit -
Continuous High-efficiency Rotary Flash Dryer for Kaolin Clay, Powerful Manufacturer, Easy to OperateNegotiableMOQ: 0 Unit
-
Soybean Meal Rotary Flash Dryer, Continuous Flash Dryer for the Feed IndustryNegotiableMOQ: 0 Unit
-
Lentinan Centrifugal Spray Dryer, Plant Extract Spray DryerNegotiableMOQ: 0 Unit
-
Aluminum Hydroxide Rotary Flash Dryer, a Special Drying Equipment for Filter Cake MaterialsNegotiableMOQ: 0 Unit

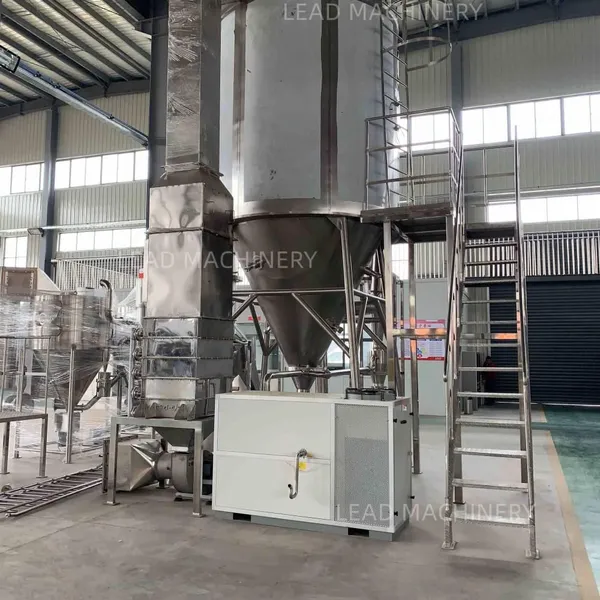

Overview of Centrifugal Spray Dryer:
The centrifugal spray dryer is a core equipment in modern industry that efficiently converts liquid materials into high-quality powders. Its working principle is that through a high-speed rotating centrifugal atomizer, the liquid raw materials are instantly scattered and stretched to form a fine mist net. At the same time, hot air is precisely introduced into the drying tower and comes into efficient co - flow or counter - flow contact with the mist droplets, so that the moisture evaporates rapidly within a few seconds, and finally a uniform and dry powder product is obtained.
The essence of this process lies in "instant drying". With extremely high heat and mass transfer efficiency, even heat - sensitive substances (such as proteins, probiotics or natural extracts) can be dehydrated at a relatively low temperature, thus maximizing the retention of their active ingredients and natural properties. By precisely controlling the atomizer speed, inlet air temperature and air flow mode, operators can flexibly control the particle size, moisture content, solubility and fluidity of the finished powder to meet the strict requirements of many fields, from food milk powder, pharmaceutical raw materials to high - end ceramic powders and nanomaterials.
Therefore, the centrifugal spray dryer is not only a drying technology, but also a precise powder manufacturing system. It realizes an elegant transformation from "liquid" to "powder" in an efficient, continuous and controllable industrial way, and is an indispensable key link in the modern production line that pursues product quality and process efficiency.
Flow chart of centrifugal spray dryer system
Application of Spray Dryer in the Drying of Ganoderma lucidum Polysaccharides:
The spray dryer is a very ideal and efficient technical choice in the drying process of Lentinan. It is especially suitable for converting the extracted and purified Lentinan solution into high - quality finished powder that is easy to store and apply.
Ganoderma lucidum polysaccharides are one of the most important bioactive components in Ganoderma lucidum, with multiple effects such as immune regulation, anti - oxidation and anti - tumor. The core value of spray drying in this process lies in:
Retention of activity: Ganoderma lucidum polysaccharides have a clear spatial conformation (triple - helix structure), which is the basis of their biological activity. The characteristic of "instant high - temperature and low - temperature of materials" in spray drying can minimize the breakage of polysaccharide chains, conformational changes and loss of activity caused by long - term heating.
Realize efficient solid - state transformation: Transforming the liquid extract, which is difficult to preserve and transport, into a solid powder with good fluidity, stable properties and easy for accurate measurement and use in one step is a key step in product commercialization.
Improve solubility and stability: The dried polysaccharide powder has a large specific surface area and a fast rehydration speed. The powder form isolates moisture and microorganisms, significantly extending the shelf life and avoiding the problems of easy mildew and degradation in liquid products.
Ensure product uniformity and quality: Through standardized processes, ensure that products from different batches are highly consistent in color, moisture, solubility, and active ingredient content.
Adapt to continuous large-scale production: Suitable for seamless connection with upstream extraction, filtration, and concentration processes to achieve automated and efficient continuous production.
Technical advantages of the spray dryer:
-
Fast drying speed
The atomized droplets have a small diameter (usually 20 - 150μm) and a large specific surface area. After contacting with hot air, they evaporate instantly (drying is completed within a few seconds), which is suitable for heat-sensitive materials.
-
High product quality
The powder particle size, moisture content, and fluidity can be controlled by adjusting parameters (inlet air temperature, atomization speed).
The material temperature is relatively low during the drying process, which can retain nutrients or active ingredients (such as proteins and probiotics).
-
Flexible process
It can process liquids with different viscosities and solid contents (solutions, emulsions, suspensions).
Adapt to various material characteristics by adjusting the atomizer structure (centrifugal disk, nozzle).
-
Continuous automated production
Equipped with a PLC or DCS control system to realize full-process automation of feeding, drying, powder collection, and tail gas treatment, which is suitable for large-scale continuous production.
-
Controllable powder physical properties
By adjusting process parameters, powders with high sphericity, good fluidity, and excellent solubility can be produced to meet the needs of downstream processing (such as tableting and mixed packaging).
-
Energy-saving and environmental protection
It has a relatively high thermal efficiency, and some models can integrate a waste heat recovery system.
Equipped with high-efficiency dust removal (cyclone separator + bag filter) and tail gas treatment devices to reduce dust emissions.
Industries suitable for centrifugal spray drying:
Food industry
Production of milk powder, soy milk powder, coffee powder, fruit juice powder, egg powder, yeast, and fruit and vegetable powder.
Drying of seasonings (such as soy sauce powder, yeast extract) and food additives (flavors, pigments).
Low-temperature drying of functional foods (probiotics, enzyme preparations) to protect active ingredients.
Pharmaceutical industry
Drying of raw materials such as antibiotics, vitamins, and traditional Chinese medicine extracts.
Preparation of spray-dried microcapsules for drug slow release or taste masking (such as granules, capsule fillers).
Chemical industry and materials
Granulation of dyes, pigments, ceramic powders, catalysts, and polymer particles (such as PVC, PE).
Preparation of precursors for nanomaterials and battery cathode and anode materials (such as lithium battery materials).
Environmental protection and bioengineering
Sludge drying in wastewater treatment and immobilization of microbial preparations (such as biopesticides).
Drying of bioactive products such as enzymes and single-cell proteins.
Other industries
Cosmetics (foundation, talcum powder), ceramic glazes, wettable pesticide powders, etc.
Technical parameters of centrifugal spray dryer
