Cable sock, also known as a pulling sock or conductor sock, is a specialized traction tool installed at the end of a cable. It is woven from high-strength steel wire rope or stainless steel wire into a sock-like structure that tightens further under tension, thereby firmly gripping the cable and enabling safe pulling.
🔧 Structure and Principle
• Material: Typically woven from double-layer galvanized or stainless steel high-strength steel wire rope, with an openable sock mouth for easy insertion of the cable.
• Structure: One or both ends are pressed into rings, double ears, or other connection loops for attaching the pulling rope or pulling equipment.
• Principle: Relies on the radial elasticity of the mesh structure; when force is applied, it automatically contracts and tightens around the cable, providing reliable pulling force and anti-slip capability.
🎯 Main Applications
1. Power Line Stringing: Used in overhead line construction to pull ACSR (aluminum conductor steel reinforced), insulated conductors, ground wires, etc.
2. Communication Installation: Used to pull optical fibers, optical cables, and other communication lines, and can smoothly pass through stringing blocks.
3. Equipment Maintenance: Used for replacing and laying cables inside power plants and substations.
4. Special Applications: As a hanging net or protective sleeve for suspending or protecting streetlight feeder cables, drainage pump cables, high-pressure oil pipes, etc., preventing wear and excessive stress.
✨ Key Features
• High Safety: Made of high-strength steel wire rope with breaking loads reaching tens of tons, far exceeding ordinary hemp ropes or iron wires.
• Strong Anti-Slip: The mesh structure automatically tightens under force, effectively preventing slippage.
• Cable Protection: The contact surface is relatively soft, significantly reducing damage to the cable’s outer sheath compared to direct pulling with steel wire rope.
• Easy Operation: Light weight, good radial flexibility, easy to install and remove, and reusable.
• Strong Adaptability: Can smoothly pass through various pulleys and curved conduits, suitable for medium- and short-distance pulling operations.
📏 How to Select
1. Match Cable Diameter: Choose based on the outer diameter of the cable or optical cable. Sock specifications usually cover a range (e.g., 38–60 mm); ensure the cable’s outer diameter falls within this range—too large causes slipping, too small prevents proper fitting or damages the cable.
2. Match Pulling Force: Select according to the maximum pulling force required. Ensure the sock’s rated breaking load is much greater than the maximum pulling force during construction, leaving sufficient safety margin.
3. Match Usage Environment:
• Outdoor/Moist Environments: Prefer stainless steel material for corrosion resistance.
• Long-Term Submersion: Must use all-stainless steel socks.
• Special Media: For protecting high-pressure oil pipes, use dedicated oil pipe socks.
📝 Usage Methods
1. Traction End Installation (Standard Method)
1. Inspection: Confirm the sock specification matches the cable and check for broken wires, rust, or other defects.
2. Insertion: Place one end of the cable into the sock through the open mouth, ensuring the sock covers the section of cable that will bear the load.
3. Connection: Connect the pulling rope or pulling equipment to the connection loop at the sock’s end.
4. Pre-Tightening: Gently pull the rope to initially tighten the sock and confirm correct positioning.
5. Pulling: During pulling, keep the cable, sock, and pulling rope as straight as possible; avoid sudden stops, rapid acceleration, or lateral forces.
2. Semi-Open Sock Installation (Wrap Method)
1. Wrapping: Wrap the semi-open sock around the cable like a piece of cloth.
2. Threading: Pull the pulling rope out from one end of the sock, then thread it in and out sequentially across the sock like tying shoelaces, gradually tightening it.
3. Fixing: After the rope exits, wrap the remaining rope around the cable tail several times and tie a knot to secure it.
4. Completion: Keep the mesh even while tightening to ensure uniform force distribution.
3. Steel Wire Rope Connection Method
1. Insertion: Insert the two steel wire ropes to be connected into opposite ends of the hollow sock.
2. Pulling: Through pulling, the sock contracts and tightly clamps the steel wire ropes, achieving flexible connection.
3. Removal: Push the sock in reverse to easily disassemble it for reuse.
⚠️ Safety Precautions
• No Overloading: Ensure the pulling force remains within the sock’s rated load capacity; overloading is strictly prohibited.
• Condition Check: Before each use, inspect the sock for damage; immediately discard if broken wires, severe rust, or cracks at crimp joints are found.
• Standard Operation: During pulling, personnel must not stay or walk under the pulling rope or cable.
• Avoid Damage: Prevent the sock from rubbing against sharp objects to avoid damaging the cable’s outer sheath.
• Environmental Adaptation: In moist or corrosive environments, select socks with appropriate protection levels (e.g., stainless steel).
• Professional Construction: For high-voltage, large-section cables, or complex environments, work should be carried out by professionals with a specific plan.
Product Description
Achieve safe, efficient, and reliable cable installation with our professional cable handling toolkit, combining robust materials, precise engineering, and versatile designs for electrical, construction, mining, and utility projects worldwide.

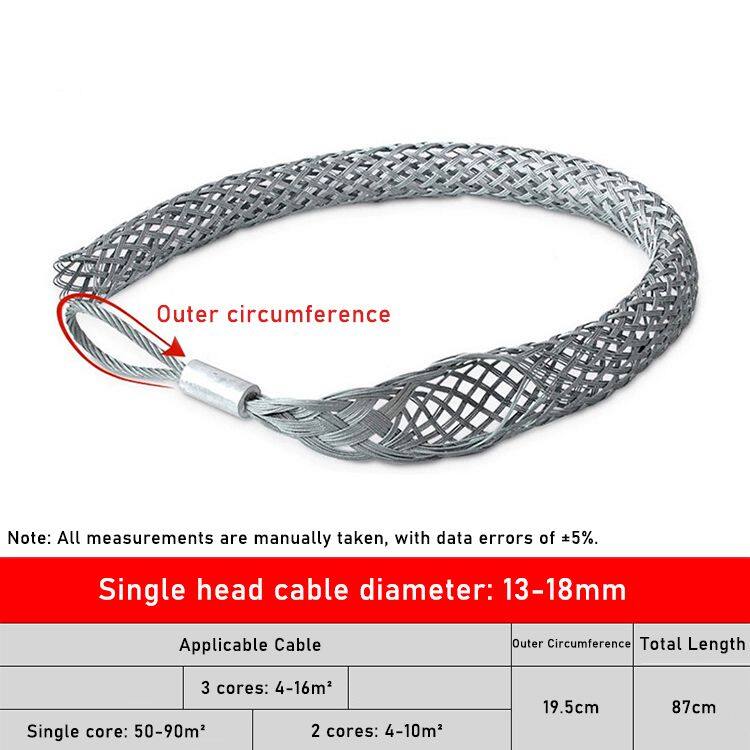

Steel Wire Mesh Cable Pulling Grip (Single‑Head Design)
Crafted from interwoven steel wires forming a strong, durable mesh, this grip features a single‑headed design with an outer circumference of 19.5 cm and a total length of 87 cm. One end is fitted with a metal sleeve for secure attachment to pulling equipment. Suitable for multiple cable types:
3‑core: 4–16 mm²
Single‑core: 50–90 mm²
2‑core: 4–10 mm²
Applicable single‑head cable diameter: 13–18 mm. All measurements are manually taken with a possible data error of ±5%. The silver finish stands out against a white background, with key data clearly marked in red and black text. Ideal for electrical installation and maintenance, ensuring efficient and safe cable pulling operations.

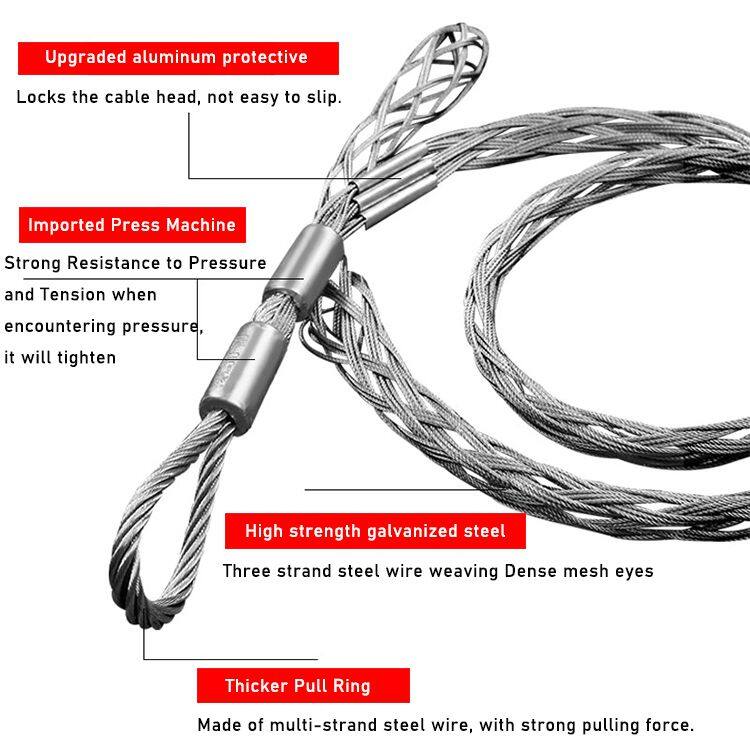

High‑Strength Galvanized Steel Cable Pulling Grip
Built for maximum reliability, this grip is made from high‑strength galvanized steel using a three‑strand steel wire weaving dense mesh eyes design. The upgraded aluminum protective part at the top locks the cable head firmly, preventing slippage. The connection point is processed by an imported press machine, providing strong resistance to pressure and tension — it automatically tightens when pressure is encountered. The thicker pull ring, made of multi‑strand steel wire, ensures a strong pulling force for demanding rigging tasks. Presented on a clean white background to highlight features clearly.
Changyun Tech High‑Strength Cable Pulling Sock
A high‑performance solution for cable management, this sock features a unique braided structure made of durable materials. Designed to be lightweight yet firm, it ensures easy handling during cable installation. Its wear‑resistant and tensile‑resistant properties make it suitable for various harsh environments. With strong toughness, it protects cables effectively. Available in complete specifications and supporting customization, it meets diverse project needs.

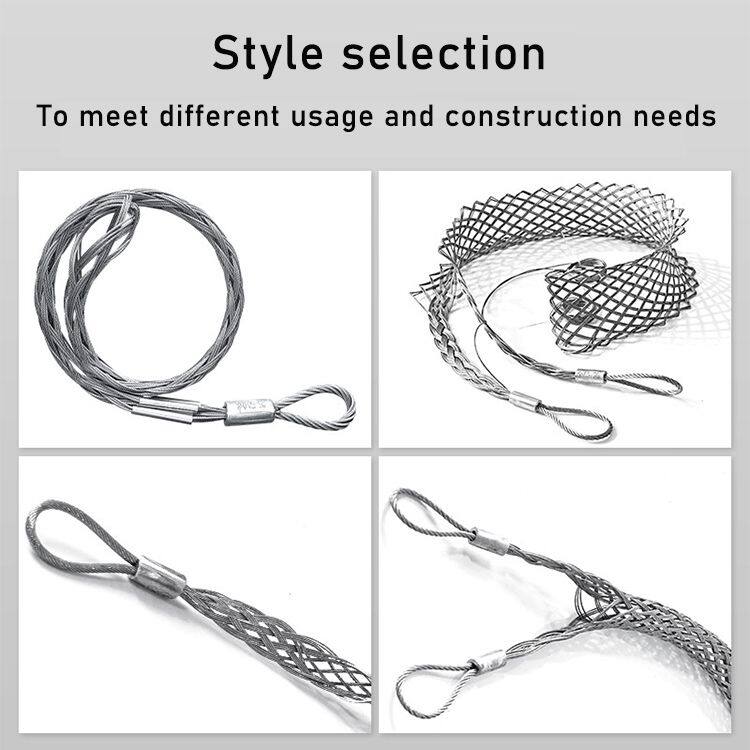

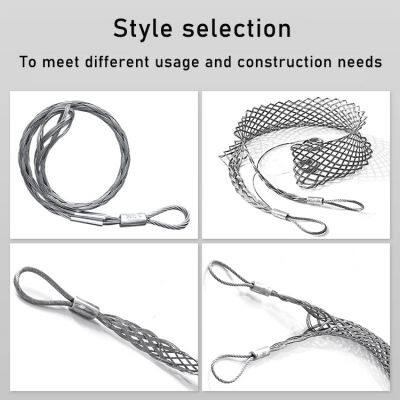

Wire Rope Pulling Grip with Style Selection
This grip features a braided steel wire mesh structure that securely encases and protects cables during pulling. Its tapered design allows smooth insertion and reduces cable abrasion. Two metal thimbles are attached at both ends via swaged sleeves, providing reinforced loops for connecting to pulling equipment or anchor points. The clean white background and diagonal lighting emphasize its metallic texture and precise engineering. Marketed with “Style selection” and “To meet different usage and construction needs,” it is robust yet flexible, suitable for various cable diameters and construction environments.
All products are engineered for global industrial use, delivering secure grip, abrasion protection, and customizable options trusted by professionals in electrical, construction, and offshore sectors.
