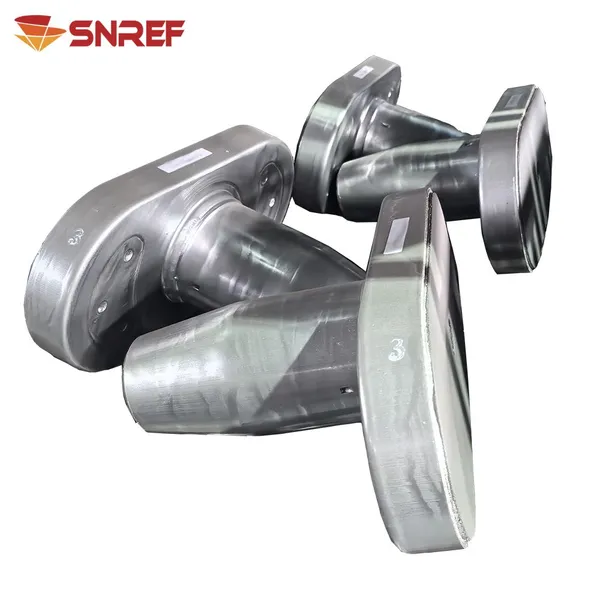

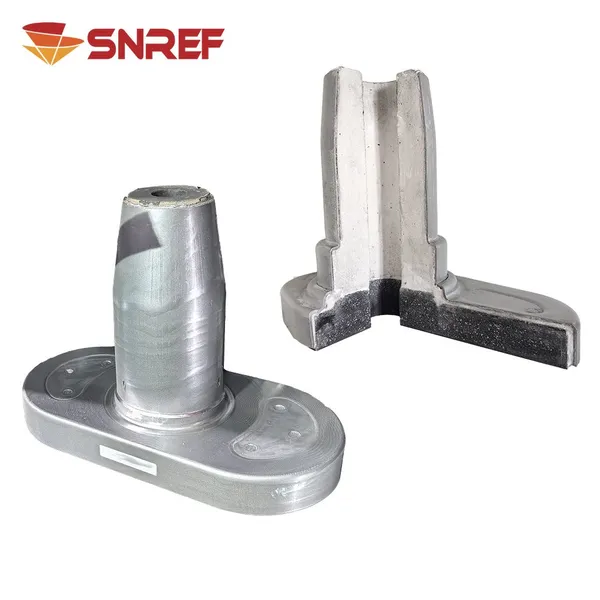

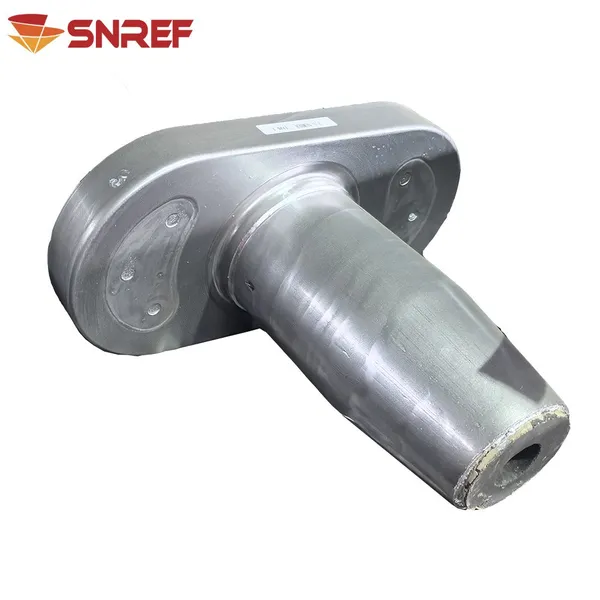

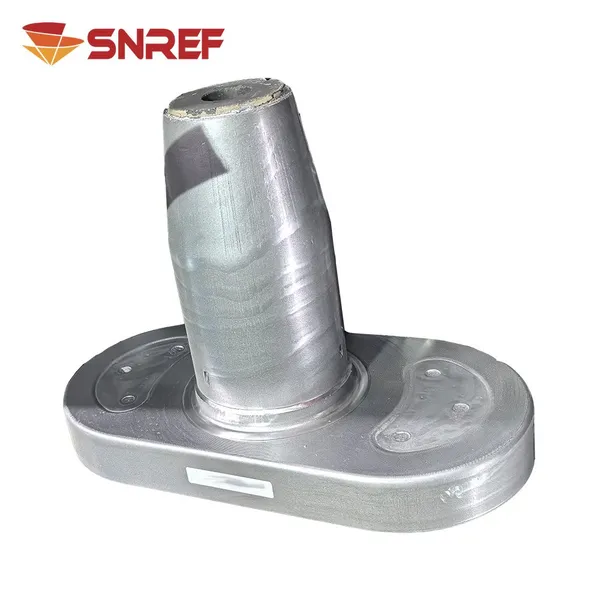

Flocon 4200 Refractory Slide Plate for Steel Making
Flocon 4200 Refractory Slide Plate for Steel Making
Product Description
SINOREFRACTORY / SNREF sliding gate plate & ladle nozzle & collector nozzle -ladle refractories sets
Ladle slide gate plate refractory brick can be preinstalled / pre-assembly with nozzle according to your metallurgy steel making condition and demands.
Slide gate plate is the key part in the slide gate systems.
Function is to control the flow rate of molten steel.
1.Slide gate plate and nozzle system
Model: 1QC 2QC, 1BK,2BK, C51. LQ60/80/, LS50/70/90, LG20 21 22(VSV374 421 441),FLOCON 4200/6300/ B50/250, LQLV50/150/180 ....
Small Size Slide plate-----Al-C;
Middle & Large size slide plate-------AL-Zr-C; Al-C; or Both.
Special Steel (Ca-treatment steel)------Al-Spinel ; Mg Spinel .
Ladle nozzle: Al-C; Al-Zr-C; Al-Spinel....
2. Service Result for slide gate plate and nozzle system:
Service life depends on many points:
1)Different Raw Material,
2)Production Process(Firing temperature, oil immersion, drying temperature...)
3)Steel type
4)Steel making condition
5)Different operation mode
And so on....
3. Type of production design
1) High Temperature Burnt Slide Gate Plate and ladle nozzle system
High performance ladle slide gate plate refractories adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. Mainly used in large and medium-sized ladles.
2) Low Temperature Burnt Slide Gate Plate and nozzle system
Tabular alumina, zirconia-containing material and spinel as major raw materials, adding in special metal, using phenolic resin as binder, being burned under low temperature to produce the products, Mainly used in small and medium-sized ladle.
3) Un-burned Slide Gate Plate and nozzle system
Without the process of burned, tar impregnated and distilled, simple processing. Mainly used in small and medium-sized ladle.
4. Advantage of Our slide plate and nozzle system
Our Slide Gate Plate refractory adopts High quality bauxite material , also takes tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc., mainly used in large and medium-sized ladle.
The slide plate is exposed to high temperature molten steel repeatedly, especially the cast hole part, the erosion is serious, this require the slide plates obtaining features of High strength, excellent corrosion resistance, anti-stripping, to ensure no steel leak during pouring process.
The features of SINOREFRACTORY Slide gate plates:
1. Flatness of sliding surface ≤0.05mm
2. High mechanical strength
3. High resistance to contamination of molten steel and slag
4. Excellent oxidation resistance
5. Good thermal shock stability
Detailed Photos
Packaging & Shipping
Product Parameters
| Product Name | A.P.P | B.D. | C.C.S | MgO | Al2O3 | C |
| 4200 upper slide gate plate | ≤8 % | ≥2.95 g/cm3 | ≥70MPa | ≥83% | ≤12% | ≥0.5% |
| 4200 lower slide plate and nozzle | ≤8 % | ≥2.95 g/cm3 | ≥70MPa | ≥83% | ≤12% | ≥0.5% |
| 4200 upper nozzle | ≤8 % | ≥2.95 g/cm3 | ≥70MPa | ≥83% | ≤12% | ≥0.5% |
Company Profile
Shandong Sinorefractory New Materials Co.,Ltd (SinoRefractory)has been focusing on international marketing of flow control refractories in iron and steel industry for 17 years.
SinoRefractory is the second generation of refractories export enterprise developed out of EMEI Group.Supported by one of China's largest production bases in functional refractory materials.
Through years of development in the field of exporting top quality refractories to worldwide markets,SinoRefractory aims at researching,producing,marketing and exporting high standard Ladle slide gate plate,Ladle Nozzles,Well blocks,Purging plugs,Nozzle stuffing sand,Refractory castables, Slide gate Mechanisms etc.
Up to now,SinoRefractory has supplied high quality refractory products and services to nearly 70 top-hundred global steel enterprises.
SinoRefractory will always put clients'interest in the first place,striving to provide a wide range of services,including technical solution,pre-sales support,after-sales services,installation team support,professional know-how according to the changing of steelmaking condition,etc.
We are not only selling products,we are more focused on supporting,developing and growing together with clients.
FAQ
Below are some FAQ and answers about ladle and tundish flow control refractories:
Q: What are the requirements for refractories for ladle?
A: The requirements of refractories for ladle mainly include:
* high temperature resistance
* thermal shock resistance
* resistance to the erosion of the slag
* high temperature with sufficient mechanical strength
* the lining has a certain degree of expansion
Q:What are the reasons for the destruction of refractories for ladle?
A: The main causes of damage are as follows:
When the ladle transports high-temperature molten steel, the high-temperature molten steel and slag at about 1680ºC scour and erode it, especially in the slag line part, the scouring and erosion is more serious, and it is an important factor to decide the service life of the ladle.
LF and other extra-oven refining treatment on the unburnt brick damage is serious.
Q:What steel grades are different materials of slide plate bricks suitable for respectively?
A: Q:What steel grades are different materials of slide plate bricks suitable for respectively?
A: Different materials of slide plate bricks are applicable to different steel grades. For example,
Al2O3-ZrO2-C slide gate plate can be used as ladle sliding gate plate due to its excellent erosion resistance and thermal shock stability, which can adapt to the casting of various steel grades, and ther are the following materilas based on customer's steel making condition: the MgO-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, and so on.
For more details, feel free to send inquiry to us.
