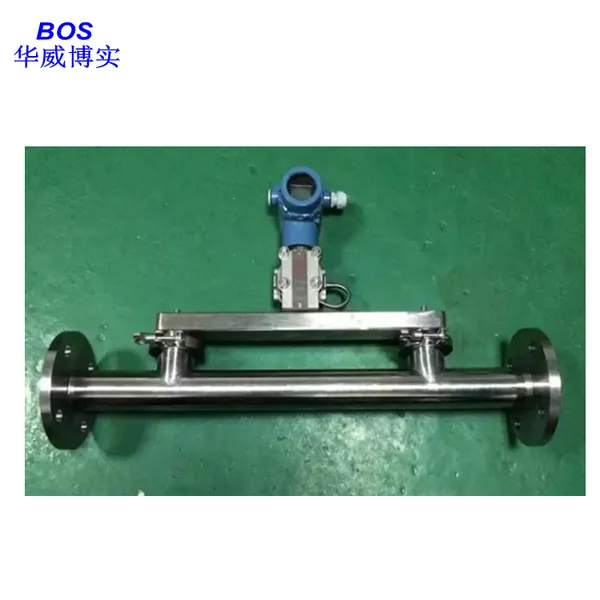

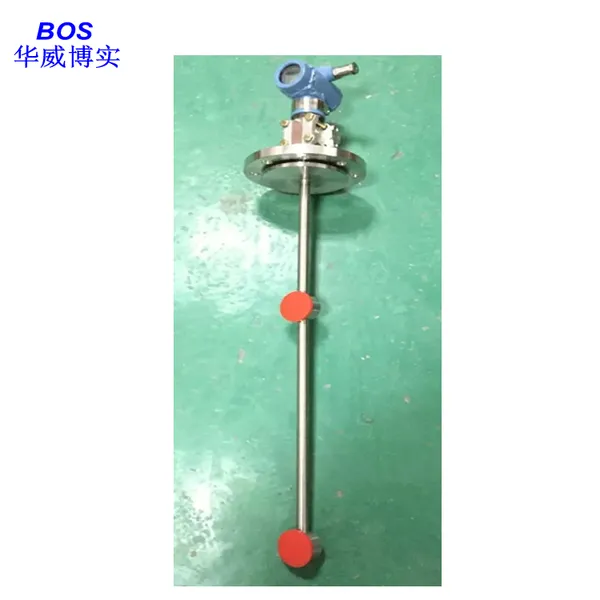

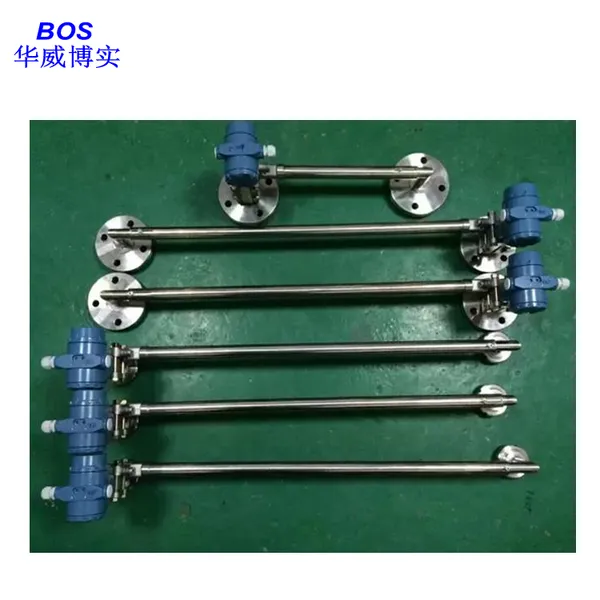

Help CenterOnline Densitometer BOS-3051MD, Flange Installation Type, Produced by Qingdao Huawei Boshi
Related Products
-
Intelligent Differential Pressure Transmitter BOSMX2, Measuring Non-corrosive Gases, Small RangeNegotiableMOQ: 10 Pieces -
Local Display, Battery-powered Turbine Liquid Flowmeter LWGY, Produced by Qingdao Huawei BoshiNegotiableMOQ: 10 Pieces
-
Wind Differential Pressure Transmitter, Gas Pressure/differential Pressure Transmitter, Produced by Qingdao Huawei BoshiNegotiableMOQ: 10 Pieces
-
Magnetic Flip-board Level Gauge, Produced by Qingdao Huaweibo Shi Instrument and Meter Co., Ltd., ChinaNegotiableMOQ: 10 Pieces
-
BOS-P Pressure Transmitter, Manufactured by Qingdao Huawei Boshi Instrument, Shandong, ChinaNegotiableMOQ: 1 Piece
I. Product Overview:
The BOS-3051MD series online densitometers can conduct online density measurement for various liquids or liquid mixtures. They are widely used in the petrochemical industry for petroleum, oil refining, oil blending, and oil-water interface detection. In the food industry, they are applied in production sites such as grape juice, tomato juice, fruit syrup, vegetable oil, and soft drink processing. They are also used in the dairy industry, paper industry for testing black pulp, green pulp, white pulp, and alkaline solutions, as well as in industries like wine alcohol content testing and chemical urea production.
II. Technical Indicators:
4~20mA current output. Optional digital signal (HART protocol)
16~30VDC power supply. It is recommended to use 24VDC.
Density range: 0～2 g/cm³; 0~3 g/cm³
Accuracy:0.5%
Resolution: 0.001 g/cm³
Temperature range: 0～80℃
Ambient temperature: -10～60℃
-
Humidity range: 0-90%
