Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Raythink RT400 Expert Thermal Camera 35mK NETD New-generation Detector Sharp Thermal Images
Raythink RT400 Expert Thermal Camera 35mK NETD New-generation Detector Sharp Thermal Images
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
RT400 Thermal Camera Android OS Trend Analysis, Area Measurement Full-scene AnalysisNegotiableMOQ: 50 Pieces -
RT400 Professional Thermal Camera - New-generation Detector Sharp Thermal ImagesNegotiableMOQ: 50 Pieces
-
Raythink RT400 Expert-level Thermal Camera Clear Thermal Images Full-scene Analysis ToolNegotiableMOQ: 50 Pieces
-
Raythink RT400 High Performance Thermal Camera Trend Analysis Area Measurement Expert ToolNegotiableMOQ: 50 Pieces
-
RT400 Thermal Imaging Camera 35mK NETD Hotspot Detection Android SystemNegotiableMOQ: 50 Pieces
RT400 Expert Thermal Camera
Equipped with a new-generation detector with a NETD as low as 35mK, the new RT400 can capture more subtle hotspots, and display sharper and cleaner thermal images.
The device has rich and powerful features such as Android OS, trend analysis, and area measurement.
It is a new strong tool for expert-level full-scene analysis.
Feature
Clear Thermal Images, Precise Temperature Measurement
Equipped with a 12μm uncooled infrared detector, with a resolution of 480×360, supporting super resolution.
NETD is as low as 35mK, and temperature measurement precision is ±2°C or ±2% of reading (whichever is the maximum value).
Various Lenses And Fast Focusing
Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.
Support macro lenses, flexible for diverse scenarios.
Functional Upgrade To Improve Efficiency

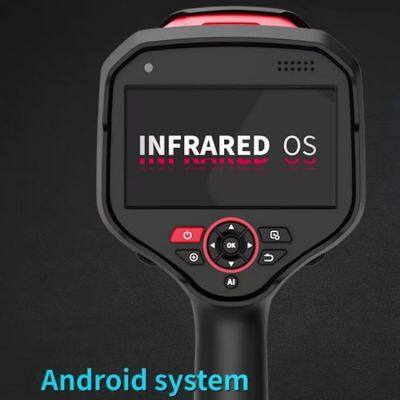

Android operating system, more convenient to operate
Support intelligent image stabilization, making temperature measurement images more stable
Support laser rangefinding and area measurement.

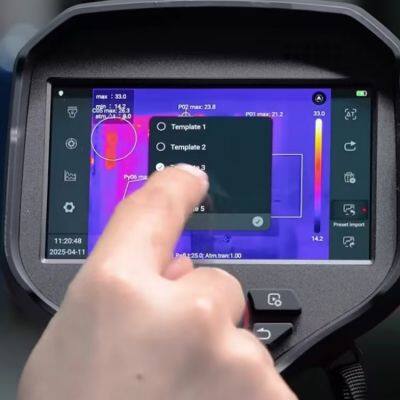

Support up to 15 points/lines/areas to analyze more temperature details in the screen.
Specification
| Thermal Imaging | |
|---|---|
| Detector TypeUncooled infrared detectorInfrared Resolution480×360Pixel Size12μmSuper Resolution960×720Spectral Band7.5-14μmThermal Sensitivity (NETD)＜35mK (25°C,F1.0)Frame Rate25HzLens Focal LengthStandard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13mm; super macro lens (0.4×): 14.8mm.FOVStandard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; widSpatial Resolution (IFOV)Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm.Focusing ModeManual focus, electric focus, laser-assisted focus, continuous automatic focusMinimum Imaging DistanceStandard lens: 0.4m; super telephoto lens: 4m; telephoto lens: 3m; wide-angle lens: 0.2m; macro lens: 39mm; super macro lens: 19mm;Measurement Range-20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°CMeasurement Accuracy±2°C or ±2% of readings, whichever is greater | |
| Imaging Display | |
| Display5-inch OLED touch screen, resolution 1280×720Visible Light Camera13 megapixelsDigital Zoom1× ~ 10×Palettes19 optionsImage ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchSupport | |
| Measurement and Analysis | |
| Analysis Functions on the DeviceSupport up to 15 movable points, lines, frames, circles and polygons, and up to 5 preset modesLaser RangefindingSupportArea MeasurementSupportHygrothermographSupportPositionSupportTemperature Difference AnalysisSupportTrend AnalysisSupports temperature trend recording and analysis.Image FreezingSupportAnalysis ReportPDF format. Support editing and template importing on the PC client.Supporting SoftwarePC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) | |
| Image Storage | |
| Storage MediumStandard 64GB Micro SD, Support SD, SDHC, SDXC,up to 2TBText NotesSupportVoice AnnotationSupport | |
| Video Functions | |
| Radiation Infrared Video RecordingSupport compressed full radiation video recording (.irv), up to 25Hz video recording.Non-radiation Infrared or Visible Light Video RecordingStandard MP4 video recordingRadiation Infrared Video Stream TransmissionTYPE-C/WLAN connection to PC, for real-time transmission of radiation infrared video streamsNon-radiation Infrared Video Stream TransmissionRTSP H.264Video Resolution1280×720 | |
| System Functions | |
| Intelligent Image StabilizationSupportIntelligent Panoramic StitchingSupport panoramic stitching on the PC client, and one-click synthesis.Intelligent Routine InspectionSupport. General task package import and editing, standard and automatic naming of imagesRoutine Inspection Record Self-inspectionSupportDual-Spectrum Video RecordingSimultaneous infrared video and visible light video recording, in MP4 format.Communication ProtocolWi-Fi, Bluetooth, USB, DP, Type-C to HDMIVoice ControlVoice assistant, quick command recognitionFlashlightSupport | |
| Others | |
| Microphone/SpeakerSupportBattery LifeContinuous operating time ≥ 6 hours (depending on the actual environment and service conditions)InterfaceUSB3.0 Type-C, SD card, SIM card, Mini HDMITripod SocketUNC 1/4-20 interface for tripodOperating Temperature-20°C~+55°COperating Humidity10%~95% (non-condensing)Storage Temperature-40°C~+70°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 1.3kg (with battery), 144×129×307mm (subject to actual situations)AuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, standard lens, lithium-ion battery×2, charging stand, charger (with plug for use in multiple countries), charging cable, Bluetooth headset, SD card 64G, Type-C cable, lens hood, mold drawing, data download card, calibration certificate, certificate of qualification, hand strap (with buckle), safety box, lens cap (with screws). | |
Application Scenarios
| High Temperature Material Monitoring | Electronic and Electrical R&D | Electric Routine Inspection | Chemical Operation and Maintenance |
