RM620 Handheld Thermal Camera
RM620 is equipped with a 12μm infrared detector, which brings 640×512 high-resolution infrared thermal images and a high sensitivity of 35mK to easily capture small hot spots.
With a temperature measurement range extendable to 650°C, the device is suitable for electric routine inspection, electronic circuit design, HVAC, industrial manufacturing, petrochemical industry, photovoltaic testing, and many other fields.
Feature
High-Definition Thermal Images, Capturing Subtle Hot Spots
Equipped with a self-developed 640×512 high-pixel 12μm advanced-technology detector.
Capable of distinguishing 0.035°C temperature difference, IFOV as low as 0.63mrad, easily capturing subtle hot spots.
Smart Upgrade For You To Handle Complexity With Simplicity
Support intelligent shooting, user customization, import and distribution of inspection task packages, simplifying the task process and improving routine inspection efficiency.
Support temperature trend analysis, helping users observe temperature distribution and changes in real time.
Support isotherm function to highlight the temperature segments or areas that need attention.
Support analysis software on the PC client and secondary analysis of video files.
Upgraded Performance For More Application Scenarios
-20°C~+650°C wider temperature range, suitable for more industrial temperature measurement scenarios.
IP54 and 2m drop protection, solid and durable.
Standard 32GB Micro SD card, expandable to 512GB, supporting temperature video recording.
Specification
| Thermal Imaging | |
|---|---|
| Detector TypeUncooled infrared detectorInfrared Resolution640×512Pixel Size12μmSpectral Band7.5-14μmThermal Sensitivity (NETD)＜35mK (25°C,F1.0)Frame Rate30HzLens Focal Length19mmFOV23°× 18°Spatial Resolution (IFOV)0.63mradFocusing ModeManual focusingMeasurement Range-20°C~+150°C; 100°C~650°CMeasurement Accuracy±2°C or ±2% of readings, whichever is greater | |
| Imaging Display | |
| Display3.5-inch touch screen, 640×480 resolutionVisible Light Camera5 megapixelsDigital Zoom1×, 2×, 4×, 8×Palettes10Image ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchAutomatic/Manual | |
| Measurement and Analysis | |
| Analysis Functions on the DeviceCustom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature displaySupporting SoftwarePC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) | |
| Image Storage | |
| Storage MediumStandard 32GB MicroSD, up to 512GText NotesSupportVoice AnnotationSupport | |
| Video Functions | |
| Radiation Infrared Video RecordingSupportNon-radiation Infrared or Visible Light Video RecordingSupport | |
| System Functions | |
| Intelligent Routine InspectionSupportCommunication ProtocolWi-Fi, USBVideo TransmissionSupport UVC video transmissionLaser PointerSupport | |
| Others | |

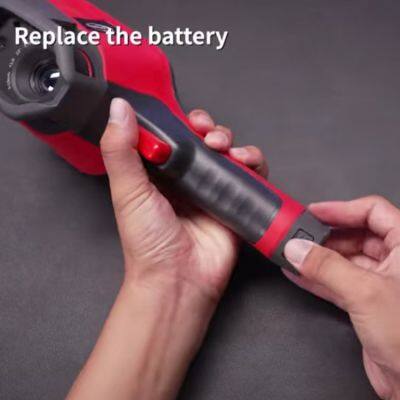

| BatteryRechargeable and detachable lithium-ion batteryCharging ModeUSB Type-C or desktop chargerBattery LifeAbout 6h (about 3h for a single battery)InterfaceUSB Type-C, SD cardTripod SocketUNC 1/4-20 interface for tripodOperating Temperature-10°C~+50°COperating Humidity10%~95% (non-condensing)Storage Temperature-20°C~+60°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 680g, 258.4×105.1×102.3mmAuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, safety box | |
Application Scenarios
|
Circuit Design |
Construction Inspection |
Electric Routine Inspection |
Industrial Manufacturing |
