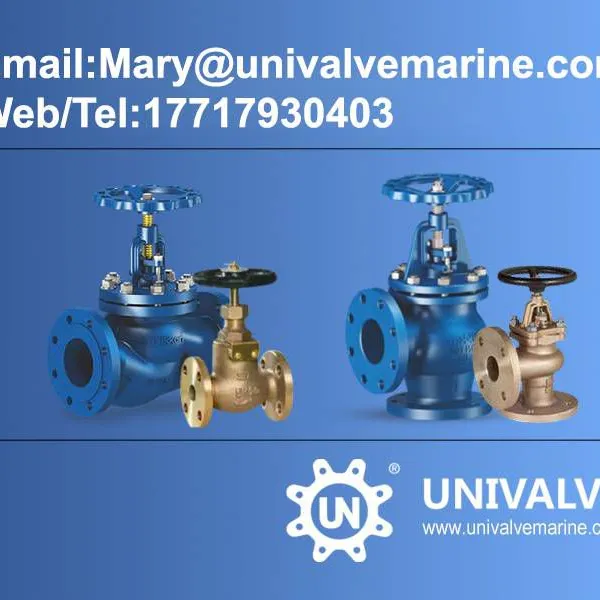

I. Product Overview
The marine valve flange F7319 JIS 10K cast steel globe valve is a valve product specifically designed for ship pipeline systems. It is manufactured in accordance with the JIS (Japanese Industrial Standards) F7319 specification and has a pressure rating of 10K. The valve body is made of cast steel, ensuring high strength and corrosion resistance of the valve. This valve is widely used in the fresh water system, sea water system, fuel oil system, and compressed air system of ships.
II. Product Features
High strength and corrosion resistance: The valve body is made of high-quality cast steel, which has high strength and excellent corrosion resistance, and can adapt to harsh marine environments.
Sealing performance: This valve uses advanced sealing technology to ensure excellent sealing performance in the closed state and effectively prevent fluid leakage.
Compact structure: The design of the globe valve makes the overall structure compact, occupying little space, and facilitating installation and maintenance in the ship pipeline system.
Easy to operate: The valve operates flexibly, with moderate opening and closing torques, allowing crew members to easily carry out daily operations and maintenance.
Multiple connection methods: It provides multiple connection methods such as flange and welding to meet the connection needs of different pipeline systems.

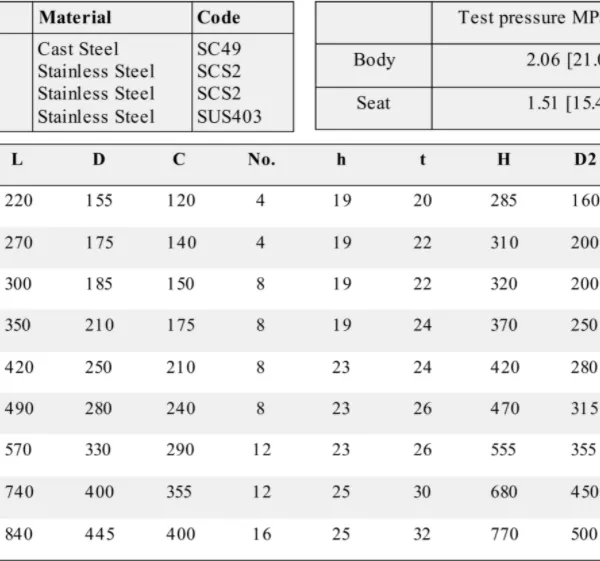

III. Technical Parameters
Nominal pressure: 10K (the specific pressure value is determined according to the JIS standard).
Nominal diameter: DN50 to DN300 (the specific diameter is selected according to customer needs).
Applicable media: Fresh water, sea water, air, fuel oil, and other gases, etc.
Temperature range: Depending on the specific model and material, the applicable temperature range varies, but it usually meets the needs of ship pipeline systems.
Connection method: Flange connection (other connection methods such as welding are also provided).
Driving method: Manual (pneumatic, hydraulic, or electric driving methods can also be provided according to customer needs).
IV. Application Scenarios
The marine valve flange F7319 JIS 10K cast steel globe valve is widely used in the pipeline systems of various types of ships to control fluid flow, regulate flow rate, and prevent fluid backflow, etc. It plays an important role in the fresh water system, sea water system, fuel oil system, and compressed air system of ships.
V. Installation and Maintenance
Installation: When installing the valve, ensure that the connection between the valve and the pipeline system is well-sealed, and install and commission it in accordance with relevant specifications. At the same time, pay attention to the installation position and direction of the valve to ensure its normal function.
Maintenance: Regularly inspect and maintain the valve, including cleaning the inside of the valve, replacing sealing materials, checking the valve stem and transmission mechanism, etc. When problems such as leakage or damage are found in the valve, repair or replace it in time.
