Help CenterSupply of Stainless Steel Wire Drawing Machines, Stainless Steel Sanding Machines, and Aluminum Plate Wire Drawing Machines
Related Products
-
Steel Plate Film Applicator, Glass Film Applicator, Protective Film ApplicatorUS$ 1615.38MOQ: 1 Unit -
Lacquered Panel Film Laminating Machine, Glass Film Laminating Machine, Protective Film Laminating Machine, Veneering MachineUS$ 1507.69 - 1538.46MOQ: 1 Unit
-
Stamping Parts Grinder for Deburring, Surface Rust Remover, Oxide Scale Remover; Styles of Deburring MachinesUS$ 14769.23 - 15076.92MOQ: 1 Piece
-
Disk Brush, Fluffing, Swinging Left and Right, Fluffing Equipment Adhesion, Cohesion, Mechanical EquipmentUS$ 7692.31MOQ: 1 Unit
-
Wire Drawing Machine, Aluminum Plate Wire Drawing Machine, Copper Plate Wire Drawing Machine, Stainless Steel Plate Wire Drawing MachineUS$ 11230.77 - 11538.46MOQ: 1 Piece

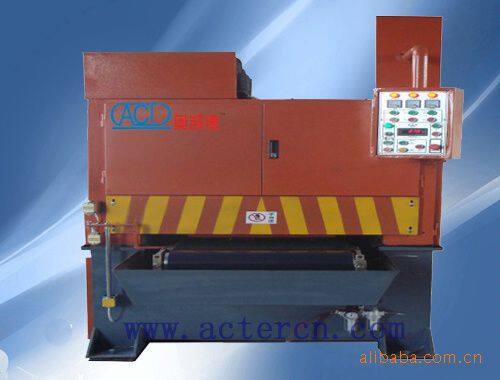

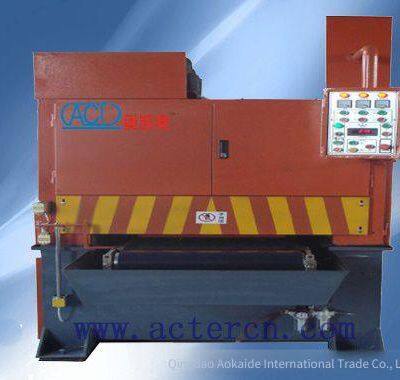

This model is mainly used for frosting, grinding stainless steel coils, sheets and other metal plates, It is used for grinding stainless steel strips and sheets, laminated steel plates, aluminum plates, copper plates and various other decorative plates, plastic plates, insulation plates and building templates, etc.,Frosted,Wire drawing (SB,NO.4Short filaments, snow filaments orHL straight filaments). Due to the adoption of a water or cutting fluid circulation device, the workpiece will not be deformed due to heat, which can improve the sanding effect and extend the service life of the sanding belt. At the same time, this model is the main component of the stainless steel sanded plate production line.
Machine model |
| MS4RB |
Workpiece to be processed ((The whole piece weighs 50kg or less) | Thickness | 0.5-20mm |
Length | Greater than 350mm | |
Width | 600mm | |
Abrasive belt | Linear speed | Approximately 18 m/s, |
Dimensions (width x circumference) | Approximately 430x1900mm | |
Roller brush | Rotation speed | Approximately 1400 revolutions per minute, variable frequency speed regulation |
Dimensions (width x circumference) | Length is approximately 400mm, outer diameter is 200mm | |
Conveyor belt | Speed (stepless speed regulation) | Approximately 5 - 20m/min, stepless speed regulation |
Dimensions (width x circumference) | Approximately 400x3650mm | |
Motor power （KW） | Sanding frame | 5.5kw |
Roller brush | 2.2KW,Constant speed | |
Conveying device | 1.5kw | |
Lifting drive | 0.37KW | |
Total weight |
| Approx. 1,200kgs |
| Address: | Chengyang District, Qingdao City |
| Phone: | 0532-82607675、18653281003 |
| Fax: | 0532-87764933 |
| Email: | aokaide@126.com |
| Website: |
