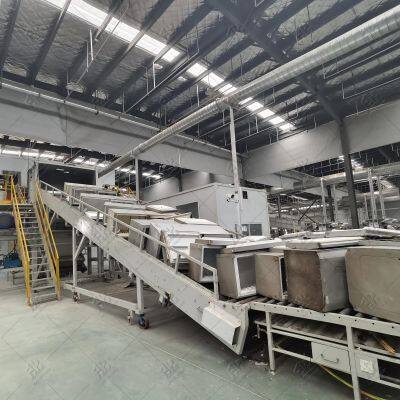

Refrigerator shredding machine Freezer waste recycling machine

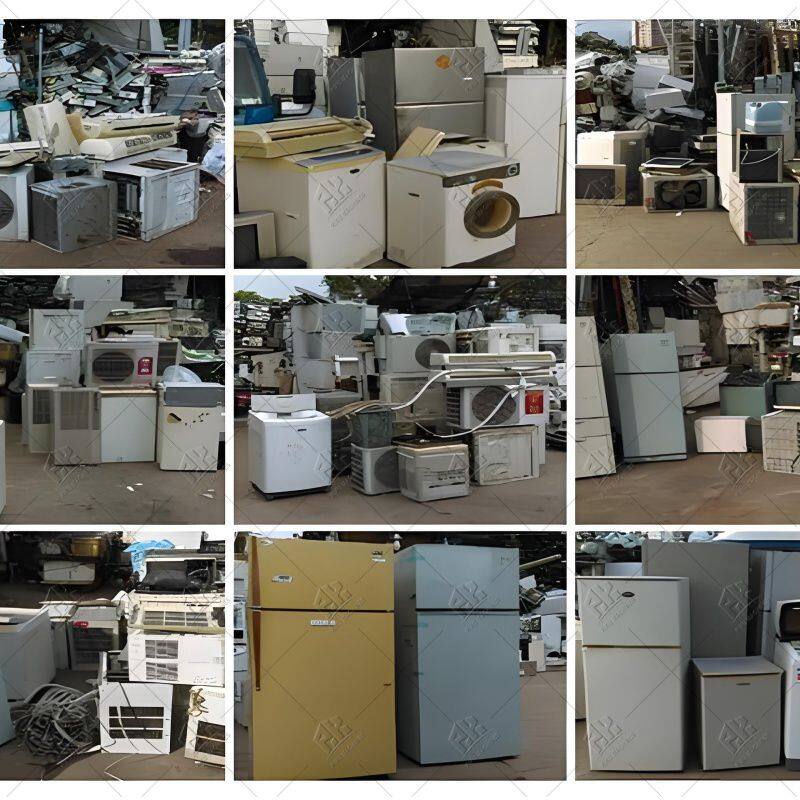

Refrigerator waste recycling machine is widely used into the dismantled home appliance, such as the TV sets, air conditioner, washing machine, computer scrap etc through the shredding machine to achive the final products 50*50mm. Then the secondary hammer mill crusher will separate the plastic, ferrous, non- ferrous metal, and the foam from the outlook.
The ferrous metal will be sorted by the magnetic separator , the foam will be collected by the cyclone, and the cold technology foam compressor.
The plastic and non- ferrous will be sorted by the eddy current separator machine.
There is equipped with the center dust collector to remove the dust during processing.
Characters:
waste air conditioner radiator waste, waste car tank
Just single machine can finish the job without combine machine
To ensure the fast separating, high efficiency, simple mantenance, cutter takes the robust and durable material to confirm long operation and uptime.
1. Technical parameters
| Type | power | Cutter Qty PCS | reducer | chamber mm | feeding port | overall size mm | weight T | capacity (T/h) |
| RK-800 | 15kw*2 | 30 | 400 | 600*388 | 1000*766 | 1820*800*1930 | 2.1 | 0.5-0.8 |
| RK-1000 | 22kw*2 | 20 | 500 | 640*588 | 1170*990 | 3260*1300*2370 | 3.5 | 1-1.5 |
| RK-1200 | 37kw*2 | 30 | 355 | 1200*788 | 1600*1200 | 4700*2000*2700 | 8 | 2.5-3 |
| RK-1500 | 55kw*2 | 30 | 400 | 1500*1188 | 1900*1450 | 5000*2200*2900 | 18 | 8-10. |
| RK-1800 | 75KW*2 | 36 | 400 | 1800*1188 | 2300*1450 | 5300*2150*3000 | 20 | 12-15. |
| RK-2000 | 90kw*2 | 24 | 450 | 2000*1188 | 2300*1500 | 5400*2150*3000 | 25 | 20-25. |
| RK-2200 | 110kw*2 | 28 | 240 | 2200*1578 | 3100*2500 | 6200*2700*3500 | 33 | 26-30 |
| RK-2400 | 132kw*2 | 24 | 240 | 2400*1678 | 3200*2600 | 7300*2800*3800 | 38 | 30-35. |
| RK-2800 | 185kw*2 | 28 | 260 | 2800*2000 | 3700*3000 | 7800*2800*3800 | 45 | 35-40 |
2. Detail shows
Iron bale scrap

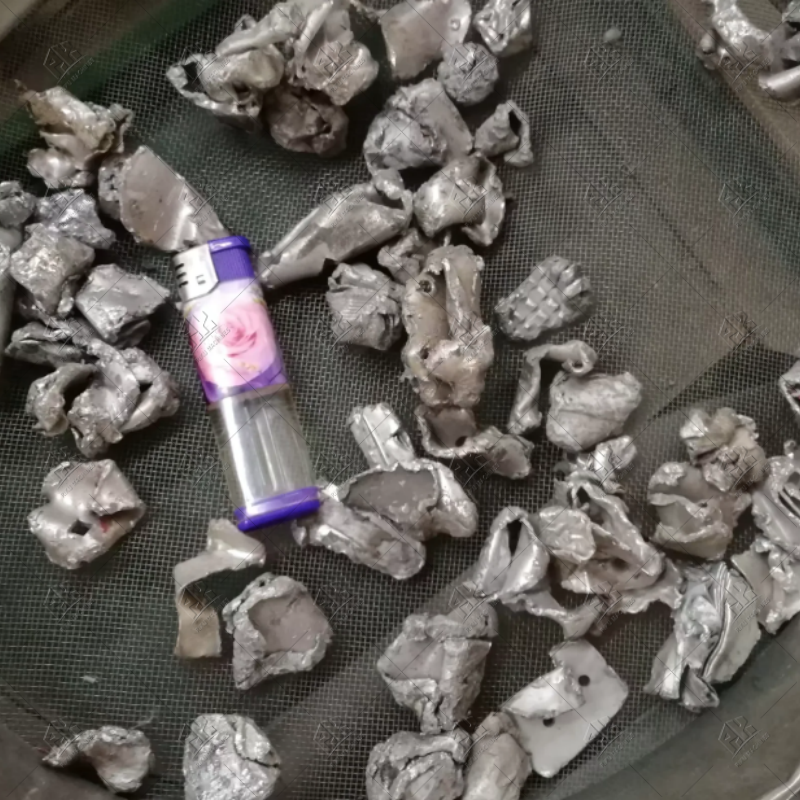

2. Aluminum compact
3. metal loosing material
4. steel waste

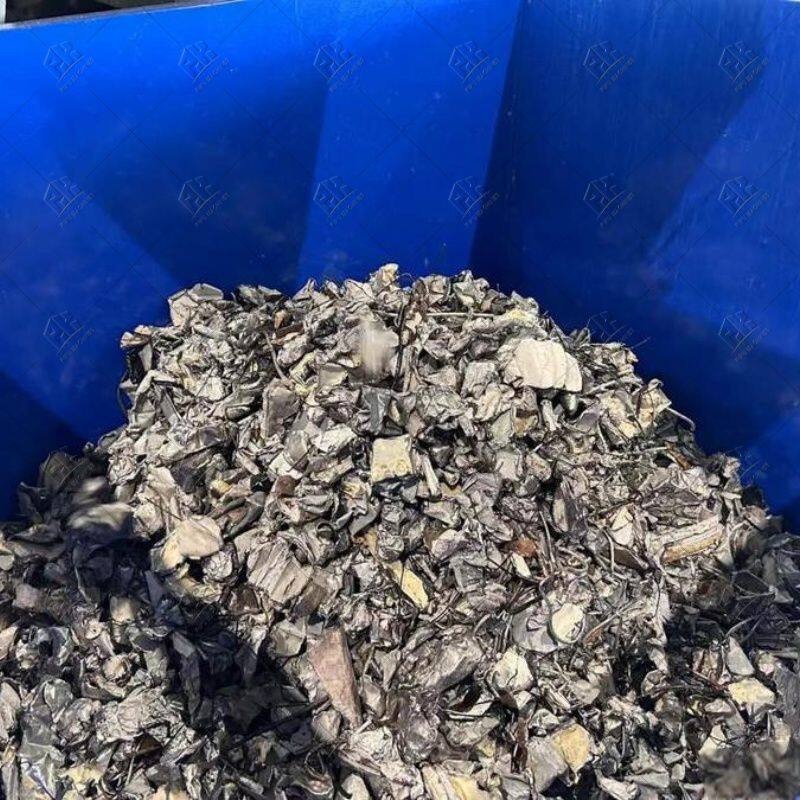

5. Metal scrap
Aluminum can bale metal scrap shredder is series metal shredding equipment is a wariety of low-speed, high-torque shredders for volume reduction and recovery of ferrous and non-ferrous scrap metal materials.
Such as: Scrap car, Sheet metal waste, Metal drums(whole, compressed, with or without content). Sprues from pressure die casting. Punching scrap, Aluminium scrap, Metal cutting and shavings (loose or compressed).
Shredwell metal shredding equipment features a patented knife system manufactured for extremely durable and easily-replacing knife which result in giving the input metal clean and fast cut.
The unique structure of the knives in this machine can provide over hundreds of thousand tons working life. And the knives can be replaced partly to save maintenance time and cost for our customer.
1. Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers;
2. Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3. The two cutting rotors powerfully grab the feed material, and no matter the feed material is large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4. Double shaft shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using forklift truck to feed.
5. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high quality steel, suitable for shredding tough materials and for extra long life;
6. Depending on requirement, these discs (blades) are available in a wide range of quantities, qualities and shapes with the new double-shaft shredder;
7. Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8.Cutters removal and replacement can be carried out safely and simply.
9. Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost Effective Precision, High Radial Loads.
10. Cooler system(optional) can maintain the temperature for continuous operation..

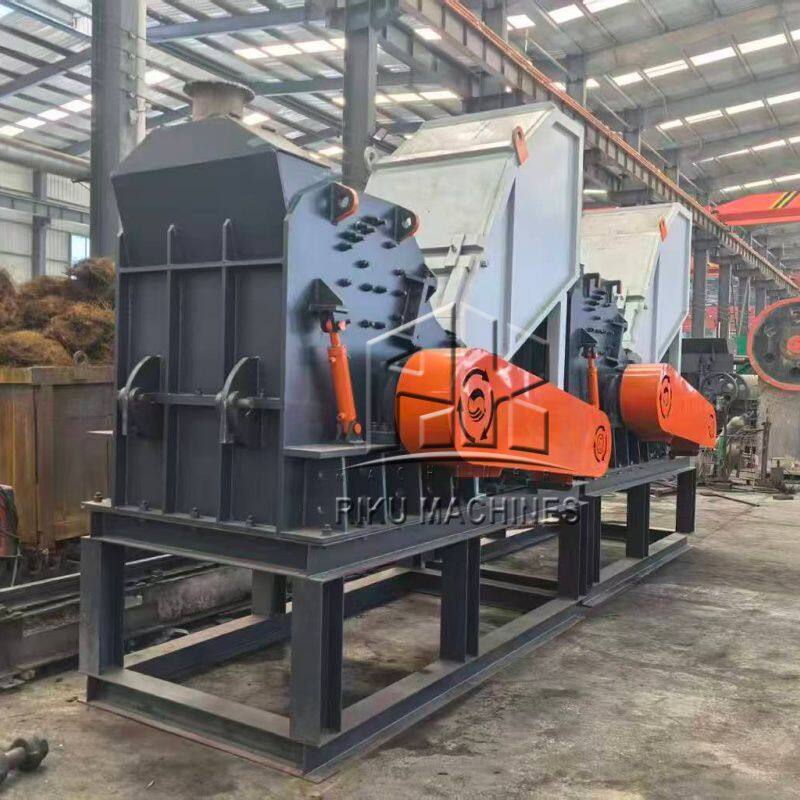

2. Second step of hammer mill shredder
Function: To separate the metal from the plastic, foam and non ferrous metal, ferrous from outlook.
Technical parameters
| type | WL-600 | WL-800 | WL-1000 | WL-1200 |
| rotor diam | 450mm | 650mm | 850mm | 1050mm |
| Body diam | 600mm | 800mm | 850mm | 1000mm |
| rotary speed | 600-970rpm | |||
| feeder size | 40mm | 50mm | 70mm | 100mm |
| final | 0-8mm | |||
| power | 30kw | 37kw | 55kw | 90kw |
| dimension | 2000*600*1780 mm | 2200*840*1980 mm | 2700*1160*2000 mm | 2800*1400*2300 mm |
3. Magnetic separator
To separate the ferrous metal from the mixtures

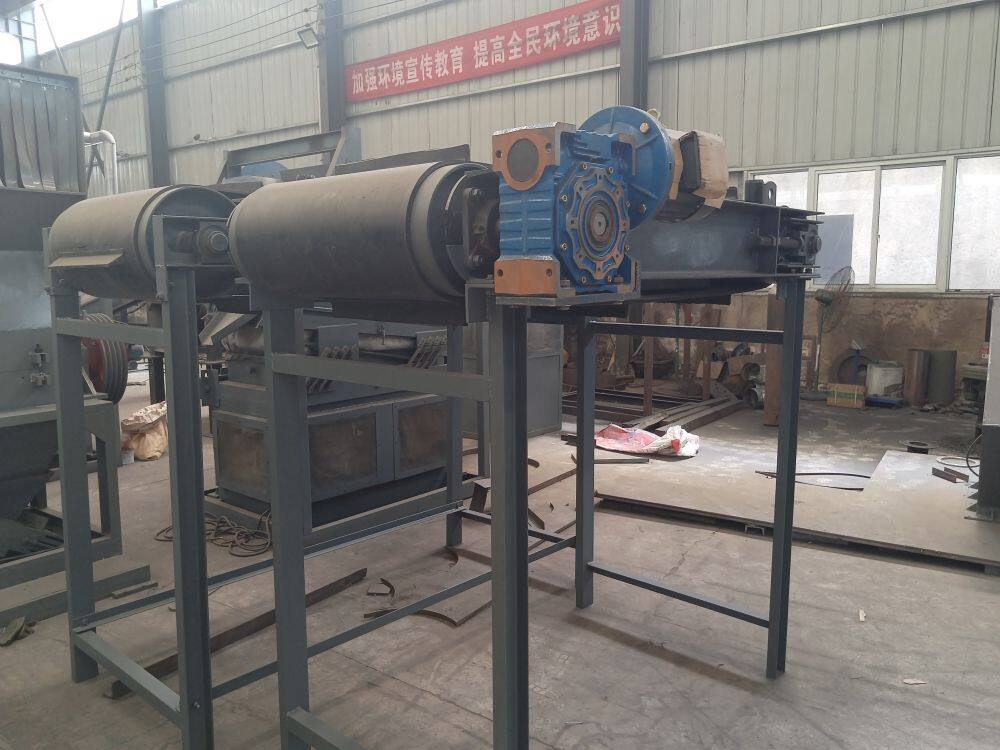

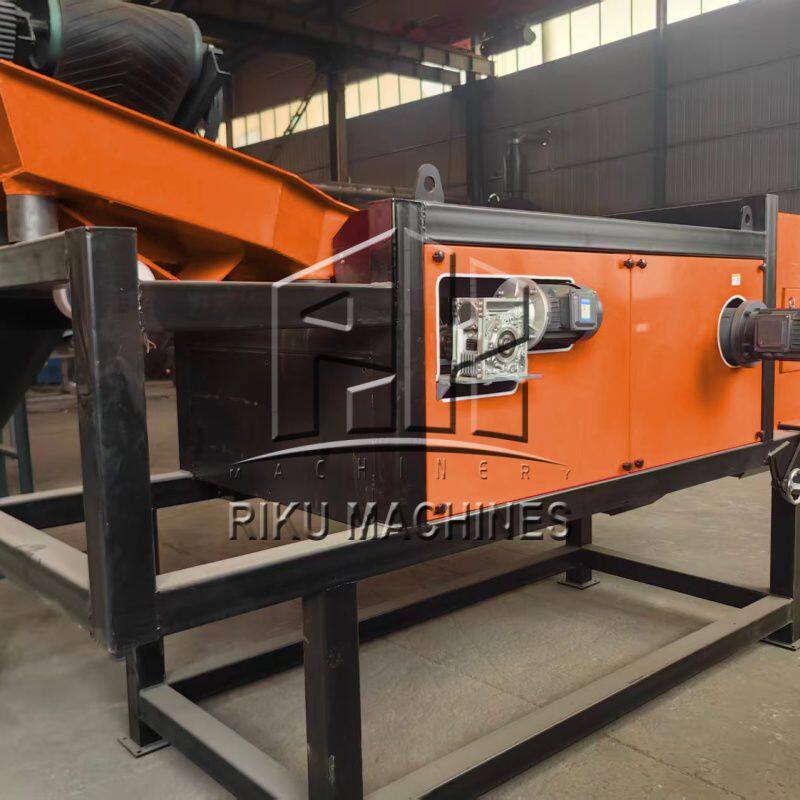

4. Eddy current separator
To separate non - ferrous metal from the plastic with high efficiency.
Technical parameters
Type | RK-400 | RK-600 | RK-800 | RK-1000 | RK-1200 | RK-1500 |
Magnetic roller diam mm | 300 | 300 | 300 | 300 | 300 | 300 |
Magnetic roller speed（max）r/min | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 |
Belt width mm | 450 | 650 | 850 | 1050 | 1250 | 1550 |
Belt speed m/s | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 |
capacity t/h | 2-4 | 4-6 | 5-10 | 6-12 | 7-13 | 8-15 |
power kw | 3.0+0.55 | 4.0+0.75 | 5.5+1.1 | 7.5+1.5 | 11+2.2 | 11+3.0 |
Elevator kw | 3 | 3 | 4 | 4 | ||
feeder kw | 0.25*2 | 0.25*2 | 0.55*2 | 0.55*2 | 0.75*2 | 0.75*2 |
