Detachable Blade Double Shaft Shredder Waste Steel Crusher Shredder

Detachable Blade Double Shaft Shredder Waste Steel Crusher Shredder photo-1
Detachable Blade Double Shaft Shredder Waste Steel Crusher Shredder photo-2
Detachable Blade Double Shaft Shredder Waste Steel Crusher Shredder photo-3
Detachable Blade Double Shaft Shredder Waste Steel Crusher Shredder photo-4
Detachable Blade Double Shaft Shredder Waste Steel Crusher Shredder photo-5
US$ 58000 - 66000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Compound Crusher
Drive:
Electric
Object:
Metal, Plastic, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port,China
Delivery Detail:
30 days
Type Compound Crusher
Drive Electric
Object Metal, Plastic, Wood
Crushing Degree Coarse Crusher
Crushing Style Extruding and Milling
Cutter Material Hard Alloy
Chamber 1200*1188mm
reducer #14
reduce type planetary gear box
appliance Industrial metal waste
capacity 3-5 Tons hourly
blade diameter 500mm
blade thickness 50mm
blade material DC53/H13/9SiCr
HRC 55-58
Controller cabinet PLC
Transport Package standard package
Trademark RIKU MACHINES
Origin CHINA

Planetary type heavy industrial metal waste shredder


metal scrap shredder

Appliance:

  1. Tile scrap

  2. 2. car shell

  3. 3. waste appliance

  4. 4. Bike

  5. 5. motor  scrap

  6.  6. NGS tank

  7. 7.Engine block

  8. 8. Aluminum bale

  9. 9. beverage cans

UA SHREDDER6                                                                                                             working principle :

 RK serious metal double shaft shredder  is mainly composed of a moving knife roller (spindle + blade), stator-Cutter, a carrying box, box support, a feeding system, a hydraulic push system, a power system, and an electrical control system. Due to its low speed and high torque, it is available for harder or bulkier materials, such as wood, tires, and waste appliances.

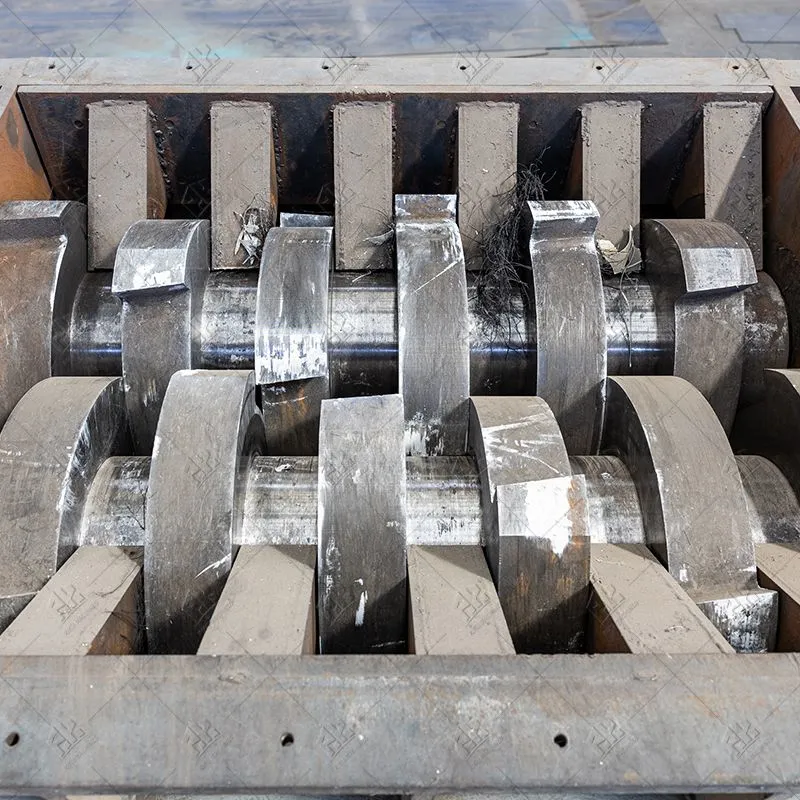

shredder L4

Technical parameters

Typepower Cutter Qty PCSreducerchamber mmfeeding portoverall size mmweight Tcapacity (T/h)
RK-80015kw*230400600*3881000*7661820*800*19302.10.5-0.8
RK-100022kw*220500640*5881170*9903260*1300*23703.51-1.5
RK-120037kw*2303551200*7881600*12004700*2000*270082.5-3
RK-150055kw*2304001500*11881900*14505000*2200*2900188-10.
RK-180075KW*2364001800*11882300*14505300*2150*30002012-15.
RK-200090kw*2244502000*11882300*15005400*2150*30002520-25.
RK-2200110kw*2282402200*15783100*25006200*2700*35003326-30
RK-2400132kw*2242402400*16783200*26007300*2800*38003830-35.
RK-2800185kw*2282602800*20003700*30007800*2800*38004535-40

Our double shaft shredders have the following features:

1-The blade is made of the high alloy H13 9SiCr, which has high strength and toughness and is difficult to break.

2-The cutter of the K-rotor and D-rotor are made of H13, and the main body is made of killed steel.

3-The main electrical components are manufactured by well-known companies.

4-Automatic protection is designed to avoid machine overload and jamming.

5-High torque, low speed, low noise, and high efficiency.

6. Human's engeering and scientific design.

Ox1nDcXeJePyLsbNdyI8qxAGsCUICIbc4m9yLn3O-wtiwPcaxAC5cwrLbEXpfH2CRZM6OWNRL2bxAC6w0OsIeCFH7O1ScDU14TKROYhACbMIu=3776042453,1855040654&fm=199&app=68&f=JPEG


Product Tags: Waste steel crusher , steel shredder , double shaft shredder
