HS705 Hydraulic Pressure Comparison Pump

HS705 Hydraulic Pressure Comparison Pump thumbnail-1
HS705 Hydraulic Pressure Comparison Pump thumbnail-2
HS705 Hydraulic Pressure Comparison Pump thumbnail-3
HS705 Hydraulic Pressure Comparison Pump thumbnail-4
HS705 Hydraulic Pressure Comparison Pump thumbnail-5
HS705 Hydraulic Pressure Comparison Pump photo-1

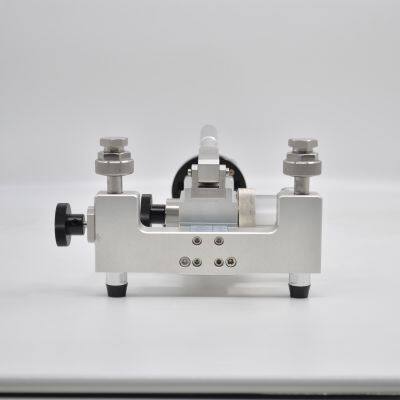

HS705 Hydraulic Pressure Comparison Pump photo-2

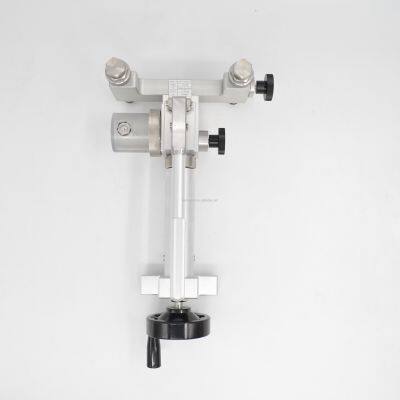

HS705 Hydraulic Pressure Comparison Pump photo-3

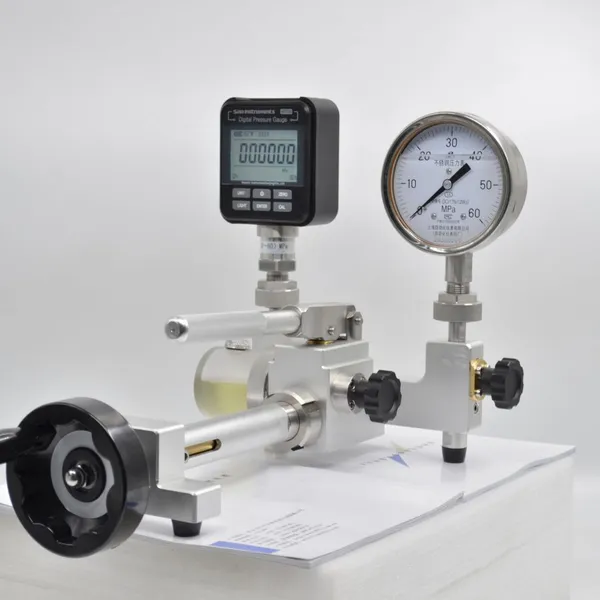

HS705 Hydraulic Pressure Comparison Pump photo-4

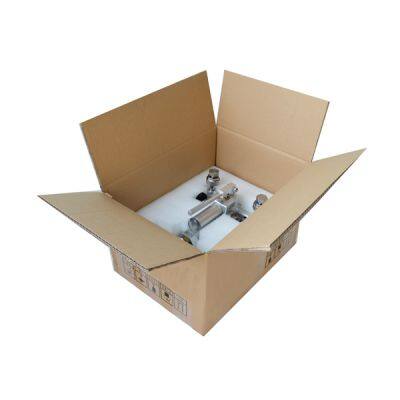

HS705 Hydraulic Pressure Comparison Pump photo-5
US$ 1100 - 4500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Warranty:
1 year
Generate Pressure Range:
(0-600/700)bar
Adjust Resolution:
1mbar
Contact Supplier Request Quote Chat Now
Huaxin Instrument(beijing) Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
14 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Warranty 1 year
Generate Pressure Range (0-600/700)bar
Adjust Resolution 1mbar
Working Media 25# transformer oil
Weight 5.2KG
Specification 420*140*150mm
Trademark Sino Instruments
Origin Beijing, China

Description:

HS705 Hydraulic Pressure Comparison Pump adopts  advanced stainless steel and aluminum alloy special  process, compact dimension, light weight. It is portable  structure and designed to generate pressure range up to  700bar. The screw pump design makes the high pressure  operation more easy and save labor, the F-adjust valve  adjust the exact pressure value.A detachable oil cup is  easy to clean and maintenance, user could check the  work medium timely from the transparent oil cover. Two  standard pressure outputs are easy to connect gauges  under test without using the wrenches. It widely calibrates  pressure instruments in field and laboratory.

Specification:

Generated pressurerange:(0~600/700)bar

Working media: 25# transformer oil

Adjust resolution:1mbar

Material:       Body:Stainless Steel/Aluminium        Seals:Buna-N

Output interface connection: M20×1.5Female

Weight:5.2kg

Dimensions:420L×240W×150H(mm)

Product Tags: Pressure Comparator , Pressure Hand Calibration Pump , Pressure Test Pump
