Description:

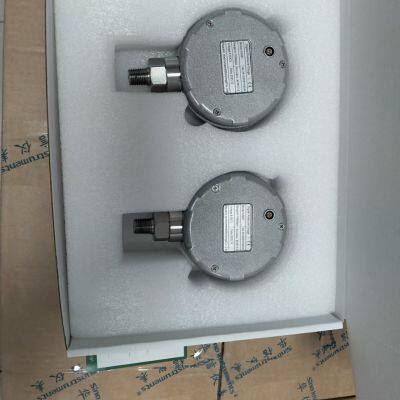

HX601 Digital Pressure Gauge adopts micro power components and unique software processing technology. Adopting 1pc disposable 3.6Vdc lithium battery, it could work 24 hours continuously for at least one year. With 5-digit large crystal screen, the data could be showed more clearly. Every HX601 has passed the high and lower temperature aging thus to ensure more reliable precision. The product has been used in the industries of power, chemical, petrol, metallurgy, metering,etc.
Features:
5-digit large LCD with backlight
Nine pressure units selectable
Zero point, full scale calibration function
Adopting the special software treatment technology, it is unnecessary to preheat
RS232 communication port can communicate with PC
Temperature compensating
Overload alarm function % indication with bar graph scale for visual reference
Stainless steel bottom connection for robustness
Equipped with rugged aluminum alloy cover
CE&EX approved
Specifications:
Range:(-1-0)bar,(0-700)bar,(See the pressure ranges selection sheet)
Accuracy:±0.2%F.S,±0.5%F.S
Units: kPa, Pa, psi, kgf/cm²,bar,mbar,mmH2O,mmHg,MPa
Temperature compensating range:(-10-50)℃
Display:5 digits with 14mm character height
Connection:M20×1.5, 1/2''NPT,1/4''NPT,1/2''BSP,or 1/4''BSP male thread
Dimensions:Φ93mm×41mm
Total Height:134mm
Weight:0.5kg
