10-ton Battery-powered Flatbed Truck Without a Cab for Use in Large Machinery Factories

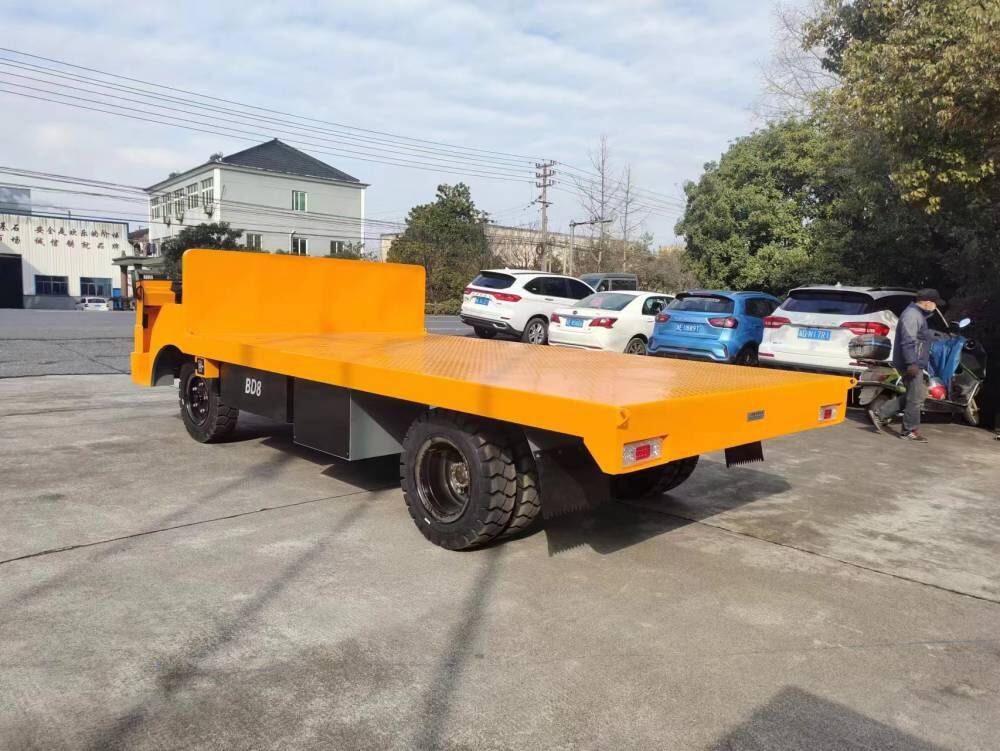

10-ton Battery-powered Flatbed Truck Without a Cab for Use in Large Machinery Factories photo-1

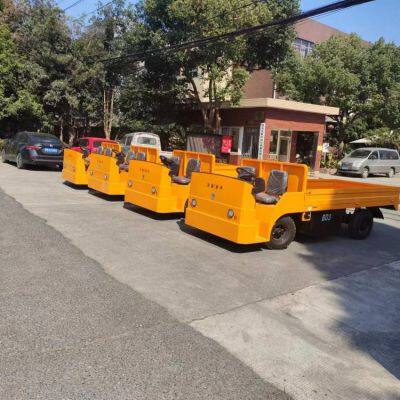

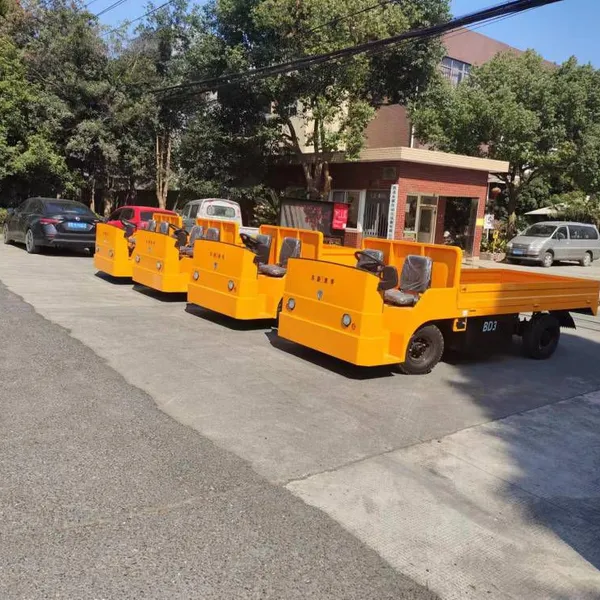

10-ton Battery-powered Flatbed Truck Without a Cab for Use in Large Machinery Factories photo-2

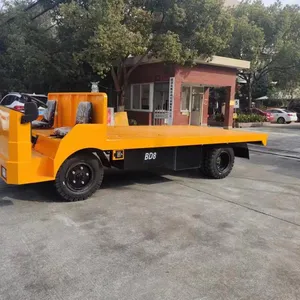

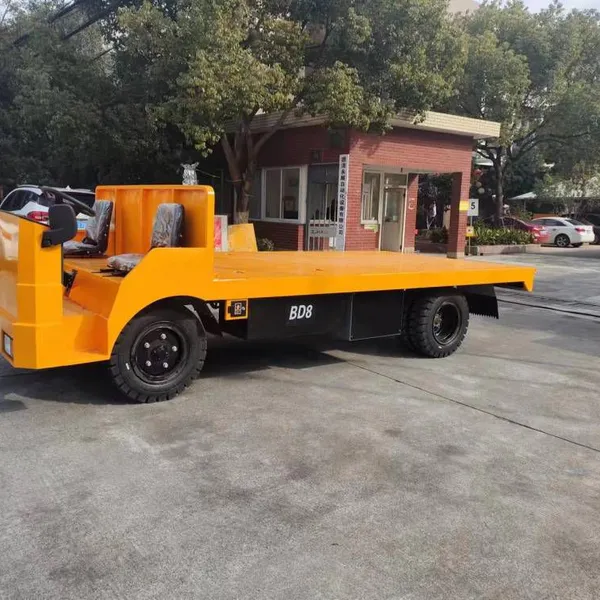

10-ton Battery-powered Flatbed Truck Without a Cab for Use in Large Machinery Factories photo-3

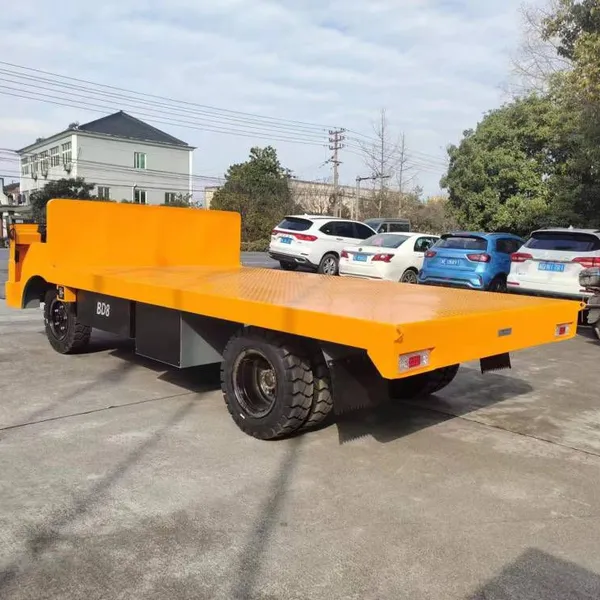

10-ton Battery-powered Flatbed Truck Without a Cab for Use in Large Machinery Factories photo-4

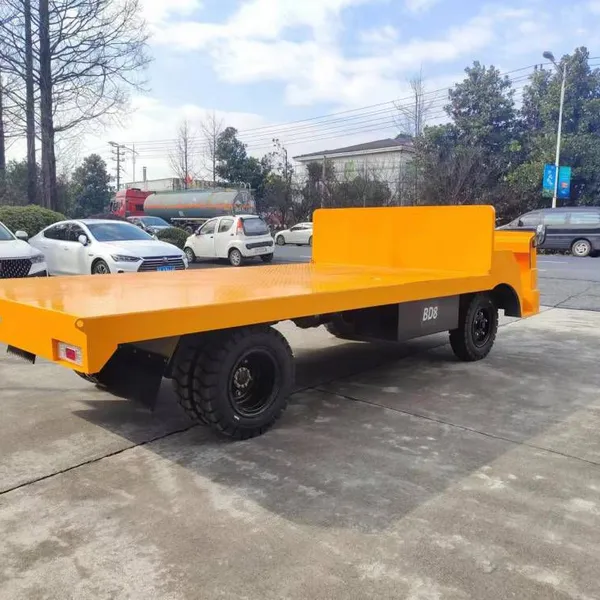

10-ton Battery-powered Flatbed Truck Without a Cab for Use in Large Machinery Factories photo-5
US$ 18923.08 ≥1 set
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Suzhou, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Okay, based on your description of the 10-ton battery-powered flatbed truck without a cab for large machinery factories, I've compiled the following detailed information. These vehicles are specifically designed for the in-plant transfer of heavy and large-sized objects, featuring a sturdy structure and high practicality.


The following table outlines the core parameters and features of this vehicle for your quick reference:


Item
Parameter/Description
Rated Load Capacity
10 tons (10,000 kg)
Typical Appearance
Flatbed cargo platform, no front enclosed cab, usually equipped with a simple driver's seat or a standing operation platform
Core Dimensions (Example)
The length, width, and height of the vehicle body are approximately 4500 - 6350mm × 1500 - 2300mm × 1900 - 2000mm; the flatbed size is approximately 3200mm × 1500mm
Power System
Powered by a battery (commonly a 72V voltage system), with an AC motor (power approximately 12KW)
Driving Performance
Speed approximately 12 - 16 km/h, cruising range approximately 50 - 60 km, charging time approximately 8 - 10 hours
Key Features
The frame is welded with channel steel, with strong load-bearing capacity; hydraulic braking system; simple operation (forward/backward); relatively small turning radius, suitable for the factory environment

Applicable Scenarios and Unique Advantages


In large machinery factories, the value of this vehicle model is mainly reflected in the following aspects:



  • Handling Heavy and Irregular Components: Its sturdy flatbed cargo platform is very suitable for transporting large mechanical parts, castings and forgings, steel materials, molds and other heavy and large-sized materials that are difficult to load and transport by traditional van trucks.



  • Optimizing In-plant Material Flow Routes: It can efficiently connect raw material warehouses, various production workshops, assembly stations, and finished product storage areas. It is an ideal tool for in-shop transportation or for transferring heavy objects in conjunction with cranes.



  • Advantages and Disadvantages of the Cabless Design: Omitting the enclosed cab reduces the manufacturing cost and the vehicle's weight. At the same time, it provides a broader operating view, which is convenient for observing the front and both sides, especially important when handling large cargo. However, this also means that the driver will be directly exposed to the environment, resulting in poor comfort in bad weather (such as rain, snow, and severe cold).



  • Economical and Environmentally Friendly: As an electric vehicle, it has the advantages of zero emissions and low noise, meeting the environmental protection requirements of modern factories. Its energy consumption cost is much lower than that of fuel vehicles, and maintenance is relatively simple.


⚠️ Selection and Usage Suggestions


When selecting and using this type of vehicle, there are several points that need special attention:



  • Clarify Transportation Requirements: Before making a selection, be sure to clarify the types, sizes, and weights of the materials you most often transport, as well as the main driving routes within the factory area (such as passage width, slope, and road surface conditions) to ensure that the selected vehicle model's size and performance match the actual working conditions.



  • Safety operation comes first: Since there is no cab protection, the operator's safety awareness is crucial. Safety regulations must be strictly followed, such as overloading is strictly prohibited. Ensure that the goods are evenly placed on the flatbed and firmly tied to prevent them from slipping during transportation. When driving in the factory area, be sure to observe carefully and avoid pedestrians.



  • Pay attention to vehicle maintenance: Regularly lubricate key moving parts such as wheels and bearings, and inspect and clean the vehicle. Pay special attention to battery maintenance. Charge and discharge the battery according to the instructions to extend its service life.



It is hoped that the above information can help you comprehensively understand this 10-ton battery-powered flatbed truck without a cab, which is suitable for large machinery factories. If you have further questions about specific configurations (such as different power supply methods, whether remote control function is required, etc.), I am happy to provide more information.



Product Tags: Mold transfer flatbed truck for machinery factory , Electric flatbed truck for casting and forging factory , Flatbed truck for transporting steel , Machinery parts transfer vehicle , Machinery parts transport vehicle
