German WTW BOD Analyzer OxiTop IS 6/IS 12
I. Detailed Description
(1) Features
1. Simple operation, button-type operation;
2. Mercury-free measurement, accurate and reliable testing;
3. Automatic storage of 5-day measurement values;
4. Expandable functions;
5. Easy to move.
(2) Complete set supply – Simultaneous measurement of 6 or 12 bottles

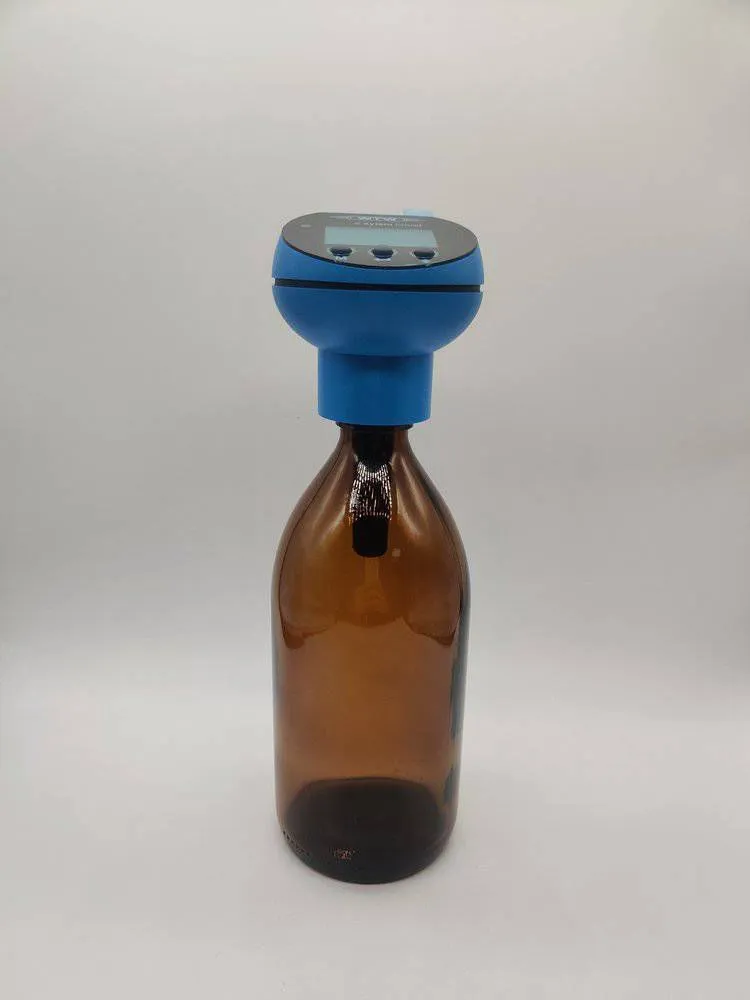

The OxiTop measurement system is based on the measurement of pressure in a closed system: The organic matter in the sample consumes oxygen and produces CO2. The CO2 is absorbed by NaOH, and the resulting pressure vacuum is measured and converted into BOD readings in mg/l BOD. By using different sample volumes, the measurement range is 4,000 mg/l. The measuring head OxiTop (distinguished by green and yellow for influent and effluent) has an automatic temperature compensation function: When the sample temperature is too low, the instrument will delay the measurement until the temperature stabilizes to a certain value. The delay time can be up to 3.5 hours at maximum and 0.5 hours at minimum.
Five measurement values are automatically stored (one per day), so there is no need to read the values every day because the instrument will save the daily measurement values. This means you can start the measurement on the weekend without the need for dedicated personnel to monitor it, and you can also check the measurement results (BOD7) after 7 days.
Two batteries, with a normal service life of up to 1 year.
II. Technical Parameters
OxiTop® - Measuring Head |
|
Testing principle |
Pressure probe sensing method |
Test quantity |
BODn (in accordance with DIN 38 409 part 52) |
Test range |
0…4000 mg/l, expandable to 0…5000 mg/l |
Accuracy |
±1% of the test value ±3.55 hPa |
Display screen |
2 characters, 7-segment LED, 10mm |
Working range |
500……1100 hPa |
Storage |
BOD, daily |
Power supply |
Lithium battery (280 mAh) 2×CR2430 |
Power consumption |
Max. 25mA (when displaying) |
Safety level |
3 to IEC 1010 |
Protection level |
IP54 to DIN 40 050 |
EMC protection |
Emission: EN 50081-1 FCC Class A Protection: EN 50082-1,EN 50082-2 |
Ambient temperature |
Storage: -25……+65°C; Working: +5……+50°C |
Dimensions |
69×70 mm (height×diameter) |
III. Model selection
OxiTop® IS6 |
BOD measuring instrument for self-testing, including 6 measuring bottles |
208210 |
OxiTop® IS12 |
BOD measuring instrument for self-testing, including 12 measuring bottles |
208211 |
OxiTop® Control 6 |
BOD measuring instrument for self-testing, with controller OC100, including 6 infrared receiving measuring bottles, power supply: 100-240VAC, 50/60HZ. To connect with PC, you need to order the connection cable AK540/B (902842) and the communication software package Achat OC(208990) separately |
208201 |
OxiTop® Control 12 |
BOD measuring instrument for self-testing, with controller OC100, including 12 infrared receiving measuring bottles. Power supply: 100-240VAC, 50/60HZ. To connect to a PC, you need to order the connection cable AK540/B (902842) and the communication software package Achat OC (208990) separately. |
208204 |
