The SDIS3 60 Gallon Extra Deep PP Cabinet is the definitive industrial-grade solution designed to meet these French safety standards. With its unique 860mm extra-depth design, it accommodates larger bulk containers and provides a rust-proof sanctuary for the chemicals that drive high-precision finishing.
2. Extra Deep Architecture: Optimized for Industrial Pails
Standard 45-gallon cabinets often lack the depth required for the 25L or 50L plastic pails commonly used in French plating shops. The SDIS3 solves this with its 860mm depth.
Double-Row Storage: Allows for two rows of large pails, doubling the access efficiency per square meter of floor space.
Reinforced Base Frame: To handle the massive weight of 60 gallons of dense acids, the SDIS3 features an integrated PP plinth that prevents cabinet sagging or door misalignment.
3. SDIS3 Technical Specifications Table
| Technical Category | Industrial Data | Operational Benefit |
| Model | SDIS3 (Deep Series) | High-volume industrial storage |
| Capacity | 60 Gallons (approx. 227 Liters) | Bulk supply consolidation |
| External Dimensions | 1650 (H) x 800 (W) x 860 (D) mm | Optimized for deep workshop bays |
| Material Density | 8mm - 12mm High-Density PP | Maximum impact & chemical resistance |
| Door Closure | Reinforced Touch-Ball System | Vapor containment & easy seal |
| Sump Capacity | Integrated 50mm Liquid-Tight Base | Meets French environmental leakage codes |
4. Engineering for the Plating Shop Environment
A. Thermal Fusion Welding for Zero-Leakage:
In French industrial plants, environmental protection (Législation des installations classées - ICPE) is a legal priority. The SDIS3 is constructed using high-frequency thermal welding. Unlike bolted units, this seamless construction ensures that if a container fails, 100% of the spill is contained within the cabinet's sump, protecting the factory floor and the surrounding environment.
B. Anti-Vapor Door Design:
The SDIS3 features a specialized door-to-body overlap. When closed, it significantly reduces the escape of corrosive vapors. This not only protects the workshop's structural steel from rust but also improves the overall air quality for the "opérateurs de traitement de surface" (surface treatment operators).
C. Ergonomic Vertical Access:

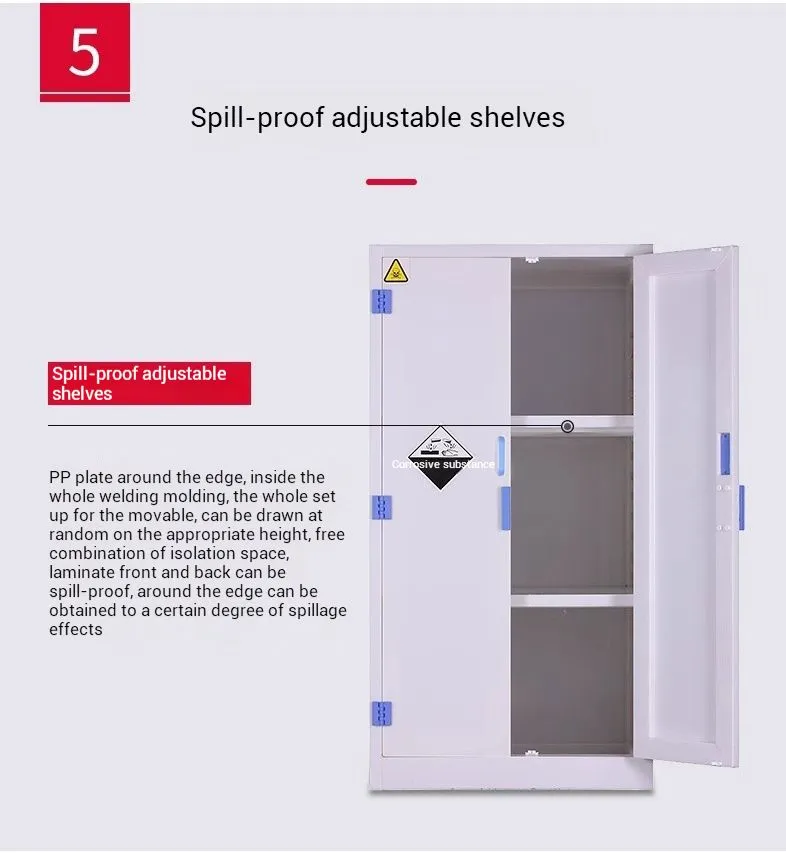

At 1650mm high, the cabinet allows operators to check inventory at eye level. The deep shelving is designed with reinforced supports to ensure that even at full capacity, the shelves remain perfectly level and the "2.6cm spill edges" function as intended.
5. Guidelines for French Industrial Safety Integration
Placement: Locate the SDIS3 on a flat, acid-resistant concrete floor. Use the adjustable feet to ensure stability.
Segregation of Hazards: In French facilities, it is vital to keep "Acides" and "Bases" in separate cabinets. The SDIS3's white finish makes it easy to apply clear, color-coded French safety labels.
Ventilation Extraction: Connect the 2-inch vents to the workshop's scrubber system to manage VOCs and acidic mists effectively.
6. Why "Made for Industry" PP Surpasses Coated Steel?
The harsh reality of a French plating shop is that any scratch on a metal cabinet's coating leads to immediate, "cancerous" rust. The SDIS3 is made of solid Polypropylene. It has no coating to scratch and no metal to rust. It is a "one-and-done" investment that survives decades of acidic mist exposure.
The SDIS3 60 Gallon Extra Deep PP Cabinet is a powerhouse of safety for the French electroplating industry. Its deep-storage capacity, combined with its uncompromising resistance to corrosive environments, makes it a critical asset for facilities aiming for high-standard safety compliance and long-term operational efficiency.
FAQ - Frequently Asked Questions for French Industrial Buyers
Q1: Is the SDIS3 compliant with the requirements for ICPE-regulated sites?
A: Yes. Its leak-proof construction and high-capacity sump are designed specifically to meet the secondary containment requirements often audited at ICPE (Installations Classées pour la Protection de l'Environnement) regulated facilities.
Q2: Can the 860mm deep shelves hold 50kg drums without bending?
A: Absolutely. The SDIS3 is our "Industrial Grade" model, featuring extra-thick PP panels and reinforced shelf supports specifically designed to handle the weight of deep-loaded chemical drums.
Q3: Is the signage on the door available in French?
A: While the standard international "CORROSIVE" sign is provided, we can pre-apply GHS-compliant French labels ("Matières Corrosives") to ensure immediate compliance with your local safety regulations upon delivery.
