Product Introduction

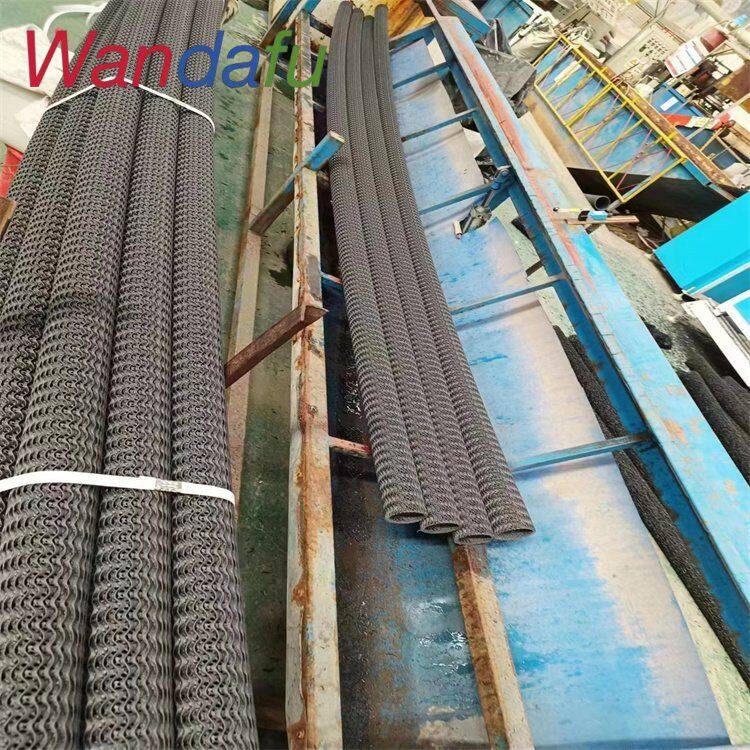

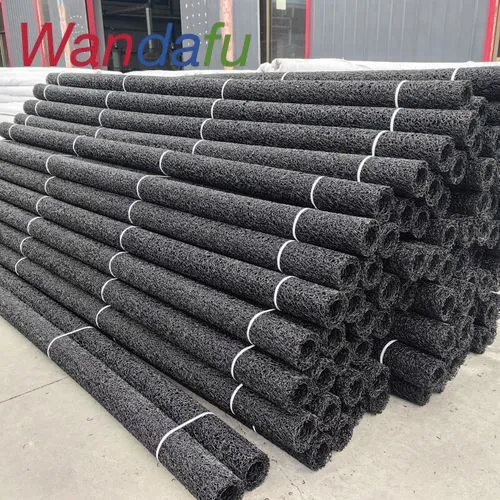

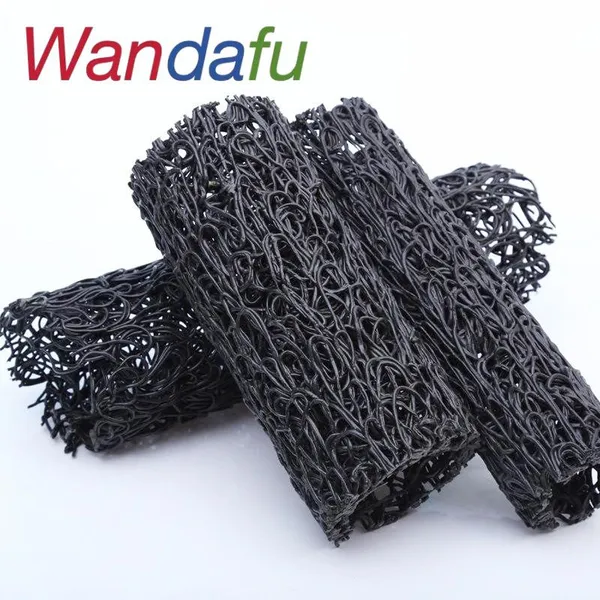

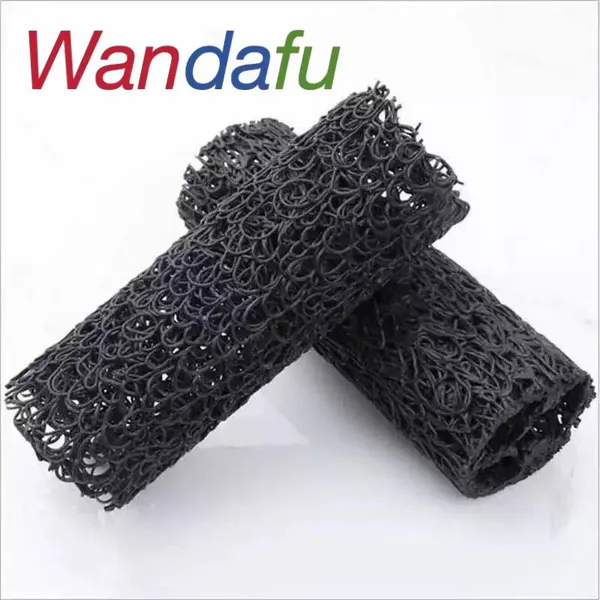

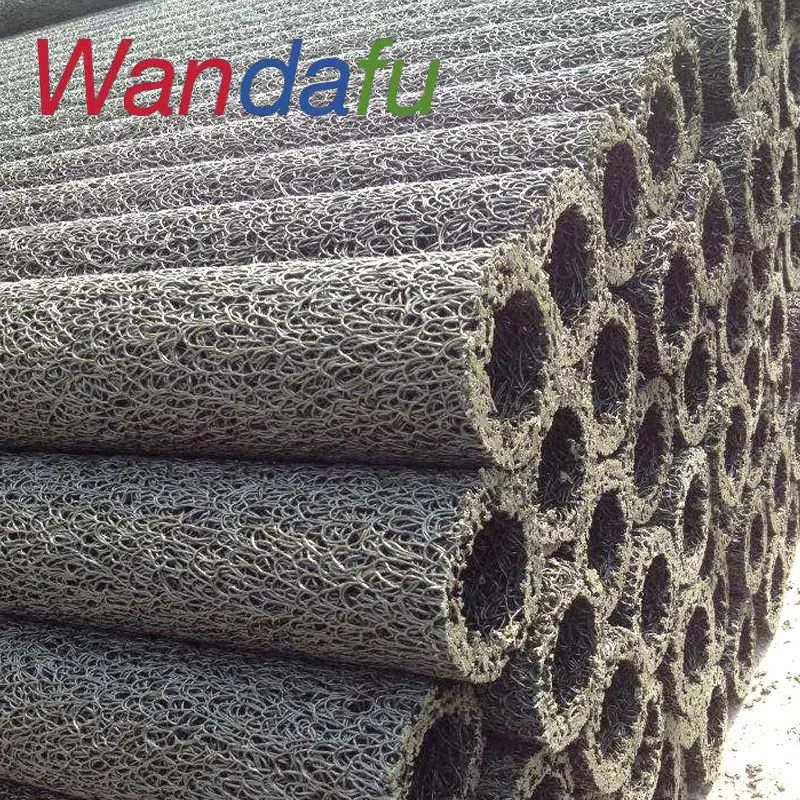

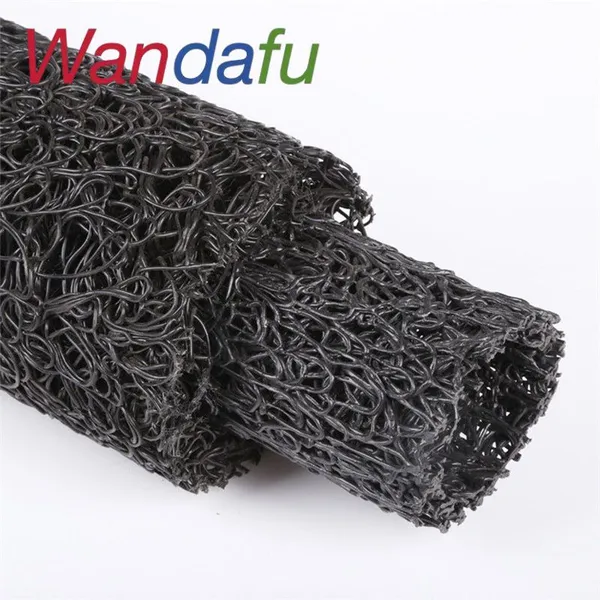

Plastic blind ditch is composed of a filter cloth wrapped around a plastic core. Plastic core is mainly made of thermoplastic synthetic resin, which is modified and extruded into thin plastic filaments through a nozzle in a hot melt state. The extruded plastic filaments are then dissolved at the nodes through a molding device to form a three-dimensional mesh structure. At present, plastic cores come in various structural forms such as rectangular, hollow rectangular, circular hollow circular, etc. This material overcomes the shortcomings of traditional blind ditches, with high surface porosity, good water collection, large porosity, good drainage, strong compression resistance, good pressure resistance, light weight, convenient construction, greatly reduced labor intensity for workers, and high construction efficiency. Therefore, it has been widely welcomed by engineering bureaus and widely used.
Scope of application
1. Reinforcement and drainage of highway and railway subgrade shoulders
2. Drainage of tunnels, underground subway passages, and underground freight yards
3. Soil and Water Protection for Hillside Land and Slope Development
4. Vertical and horizontal drainage along various retaining walls
5. Drainage of slippery ground
6. Drainage of ash piles in thermal power plants. Drainage of garbage landfill project
7. Drainage of rest areas and green spaces such as sports fields, golf courses, baseball fields, football fields, parks, etc
8. Drainage of rooftop garden flower beds
9. Construction drainage for building foundation engineering
10. Agriculture. Horticultural underground irrigation and drainage system
11. Drainage system for low-lying wetlands. Drainage for land preparation projects. Our company has strong R&D, design, and production capabilities, and can provide products of different levels according to customers' different engineering requirements. Welcome foreign customers to inquire.
Product Features
High surface porosity: The composition fibers of plastic blind grooves are about 2mm filaments, which are fused together to form a three-dimensional network. The surface porosity is 95% -97%, which is more than 5 times that of perforated pipes and 3-4 times that of resin mesh pipes. The surface water absorption rate is extremely high.
Good drainage performance: Due to its three-dimensional structure, its porosity is 80% -95%, making it spacious and lightweight, with good drainage performance. Even if compressed due to overload, the residual gap still reaches over 50%, and there is no problem of water blockage.
High compressive strength: Under a pressure of 250KPa, its compression rate is less than 10%, and its compressive performance is more than 10 times stronger than that of resin in pipe structures. It can withstand large soil pressures and is not easily crushed.
Good flexibility: It is resistant to pressure and flexible, and can also be used for construction in curved positions such as bends. It is very lightweight. If the backfill depth is about 10cm, a bulldozer can also be used for backfilling, and the construction adaptability is strong.
Strong durability: with anti-aging agent, it is durable. It can also be stable after being placed in the underwater and soil environment for decades. It has the characteristics of cold resistance, corrosion resistance, bacteria resistance, etc. It is not easy to age when buried in the tunnel lining.
Convenient construction: The material has a small specific gravity and is lightweight, about 0.91-0.93. It is easy to transport and install, which can greatly reduce the labor intensity of workers and improve construction efficiency.
Not easy to collapse: It is formed by hot melting without using adhesive, which will not cause collapse due to adhesive aging and peeling, and has good structural stability.
Diverse specifications: Our products come in various cross-sectional forms such as circular and rectangular shapes, with a wide range of specifications. We can produce products with different characteristics such as high temperature resistance, flame retardancy, strong acid and alkali resistance, high elasticity, and high hardness according to customer orders with different formulas to meet various engineering needs.
ABOUT US

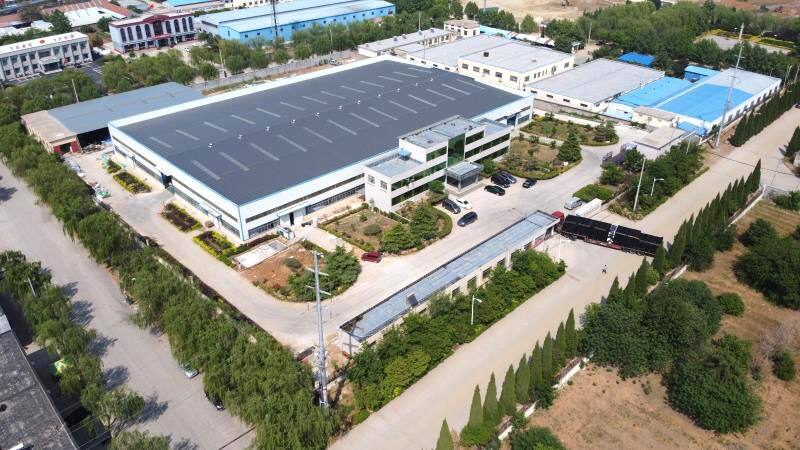

Tai 'an WDF Polymer Composites Co., Ltd. is located in Tai 'an City, Shandong Province, China.
Our company mainly produces geogrids, geotextiles, geomembranes, geocells, slope greening materials, drainage and drainage products, and serves roads, railways, water conservancy, coal mine landfills and tailings ponds. The company has a number of geogrid geotextile production lines, with an annual production capacity of 20,000 tons, and its products are exported to more than 50 countries and regions. We have been deeply involved in geosynthetics for 20 years and are members of China Geosynthetics Association. We have established a complete industrial chain in product development and production, marketing system and engineering application.We are willing to establish long-term, stable, cooperative and win-win business relations with friends from all over the world under the principles of honesty, trustworthiness, quality assurance, fairness and reasonableness. Welcome friends from all over the world to visit our company.
