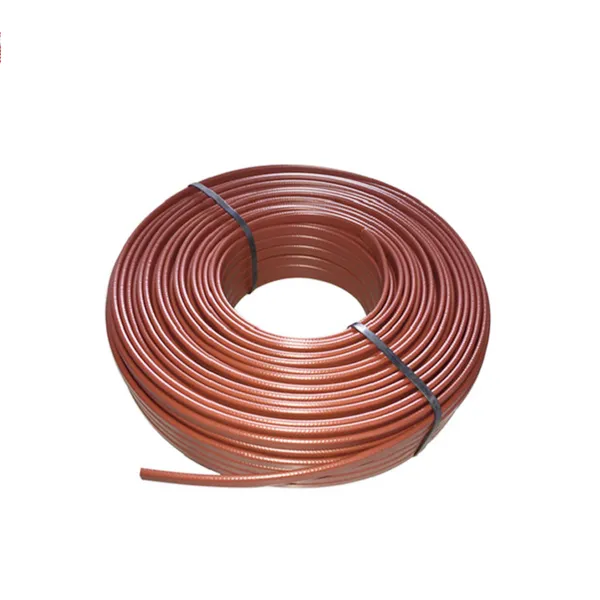

Help CenterWaterproof Self-Regulating Heating Cable for Buried Pipes, 8W/ft, 120V, Corrosion-Resistant Jacket
Related Products
-
Self-Regulating Heating Cable With Braided Shield, UV-Resistant, for Roof Edge and Downspout ProtectionNegotiableMOQ: 100 Meters -
Self-Regulating Heating Cable for Water Pipes, 8W/ft, 240V, Easy Installation for DIY ProjectsNegotiableMOQ: 100 Meters
-
Industrial Self-Regulating Heat Trace Cable With Automatic Temperature Control, UL ListedNegotiableMOQ: 100 Meters
-
Self-Regulating Heating Cable for Metal and Plastic Pipes, -40°F to 150°F, 10W/ft at 50°FNegotiableMOQ: 100 Meters
-
Self-Regulating Heating Cable for Pipe Freeze Protection, 10W/ft, 120V, 3/8" to 2" Pipe DiameterNegotiableMOQ: 100 Meters
As a specialized manufacturer from Shandong Huaning Electric Heating Technology Co., Ltd., we engineer reliable thermal solutions for challenging environments. Our Waterproof Self-Regulating Heating Cable ensures continuous operation of buried pipes even in extreme cold, eliminating costly downtime and repair expenses. With over a decade of industrial expertise from our Jinan-based facility, this cable represents cutting-edge freeze protection technology tailored for modern infrastructure needs.
Core Technical Advantages:
- Adaptive Heat Output: Patented conductive core automatically adjusts wattage based on ambient temperature
- Waterproof Construction: Multi-layer fluoropolymer jacket provides IP68 protection against moisture and chemicals
- Corrosion Resistance: Specially formulated outer layer withstands soil acidity and underground erosion
- Energy Efficiency: Reduces power consumption by up to 60% compared to constant-wattage systems
Performance Specifications:
| Parameter | Value |
| Temperature Range | -40°F to 150°F (-40°C to 65°C) |
| Power Density | 8W/ft at 50°F (26W/m at 10°C) |
| Maximum Circuit Length | 330 ft (100m) at 120V |
| Jacket Material | Fluoropolymer with UV stabilizers |
Installation Benefits:
- Overlap installation allowed without overheating risk
- Cut-to-length capability for precise pipeline coverage
- Maintenance-free operation for 15+ years
- Compatible with standard pipe insulation materials
Shandong Huaning's manufacturing facilities in Jinan utilize ISO-certified production processes (certification details available upon request), ensuring consistent quality across all heating cables. Our engineering team provides complimentary technical support for system design, helping clients achieve optimal thermal management for buried pipe networks in commercial and municipal applications.
Frequently Asked Questions:
Q1: How does self-regulating technology prevent energy waste?
A: The conductive polymer core naturally increases resistance as temperature rises, automatically reducing power output when warmer conditions occur.
Q2: Can this cable be directly buried without conduit?
A: Yes, the corrosion-resistant jacket meets direct burial requirements for underground applications.
Q3: What is the recommended installation method for vertical pipes?
A: Spiral wrapping at 3-4 turns per meter ensures even heat distribution along vertical runs.
Q4: Does freezing rain affect above-ground connection points?
A: All connection kits include waterproof enclosures rated for submersion protection.
Q5: How long does the system take to activate in freezing conditions?
A: The cable begins increasing heat output within minutes of detecting temperatures below 40°F (4°C).
Q6: Are custom lengths available for large-scale projects?
A: We provide bulk cable reels up to 1,000 ft with custom termination services.
Q7: What maintenance is required after installation?
A: No scheduled maintenance is needed – annual visual inspection of exposed components is recommended.
Q8: Can existing pipe insulation be reused with this system?
A: Yes, provided insulation meets minimum R-value requirements for your climate zone.
