Waste PCB recycling machine is used to different kinds of Printed circuit board, Computer motherboard, cellphone board, clad copper board etc through the whole system processing, first step is to remove electronic components from PCB board, then the specialized crusher machine grind the material into powder, the fineness analyzer, electrostatic separator etc to sort the Non ferrous metal from the resin powder, the non ferrous metal mixed with the resin powder will be sorted by the air separator and the electrostatic separator .the recycling rate is surpass 98%.
The electronic components will removed by the electronic components dismantling machine.there is equipped with the UV purity system and the water scrubber to protect environment.the source could be as the GAS or electricity.The Tin will be melted and fall down from the under vibration table.
Technical paramters
| Type | power (kw) | capacity(kg/h) | area m2 |
| RK500 | 55 | 100-150 | 90 |
| rk300 | 50 | 200-400 | 70 |
| RKL600 | 75 | 500-600 | 120 |
| RK1000 | 150 | 800-1000 | 200 |
tags: PCB recycling machine, waste PCB recycling equipment, circuit board recycling machine, computer m

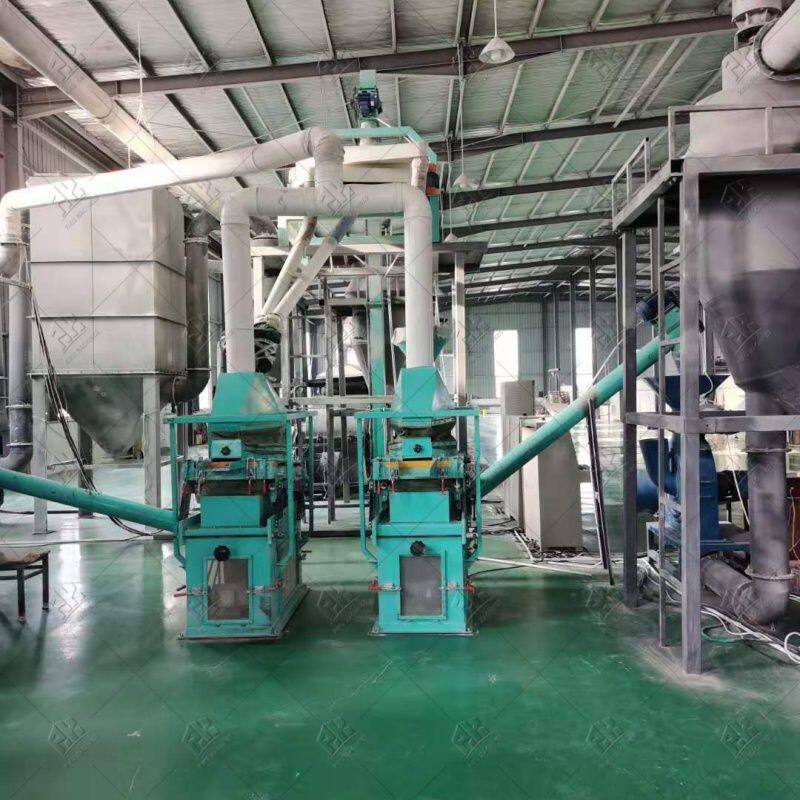

The processing and diagram of the plant :
-

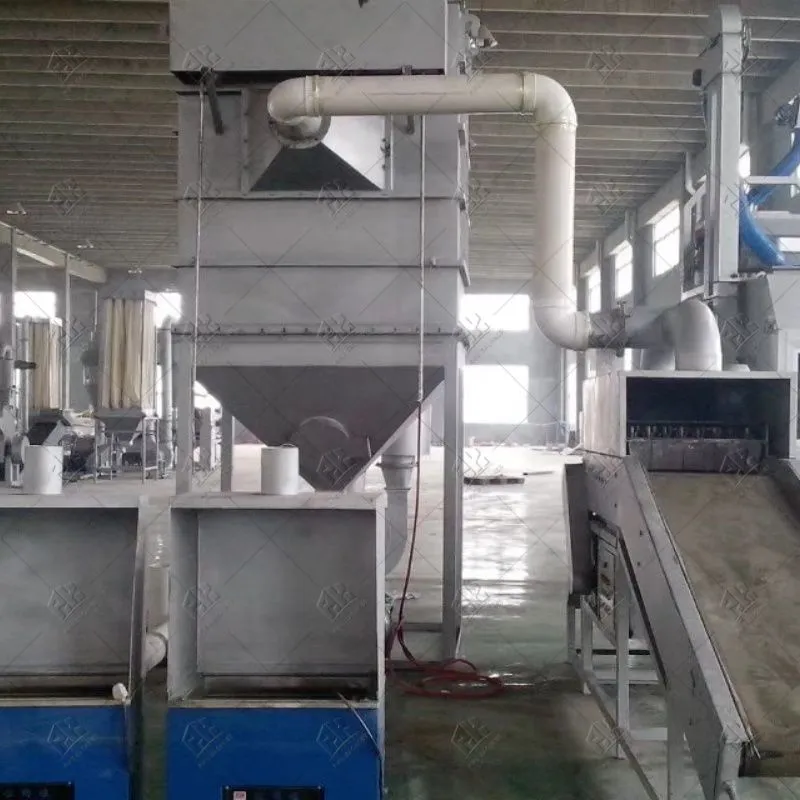

Electronic components dismantling machine
The tin furnace melting to remove the tin. and then put on the conveyor for the dismantling of the electronic components with high efficienty.
there are equipped with the central dust removal and the water scrubber

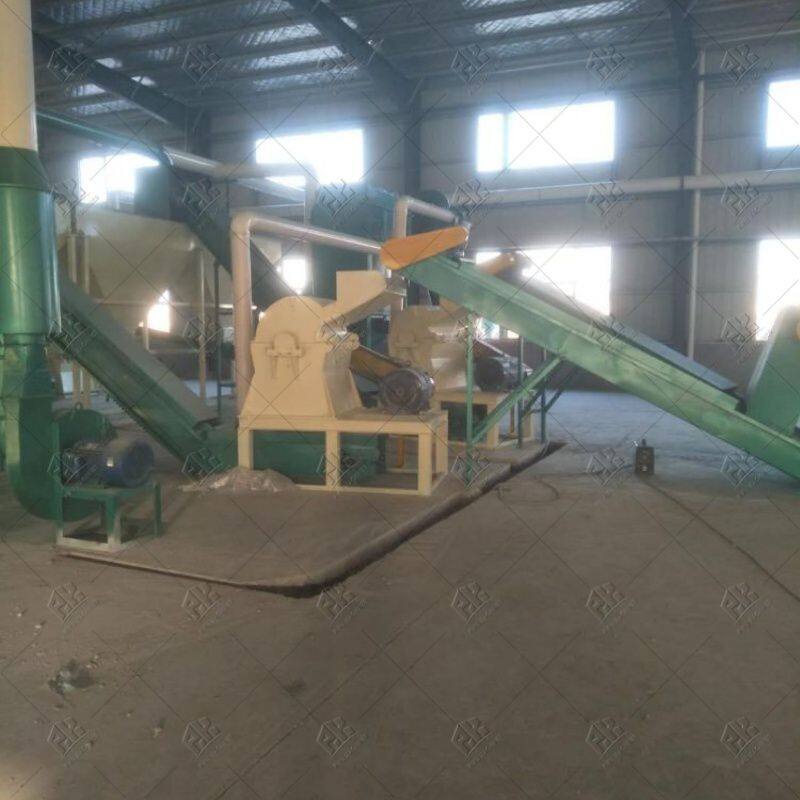

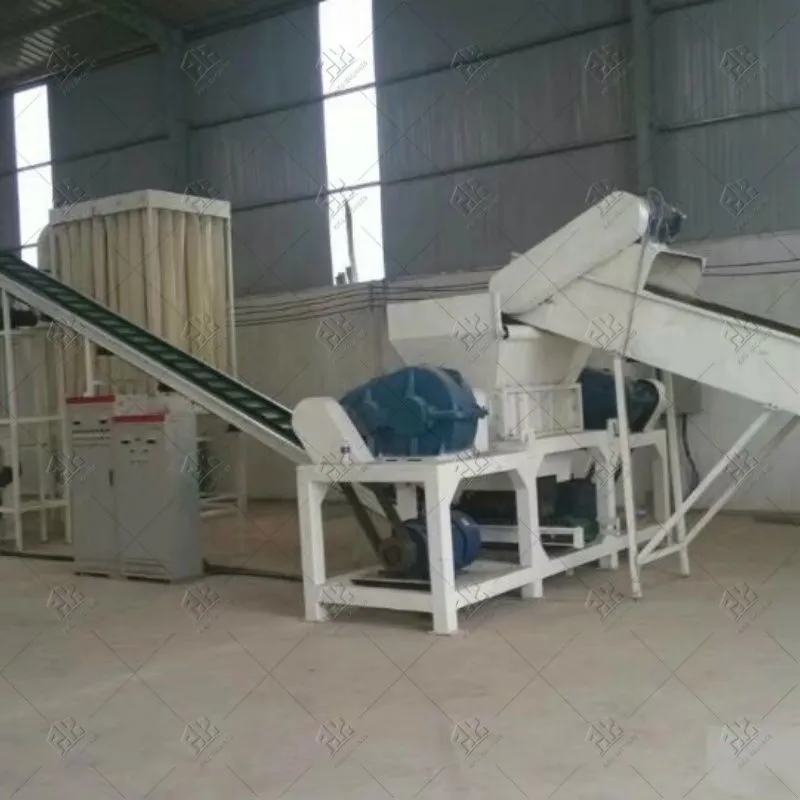

Pre processing plant of the PCB recycling machine : To cutting and shearing the original materials into chips

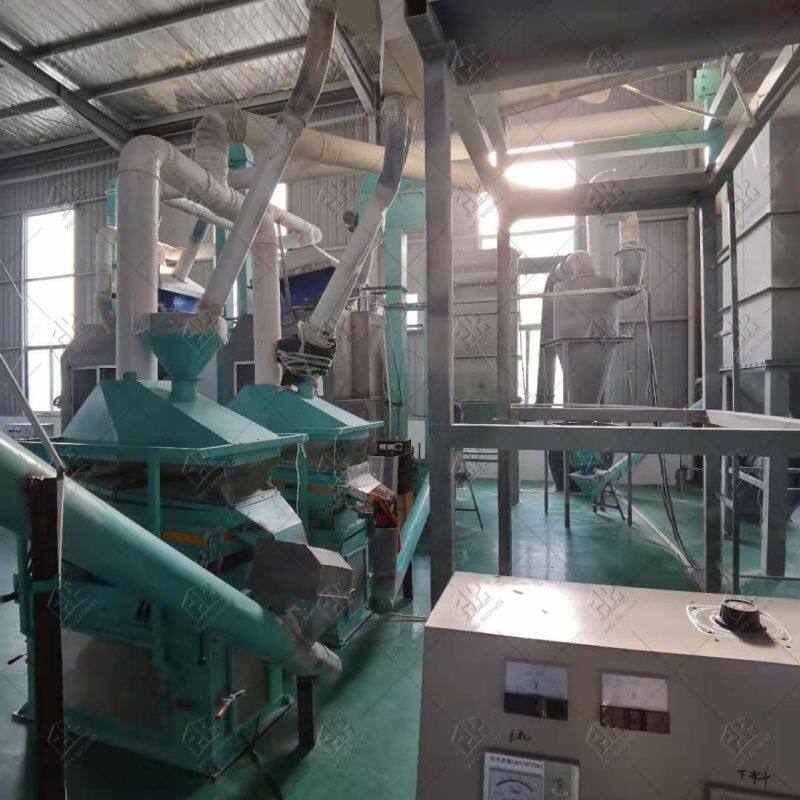

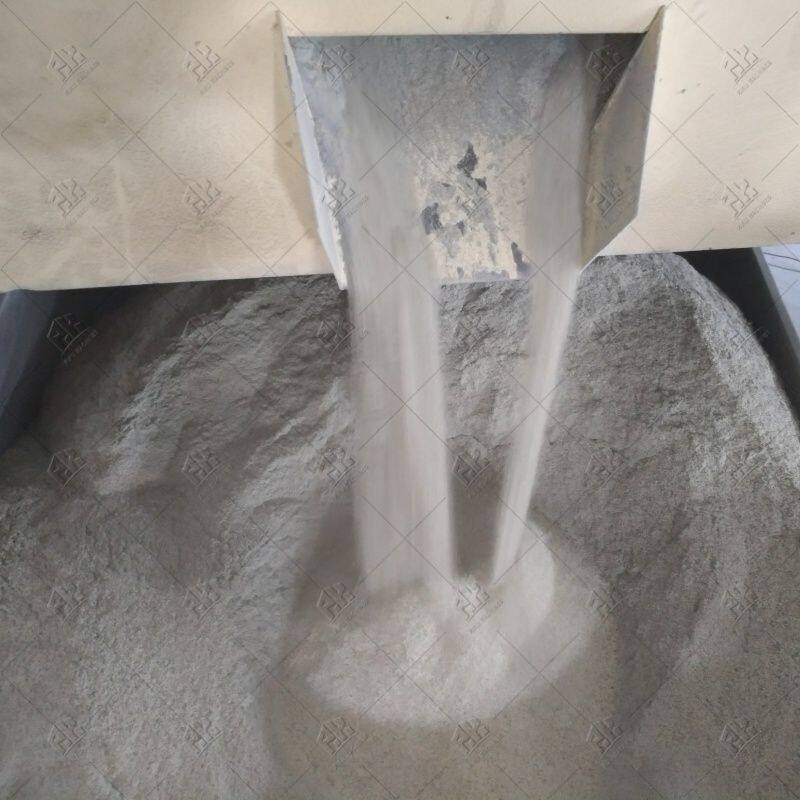

PCB specialized crusher to grinding the PCB board into powder shape, the outcomes size apprrox 3mmm.The fineness analyzer system to remove the most plastic of the PCB from the copper.

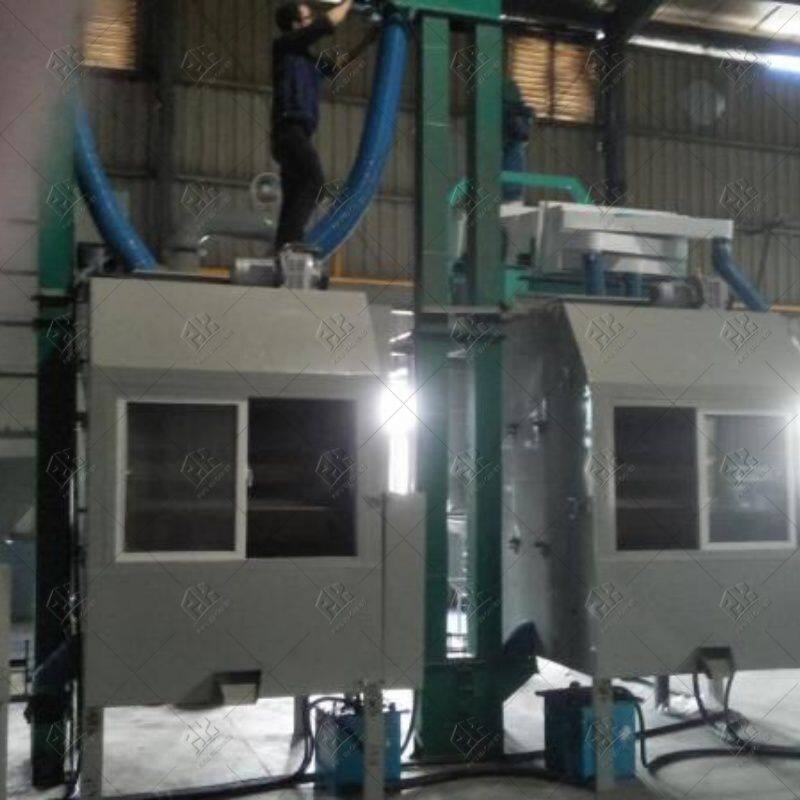

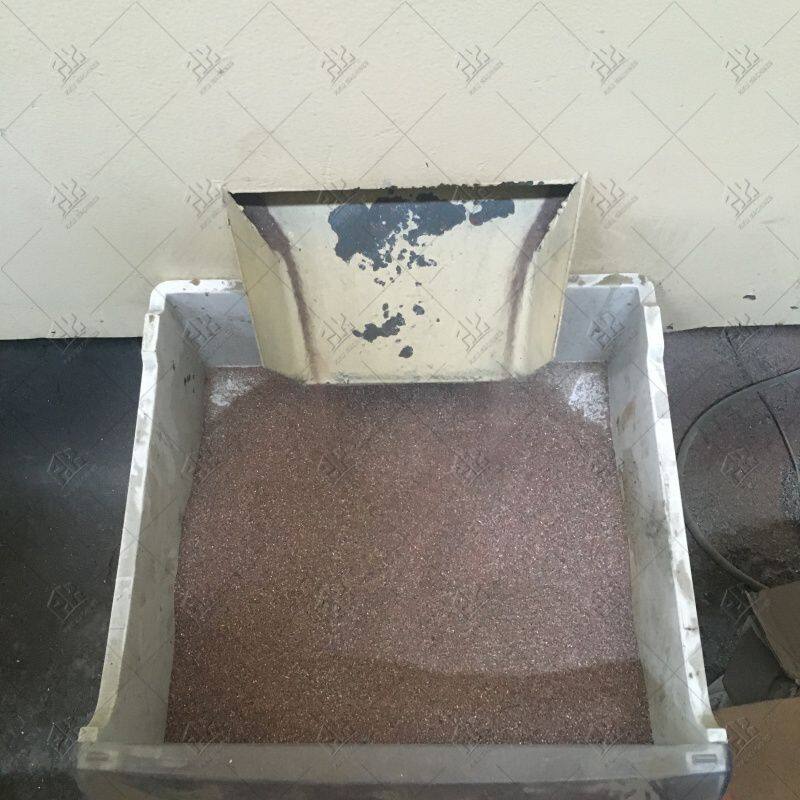

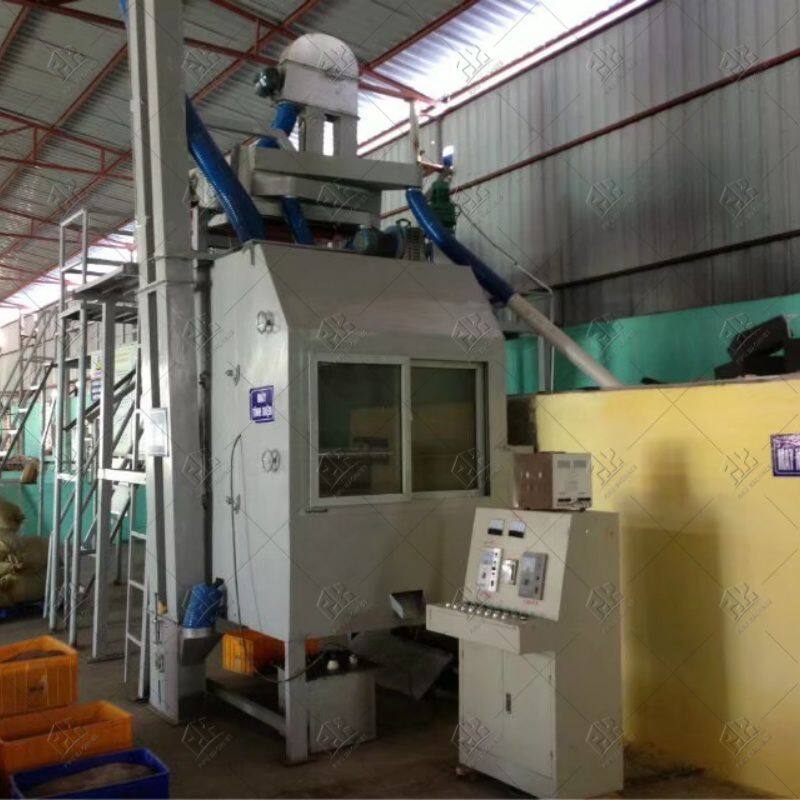

The electrostatic separator to seperate the non-ferrous metal powder from the plastic. the recycling rate surpass 98%.
