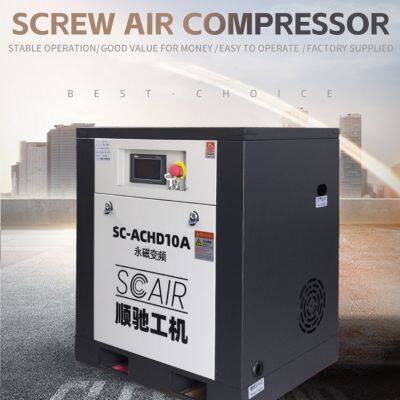

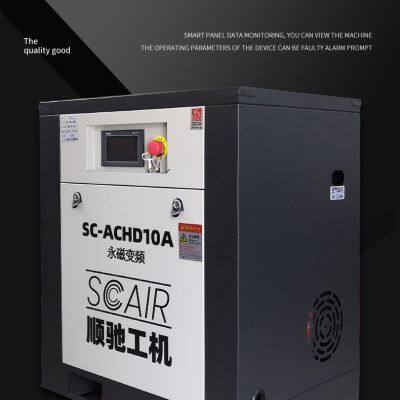

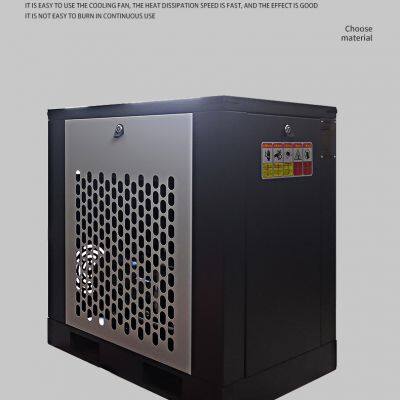

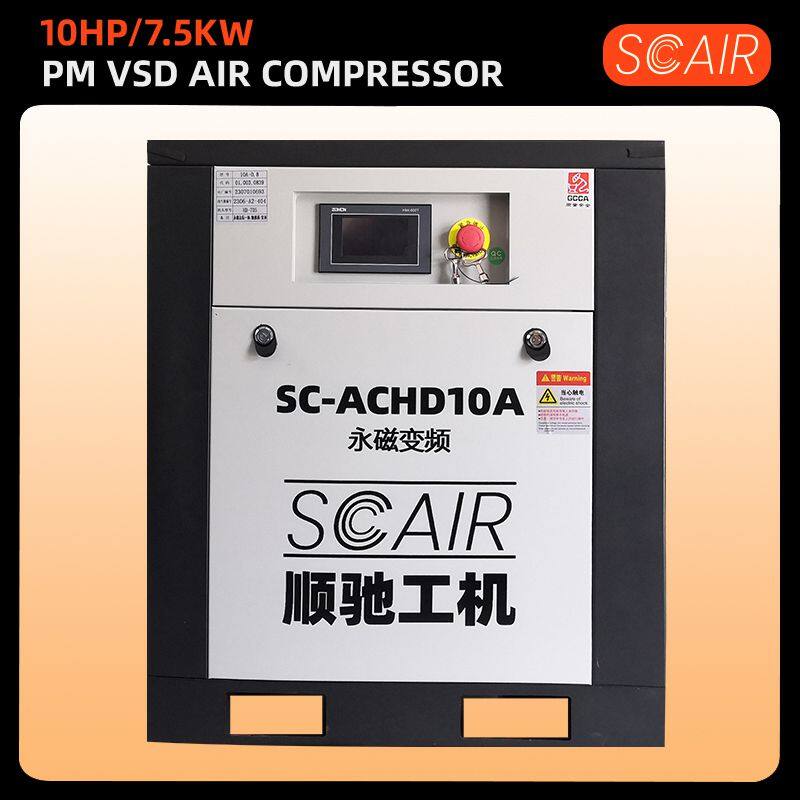

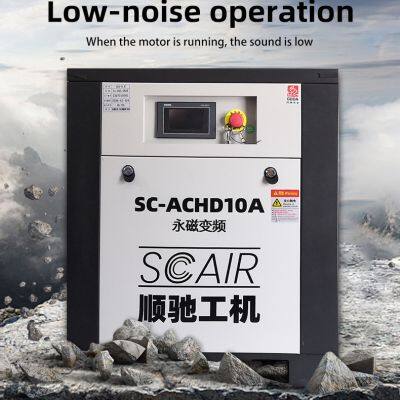

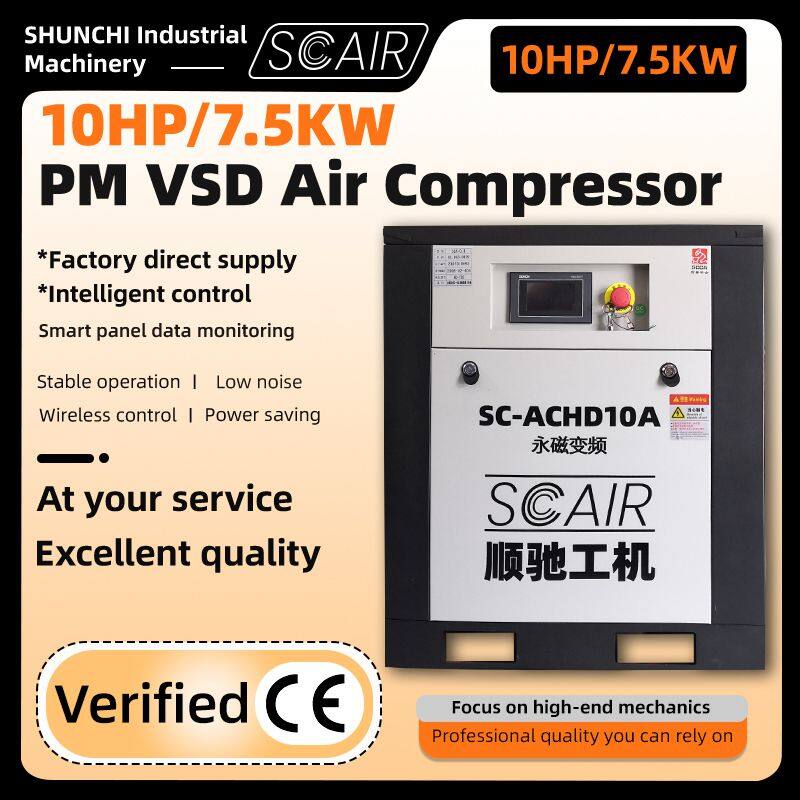

SCAIR 10HP 1.0MPa Test Lab Compressor for Vehicle Emission & Durability Testing Systems

SCAIR 10HP 1.0MPa Precision Compressor: Critical Air for Automotive Certification Testing

SCAIR’s 10HP compressor delivers 1.2 m³/min at 1.0MPa with ISO 17025 compliance, eliminating $180k/year test invalidations where hydrocarbon interference causes 5% measurement drift in EPA 1065 emission testing.

Contamination-Free Air Engineering for Certification Accuracy

Featuring catalytic oxidation technology, this 7.5kW system achieves <0.01ppb hydrocarbon levels critical for maintaining 0.1mg/m³ NOx detection limits. Active thermal compensation maintains ±0.05% pressure stability during 80°C environmental chamber cycling - solving 0.3% humidity control errors in WLTP fuel economy testing.

Testing Performance Specifications

• Air Delivery: 1.2 m³/min @ 1.0MPa (1.0m³/min @ 1.2MPa for CVS systems)

• Pressure Stability: ±0.05% during 10°C/min thermal ramps

• Hydrocarbon Control: <0.01ppb via EPA TO-17 analysis

• Vibration: <0.1μm/s per ISO 10816-3

Instrumentation Integrity Technologies

• VOC Destruction: Thermal oxidizers reduce hydrocarbons to <0.001ppb

• Pulse-Free Architecture: Dual dampeners eliminate 0.15MPa ripple causing FTIR baseline noise

• Thermal Lock: Active cooling maintains ±0.1°C in critical flow paths

• Data Security: 21 CFR Part 11 compliant controls with blockchain audit trails

Certification Applications

• Emission Testing: Supplies CVS dilution air maintaining ±0.5% flow accuracy per EPA 1065

• Wind Tunnel Systems: Powers boundary layer control achieving 0.2% Cd repeatability

• Durability Testing: Drives pneumatic actuators with ±5N force accuracy in 24/7 test rigs

• Fuel Cell Testing: Feeds hydrogen sensors with ISO Class 1 air for <1ppm detection

Compliance Standards

• Certifications: ISO 17025, EPA CFR40 Part 1065, WLTP Annex VII

• Material Safety: UL 94 V-0 flammability rating

• Calibration: NIST-traceable pressure sensors with 0.05% accuracy

Validation Q&A

• Q: How to prevent false positives in PN emissions testing?

  A: <0.01ppb hydrocarbon levels eliminate 99% of condensation nuclei interference.

• Q: Solution for humidity drift in environmental chambers?

  A: Active thermal compensation maintains dew point within ±0.5°C during thermal cycling.

• Q: Compliance documentation for type approval?

  A: Automated data logs meet EU 2017/1151 RDE requirements with 10-year retention.
