High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory

Guangzhou Berchance Electromechanical Equipment Co., Ltd. Verified Business License
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory thumbnail-1
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory thumbnail-2
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory thumbnail-3
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory thumbnail-4
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory thumbnail-5
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory photo-1
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory photo-2
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory photo-3
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory photo-4
High Pressure Outside Coil Heating Stainless Steel Chemical Reactor Factory photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Stainless Steel
Type:
Reaction Kettle
Warranty:
1 year
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
60 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Stainless Steel
Type Reaction Kettle
Warranty 1 year
Capacity Other, 500L -50000L
Structure Multiple Parallel
Pressure Positive
After-sales Service 24/7 online support, 1-year warranty, 24h rapid response
Agitator Model Anchor Agitator
Tower Reactor Type Other, Reactor
Heat Transfer Structure Other, Outside Coil
Condition New
Heating Other, Oil Circulation Heating or Steam Heating
Automatic Grade Automatic
Pressure Specification Design Pressure up to 10MPa
Transport Package Export plywood case with waterproof film & steel strap
Specification 100L-50000L capacity, up to 10MPa, SS304/316L
Trademark Berchance or OEM/ODM for bulk orders
Origin Guangzhou, China (Direct Factory)

Stainless steel reactors are widely used in petroleum, chemical, rubber, pesticide, dye, pharmaceutical, and food industries, as well as in various scientific research projects. They serve as vessels for processes such as hydrolysis, neutralization, crystallization, distillation, evaporation, storage, hydrogenation, hydrocarbonization, polymerization, condensation, heating and mixing, and isothermal reactions.

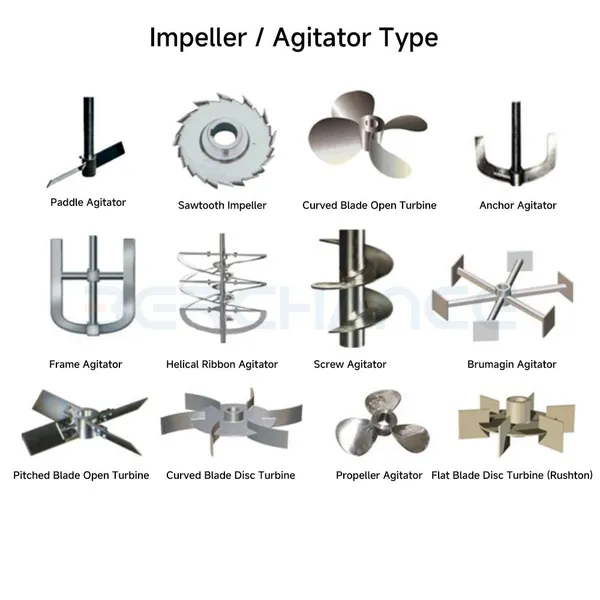

Agitation can be performed using anchor, paddle, turbine, propeller, or frame type impellers. For reactors with large diameters, multi-layer impellers can be installed, or configurations can be customized according to customer requirements.



Main Features:



01.Jacketed reactor with external coil heating, designed for capacities ranging from 500 L to 50,000 L.



02.Sealing options include mechanical seals and packing seals.



03.Heating methods: hot water heating, thermal oil circulation heating, external or internal coil heating.



04.Cooling methods: jacket cooling or internal coil cooling.




Capacity/L

Vessel Dimensions/mm

Actual

Volume/L

Outer Coil Specs/mm

Heating Area/㎡

Inner Coil Specs/mm

Cooling Area/㎡

Motor Power/kw

Gearbox Model

Support Structure

500

900*800

699

Φ76/2

1.7

Φ38

1.6

3

XLB4-17-3

JXLD4-45

1000

1100*1200

1400

Φ76/2

2.6

Φ45

2.7

4

XLB4-17-4

JXLD4-45

1500

1300*1200

2166

Φ76/2

3.8

Φ45

3.6

5.5

XLB4-17-5.5

JXLD5-55

2000

1400*1500

3000

Φ76/2

4.5

Φ45

4.3

5.5

XLB5-17-5.5

JXLD5-55

3000

1600*1500

4066

Φ89/2

5.8

Φ45

5.7

7.5

XLB5-17-7.5

JXLD5-55

4000

1700*1800

5400

Φ89/2

7

Φ57

6.8

11

XLB6-23-11

JXLD6-65

5000

1800*2000

6600

Φ89/2

7.5

Φ57

8

11

XLB6-23-11

JXLD6-65

6000

1900*2000

7700

Φ89/2

8.7

Φ57

9

15

XLB7-23-15

JXLD7-80

8000

2100*2250

10038

Φ89/2

11

Φ57

11

15

XLB7-23-15

JXLD7-80

10000

2200*2500

12300

Φ89/2

13.2

Φ57

13

18.5

XLB8-23-18.5

JXLD8-90

15000

2600*2800

19456

Φ108/2

18.6

Φ57

18

22(6-Pole)

XLB9-17-22

JXLD9-100

20000

2800*3000

24205

Φ108/2

21

Φ57

21

30(6-Pole)

XLB10-17-30

JXLD10-110

25000

3000*3400

31084

Φ108/2

26

Φ57

25

37(6-Pole)

XLB10-17-37

JXLD10-110

30000

3200*3500

36706

Φ108/2

30

Φ57

30

45(6-Pole)

XLB10-17-45

JXLD11-130

35000

3200*4000

40725

Φ108/2

33

Φ57

33

55(6-Pole)

XLB10-17-45

JXLD11-130

40000

3400*4000

46580

Φ108/2

35

Φ57

35

55(6-Pole)

XLB11-17-55

JXLD11-130


Product Tags: Outside Coil Reactor , Half Pipe Jacketed Tank , High Pressure Vessel
