Dezhou Delan Machine Tool Co., Ltd. takes it as its mission to equip China's manufacturing industry, and is committed to creating high - quality equipment and providing value - added services for various industries of the national economy. We sincerely hope to cooperate with friends from all walks of life for mutual benefit and joint development.

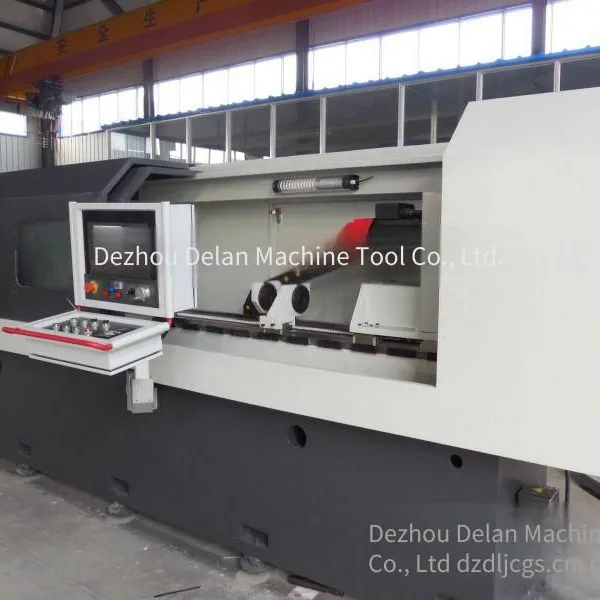

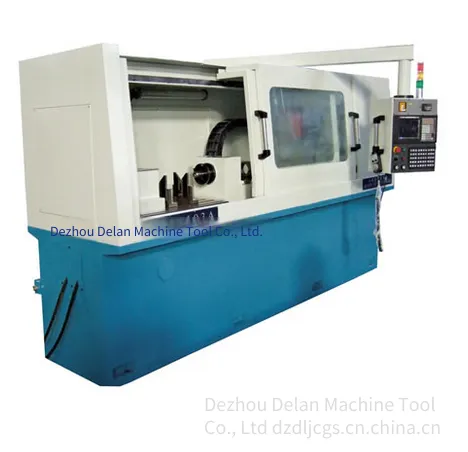

The ZK2103F CNC deep - hole drilling machine is a special deep - hole drilling machine with high efficiency, high precision and high automation. It adopts the external chip removal drilling method (gun drilling method), and through one continuous drilling, it can replace the machining accuracy and surface roughness that generally require drilling, reaming and reaming processes to achieve. This machine tool is controlled by a digital control system. It not only has a single - action function, but also has an automatic cycle function. Therefore, it is suitable for small - batch processing, and especially suitable for the processing requirements of mass production. It can not only drill through - holes, but also process blind holes or stepped holes. When cooperating with special tooling, it can also process eccentric holes and oblique oil holes.
Machine tool features: 1. The bed and the box are both made of high - quality cast iron, with good rigidity and stability. 2. The tool does not need to be retracted during the deep - hole drilling process. 3. It is controlled by a CNC system, with a high degree of automation. 4. The feed movement is driven by an AC servo motor and transmitted by a ball screw pair, with stepless speed regulation. 5. It uses sliding guides, and the moving parts are plastic - coated. It runs smoothly at low speed without crawling. 6. The spindle of the drill pipe box can be steplessly variable. 7. The spindle bearings and guide surfaces are all automatically lubricated intermittently. 8. The high - pressure cooling system uses a variable - frequency motor to drive a gear pump, and an immersion oil temperature controller is used. 9. It uses an automatic chip conveyor to remove chips. 10. The machine tool adopts a fully enclosed protection form, which is convenient to observe and beautiful in appearance. 11. It has a variety of automatic monitoring devices.
Main technical specifications and performance
Technical specifications Parameters
ZK2012F ZK2012F×2 ZK2103F
Processing range Number of spindles 1 2 1
Spindle spacing 120mm 180mm
Drilling diameter range 3-20mm 6-30mm
Processing depth 500/1000mm 440/950mm 500/1000mm
Drill pipe box Spindle speed 7000r/Min 6000r/Min
Main motor power 4kW 4kW×2 5.5kW
Tool feed Speed range (stepless) 5-500mm/Min 5-500mm/Min
Fast moving speed 3m/Min 3m/Min
Motor torque 7.7Nm 7.7Nm
Cooling system Pressure 10MPa
Flow rate 100L/Min
Others Total power (approx.) 20kW 24kW 22kW
Machine tool overall dimensions (length × width × height) 3.5/4.7×3.2×1.8m
Total weight (approx.) 4/5t
Machine tool machining accuracy Aperture accuracy IT7 - IT11
Workpiece surface roughness Ra0.4 - 3.2µm
Deviation of hole center line Workpiece does not rotate: ≤1mm/1000mm; Workpiece rotates: ≤0.5mm/1000mm. (Length - diameter ratio ≤100:1)
Hole straightness ≤0.05mm/100mm. (Length - diameter ratio ≤100:1)
