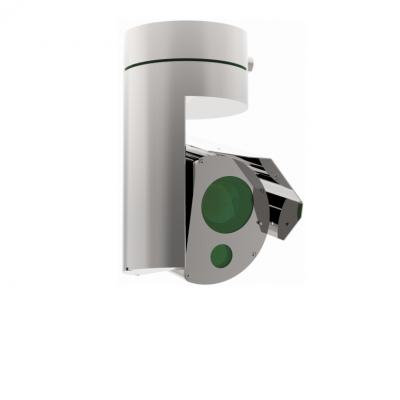

P20 Panel Tilt Open Route Laser Scanning Methane Gas Leak Monitoring System

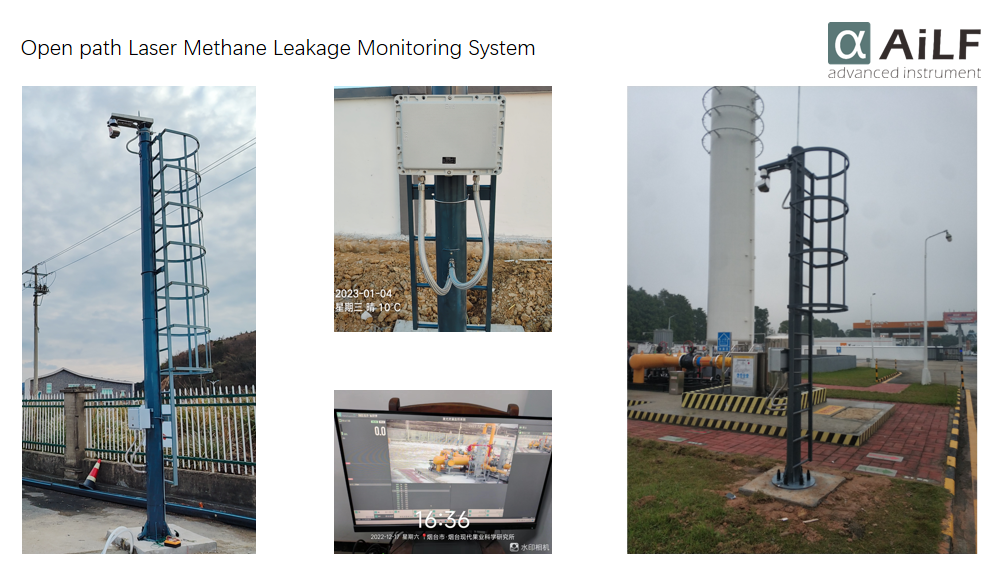

P20 Open path Laser Methane Leakage Monitoring system.

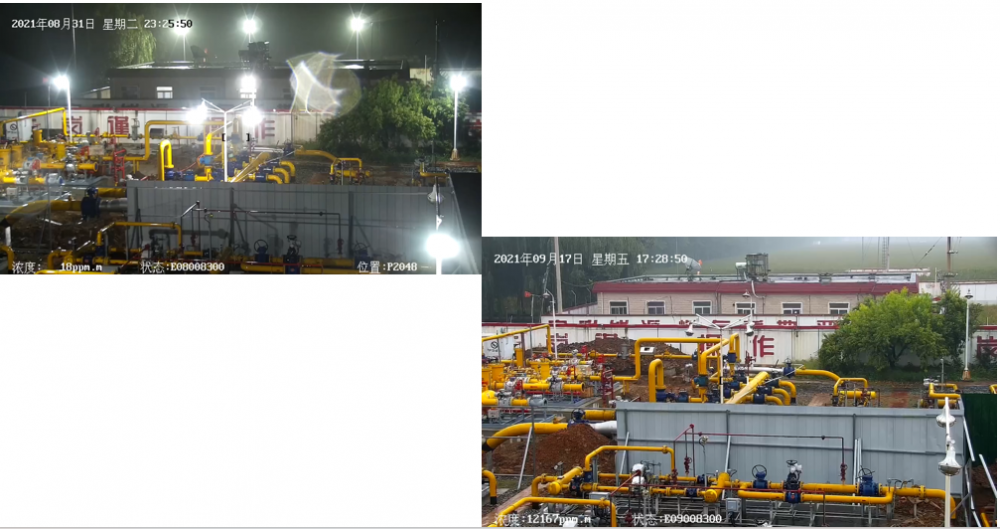

In stations and process areas, it requires continuous rotation for the scanning laser pan-tilt to inspect along each route; To accurately detect distant targets, it must have good locating accuracy and repeatability.
Laser Methane Scanner (LMS):
This system uses a laser to detect methane gas concentrations at a distance, often up to a kilometer. It's designed for continuous monitoring of infrastructure like gas pipelines and can be programmed to scan specific routes

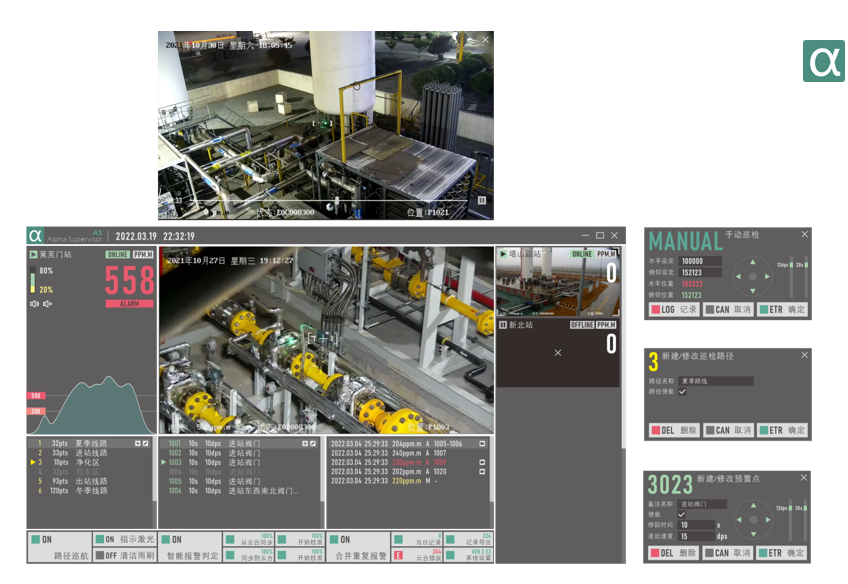

P20 integrates laser detection, leak point determination, recording, inspection route management, and network communication on the pan-tilt, making it a complete monitoring and alarm device. Even if the backend system is offline, the pan-tilt can independently and continuously perform on-site leak monitoring and synchronize breakpoint alarm data when the system is restored.

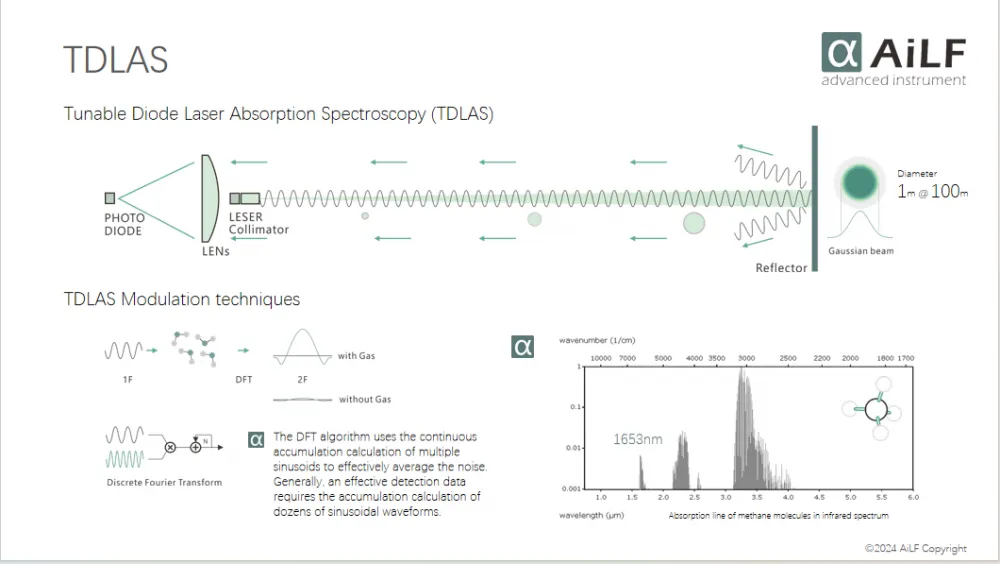

Laser Absorption Spectroscopy (TDLAS):
The core of these systems is often TDLAS (Tunable Diode Laser Absorption Spectroscopy). This technology emits a laser beam and measures how much of the laser light is absorbed by methane molecules in the air.
Benefits:
Intrinsically safe and explosion-proof
Continuous operation high-reliability
Pan-tilt
Closed-loop control
Reduced power consumption by 5 times to 20w
Reduced size by 4 times
Reduced weight by 6 times to 5.5 kg
Plug-and-work automatic recovery of inspection
Pan-tilt integrates detection, alarm, and track control functions

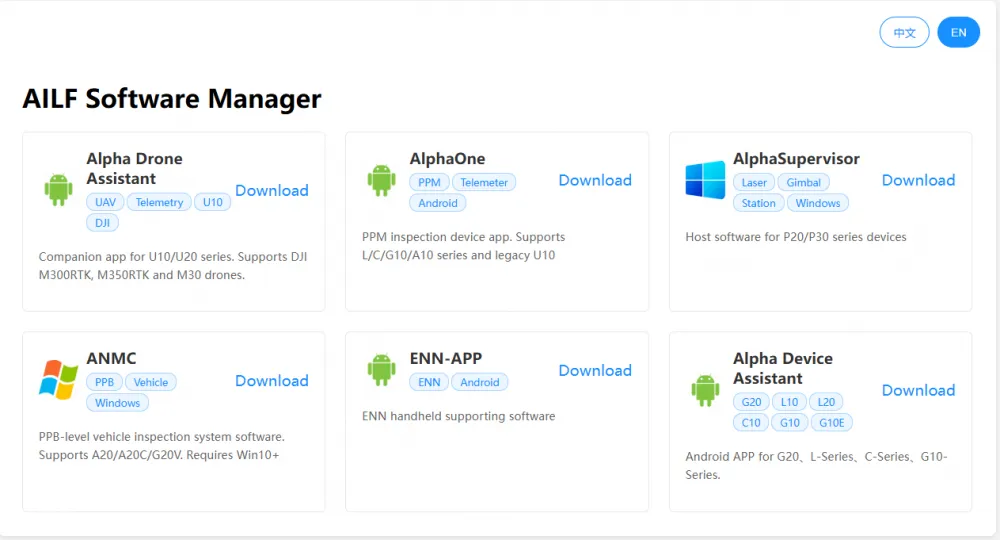

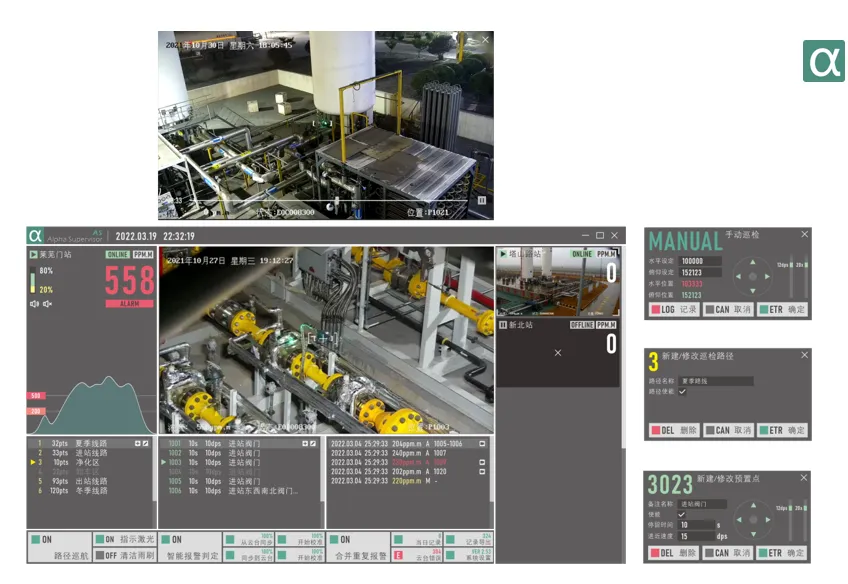

Free Software for download
Water and Dust Resistant, Grade
Available for explosive environment, Grade
Adaptable to various working conditions such as cities, wildfield, stations and pipelines with reliability, durability, safety and stability.
Application
Scanning gas leak monitoring systems are used in various industries,
including:
Oil and Gas: Monitoring pipelines, storage facilities, and processing plants for leaks.
Manufacturing: Detecting leaks in industrial processes involving flammable or toxic gases.
Energy: Monitoring gas distribution networks and power plants.
Chemical: Detecting leaks in chemical plants and storage facilities.
Wastewater Treatment: Detecting leaks in biogas systems and other processes involving potentially hazardous gases.
