Handheld Pump Type C10F Natural Gas Pipeline Route Leakage Inspection Portable TDLAS Laser Methane Leak Detector

Handheld Pump Type C10F Natural Gas Pipeline Route Leakage Inspection Portable TDLAS Laser Methane Leak Detector photo-1

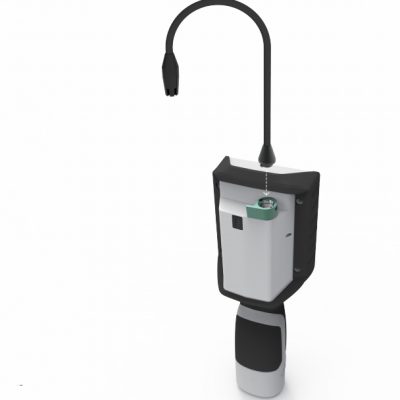

Handheld Pump Type C10F Natural Gas Pipeline Route Leakage Inspection Portable TDLAS Laser Methane Leak Detector photo-2
US$ 4000 1 - 9 Set
US$ 3500 10 - 19 Set
US$ 3000 ≥20 Set

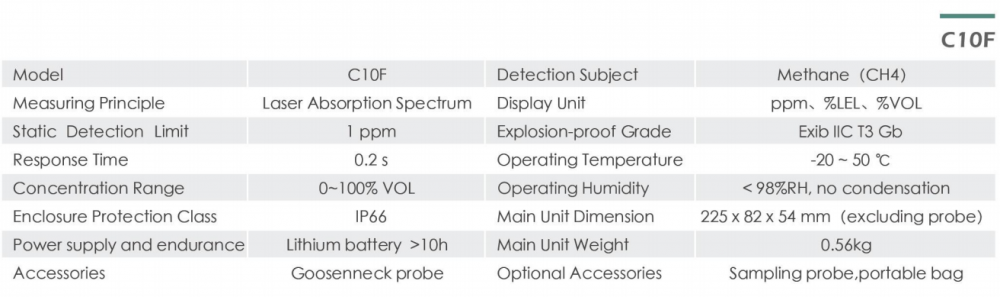

Key Specifications
Get Latest Price
Type:
Laser Gas Analyzer
Certification:
Other, ATEX
Warranty:
1 Year
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Type Laser Gas Analyzer
Certification Other, ATEX
Warranty 1 Year
Brand Other, AiLF
After-sales Service Provided
Customized Customized
Portable Portable
Gas CH4
Weight 0.56 kg
Transport Package UPS
Specification 225x82x54mm
Trademark AiLF
Origin China

Pump type G10 Natural gas pipeline route leakage inspection Portable TDLAS Laser Methane Ethane Leak Detector


C Series handheld Full Scale Laser Methane Leakage Detector.


Pump type G10 Natural gas pipeline route leakage inspection Portable TDLAS Laser Methane Ethane Leak Detector

The C10F Handheld Laser Gas Detector is a natural gas leak portable analyzer with laser spectroscopy. This highly sensitive detector offers all the advantages of optical detection in a highly compact and portable device, giving you precise and reliable findings when detecting methane leaks.

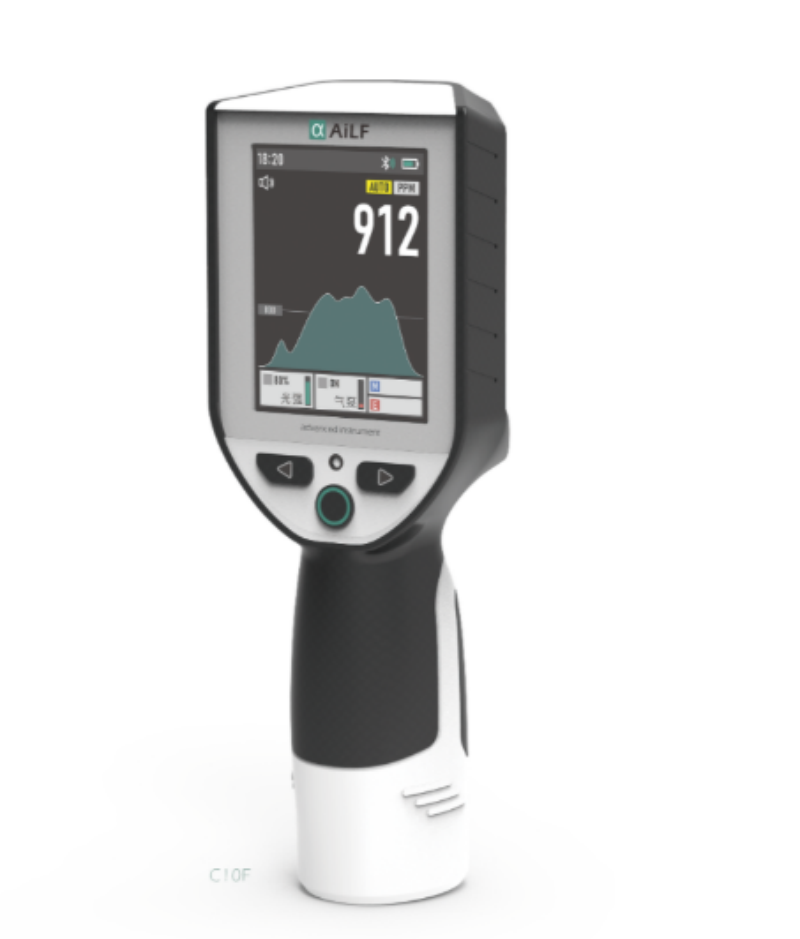

Portable laser CH4 detector(1)

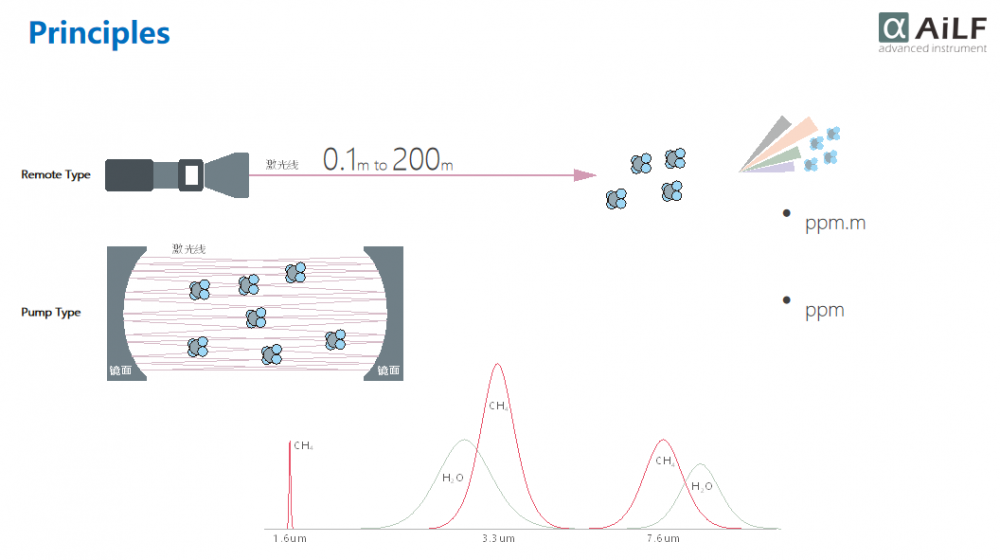

Laser Absorption Spectroscopy (TDLAS):

The core of these systems is often TDLAS (Tunable Diode Laser Absorption Spectroscopy). This technology emits a laser beam and measures how much of the laser light is absorbed by methane molecules in the air.




Benefits:

1ppm ~ 1000000ppm(100%VOL)



C10F has good performance of full-range detection, supports readings of concentration in ppm, %LEL and %VOL.

Auto

With the built-in gas reference, C10 can continuously self-calibrate during operation to ensure accurate detection. Laser technology

is superior to the traditional sensor without any failure or getting disabled, it's truly realized self-calibration(calibration free).

APP

Support Bluetooth connection with inspection app AlphaOne

Support access to external or user's information platform




Water and Dust Resistant, Grade IP66

Applicable to explosive environment, Grade EXib IIC T3

Capable of adapting to various working conditions like indoor,wild field,station,pipelines with reliability,durability,safety and stability.


Long endurance, fast charging, and Type C interface working with low temperature resistance battery pack can ensure a-day-long
working even in extremely cold regions.


Free Software for download

Download Center.png


Water and Dust Resistant, Grade

Available for explosive environment, Grade

Adaptable to various working conditions such as cities, wildfield, stations and pipelines with reliability, durability, safety and stability.


Through the rear EZG gas interface, C10 can be connected with the accessories like gooseneck and sampling probe in a convenient and fast
manner for replacing and checking filter.

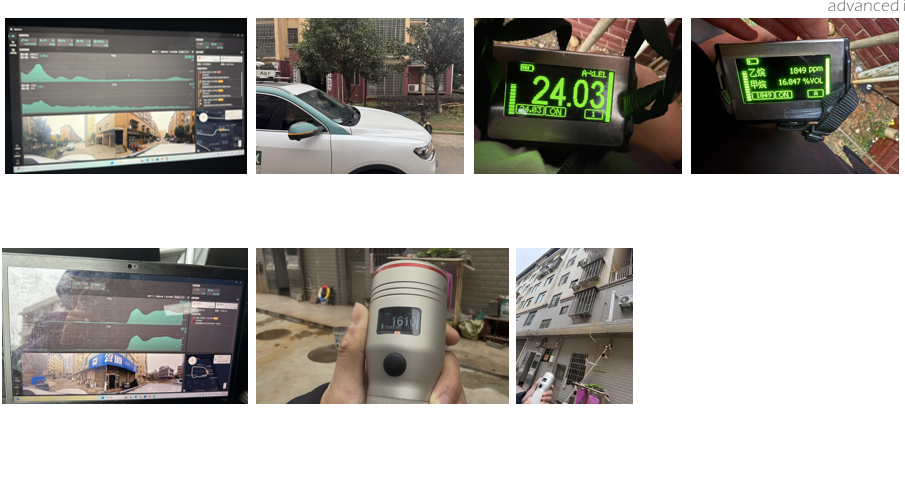

Application

Pipeline inspection

Natural gas leakage detection

Natural Gas Leak Detection:

Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.

Industrial Monitoring:

Detecting leaks in chemical plants, refineries, and other industrial facilities.

Environmental Monitoring:

Measuring ethane emissions from various sources, including landfills and agricultural activities.
