Zhangjiagang Hongshenglong Machinery Co., Ltd. produces filtration equipment, oil filters, sewage purification and emission reduction equipment, and provides equipment rental services. Free samples are available upon request.
Phone: Mr. Wu (18962227271)
Centrifugal separators are ideal equipment for removing impurities from liquids and are commonly used to separate particulate matter from aqueous liquids and oil liquids.
Such as coolants, cutting fluids, and grinding fluids in machining centers. Through the centrifugal filter, magnetic or non-magnetic impurities in the liquid can be separated. It is used for the separation and purification of cutting fluids in engineering processes such as CNC cutting, milling and grinding (rough folding), fine grinding (sand hanging), and edge grinding (core taking) to achieve reuse.

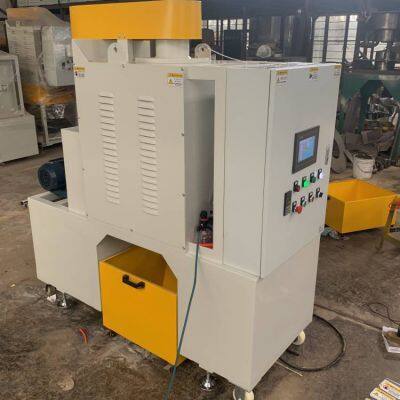

This equipment is equipped with a bolt socket on the aluminum barrel cover, and a cylinder is installed on the bolt socket. The cylinder inserts the bolt into the bolt socket to achieve automatic control. There is no need for manual cleaning, and the dirt and impurities adsorbed in the barrel can be cleaned out through its own cleaning device.
Main technical parameters of the fully automatic discharging centrifugal oil filter:
Model |
SYJJ-40-QZ |
SYJJ-80-QZ |
SYJJ-120-QZ |
|
Application scope |
Drawing oil and hydraulic machine oil, etc. |
|||
Filtration accuracy |
≥0.01 microns |
|||
Flow rate |
25L/min |
50L/in |
75L/min |
|
Operating temperature range |
0℃-120℃ |
|||
Operating viscosity range |
9-460cst |
|||
Inlet and outlet diameters |
Inlet RC3/4, Outlet RC2 |
RC2 |
||
Pressure gauge |
ф60 oil-containing pressure gauge 0-10kgf/cm² |
|||
Weight |
- |
|||
Suitable oil tank |
||||
