Zhangjiagang Hongshenglong Machinery Co., Ltd. is engaged in filtration equipment, customized environmental protection equipment, water treatment, oil purification treatment, sewage treatment, waste liquid reduction.
We have many years of sales experience in filtration equipment-related products and services. Technical hotline: Wu (18962227271)

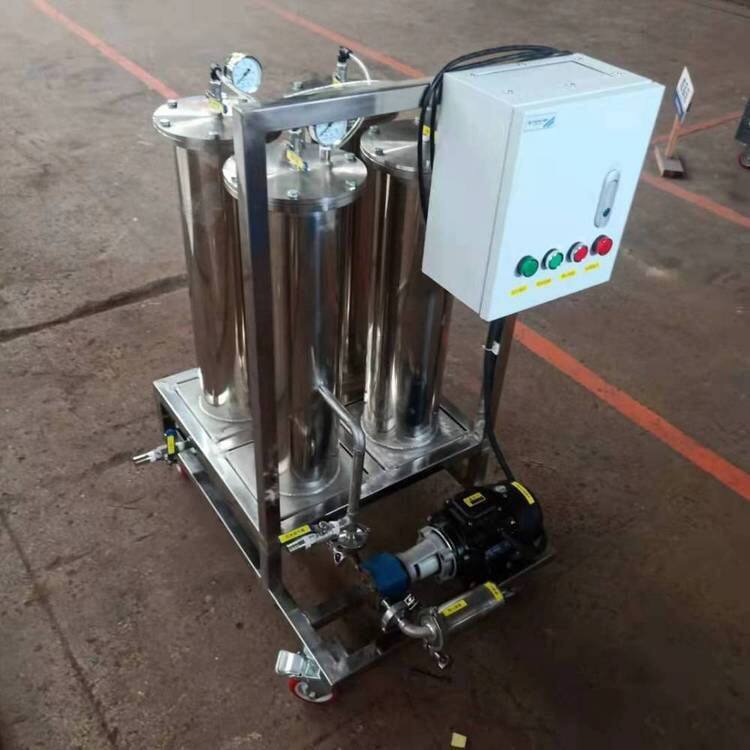

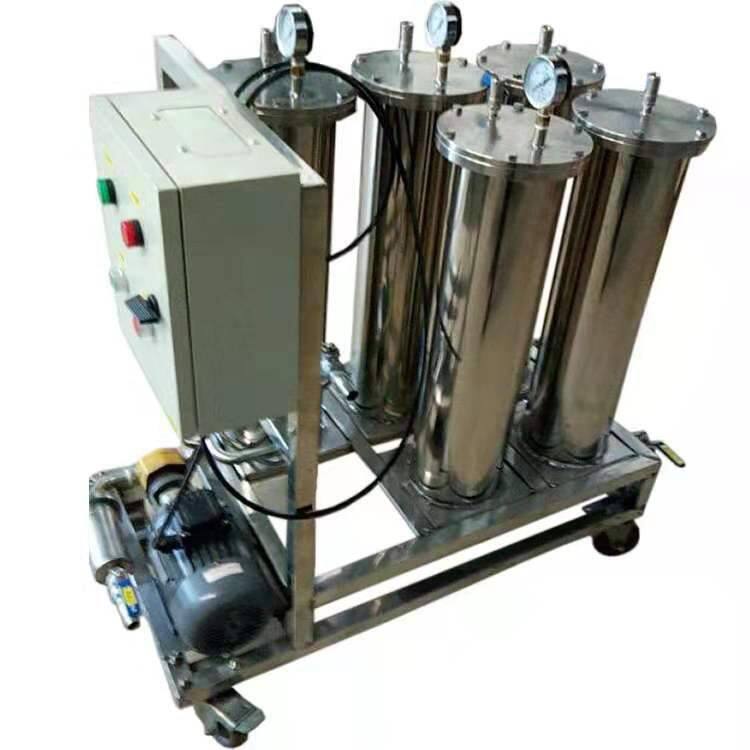

Single-barrel filtration and dehydration oil filter truck
: The single-barrel filtration and dehydration oil filter truck is a mesh-filter type oil filter truck. It can control the oil pollution degree to NAS 5 - 8 levels, with a large dirt-holding capacity and good oil-passing ability. This oil filter truck is a mobile oil filtration device. It can regenerate, purify and refill the contaminated new and old oil during transportation, storage and use.
Features and effects:
1. Use the filter materials produced (optional dehydration filter element);
2. The filter is equipped with a bypass valve;
3. It has a pressure protection function.
4. The coarse filter at the oil suction port protects the oil pump and extends the service life of the filter element;
5. The addition of directional front wheels makes the movement more flexible and lightweight;
6. The addition of an oil pan and oil pipe fixing device reduces the possible environmental pollution on the site;
7. It has strong interchangeability.
HSL-B1 type single-barrel filtration and dehydration oil filter truck main technical parameters:
Model |
HSL-B1-16 |
HSL-B1 -40 |
HSL-B1-63 |
HSL-B1- 100 |
HSL-B1- 150 |
HSL-B1- 200 |
HSL-B1- 300 |
Treatment capacity ( L/H ) |
1000 |
2400 |
3600 |
6000 |
9000 |
12000 |
18000 |
Operating Voltage / Capacity (V/KW) |
380/0.37 |
380/0.75 |
380/1.1 |
380/1.5 |
380/5.5 |
380/7.5 |
380/10 |
Applicable Viscosity (cSt) |
320 |
||||||
Operating Temperature ( ℃) |
90 |
||||||
Designed Working Conditions |
Offline or Online Filtration |
||||||
Medium |
Turbine oil, hydraulic oil, synthetic oil and other petroleum-based oils |
||||||
Oil Pipe Inlet / Outlet Size |
25 |
32 |
50 |
80 |
|||
Filtration Accuracy |
1 、3 、5 、7 、12um( User's choice) |
||||||
Working Pressure ( Mpa ) |
0.5 |
||||||
Inlet Pressure ( Mpa ) |
>-0 。045 |
||||||
Machine Body Appearance mm |
560*400*960 |
650*650*1300 |
|||||
