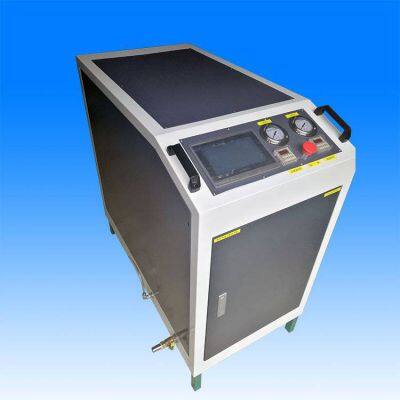

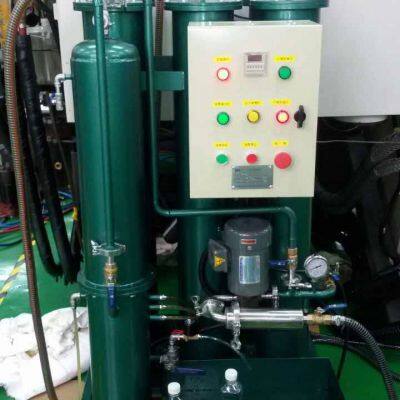

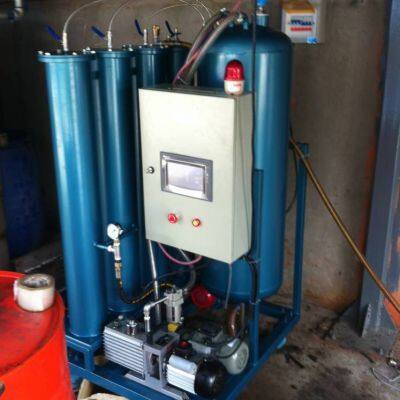

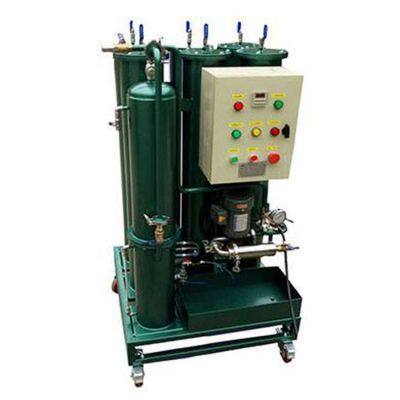

Help CenterOil Filter for Injection Molding Machine, Fine Oil Filtering Vehicle, Lubricating Oil Filter, Demulsifying Oil Filter
Related Products
-
Energy-saving and Emission-reduction, Automatic Discharging Centrifuge, Lubricating Oil Filter, High-speed Slag Discharge CentrifugeNegotiableMOQ: 1 Set -
Wire Drawing Oil Filter, Hong Shenglong Machinery, Quenching Oil Filter, Lubricating Oil FilterNegotiableMOQ: 1 Set
-
Hong Shenglong Filter Without Consumables, Drawing Oil Filter, Automatic Discharging CentrifugeNegotiableMOQ: 1 Set
-
Drawing Oil and Wire Drawing Oil Filter, Screw Cold Heading Oil Filter, Hong Shenglong MachineryNegotiableMOQ: 1 Set
-
Hong Shenglong Automatic Discharge Centrifuge, Centrifugal Filter, Discharge Oil FilterNegotiableMOQ: 1 Set
Zhangjiagang Hongshenglong Machinery Co., Ltd. is engaged in filtration equipment, customized environmental protection equipment, water treatment, oil treatment, sewage treatment, waste liquid reduction.
We have many years of sales and experience in related products and services of filtration equipment.
Features and effects:
1. Adopt the produced filter materials (optional dehydration filter element);
2. The filter is equipped with a bypass valve;
3. It has a pressure protection function. The equipment will automatically stop when the pressure is over the limit; Sound/ Light alarm prompts to replace the filter element;
4. The coarse filter at the oil suction port protects the oil pump and extends the service life of the filter element;
5. The addition of directional front wheels makes the movement more flexible and lightweight;
6. The addition of oil pans and oil pipe fixing devices reduces the possible environmental pollution on the site;
7. Strong interchangeability.
SYJZ-B1 type single-barrel filtering and dehydrating oil filter truck main technical parameters:
Model |
HSL-B1-16 |
HSL-B1 -40 |
HSL-B1-63 |
HSL-B1- 100 |
HSL-B1- 150 |
HSL-B1- 200 |
HSL-B1- 300 |
Treatment Capacity ( L/H ) |
1000 |
2400 |
3600 |
6000 |
9000 |
12000 |
18000 |
Operating voltage / Capacity (V/KW) |
380/0.37 |
380/0.75 |
380/1.1 |
380/1.5 |
380/5.5 |
380/7.5 |
380/10 |
Applicable viscosity (cSt) |
320 |
||||||
Operating temperature ( ℃) |
90 |
||||||
Designed working conditions |
Offline or online filtration |
||||||
Medium |
Turbine oil, hydraulic oil, synthetic oil and other petroleum-based oils |
||||||
Oil pipe inlet / outlet size |
25 |
32 |
50 |
80 |
|||
Filtration accuracy |
1 , 3 , 5 , 7 , 12um( Selected by user) |
||||||
Working pressure ( Mpa ) |
0.5 |
||||||
Inlet pressure ( Mpa ) |
>-0 .045 |
||||||
Body appearance mm |
560*400*960 |
650*650*1300 |
|||||
Standard filter element, glass fiber and PP are optional
