Warranty 1 year
After-sales Service 1 year

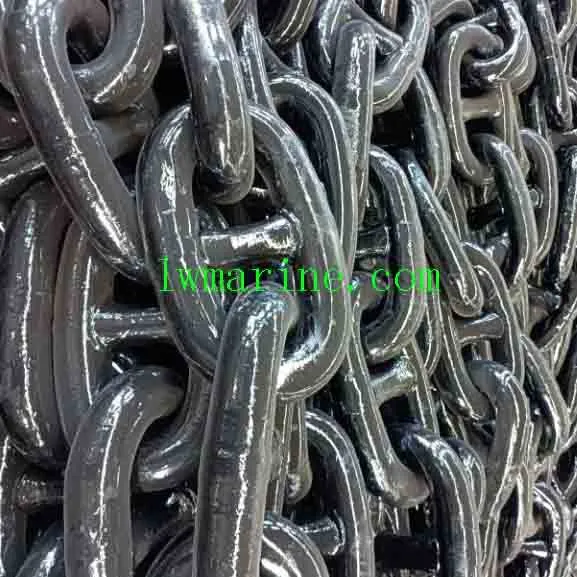

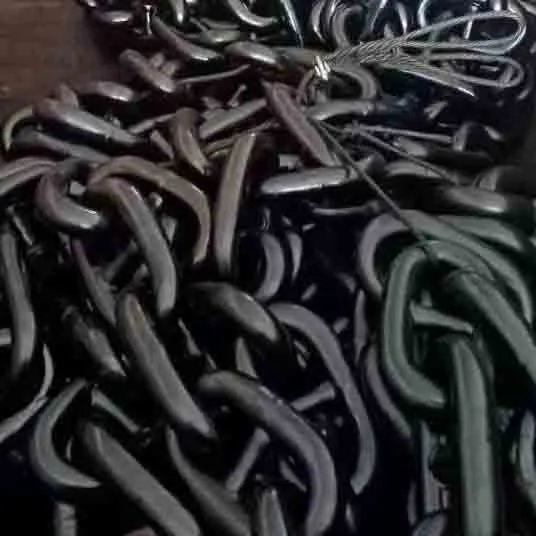

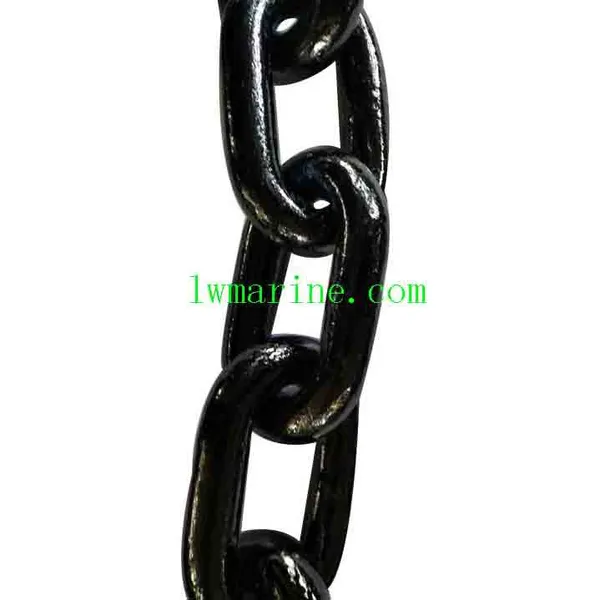

Black Painted Anchor Chain – Durable Marine-Grade Anchoring Solution

High-Strength Chain with Protective Bituminous Coating

Our black painted anchor chain provides reliable holding power with enhanced corrosion protection, manufactured to international standards for commercial and industrial marine applications.

Key Specifications:

  • Material: CM490 (U2 Grade) / CM690 (U3 Grade) steel

  • Diameter Range: 12.5mm – 162mm

  • Standard Length: 27.5m per shackle (custom lengths available)

  • Surface Treatment: High-adhesion bituminous paint

  • Certifications: ABS, BV, CCS, DNV GL, KR, LR, NK, RINA, RS

Black Painted Anchor Chain Specification:

Nominal Diameter mm Weight Breaking Load Proof Load

AM2 AM3 AM2 AM3

kg/27.5m kN kN kN kN
12.5 98 92 132 66 92
14 122 116 165 82 116
16 161 150 216 107 150
17.5 193 179 256 127 179
19 227 211 301 150 211
20.5 264 244 349 175 244
22 305 280 401 200 280
24 362 332 476 237 332
26 425 389 556 278 389
28 493 449 642 321 449
30 566 514 735 368 514
32 644 583 833 417 583
34 727 655 937 468 655
36 815 732 1050 523 732
38 909 812 1160 581 812
40 1007 896 1280 640 896
42 1110 981 1400 703 981
44 1218 1080 1540 769 1080
46 1331 1170 1680 837 1170
48 1450 1270 1810 908 1270
50 1573 1370 1960 981 1370
52 1701 1480 2110 1060 1480
54 1835 1590 2270 1140 1590
56 1973 1710 2430 1220 1710
58 2117 1810 2600 1290 1810
60 2265 1940 2770 1380 1940
62 2419 2060 2940 1470 2060
64 2577 2190 3130 1560 2190
66 2741 2310 3300 1660 2310
68 2909 2450 3500 1750 2450
70 3080 2580 3690 1840 2580
73 3353 2790 3990 1990 2790
76 3634 3010 4300 2150 3010
78 3828 3160 4500 2260 3160
81 4128 3380 4820 2410 3380
84 4440 3610 5160 2580 3610
87 1762 3850 5500 2750 3850
90 5097 4090 5840 2920 4090
92 5326 4260 6080 3040 4260
95 5679 4510 6440 3230 4510
97 5920 4680 6690 3340 4680
100 6292 4940 7060 3530 4940
102 6546 5120 7320 3660 5120
105 6937 5390 7700 3850 5390
107 7204 5570 7960 3980 5570
111 7752 5940 8480 4250 5940
114 8177 6230 8890 4440 6230
117 8613 6510 9300 4650 6510
120 9060 6810 9720 4850 6810
122 9360 7000 9990 5000 7000
124 9675 7200 10280 5140 7200
127 10148 7490 10710 5350 7490
130 10635 7800 11140 5570 7800
132 10965 8000 11420 5720 8000
137 11810 8510 12160 6080 8510
142 12690 9030 12910 6450 9030
147 13600 9560 13660 6840 9560
152 14500 10100 14430 7220 10100
157 15520 10640 15200 7600 10640
162 16530 11180 15980 7990 11180

The description/sizes may be different with goods, please check with us when order.
