Help CenterBrown Fused Alumina Abrasives Grit/Brown Fused Aluminum Oxide F24 F30 F36 F40 F46
Related Products
-
Brown Aluminum OxideUS$ 600 - 700MOQ: 1 Tonne -
Brown Fused AluminaUS$ 600 - 700MOQ: 1 Tonne
-
0-1mm 1-3mm 3-5mm/3-6mm 5-8mm 8-10mm Brown Fused Alumina Abrasives for Refractory Raw MaterialsUS$ 860MOQ: 350 Tons
-
0-1mm 1-3mm 3-5mm 5-8mm 8-10mm White Fused Alumina Oxide for RefractoryUS$ 860MOQ: 350 Tons
-
High Efficiency Pink Aluminum Oxide Fused/Pink Fused Alumina (PA)US$ 1800MOQ: 550 Tons

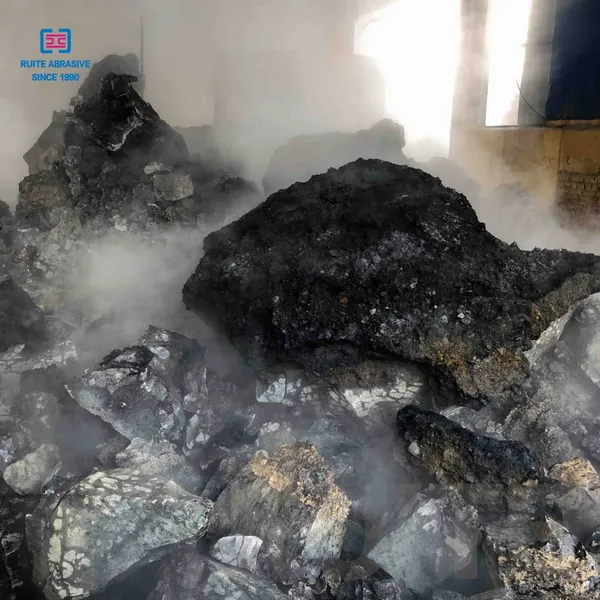

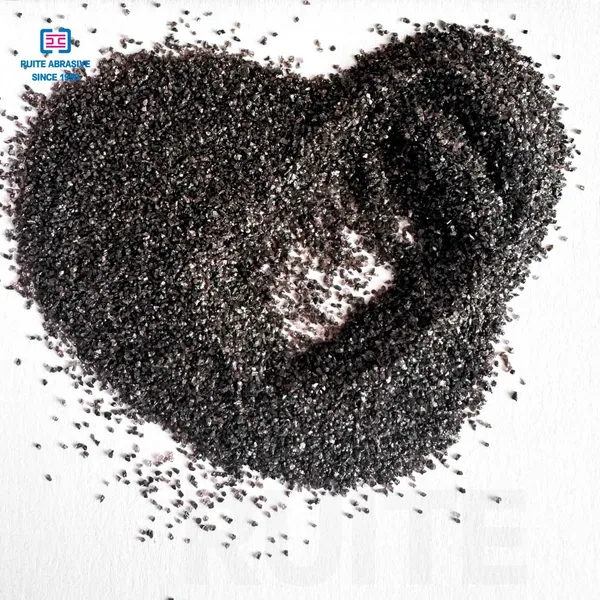

Brown fused alumina is produced from bauxite as the raw material, with the addition of anthracite and iron shavings, and is smelted at high temperatures above 2000 degrees in an electric arc furnace. It is then crushed, formed in a self-grinding mill, subjected to magnetic separation to remove iron, and sieved into various particle sizes. It has a dense texture, high hardness, and spherical-shaped particles, making it suitable for manufacturing ceramics, high-strength resin abrasives, as well as for grinding, polishing, sandblasting, precision casting, and it can also be used to produce refractory materials.
Ruite Brown Aluminum Oxide (BFA) has high compression strength, high toughness, excellent self-sharpening, low coefficient of thermal expansion, and excellent hydrophilia and cleanliness. It is a clean, high-strength material that resists oxidation and corrosion, maintains chemical stability, and withstands extraordinarily high temperatures.
| Item | Basic mineral | Crystal system | Crystal color | Mohs hardness | Density |
| Brown aluminium oxide | α- Al2O3 | Hexagonal | Brown | 9 | ≥3.90g/cm3 |
| Electrical resistivity |
Linear expansion coefficient(when 900ºC α•10-6k-1) |
Grinding ability(compared with diamond as one) |
Micro hardness | ||
| 1014-1016Ω•cm | 7.6 | 0.10 | HV1800-2200 |
Aplication
For Free grinding.
For Friction products and abrasion resistance ground.
For Resin bonded abrasive and coated abrasive products.
For Refractory material, Wear-resistant and fire-proof products.
For Grinding stone, sand paper, sand cloth, sand belt.
For Coated abrasives sand paper and Sandblasting/ Wet and dry blasting.
For Producing mold of precision casting and Grinding, lapping and polishing media.

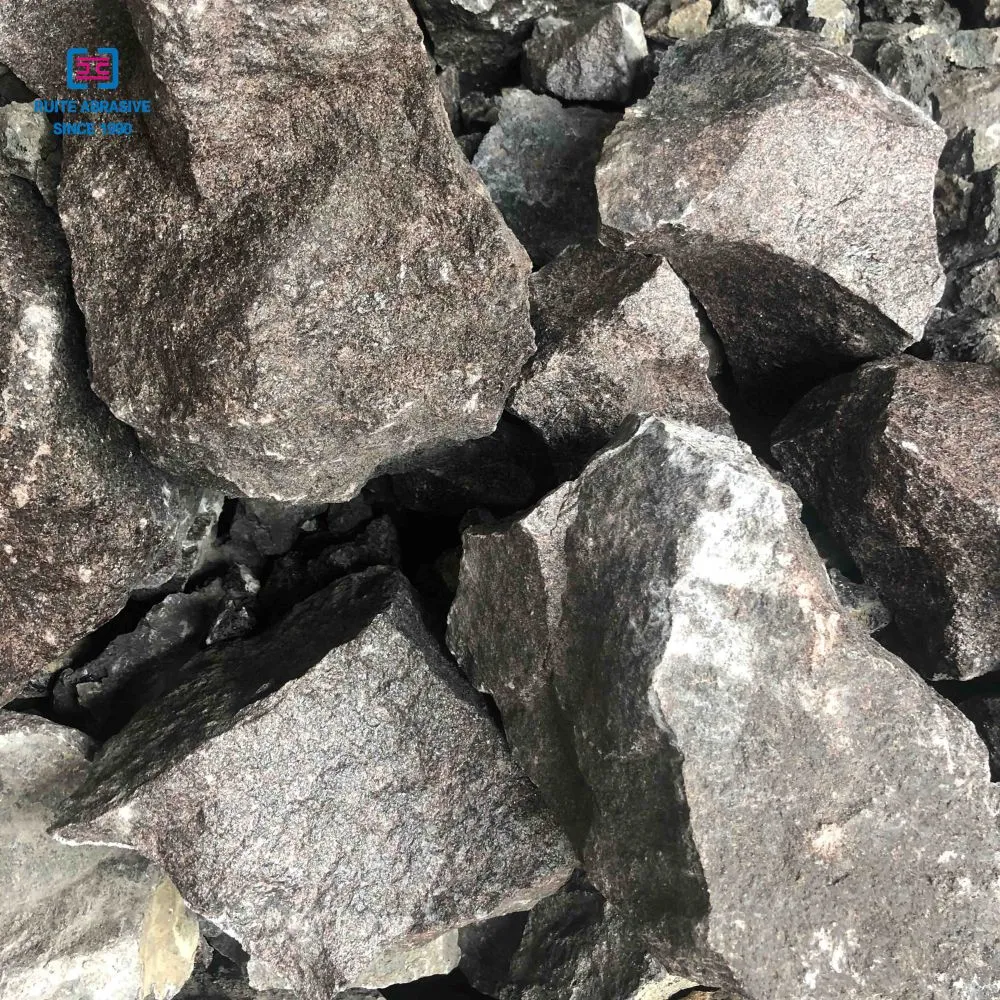

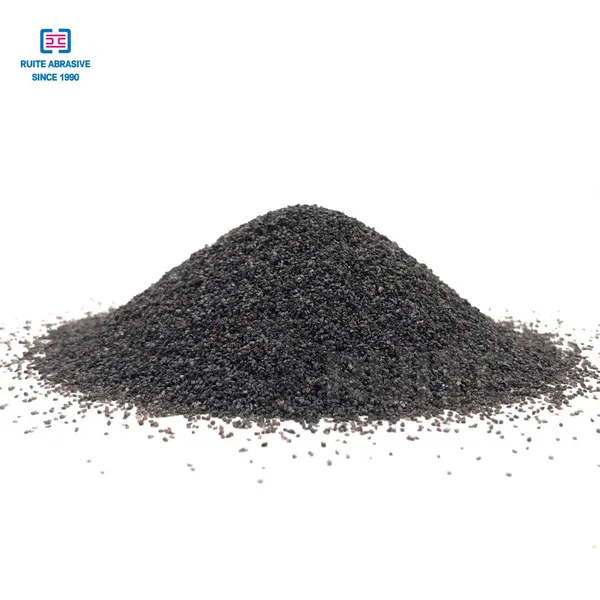

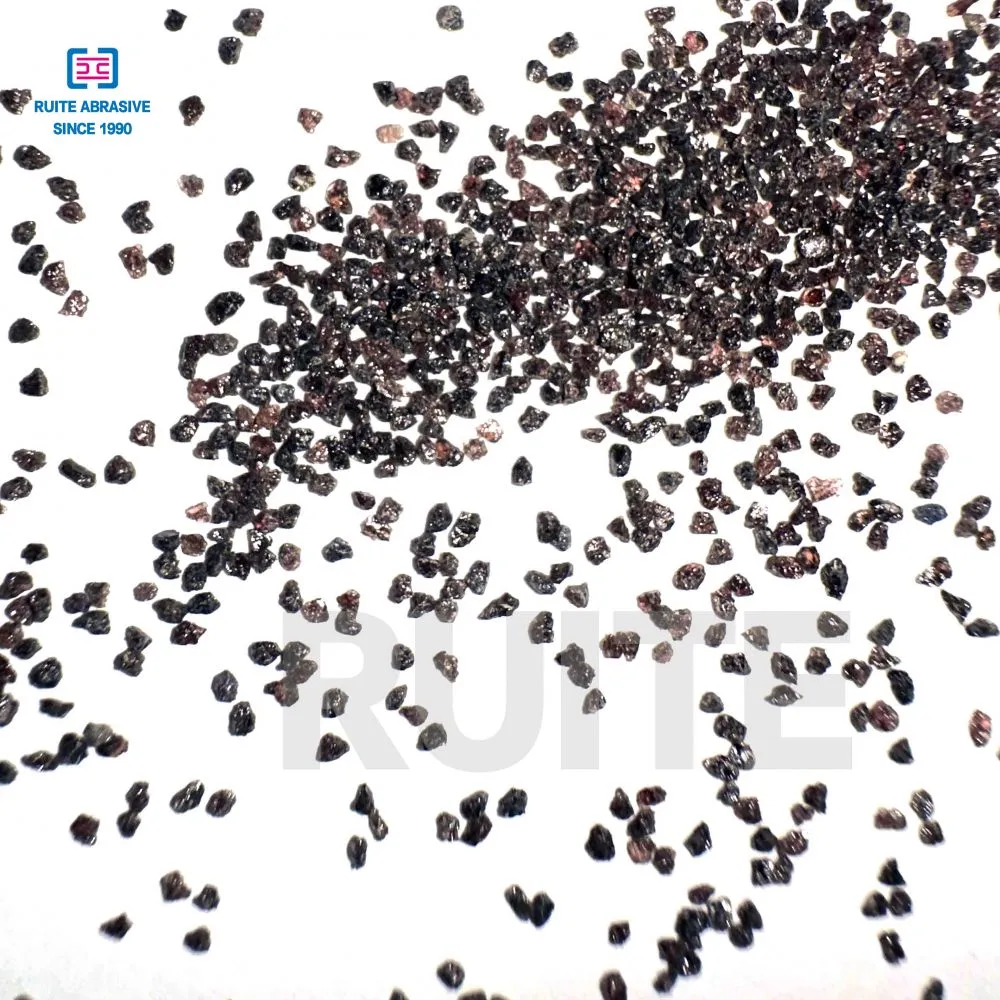

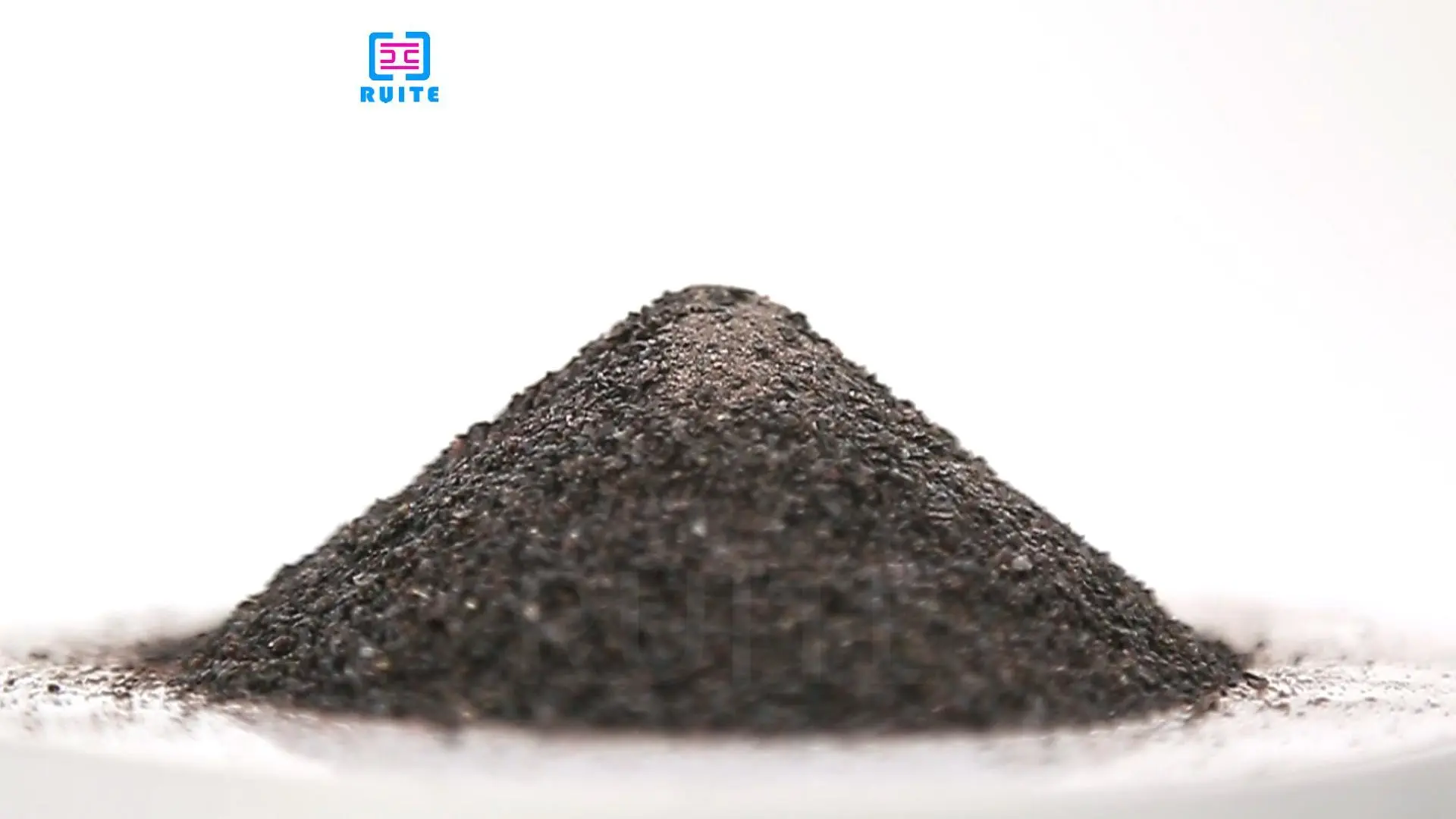

Detailed Photos
Product Parameters
Abrasives grade
Sandblasting
Grit size: 8#,10#,12#,14#,16#,18#,20#, 22#,24#, 30#, 36#, 40#,46#, 54#, 60#,70#, 80#, 90#,100#, 120#, 150#, 180#, 220#.
Micropowder: 240#, 280#, 320#, 360#, 400#, 500#, 600#, 800#, 1000#, 1200#, 1500#, 2000#, 2500#, 3000#, 4000#
Bonded Abrasives
Grit size: F8,F10,F12,F14,F18, F20,F22,F24,F30,F36,F40,F46,F54,F60,F70,F80,F90,F100,F120,F150,F180,F220.
Micropowder: F240,F280,F320,F360,F400,F500,F600,F800,F1000,F1200,F1500,F2000,F2500,F3000,F4000.
Coated Abrasives
Grit size: P12,P16,P20,P24,P30,P36,P40,P50,P80,P100,P120,P150,P180,P220.
Micropowder: P240,P280,P320,P360,P400,P500,P600,P800,P1000,P1200,P1500,P2000,P2500.
Refractory Grains
Grit size:
1-0mm, 3-1mm, 5-3mm, 5-8mm, -200mesh, -240mesh, -320mesh,0-0.1mm,0.1-0.5mm,0.5-0.8mm.
| Chemical Composition | ||||||
| GB/T 2478-2008 | ||||||
| Type | Grit | Chemical Composition(%, by weight) |
||||
| Al2O3 | TiO2 | CaO | SiO2 | Fe2O3 | ||
| A | F4-F80 | 95.00-97.50 | 1.70-3.40 | ≤0.42 | ≤1.00 | ≤0.30 |
| F90-F150 | 94.50-97.00 | |||||
| F180-F220 | 94.00-97.00 | 1.70-3.60 | ≤0.45 | ≤1.00 | ≤0.30 | |
| F230-F800 | ≥93.50 | 1.70-3.80 | ≤0.45 | ≤1.20 | ≤0.30 | |
| F1000-F1200 | ≥93.00 | ≤4.00 | ≤0.50 | ≤1.40 | ≤0.30 | |
| A-B | F4-F80 | ≥94.00 | 1.50-3.80 | ≤0.45 | ≤1.20 | ≤0.30 |
| F90-F220 | ≥93.00 | 1.50-4.00 | ≤0.50 | ≤1.40 | ≤0.30 | |
| F230-F800 | ≥92.5 | ≤4.20 | ≤0.60 | ≤1.60 | ≤0.30 | |
| F1000-F2000 | ≥92.00 | ≤4.20 | ≤0.60 | ≤1.80 | ≤0.30 | |
| A-P | P12-P80 | 95.00-97.50 | 1.70-3.40 | ≤0.42 | ≤1.00 | ≤0.30 |
| P100-P150 | 94.50-97.00 | |||||
| P180-P220 | 94.00-97.00 | 1.70-3.60 | ≤0.45 | ≤1.00 | ≤0.30 | |
| P240-P800 | ≥93.50 | 1.70-3.80 | ≤0.45 | ≤1.20 | ≤0.30 | |
| P1000-1200 | ≥93.00 | ≤4.00 | ≤0.50 | ≤1.40 | ≤0.30 | |
| P1500-2500 | ≥92.50 | ≤4.20 | ≤0.55 | ≤1.60 | ≤0.30 | |
| A-R | 0-1mm | 94.00-97.50 | 1.50-3.80 | ≤0.45 | ≤1.40 | ≤0.30 |
| 1-3mm | 94.00-97.50 | 1.50-3.80 | ≤0.45 | ≤1.40 | ≤0.30 | |
| 3-5mm | 94.00-97.50 | 1.50-3.80 | ≤0.45 | ≤1.40 | ≤0.30 | |
| 5-8mm | 94.00-97.50 | 1.50-3.80 | ≤0.45 | ≤1.40 | ≤0.30 | |
| 8-10mm | 94.00-97.50 | 1.50-3.80 | ≤0.45 | ≤1.40 | ≤0.30 | |
Guarnteed bulk density range of coarse grains(A / A-F, g/cm3) | |||
Note: Special requirement on bulk density can be satisfied through discussion. | |||
| Grit | Grade | ||
| Roll Crushing | Ball Mill | BMK | |
| F8 | 1.84±0.05 | 1.92±0.05 | 2.00±0.05 |
| F10 | 1.84±0.05 | 1.92±0.05 | 2.00±0.05 |
| F12 | 1.84±0.05 | 1.92±0.05 | 2.00±0.05 |
| F14 | 1.83±0.05 | 1.91±0.05 | 1.99±0.05 |
| F16 | 1.81±0.05 | 1.90±0.05 | 1.98±0.05 |
| F20 | 1.78±0.05 | 1.87±0.05 | 1.98±0.05 |
| F22 | 1.76±0.05 | 1.85±0.05 | 1.96±0.05 |
| F24 | 1.74±0.05 | 1.84±0.05 | 1.94±0.05 |
| F30 | 1.72±0.05 | 1.81±0.05 | 1.90±0.05 |
| F36 | 1.70±0.05 | 1.79±0.05 | 1.87±0.05 |
| F40 | 1.68±0.05 | 1.76±0.05 | 1.85±0.05 |
| F46 | 1.65±0.05 | 1.75±0.05 | 1.83±0.05 |
| F54 | 1.63±0.05 | 1.73±0.05 | 1.81±0.05 |
| F60 | 1.62±0.05 | 1.72±0.05 | 1.79±0.05 |
| F70 | 1.60±0.05 | 1.69±0.05 | 1.78±0.05 |
| F80 | 1.57±0.05 | 1.65±0.05 | 1.76±0.05 |
| F90 | 1.54±0.05 | 1.64±0.05 | 1.74±0.05 |
| F100 | 1.51±0.05 | 1.60±0.05 | 1.70±0.05 |
| F120 | 1.49±0.05 | 1.59±0.05 | 1.68±0.05 |
| F150 | 1.47±0.05 | 1.57±0.05 | 1.65±0.05 |
| F180 | 1.45±0.05 | 1.56±0.05 | 1.61±0.05 |
| F220 | 1.43±0.05 | 1.53±0.05 | 1.59±0.05 |
| Guarnteed bulk density range of coarse grains(A / A-P, g/cm3) | |||
Note: Special requirement on bulk density can be satisfied through discussion. | |||
| Grit | Grade | ||
| Roll Crushing | Ball Mill | BMK | |
| P12 | 1.80±0.05 | 1.88±0.05 | 1.96±0.05 |
| P16 | 1.78±0.05 | 1.85±0.05 | 1.94±0.05 |
| P20 | 1.76±0.05 | 1.83±0.05 | 1.93±0.05 |
| P24 | 1.73±0.05 | 1.81±0.05 | 1.92±0.05 |
| P30 | 1.70±0.05 | 1.79±0.05 | 1.90±0.05 |
| P36 | 1.68±0.05 | 1.76±0.05 | 1.88±0.05 |
| P40 | 1.65±0.05 | 1.73±0.05 | 1.86±0.05 |
| P50 | 1.62±0.05 | 1.71±0.05 | 1.83±0.05 |
| P60 | 1.59±0.05 | 1.67±0.05 | 1.81±0.05 |
| P80 | 1.57±0.05 | 1.64±0.05 | 1.77±0.05 |
| P100 | 1.55±0.05 | 1.62±0.05 | 1.73±0.05 |
| P120 | 1.52±0.05 | 1.59±0.05 | 1.70±0.05 |
| P150 | 1.49±0.05 | 1.55±0.05 | 1.66±0.05 |
| P180 | 1.47±0.05 | 1.52±0.05 | 1.62±0.05 |
| P220 | 1.45±0.05 | 1.50±0.05 | 1.58±0.05 |

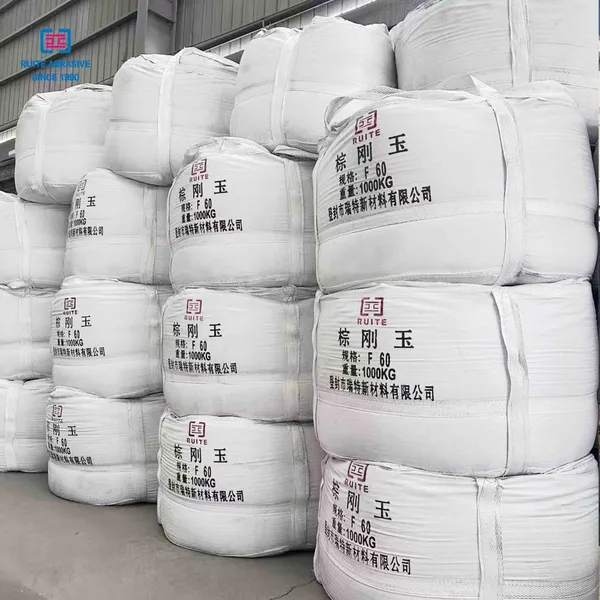

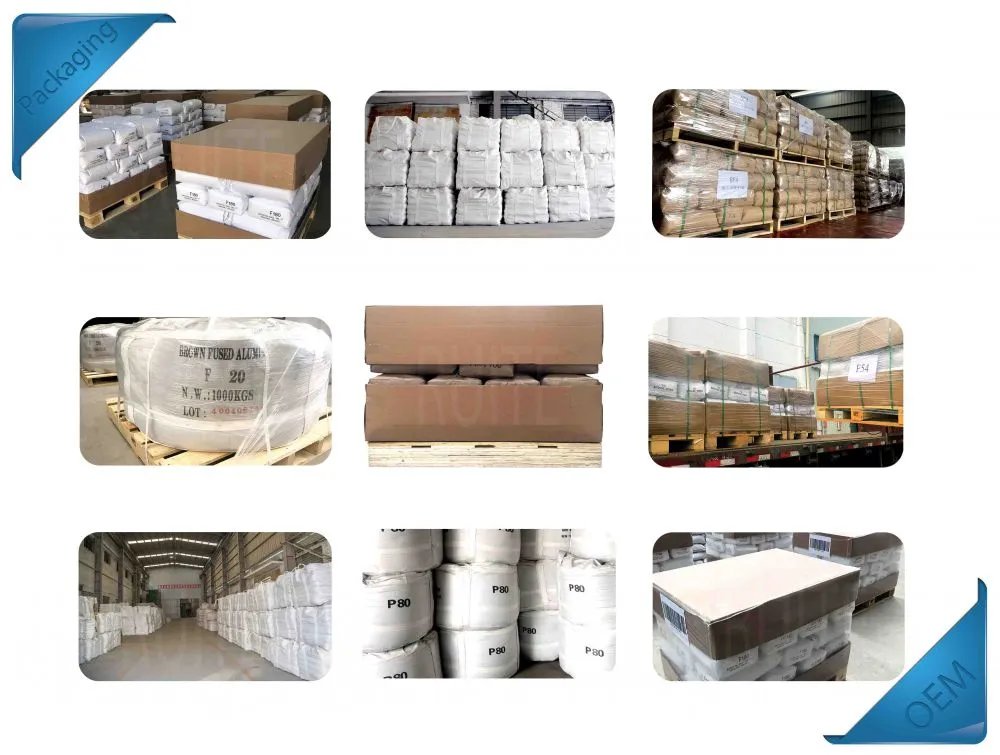

Packaging & Shipping
1. 25KG P.P BAG+ 1MT JUMBO BAG
2. 25KG P.P BAG+ 1MT PALLET
3. 25KG PAPER BAG+ 1MT PALLET
4. According to customers' requirements
5. Free samples or Sample orders usually shipped by Express like FedEx/TNT

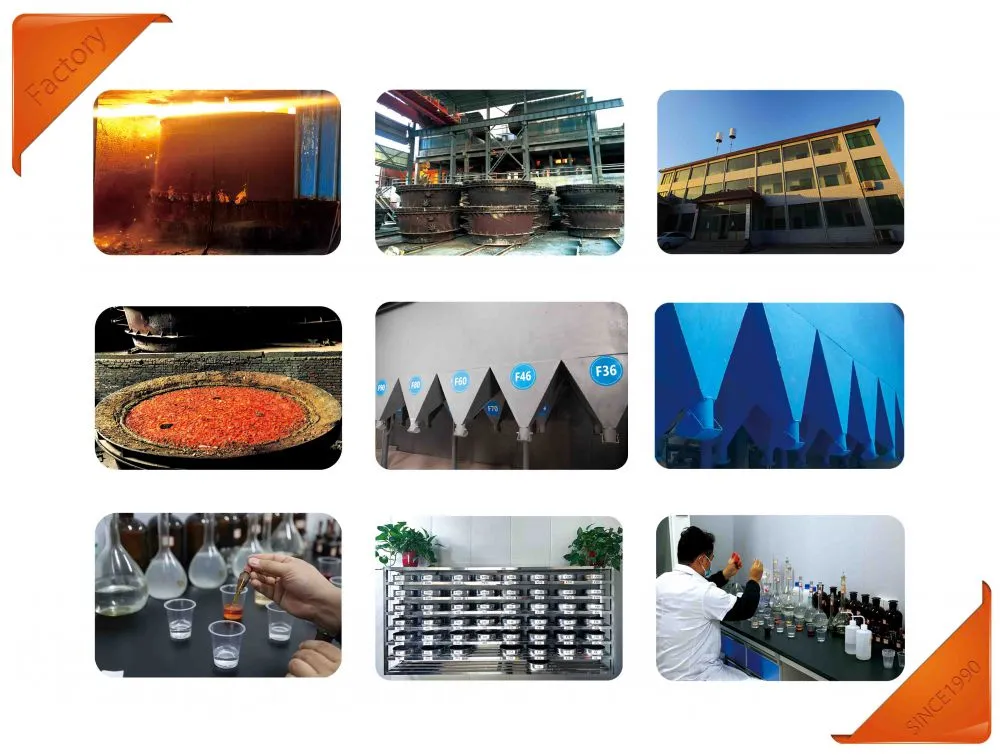

Company Profile
Dengfeng Ruite New Materials Co., Ltd., originally established in 1990as Dengfeng Liaoyuan Abrasive and Grinding Tool Factory, Ruite is a high-tech enterprise specializing in the research and development, production and processing as well as trade and export of abrasives, refractory materials. Processes over30000 tons of aluminum oxide annually to meet marketdemand. Service scope: Abrasive materials, grinding and polishing tools, sand blasting materials, refractory and metallurgical materials, precision casting and new materials research and production. With over 20 years of export experience.
Ruite has its own chemistry and physics laboratories, enabling effective control of product quality and production costs.
Company Size: Our factory covers an area of 8, 000 square meters, with a building area of 4, 000 square meters, employs more than 50 people, has 5 corundum production lines, and an annual output value of over 80 million RMB.
Ruite aluminum oxide sell well inGermany, Japan, Slovenia, South Korea, Turkiye, Singapore and othercountries.

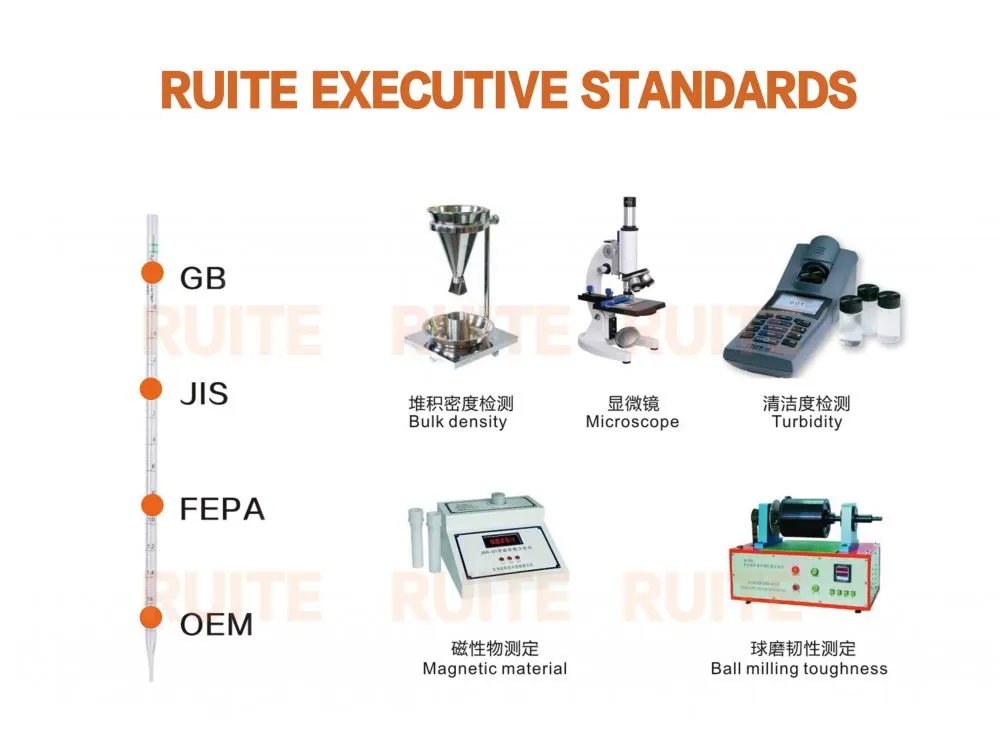

Our company products perform standard GB (GB), the ISO (international standards), the FEPA (European standard), JIS (Japan standards), as well as according to customer requirements.
Testing epuipment:
High Temperature RUL Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester

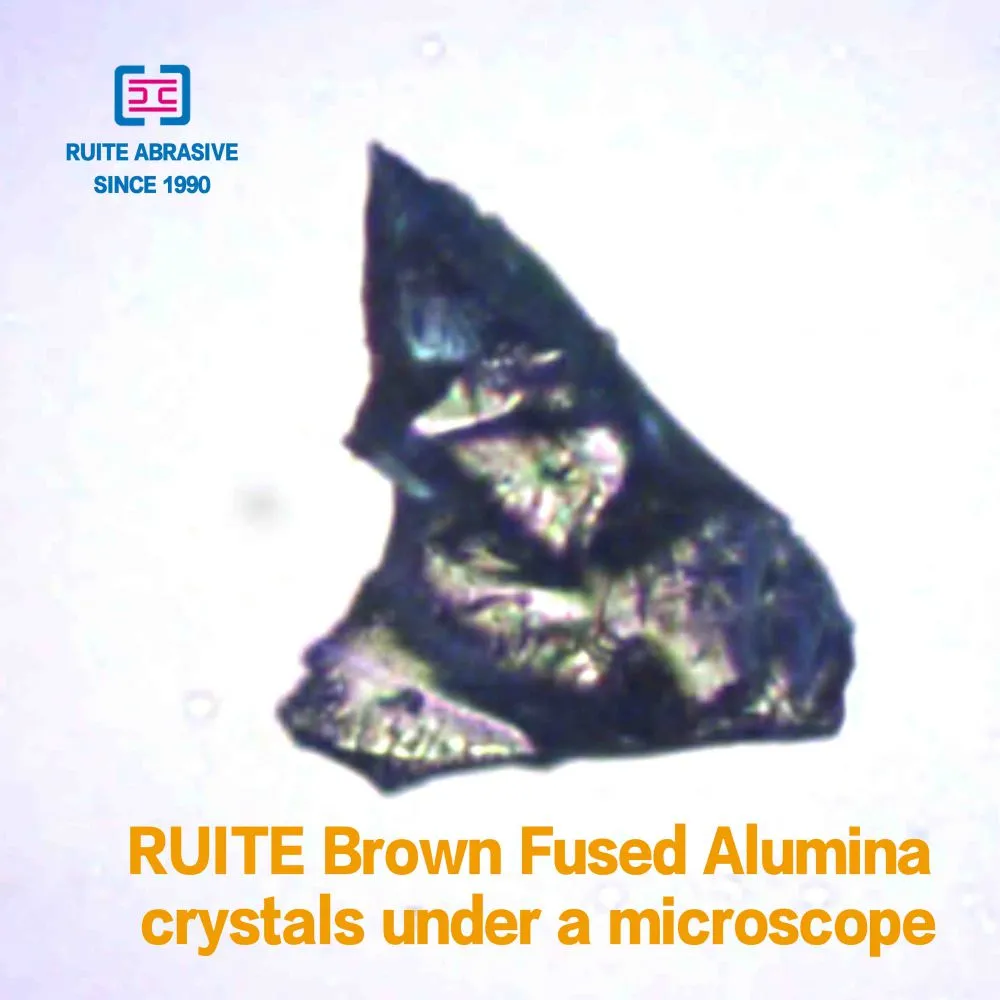

Microscope
Turbidity
Magnetic material
Ball milling toughness
Our Advantages
1.With many years of export experiences and well-deserved reputation, we provide clients with stable product quality and professional technical advice.
2.OEM, ODM services and our own brand (RUITE) can be provided according to customers' requirements.
3. Management System Certification: ISO9001, CE, TUV, SGS.
4. Products with different grades and sizes can meet different market users' demand for different product quality and prices.
5. We guarantee that our products are good quality with competitive prices, and delivery in time.
6. Technical research and development strength: The company's employees have the relevant discipline background of abrasive grains and superhard materials, and know more about abrasives and grinding. They would like to provide better services for customers to meet their different needs. What's more, the company invites senior research experts from Zhengzhou Research Institute for Abrasives & Grinding Co., Ltd. and Henan University of Technology as product consultants, which can help to achieve in-depth product technical cooperation with customers and better matching demands, combined with China's industrial advantages.
Our Services:
1. Your inquiries will be replied in 24 working hours;
2. Free samples offered in certain quantity and delivered within 10 days;
3. PL, INV, MSDS and C.O. or other information you need can be provided at the top speed;
4. Any questions about products and technology will be answered sincerely and professionally.
5. Related products sourcing services.
FAQ
Q1: Can you offer free samples?
A: Yes, free samples can be offered in certain quantity, but big samples and special products with charge.
Q2: Can I have a sample order for your products?
A: Yes, we welcome sample orders to test and check the quality.
Q3: What is your delivery time?
A: Sample order: Usually within 7 working days
Mass order: Within 25 days after 30% deposit received for conventional products. Negotiation for special products.
Q4: What is your payment terms?
A: T/T, D/P, L/C and so on.
Q5: Do you offer customized products according to customer's requirements?
A: Yes, OEM, ODM services and our own brand (RUITE) are provided according to customers' requirements.
Q6: Are all your products on the website?
A: Not all the products on the websites. For some related products or the sizes that are not included on the website, please make an inquiry separately to our emails or any social media.
