Ⅰ.Introduction
PVC/PE/PP wood plastic board, is a high-tech and environmentally friendly material made from wood, which is a mixture of thermoplastic polymers, processing aids and wood. It is then heated and extruderd into a mold equipment. It is a new type of composite material that possesses the characterustucs and properties of both plastic and wood materials.
Ⅱ. Overview
Wood-plastic composite materials (WPC) are essentially a microscopic multiphase structural system achieved through precise chemical and physical processes. The core of it is that under the action of high temperature and high shear force, with the help of interface compatibilizers such as maleic anhydride grafted polymers, hydrophilic natural lignocellulose fibers are forcibly bonded at the molecular level with hydrophobic thermoplastic matrices (such as PVC, PE, PP).
1. Basic info
| Model NO. | SJSZ65/132 | Type | Profile Extruder |
| Plastic Processed | PE | Product Type | Extrusion Molding Machine |
| Feeding Mode | Multiple Feed | Screw Diameter65mm | 65mm |
| Screw | Twin-Screw | Screw Speed | 1-35r/Min |
| Types of Machinable Plastics | PE/PVC | Barrel Heating Power | 18kw |
| Extrusion Capacity | 60-100kg/H | Line Speed | 3-5m/Min |
| Thickness | 3-15mm | Specification | 28*2.5*3.5m |
| Transport Package | Conventional Packing | Origin | Qingdao China |
| Exhaust | Exhaust | Computerized | Computerized |
| Package Size | 3500.00cm * 150.00cm * 250.00cm | Package Gross Weight | 5000.000kg |
This process not only resolves the inherent interface incompatibility issue between the two, but also collaboratively creates a performance combination that a single material cannot possess - the plastic phase contributes outstanding water resistance, corrosion resistance and plasticity, while the wood fiber endows the material with high rigidity, low thermal expansion coefficient and a realistic natural texture. The entire manufacturing system covers everything from deep drying of wood fibers, high-precision metering and feeding of multiple components, to strong shear melt blending with screw configurations specifically designed for fiber dispersion, and finally precise extrusion molding through molds.
Therefore, WPC is not merely a simple physical mixture, but a new type of polymer-based biomass composite material with precisely controllable performance through interface engineering design. Its mechanical strength, durability and functional characteristics are directly determined by the microstructure such as interface bonding efficiency, fiber length-to-diameter ratio and distribution pattern.
| Extruder Model | Extrusion output | Main motor power | Screw speed | Barrel Outside cooling | Screw Material | Barrel Material |
| SJSZ 55/110 | 120~180kg/h | 22kw; AC Motor | 38.4r/min | 400w×3 wind cooling fan | 38CrMoALA and processed by high-temperature nitriding. Nitriding depth:0.5-0.6 Hardness(HV):740-940 Surface roughness≤0.8um | 38CrMoALA and processed by high-temperature nitriding. Nitriding depth:0.4-0.7 Hardness(HV):740-940 Surface roughness≤0.8um |
| SJSZ 65/132 | 200~260kg/h | 37kw; AC Motor | 38.4r/min | 550w×3 wind cooling fan | ||
| SJSZ 80/156 | 300~450kg/h | 75kw; AC Motor | 40 r/min | 550w×5 wind cooling fan | ||
| SJSZ 45/30 | 30~40 kg/hr | 18kw; DC motor | 100r/min | 150w×3 wind cooling fan |
| Frequency | Reducer structure | Reducer | Extrusion center height | Bearing and oil tight and other standard components |
| Main Dring Motor Control by Inverter; ABB brand | Integral type | Gear and the component of the axle are made of alloy steel. Gear has been processed by nitriding, quenching and grinding. The accuracy of gear is ISO6. The hardness of the gear surface is HRC56-62. | 1050mm or according to customer's requirements | Adopt the premium brand products, The whole machine with the features of high working, compact structure, run smoothly, low noise and efficiency |
Ⅲ. Product feature
1. Ultimate durability, not afraid of the environment
The core advantage of wood-plastic flooring lies in its outstanding stability. It hardly absorbs water, fundamentally eliminating the problems of rotting, swelling and cracking. At the same time, it can perfectly resist insect infestation and mold. Whether exposed to the sun and rain in the courtyard or the damp environment in the bathroom, it can maintain the long-term stability of its form and performance, and its service life far exceeds that of traditional wood
2. Completely maintenance-free and worry-free to use
This is its revolutionary improvement over traditional wood. After installation, you do not need to carry out any periodic maintenance such as painting, sanding or waxing. Daily cleaning only requires rinsing with water or a simple wipe to restore cleanliness, truly achieving "one-time installation, lifelong peace of mind", and greatly reducing the long-term holding cost.
3. Safe and environmentally friendly, with reliable performance
It effectively utilizes waste plastics and wood fibers, in line with the concept of resource recycling. High-quality products do not use adhesives during the production process, fundamentally eliminating the problem of formaldehyde release. In addition, it also features excellent anti-slip performance (especially in damp conditions) and a flame retardant grade that complies with building codes, adding a guarantee for home safety.
4. Easy to install and flexible to apply
The mature snap-on and keel installation system makes the installation process as fast and simple as assembling building blocks, with low requirements for the ground base, which can significantly save construction time and labor costs. Its uniform specifications and stable performance also offer a high degree of freedom in design and paving plans.
5. The texture and long-term details that need attention
While enjoying its functional advantages, it is also necessary to understand its characteristics: its foot feel is harder than that of solid wood, lacking the elasticity and warmth of wood. The color may change slightly under long-term exposure to the sun. Although the surface hardness is sufficient for daily use, sharp and heavy objects may still cause scratches or indentations. Therefore, it is crucial to select co-extruded products with wear-resistant layers or appropriate colors based on the usage scenarios

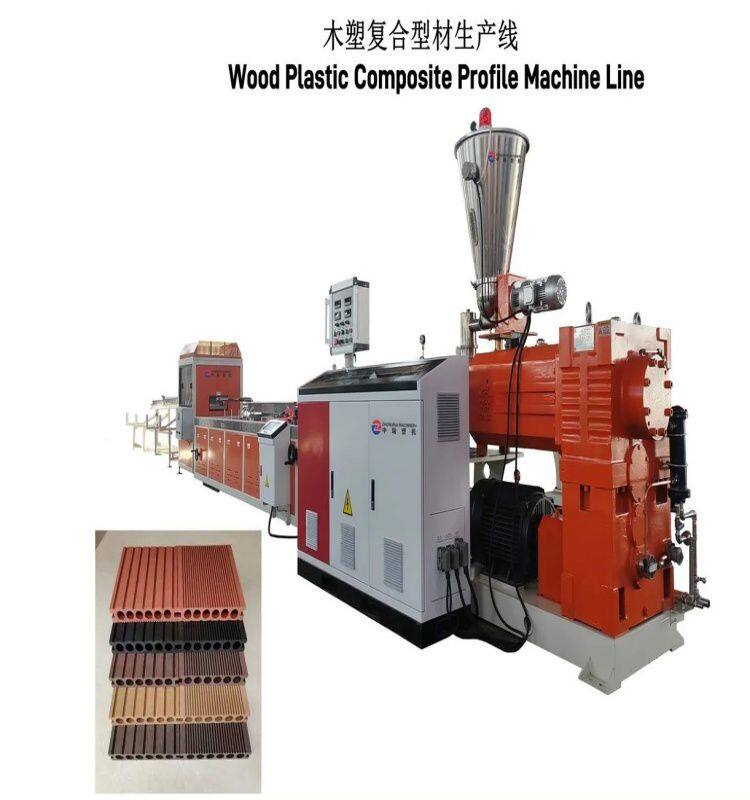

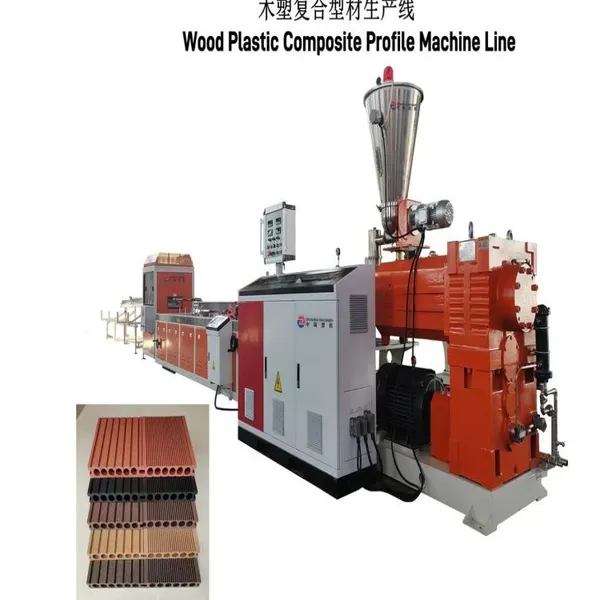

Ⅳ. Production process flow

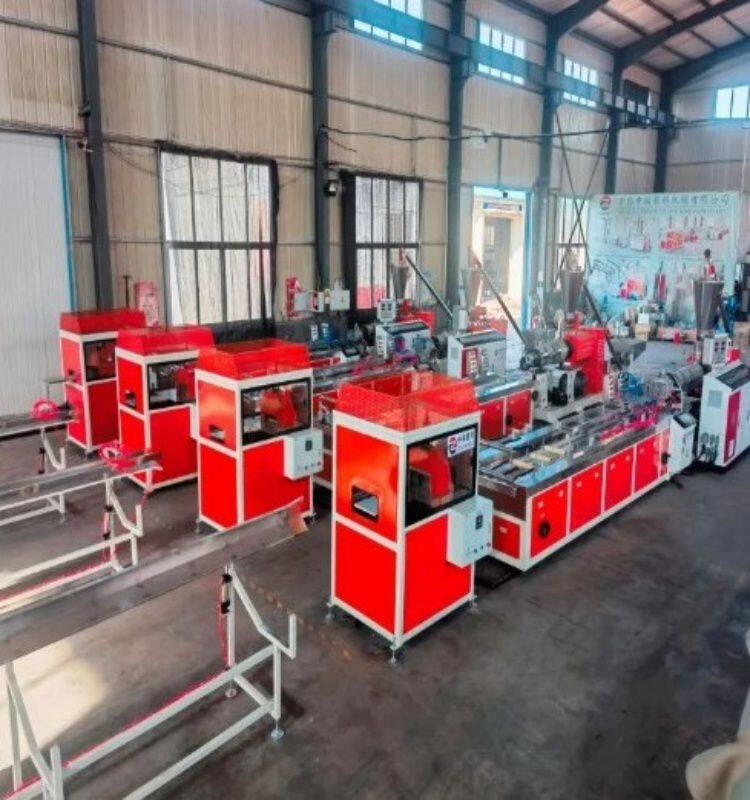

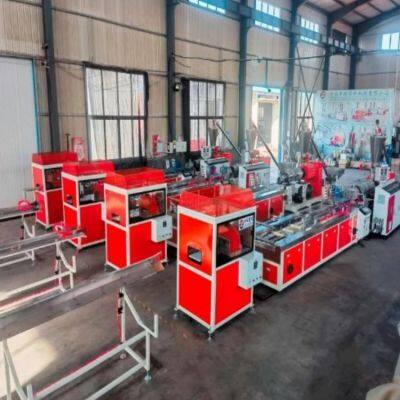

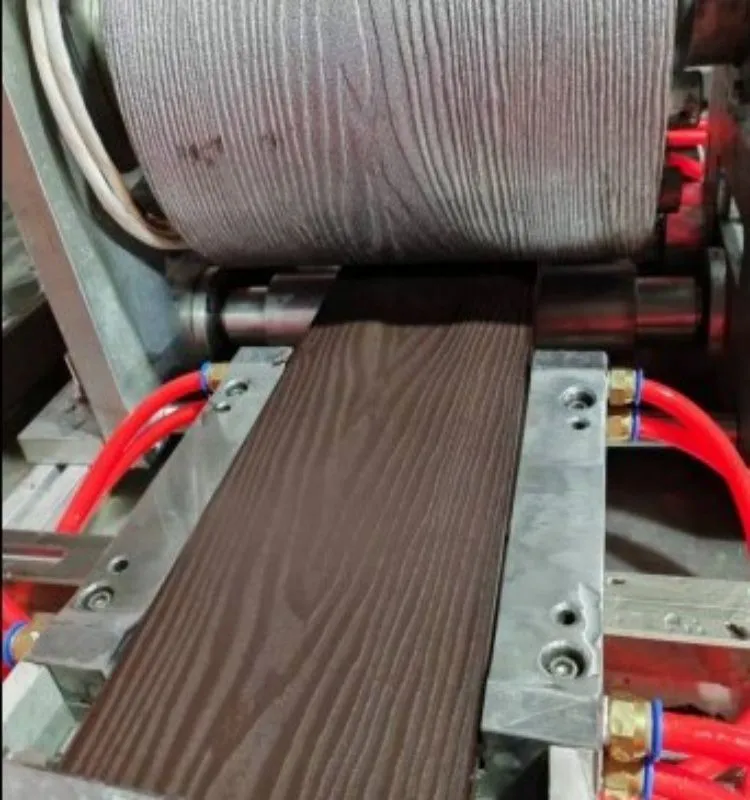

Raw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping(optional) --- Package.
1. Machine features

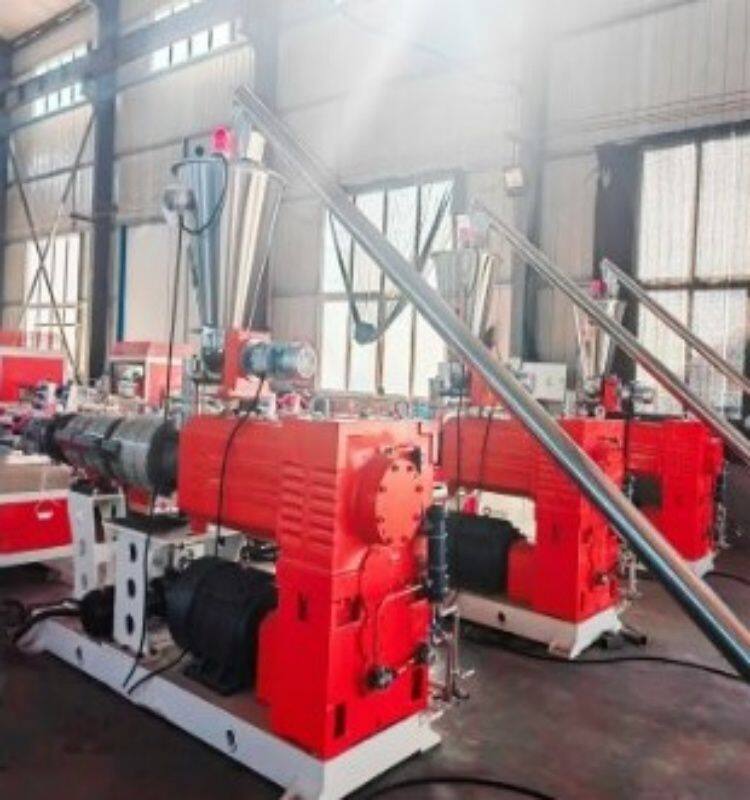

Conical Twin Screw Extruder
Adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.

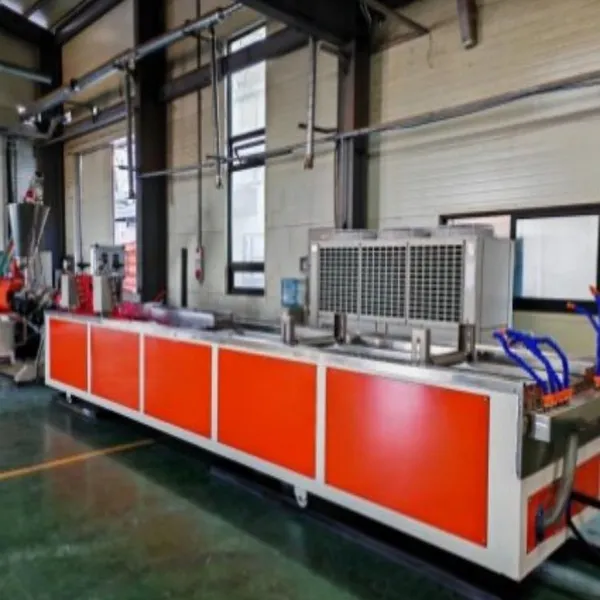

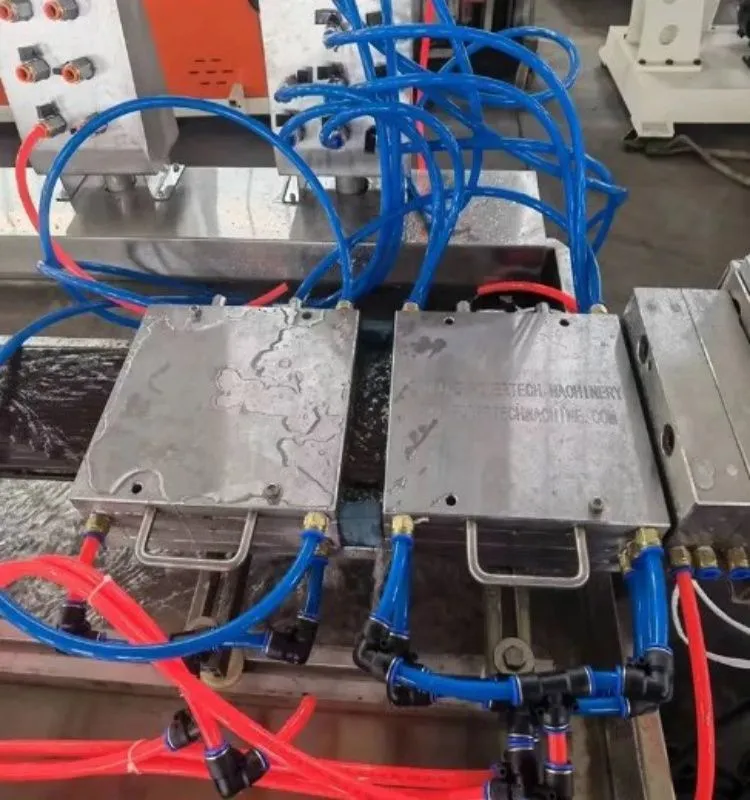

Vacuum calibrating table
Adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.

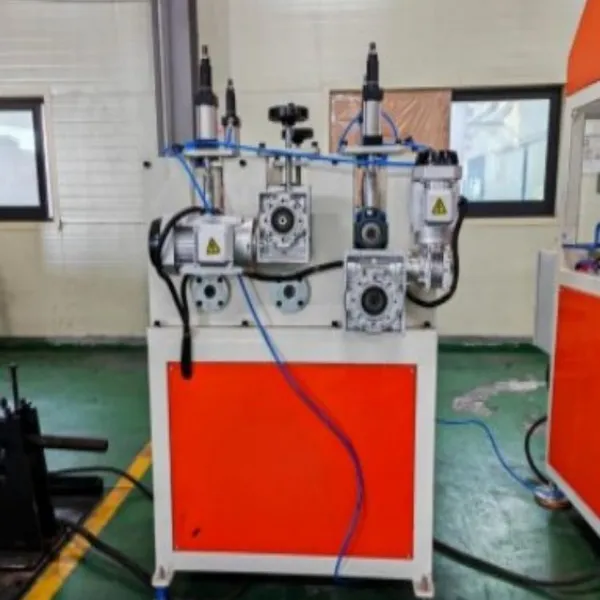

Haul off machine
Adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,

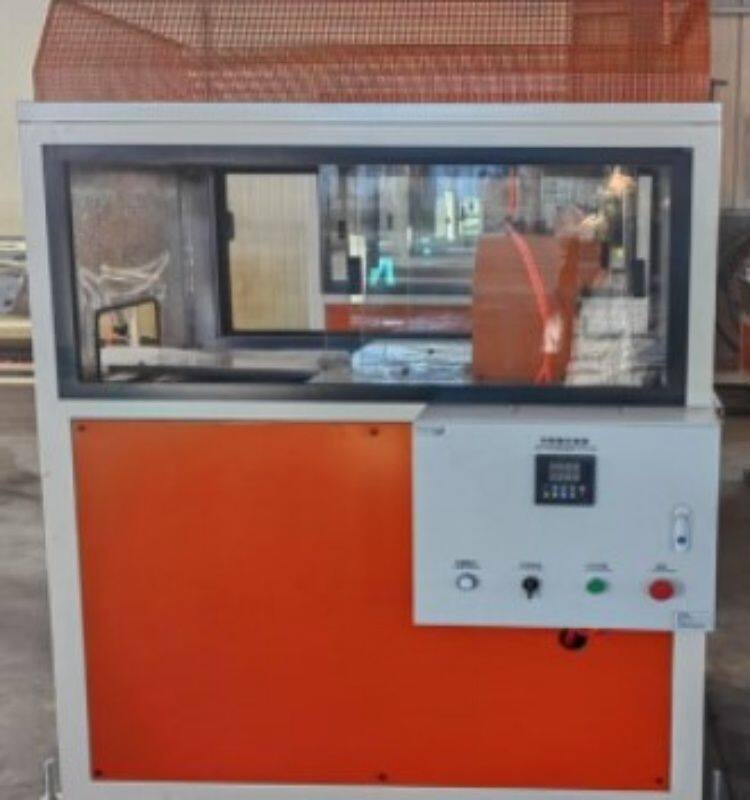

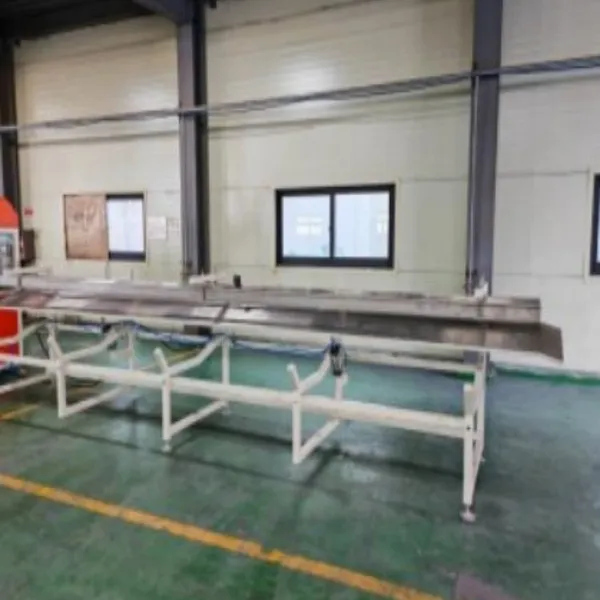

Cutting machine
the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.
Ⅴ. FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:T/T,L/C at sight or Made in China trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6 380V 50hz 3 phase or any other voltage according to client's requirement.
