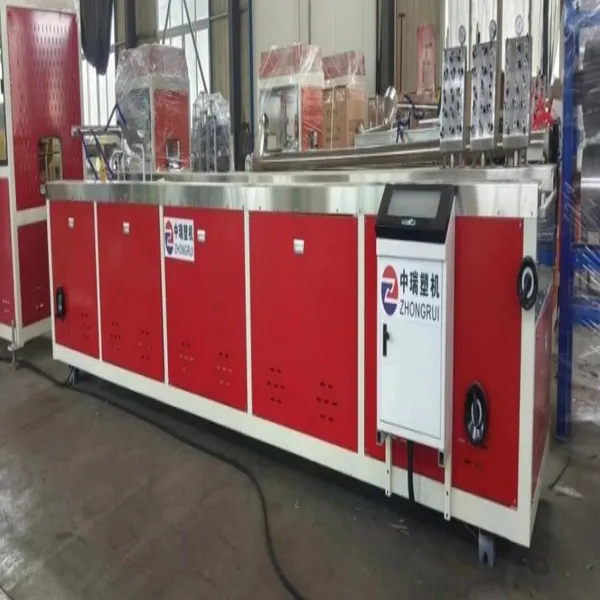

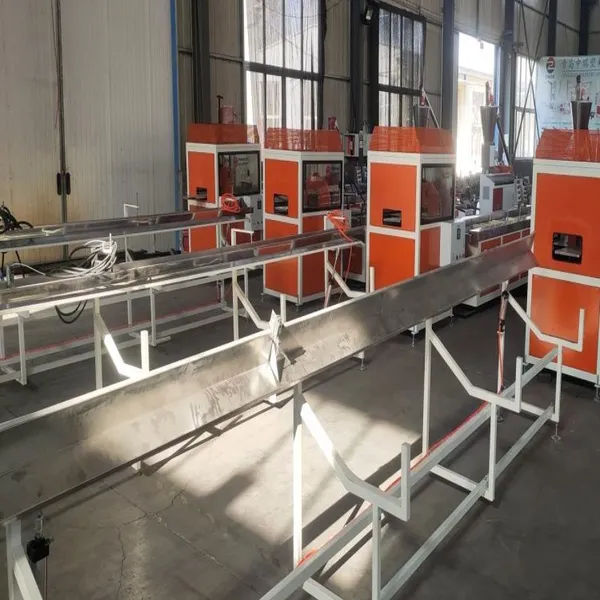

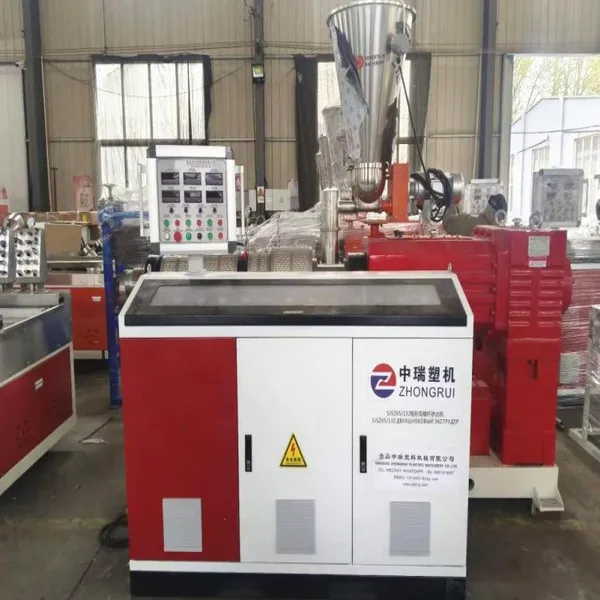

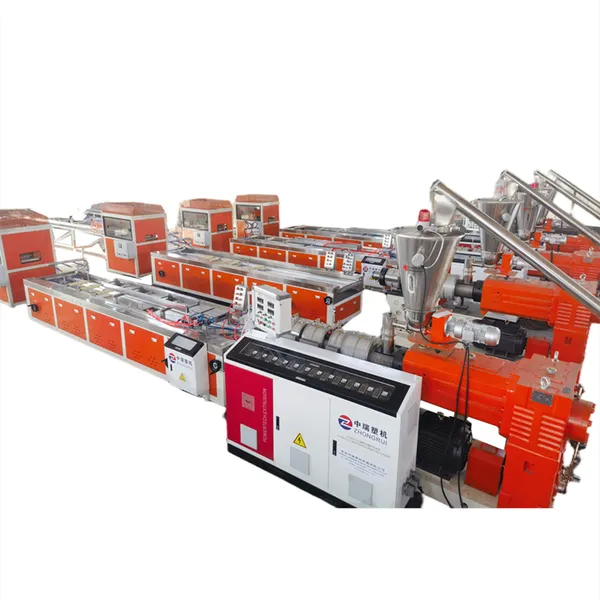

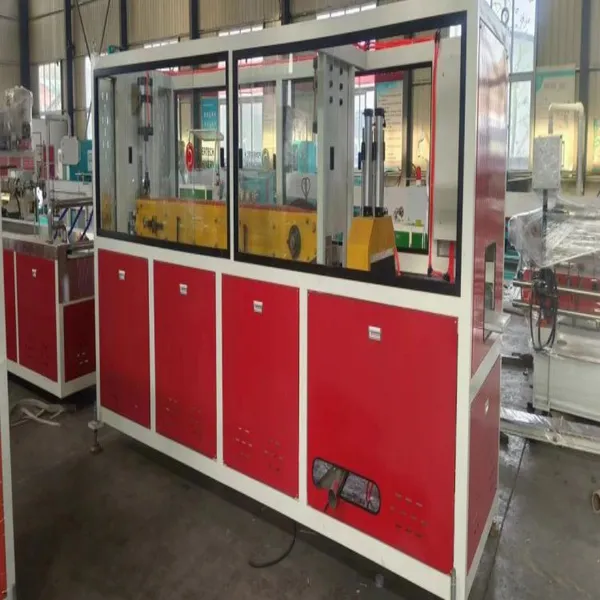

Product Overview: Energy-Saving, Quick-Change PVC Profile Extrusion
The Energy-Efficient Customizable PVC Profile Production Line is a modular extrusion system engineered for manufacturing high-quality PVC profiles (e.g., window frames, door jambs, furniture trim, decorative strips). It integrates high-efficiency motors, intelligent temperature control, and servo-driven haul-off, reducing energy consumption by 15–25% compared to standard lines. With a conical twin-screw extruder (SJZ 55/110 to 92/188 models), vacuum-assisted calibration tables, and laser-positioned flying saws, this line achieves tight tolerances (±0.1mm) and clean cuts at speeds up to 6m/min. Designed for 24/7 operation, it supports quick die changeovers (
Core Features: Low Energy Consumption & Rapid Customization
Energy-Saving Technology for Cost Reduction
High-torque, low-RPM conical twin-screws and intelligent barrel-heating zones minimize energy waste, resulting in a specific energy consumption of 0.35–0.40 kWh/kg—one of the lowest in the industry. Closed-loop water and vacuum systems further reduce water usage by 30%, lowering operational costs and environmental impact. The line’s typical payback period is
Rapid Customization for Diverse Profile Needs
The quick-change die system (3Cr13/3Cr17 steel) allows switching between window, door, trunking, or WPC (wood-plastic composite) profiles in less than 30 minutes—minimizing downtime. A recipe-driven PLC stores 200+ formulations, ensuring consistent color, dimension, and surface quality for every order (e.g., wood-grain finishes for furniture trim).
24/7 Reliability & Smart Monitoring
Built for continuous operation, the line uses robust nitrided/SKD screws and barrels with a service life exceeding 30,000 hours—reducing maintenance downtime. An OPC-UA interface enables real-time power and material monitoring, feeding data to MES (Manufacturing Execution System) dashboards for predictive maintenance and full traceability. Optional co-extrusion stations add ASA capping (for UV resistance) or wood-fiber layers, eliminating post-processing.
Applications: Building, Furniture & Green Construction Profiles
This line produces PVC profiles for:
• Building & Construction: Window frames, door frames, curtain wall profiles, and floor trim—with thermal-break or fire-resistant properties to meet building codes.
• Furniture Manufacturing: Cabinet trim, drawer guides, and decorative edging for tables, chairs, and wardrobes—available in custom colors and textures.
• Interior Decoration: Ceiling strips, wall panels, and skirting boards (wood-grain or solid-color finishes) for residential and commercial spaces.
• Green Building Projects: Eco-friendly profiles with low VOC (volatile organic compound) emissions, meeting sustainable construction standards (e.g., LEED).
FAQs: Energy-Efficient PVC Profile Line Queries
How much energy does the line save compared to standard PVC profile lines?
It reduces energy consumption by 15–25%, with a specific energy consumption of 0.35–0.40 kWh/kg—delivering significant long-term cost savings for high-volume production.
How quickly can the die be changed for different profile types?
The quick-change die system allows die swaps in less than 30 minutes (tool-free snap-in pads and pneumatic clamping), minimizing downtime and supporting flexible production.
Does the line support co-extrusion for multi-layer profiles?
Yes, optional co-extrusion stations enable adding ASA capping (for UV resistance), wood-fiber layers (for texture), or foamed cores (for lightweight profiles)—creating multi-functional products without extra post-processing.
What support is provided for installation and training?
Zhongrui offers turn-key installation, formula support (for custom profiles), and operator training. It also provides 24/7 remote support and a 12-month warranty with pre-shipped spare parts (e.g., screws, calibration tables).
