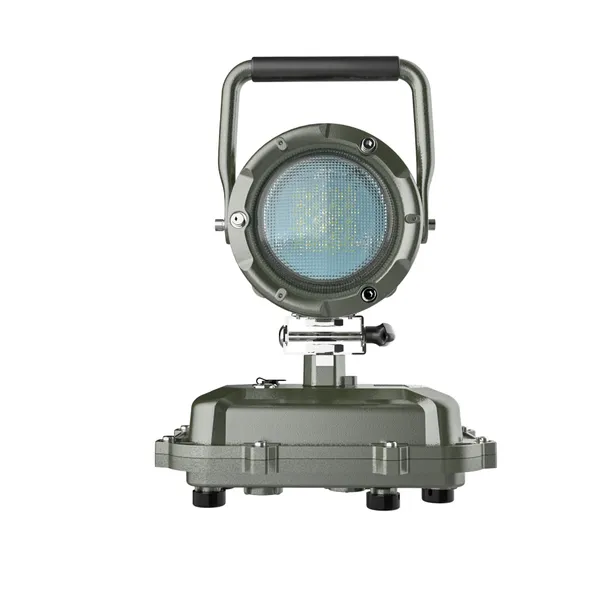

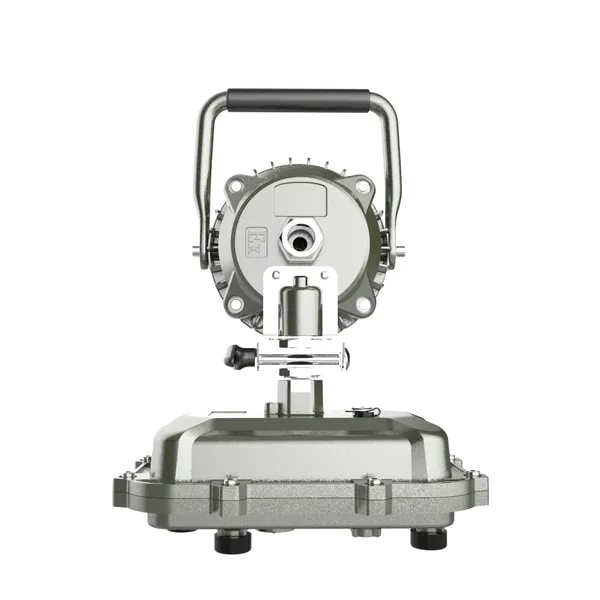

Help CenterHandheld Led Explosion-proof Floodlight Work Lamp, Portable, Lightweight, Multi-purpose Emergency Maintenance Lighting
Related Products
-
Nfc812/led Three-proof Platform Light/flange Guardrail Light for Damp and Harsh Environments/30-80wNegotiableMOQ: 0 Set -
Rd01/led Three-proof Road Lights for Factory Roads and Various Urban Main and Branch Roads, 50 - 200wNegotiableMOQ: 0 Set
-
Tnc9770/led Three-proof Floodlight Tunnel Lamp, Anti-slip and Anti-vibration, 70-140wNegotiableMOQ: 0 Set
-
Nfc9186/led Three-proof Platform Lighting Fixture With Bent and Upright Poles/50 - 120wNegotiableMOQ: 0 Set
-
Led High-intensity Explosion-proof Flashlight Rjw7623 / High-strength American Aluminum Alloy, Wear-resistant and PortableNegotiableMOQ: 0 Unit
1. This product is a lightweight and multi-purpose emergency maintenance lighting product with a large irradiation range, uniform illumination, high brightness, and is suitable for large-scale team operations.
2. It uses a large-capacity, high-energy lithium battery pack without memory effect and has a low self-discharge rate.
3. The lamp body is made of die-cast aluminum alloy. The surface is treated with high-voltage electrostatic plastic spraying. The exposed fasteners are made of highly anti-corrosive stainless steel materials, and the overall anti-corrosion performance is excellent.
4. It uses a high-strength light-transmitting protective cover with high light transmittance, impact resistance, and a unique anti-glare design. Combined with a unique optical reflection device, it has the characteristics of high light efficiency and low light decay.
5. The explosion-proof structure is designed according to the national standard GB3836 document. It has reliable explosion-proof performance and a long service life. It is equipped with a special constant-current power supply with low power consumption and a constant output power. It uses high-temperature and aging-resistant silicone sealing rings and has a high protection level.
6. It uses light source chips from international first-tier brands, emits light in one direction without side illumination, has high light utilization, high light efficiency, and a high color rendering index. It has open-circuit, short-circuit, and overheat protection functions to ensure reliable and continuous operation of the light source. It has a wide voltage input, a constant luminous flux output, and can be started instantly.
7. The unique heat dissipation structure design has excellent and reliable heat dissipation performance, ensuring the long-term and reliable use of the lamp.
Rated Voltage/Rated Voltage |
VOLT |
DC14.4V |
V |
Power /Power |
P |
30 |
W |
Protection Level/Protection Level |
IP |
IP65 |
IP |
Lighting Angle/Lighting Angle |
θ |
120° |
° |
LED Qty/LED Qty |
/ |
30 |
PCS |
Base specifications/Base specifications |
/ |
CREE3030 |
|
Anticorrosion grade/Anticorrosion grade |
/ |
WF2 |
|
Explosion-proof grade |
Ex de IIB T6 |
||
Battery capacity/Battery capacity |
/ |
7.5 |
Ah |
Working time/Working time |
60-90 |
min |
|
Light efficiency |
η |
120 |
Lm/W |
Frequency |
f |
50/60 |
Hz |
Power Factor |
PF |
＞0.95 |
PF |
Operating Temperature |
TOPR |
-30~50 |
℃ |
Storage Temperature |
TOPR |
-30~50 |
℃ |
Light Source |
/ |
led |
PCS |
Correlated Color Temperature |
Tc |
3000-6500 |
K |
Color Rendering Index |
CRI |
≥70 |
RA |
LED's Operating Life |
LIFE |
100000 |
Hours |
Start-up time |
T |
≤0.2 |
S |
Executive Standard |
/ |
GB3836.1、GB3836.2 |
|
Weight |
/ |
3.4 |
KG |
Size |
/ |
255*167*290 |
mm |
