Help CenterHigh Tensile Mine Surface Upport Chain Link Mesh
Related Products
-
Operations Underground Mining Safety Chain Link MeshUS$ 2.8 - 3.5MOQ: 1 Square Meter -
Chain Link Mesh Mining Safety Net Reinforces Rock Surfaces Wie MeshUS$ 2.8 - 3.5MOQ: 1 Square Meter
-
Chain Link Underground Support NetUS$ 2.8 - 3.5MOQ: 1 Square Meter
-
Chain Link Mesh for Mine SupportingUS$ 2.8 - 3.5MOQ: 1 Square Meter
-
MINAX 80/3 Surface Support MeshUS$ 2.8 - 3.5MOQ: 1 Square Meter
LONGEN chain link mesh enhances safety by providing surface upport on mine roofs and ribs. Made from helically wound wire ickets forming a durable 50mm diamond pattern, the mesh ffers consistent rock bolt alignment and is easy to handle and ransport.
Quality Assured to ISO 9001:2015
Material：High tensile steel wire
Wire diameter:2.5mm,3.15mm
Mesh size:50x50mm
Standard width：0.3- 2.4 m
Standard length：1.0-20m
Corrosion protection：GEOBRUGG SUPERCOATING
Compound：95% Zn / 5% Al
Coating:min. 150 g/m2
Mesh edges:mesh ends knotted

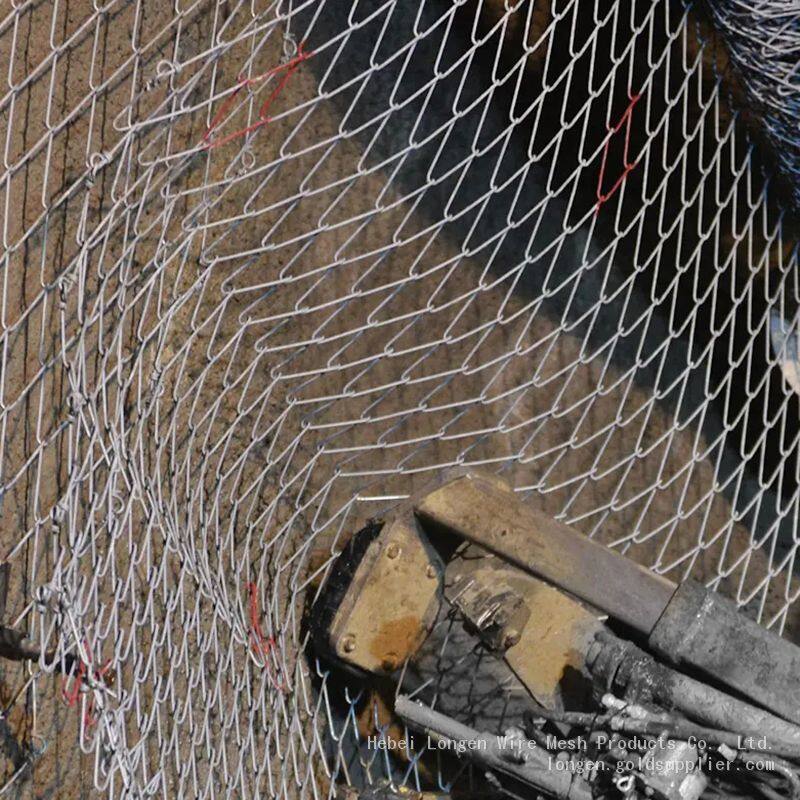

Chain link mesh enhances safety and stability in underground mining and tunneling operations. Its robust, interlocking design effectively reinforces rock surfaces, preventing the detachment of loose materials and maintaining the integrity of underground structures. By integrating chain link mesh into ground support systems, operators can ensure a safer working environment and prolong the lifespan of mining and tunneling projects.
Underground support netting is a physical ground support structure that is designed to provide necessary support for unstable mining tunnels and shafts, enhancing the stability of the underground mining system and ensuring the safety of underground miners and mining devices.

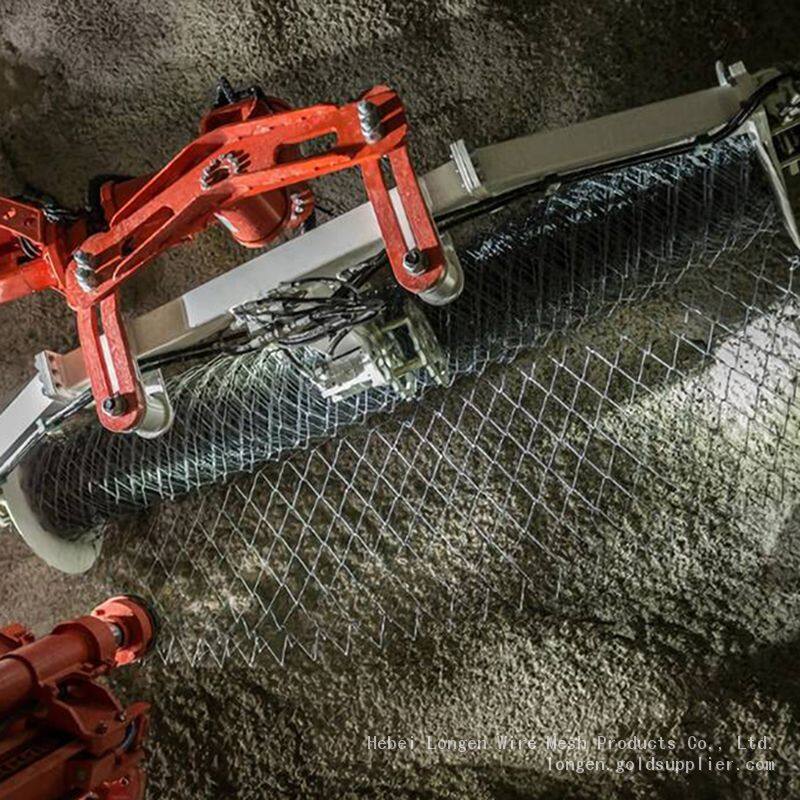

It commonly consists of high tensile wire mesh, soil or rock nails, spike plates, steel ropes and rope anchors. The underground support netting is commonly used to cover the roof of the roadway with high tensile wire mesh and fasten the high tensile wire mesh onto the mining surface with an array of rope anchors. As the high tensile wire mesh is flexible and can adopt to all kinds of mining surfaces and maximize its contact with slope through the pre-tension, thereby forming an underground support netting system that can provide maximum mining tunnel and shaft stability and ensuring the safety of underground miners and mining devices.

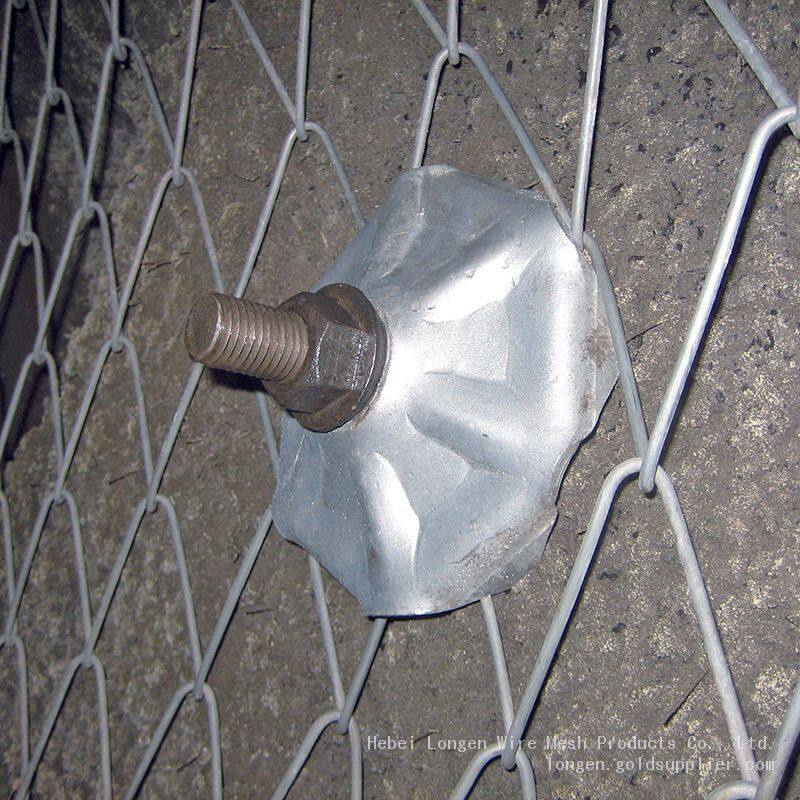

LONGEN system is a geohazard protection system specially designed for underground support. LONGEN mesh is the most important part of this underground support netting. It is a single twisted mesh made of high tensile steel wire with a diameter of 3 or 4 mm and a tensile strength of at least 1770 N/mm2, which makes the Mincon mesh have excellent resistance to mechanical stress and high impact forces. It features a rhomboidal-shaped mesh with a mesh width of 80 mm. The Mincon mesh is firmly fastened to the mining surface with an array of soil nails and spike plates to form an integral protection system that can bear the enormous weight of the roof mines.
Key Features

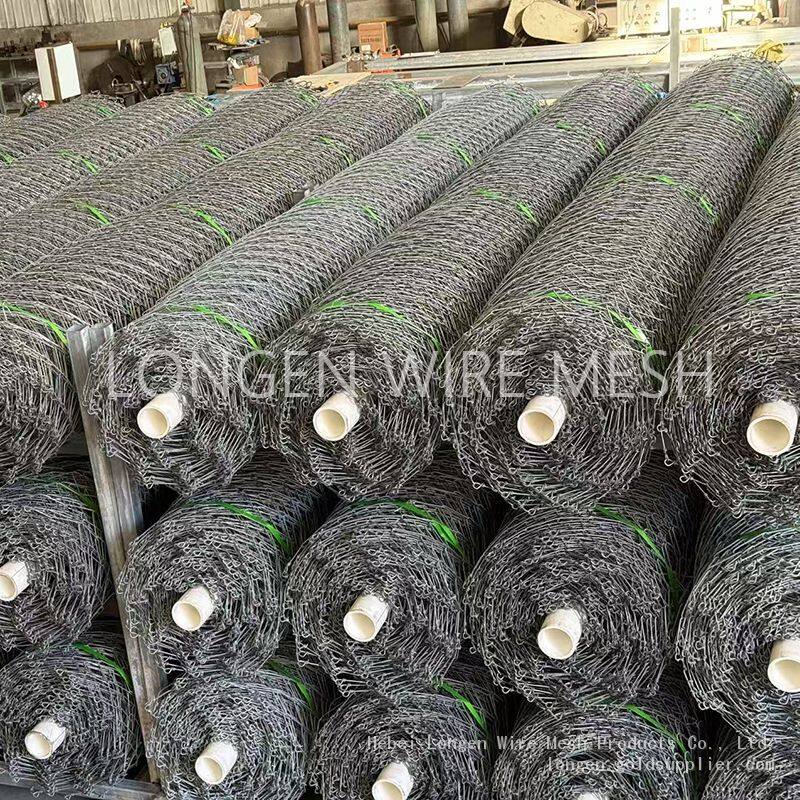

-Supplied in a variety of roll size configurations to suit custo ers specific mine drive dimensions and ground conditions
-Provides consistency of rock bolt patterns
-Knuckle selvedge end
-Easy to handle and transport
