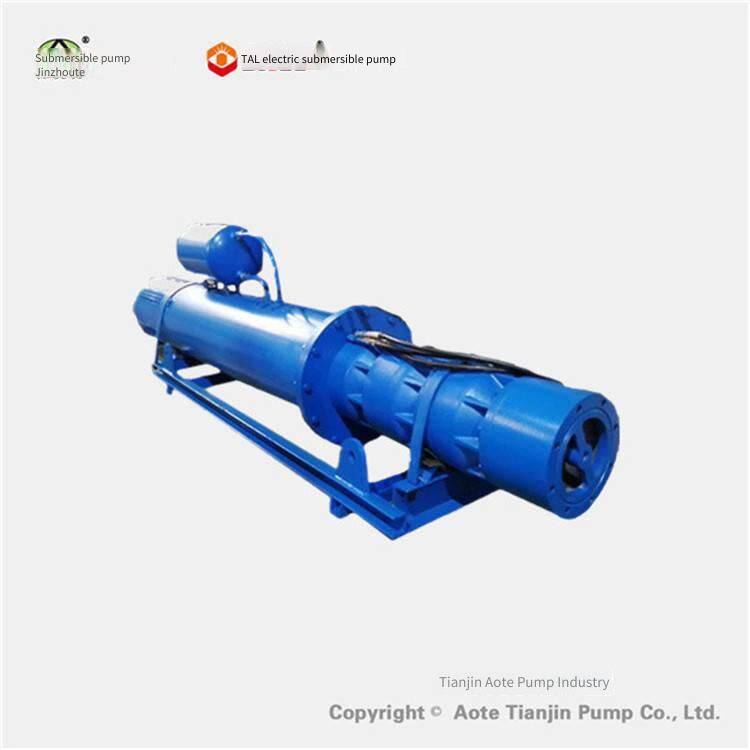

High-flow Horizontal Submersible Pump, Horizontal Submersible Pump for Mine Pit Drainage, High-lift Inclined Horizontal Deep Well Pump
US$ 621.54
≥1 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Tianjin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Qjw Horizontal Submersible Pump for River Channels, Selection of Submersible Pumps With Brackets, Inclined Submersible Well Pumps for Mines, Aote Pump IndustryUS$ 830.77MOQ: 1 Unit -
400-meter Head Frequency-conversion Horizontal Deep Well Pump for Mine Drainage, Bracket-mounted, Large Flow Rate, Corrosion-resistantUS$ 1790.77MOQ: 1 Unit
-
250qjr Hot Water Submersible Electric Pump, Resistant to 100℃ High Temperature, Wear-resistant and Corrosion-resistant Design, for Industrial Water CirculationUS$ 461.54MOQ: 1 Unit
-
Submersible Pump for Hot Water Pool, Floor Heating Heat Pump, High-temperature Hot Water Circulation, Stainless Steel Anti-rust Water PumpUS$ 153.69MOQ: 1 Unit
-
Hot Water Submersible Pump for Hot Spring Wells, 100-degree High-temperature Deep Well Pump, Frequency Conversion Control, Stainless Steel ImpellerUS$ 307.54MOQ: 1 Unit
一、产品概述：
矿坑排水用卧式潜水泵是在井用潜水泵的基础上演变而来的，从外形上没什么区别，在型号选择上大家可以参考QJ或QS系列潜水泵参数表，矿坑排水用卧式潜水泵在内部结构上是有一定区别的，由于卧用潜水泵采用卧式安装，所以在电泵内部需要加粗轴径、加强耐磨轴瓦、耐磨口环或叶轮采用铜质或非金属等材料制成，矿坑排水用卧式潜水泵目的是防生锈，因为水池在冬季要将水排干，如果采用铸铁口环配铸铁叶轮，到了年春季就容易锈死，如果锈死也不能启动运转了。
二、矿坑排水用卧式潜水泵参数：
流量范围 80~2400m3/h
扬程范围 10-1700m
介质温度
水质要求 PH4-10；
固体含量 ≤8%；颗粒径≤20mm。
电机数据 功率范围 120-4200KW
电压范围 660V、3KV、6KV、10KV±5%
多级卧式潜水电泵频率范围 50HZ或60HZ±1%
三、供货范围：
矿坑排水用卧式潜水泵机组（包括泵体与潜水电机两部分组成），内置单向逆止阀，出水口配对法兰一片，12×60（8.8级）螺栓6条,使用维护说明书1份，合格证1份装箱单1份，外包装。

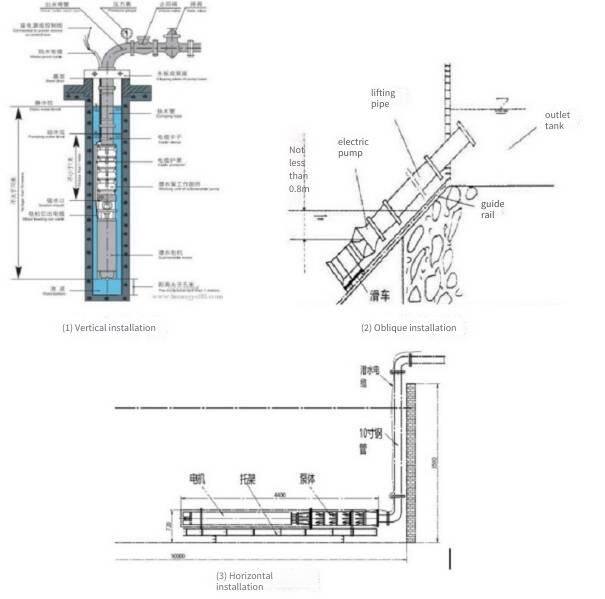

安装方式如下：
四、包装说明：
机组长度小于3.2米的，机泵联体包装方便客户安装，机组总长度大于3.2米以上的采用电机与泵体分体包装，以免运输途中折断。客户无特殊要求，采用上述包装方式。为保护电缆在运输途中不被挤压，产品出厂时采用木箱包装。
五、设备优点：
1、在工厂的精心组装***了现场迅速安装
2、采用多级叶轮，噪音极小
3、内装的止回阀，***水锤的冲击。
4、矿坑排水用卧式潜水泵单级扬程高，可降低整个机组的高度增加运转的稳定性，泵轴直径为φ28mm增加了泵轴的抗扭性能。轴瓦采用橡胶材料制成耐磨，并配有材料制成的硬质轴瓦。
我们可根据客户对多级卧式潜水电泵井径、水温、水质、扬程、流量的具体参数针对性的选型，欢迎来选购
