Home > Industrial Equipment & Components > Refrigeration Equipment > Industrial Chiller > CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry thumbnail-2

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry thumbnail-3

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry thumbnail-4

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry thumbnail-5

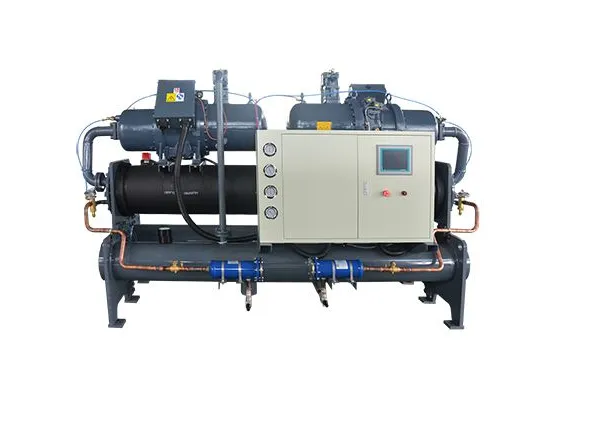

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry photo-1

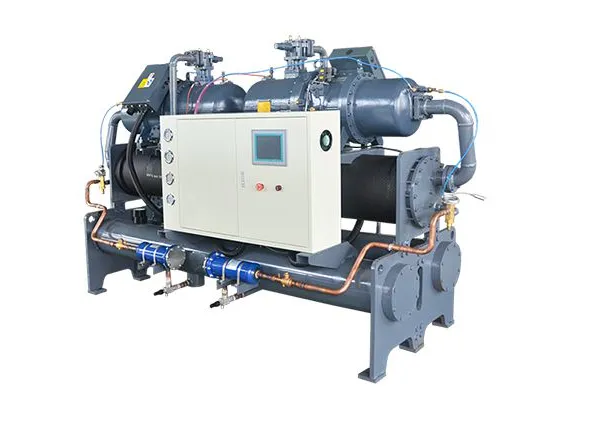

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry photo-2

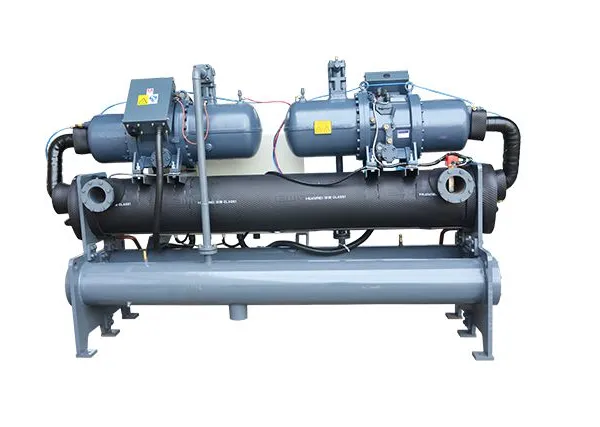

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry photo-3

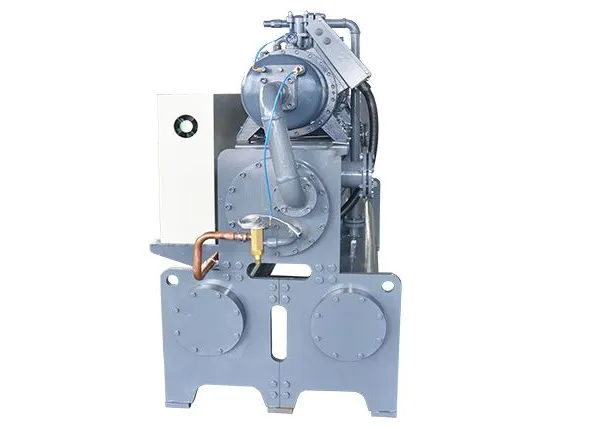

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry photo-4

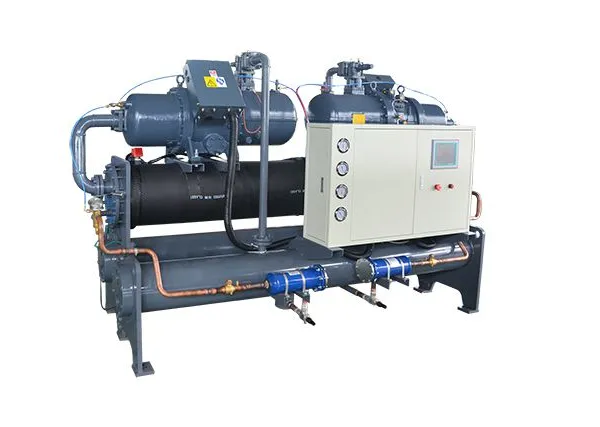

CKG-160W Industrial Water Cooled Screw Chiller for Chemical Industry photo-5

US$ 20000 - 22000 MOQ: 1 Set

Key Specifications

Get Latest Price

Certification:

Type:

Water-Cooled

Warranty:

1 year

Contact Supplier Request Quote Chat Now

Jinan Cikor Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Certification CE

Type Water-Cooled

Warranty 1 year

Cooling Method Water-cooled

After-sales Service Whole life

Application Fields Chemical

Unit Structure Integral

Selected Voltage 380V/50HZ

Compressor Number 1

Application Machine Other

Condition NEW

Noise Level Ordinary

Model CKG-160W

Cooling capacity 170.8KW

Power supply 3 phases/380V/50Hz

Rated power 39.4KW

Working current 69.2A

Compressor Screw type

Pump Stainless steel centrifugal type

Dimension 2000X1000X1700mm

Weight 1500kg

Refrigerant R22/R407C/R410A

Transport Package Standard export case

Specification CKG-160W

Trademark Cikor

Origin China

Water cooled screw chiller features

New generation screw compressor with high operation efficiency

Most efficient full load and part load operation

Variable speed drives option

Highly effective at rapidly lowering temperatures

Water cooled screw chiller specifications

Model			CKG-175W	CKG-195W	CKG-235W	CKG-255W	CKG-305W	CKG-350W	CKG-380W	CKG-419W	CKG-495W	CKG-575W	CKG-645W	CKG-750W
Cooling Capacity		kW	175	195	235	255	305	350	380	419	495	575	645	750
Power supply			380/415/440/460V/3PH/50Hz
Rated power		kW	39.5	43.2	52.5	57.5	64.6	75.0	81.6	91.0	106.0	121.0	135.0	155.0
Compressor	Type/energy regulation		Advanced asymmetrical semi-enclosed screw type / 0-25%-50%-75%-100%
Evaporator	Type		Horizontal shell and tube type high efficiency heat exchanger
	Flow	m³/h	30.1	33.5	40.4	43.9	52.5	60.2	65.4	72.0	85.0	99.0	110.0	129.0
	Pipe size	DN	DN80	DN100				DN125					DN150
Condenser	Type		Horizontal Shell and tube type efficient heat exchanger
	Flow	m³/h	37.6	41.9	50.5	54.8	65.6	75.3	81.7	90.0	106.5	123.6	137.0	161.3
	Pipe size	DN	DN80	DN100				DN125					DN150
Safety protection			High and low pressure, water flow, overcurrent, safety valve, power supply protection, oil level, exhaust temperature, antifreeze, etc
Weight		kg	1260	1362	1410	1530	1580	2360	1950	2050	2200	2445	2800	2950
Dimension	L	mm	3080	3150	3150	3150	3250	3250	3400	3400	3400	3650	4000	4000
	W	mm	1000	1000	1237	1237	1237	1237	1150	1150	1150	1350	1400	1400
	H	mm	1500	1540	1540	1600	1650	1650	1670	1670	1670	1900	2000	2000

Note:Rated cooling capacity standard: evaporator water inlet/outlet temperature 7°C/12°C, condenser water inlet/outlet temperature 30/35°C

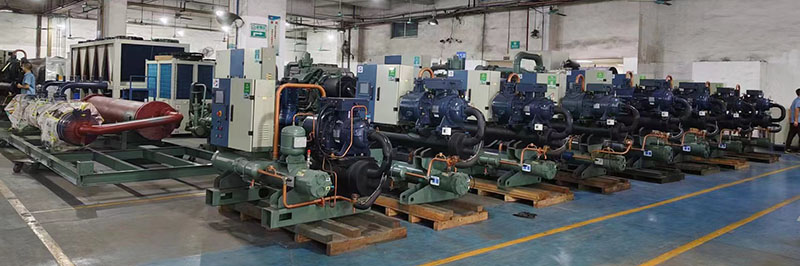

Water chiller factory

With more than 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in competitive price

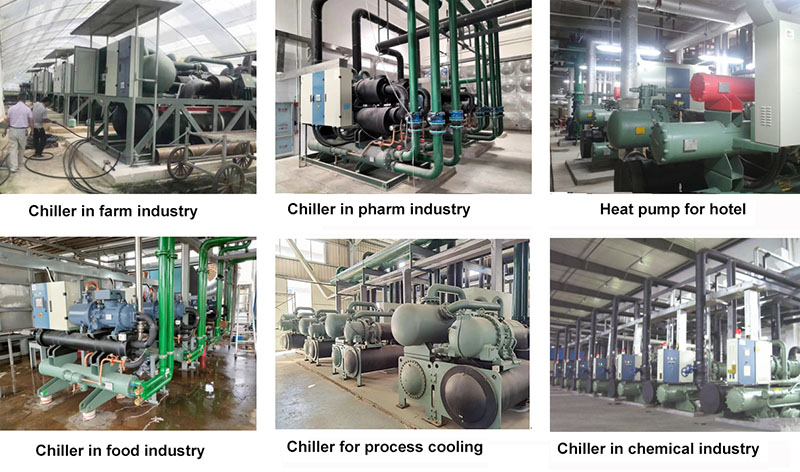

Customer user site of water chiller
Water chiller customers from worldwide,like Australia,Sigapore,Pakistan,UK,USA,South Africa,Philippines,Japan,Romania,Canada and etc

Application of water chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
