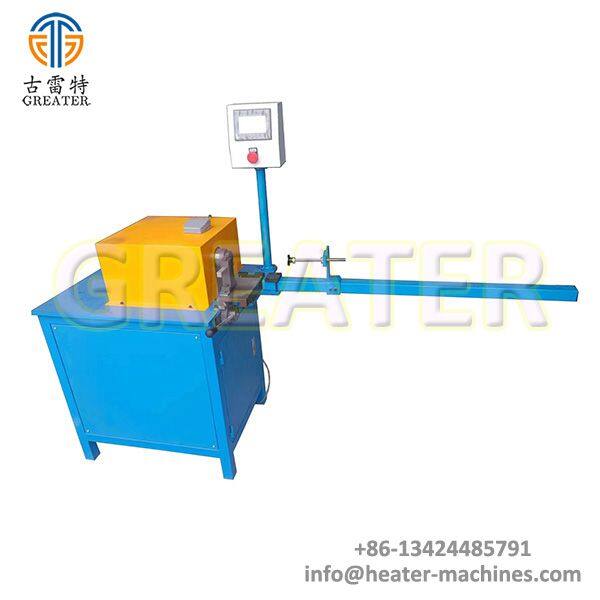

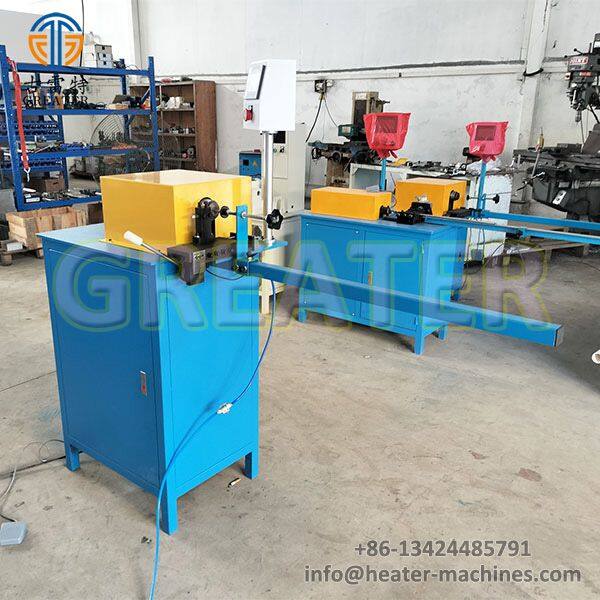

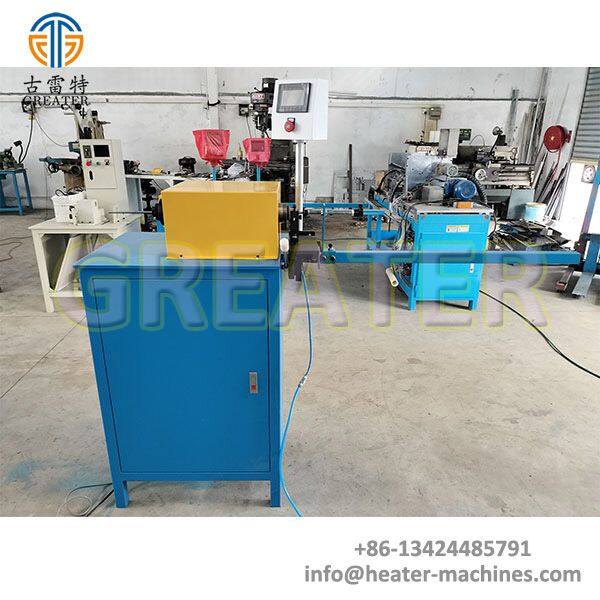

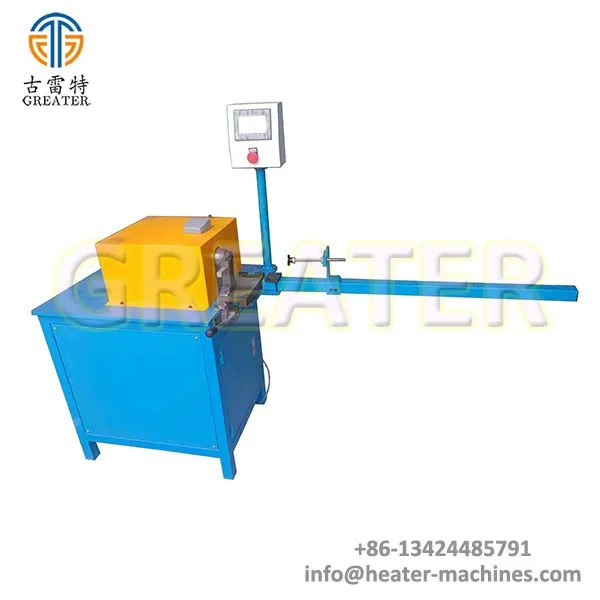

GT-CT30 Tube Cutting Machine For Tubular Heater Equipment Chinese Manufacture

GT-CT30 Tube Cutting Machine For Tubular Heater Equipment Chinese Manufacture thumbnail-1
GT-CT30 Tube Cutting Machine For Tubular Heater Equipment Chinese Manufacture thumbnail-2
GT-CT30 Tube Cutting Machine For Tubular Heater Equipment Chinese Manufacture thumbnail-3
GT-CT30 Tube Cutting Machine For Tubular Heater Equipment Chinese Manufacture thumbnail-4
GT-CT30 Tube Cutting Machine For Tubular Heater Equipment Chinese Manufacture photo-1
GT-CT30 Tube Cutting Machine For Tubular Heater Equipment Chinese Manufacture photo-2
GT-CT30 Tube Cutting Machine For Tubular Heater Equipment Chinese Manufacture photo-3
GT-CT30 Tube Cutting Machine For Tubular Heater Equipment Chinese Manufacture photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Drive Mode:
Electric
After-sales Service:
Within 24H
Automation:
Semi-Automatic
Contact Supplier Request Quote Chat Now
Zhaoqing Guleite Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Drive Mode Electric
After-sales Service Within 24H
Automation Semi-Automatic
Warranty 1 Year
Transport Package wooden box
Trademark Greater
Origin Zhaoqing, Guangdong, China

  • Item No.:GT-CT30

  • Motor Power: 380V 50HZ 750W

  • Max Inner Diameter: Φ30mm

  • Air supply: 0.6Mpa clean compressed air


GT-CT30 tube Cutting Machine is basically the same with GT-CT15 Tube Cutting Machine.

It is suitable for cutting larger tubes. Principal axis, axle box and elastic chucks are also larger. Motor power is added to 0.75 KW. The limit-position equipment is equipped with guide mechanism to decrease the vibration of cut tubes.


Power: 0.75KW

Cutting speed: according to the specification of the tubes, usually about 10000 pcs / 8 hour

Tubes can be cut: Φ5-Φ30mm are ok

Motor power: 3phase 380V 50HZ or according to customer



Main structure and Performances

GT-CT30 tube cutting machine: Manual operating machine is designed to meet the requirements of many sizes and small quantity of pipes cutting (such as cartridge heaters).

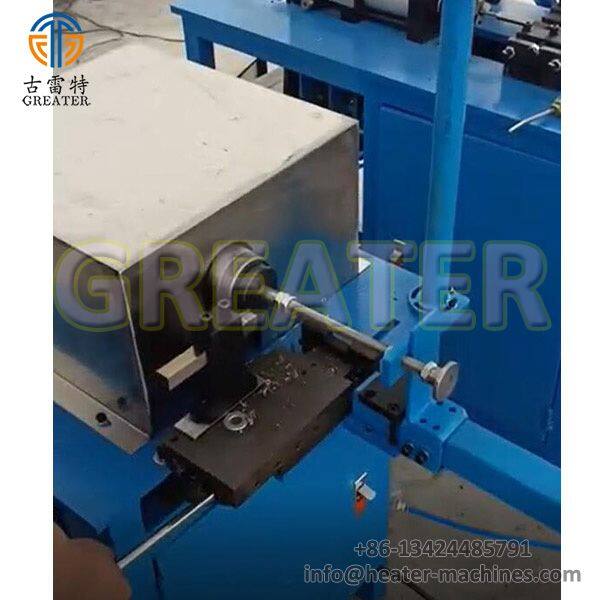

The machine uses elastic chuck to clamp, so that it can change the chuck (specification) more quickly and conveniently.

GT-CT30 tube cutting machine suitable for copper pipes, iron pipes, stainless steel pipes, aluminum pipes, etc.


Main models and technical parameters


model

diameter/length

productivity

speed

power

air supply

size

weight

GT-CT15

GT-CT30

Ф5-15mm;

Ф5-30mm;

5000-10000pcs/8h

900rpm1800rpm

380V/50HZ/ 0.75KW

5-7Kg/cm³

800*600*800mm

200KG



GT-CT 30 Tube Cutting Machine Heater EquipmentGT-CT 30 Tube Cutting Machine Chinese SupplierGT-CT 30 Tube Cutting Machine Manufacture ChinaGT-CT 30 Tube Cutting Machine Chinese





Product Tags: pipe cutting machine , tube cutter China , manual tube cutting machine
