Microtemp Emerson Thermal Fuse Emerson Todg8a00/a01tf 240 216 250vac

Jining Donglin Electronics Technology Co., Ltd. sells genuine EMERSON thermal fuses, including the MICROTEMP G8A and MICROTEMP E8A series of thermal cutoffs. This series of products is designed for use in high-current loads such as various high-power devices and high-voltage electric heating components, with a rated load of up to AC250V and AC277V 20A. They are affordably priced. Thanks to their small size and advantages in installation and thermal response, they are widely used in various electric heating equipment.

The standard specifications of EMERSON/Emerson 250V 98-degree thermal fuses are as follows:

MICROTEMP G8A00 TF098C;

MICROTEMP G8A01 TF098C;

MICROTEMP E8A00 TF098C;

MICROTEMP E8A01 TF098C;

MICROTEMP JET E8A50 250V~2*** TF098C;

MICROTEMP JET E8A51 250V~2*** TF098C;

MICROTEMP JET G8A50 250V~2*** TF098C;

MICROTEMP JET G8A51 250V~2*** TF098C;

The performance parameters are as follows:

Specification model: G8A01098C

Manufacturer: Emerson Electric Co., USA

Trademark: MICROTEMP

Rated current load: AC250V 2***

Rated opening temperature (Tf): 98℃

Holding temperature (Th): 83℃

Overload temperature (Tm): 410℃

Total length: 82.9mm

Certification bodies: CCC, UL, CSA, VDE, MITI, KETI, KC

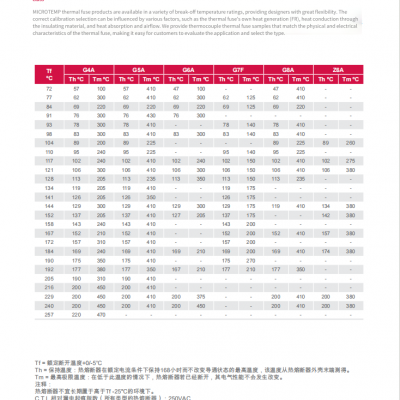

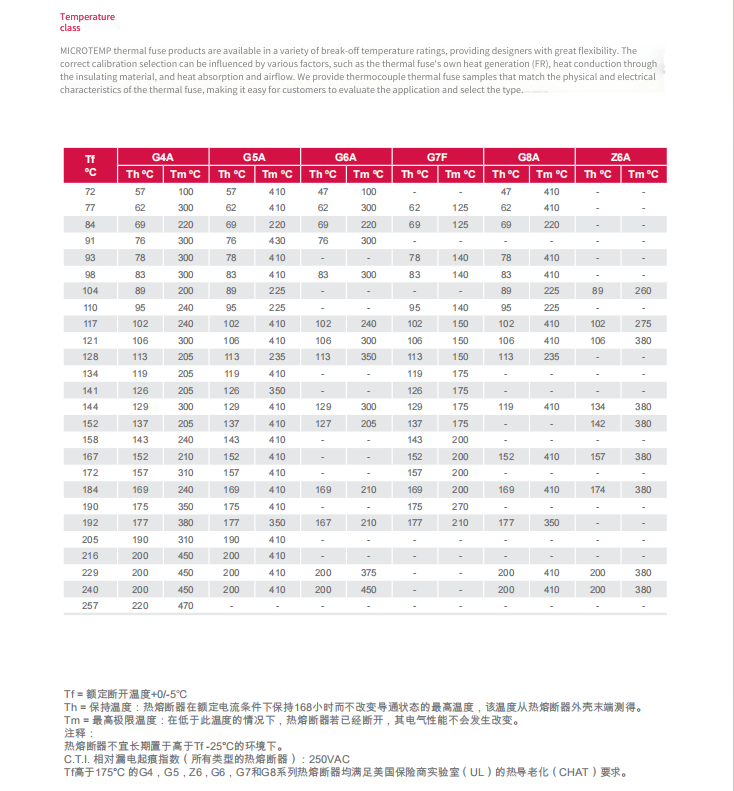

Other models of EMERSON/Emerson 250V 2*** at different temperature points are as follows:

G8A01 TF072C, G8A00 TF072C, G8A51 TF072C, G8A50 TF072C, E8A01 TF072C, E8A00 TF072C, E8A51 TF072C, E8A50 TF072C,

G8A01  TF077C，G8A00  TF077C，G8A51  TF077C，G8A50  TF077C，E8A01  TF077C，E8A00  TF077C，E8A51 TF077C， E8A50  TF077C，

G8A01  TF084C，G8A00  TF084C，G8A51  TF084C，G8A50  TF084C，E8A01  TF084C，E8A00  TF084C，E8A51  TF084C， E8A50 TF084C，

G8A01  TF091C，G8A00  TF091C，G8A51  TF091C，G8A50  TF091C，E8A01  TF091C，E8A00  TF091C，E8A51  TF091C，E8***50  TF091C，

G8A01  TF093C，G8A00  TF093C，G8A51  TF093C，G8A50  TF093C，E8A01  TF093C，E8A00  TF093C，E8A51  TF093C，E8A50  TF093C，

G8A01  TF098C，G8A00  TF098C，G8A51  TF098C，G8A50  TF098C，E8A01  TF098C，E8A00  TF098C，E8A51  TF098C，E8A50  TF098C，

G8A01  TF104C，G8A00  TF104C，G8A51  TF104C，G8A50  TF104C，E8A01  TF104C，E8A00  TF104C，E8A51  TF104C，E8A50  TF104C，

G8A01  TF110C，G8A00  TF110C，G8A51  TF110C，G8A50  TF110C，E8A01  TF110C，E8A00  TF110C，E8A51  TF110C，E8A50  TF110C，

G8A01  TF117C，G8A00  TF117C，G8A51  TF117C，G8A50  TF117C，E8A01  TF117C，E8A00  TF117C，E8A51  TF117C，E8A50  TF117C，

G8A01  TF121C，G8A00  TF121C，G8A51  TF121C，G8A50  TF121C，E8A01  TF121C，E8A00  TF121C，E8A51  TF121C，E8A50  TF121C，

G8A01  TF128C，G8A00  TF128C，G8A51  TF128C，G8A50  TF128C，E8A01  TF128C，E8A00  TF128C，E8A51  TF128C，E8A50  TF128C，

G8A01  TF134C，G8A00  TF134C，G8A51  TF134C，G8A50  TF134C，E8A01  TF134C，E8A00  TF134C，E8A51  TF134C，E8A50  TF134C，

G8A01  TF141C，G8A00  TF141C，G8A51  TF141C，G8A50  TF141C，E8A01  TF141C，E8A00  TF141C，E8A51  TF141C，E8A50  TF141C，

G8A01  TF144C，G8A00  TF144C，G8A51  TF144C，G8A50  TF144C，E8A01  TF144C，E8A00  TF144C，E8A51  TF144C，E8A50  TF144C，

G8A01  TF152C，G8A00  TF152C，G8A51  TF152C，G8A50  TF152C，E8A01  TF152C，E8A00  TF152C，E8A51  TF152C，E8A50  TF152C，

G8A01  TF158C，G8A00  TF158C，G8A51  TF158C，G8A50  TF158C，E8A01  TF158C，E8A00  TF158C，E8A51  TF158C，E8A50  TF158C，

G8A01  TF167C，G8A00  TF167C，G8A51  TF167C，G8A50  TF167C，E8A01  TF167C，E8A00  TF167C，E8A51  TF167C，E8A50  TF167C，

G8A01  TF172C，G8A00  TF172C，G8A51  TF172C，G8A50  TF172C，E8A01  TF172C，E8A00  TF172C，E8A51  TF172C，E8A50  TF172C，

G8A01  TF184C，G8A00  TF184C，G8A51  TF184C，G8A50  TF184C，E8A01  TF184C，E8A00  TF184C，E8A51  TF184C，E8A50  TF184C，

G8A01  TF190C，G8A00  TF190C，G8A51  TF190C，G8A50  TF190C，E8A01  TF190C，E8A00  TF190C，E8A51  TF190C，E8A50  TF190C，

G8A01  TF192C，G8A00  TF192C，G8A51  TF192C，G8A50  TF192C，E8A01  TF192C，E8A00  TF192C，E8A51  TF192C，E8A50  TF192C，

G8A01  TF205C，G8A00  TF205C，G8A51  TF205C，G8A50  TF205C，E8A01  TF205C，E8A00  TF205C，E8A51  TF205C，E8A50  TF205C，

G8A01  TF216C，G8A00  TF216C，G8A51  TF216C，G8A50  TF216C，E8A01  TF216C，E8A00  TF216C，E8A51  TF216C，E8A50  TF216C，

G8A01  TF229C，G8A00  TF229C，G8A51  TF229C，G8A50  TF229C，E8A01  TF229C，E8A00  TF229C，E8A51  TF229C，E8A50  TF229C，

G8A01  TF240C，G8A00  TF240C，G8A51  TF240C，G8A50  TF240C，E8A01  TF240C，E8A00  TF240C，E8A51  TF240C，E8A50  TF240C
