The Hengna Heavy Load Steel Shelf System is built on a foundation of radical transparency and structural honesty, delivering verified, true weight ratings with zero false claims. This system is specifically optimized for the challenging, often overlooked domain of pallet-free bulk storage—where unevenly distributed, heavy, and awkward items demand a level of integrity that standard shelving cannot provide.
This product is for the warehouse manager who loses sleep over safety audits, for the procurement officer tired of deciphering exaggerated specifications, and for the business owner who understands that true cost is measured over a decade, not at the point of purchase. It is not merely shelving; it is a liability mitigation strategy and a productivity safeguard cast in reinforced steel.
The Crisis of Confidence in Warehouse Storage
The disconnect between advertised and real-world capacity stems from systemic shortcuts:
Theoretical vs. Dynamic Load: Ratings based on perfect, evenly distributed static weight, ignoring the dynamic forces of loading/unloading, impact, and uneven weight distribution.
Component Inconsistency: Using underspecified beams or thin-gauge uprights that cannot translate to the claimed system-wide capacity.
Corner-Cutting on Welds: Inadequate welding at critical joints creates hidden failure points that only reveal themselves under maximum stress.
The “Pallet Assumption”: Most racks are designed for the even load distribution of pallets. Pallet-free storage of drums, machinery parts, or stacked boxes creates concentrated point loads that can overwhelm standard designs.
The Hengna Heavy Load System is engineered to bridge this gap between promise and performance, with a particular focus on the rigors of non-palletized storage.
2. Reinforced Design for Pallet-Free Bulk Storage
Pallet-free storage presents unique challenges: point loads, shifting centers of gravity, and high-density stacking. Our design incorporates specific reinforcements:
Thickened One-Piece Beams & Multi-Point Shelf Supports: Beams are formed from a single, continuous 2.5mm thick steel strip. Each shelf rests on multiple, full-depth support arms that are integrally welded to the beam, distributing concentrated loads across the entire beam length and into the uprights, preventing localized bending.

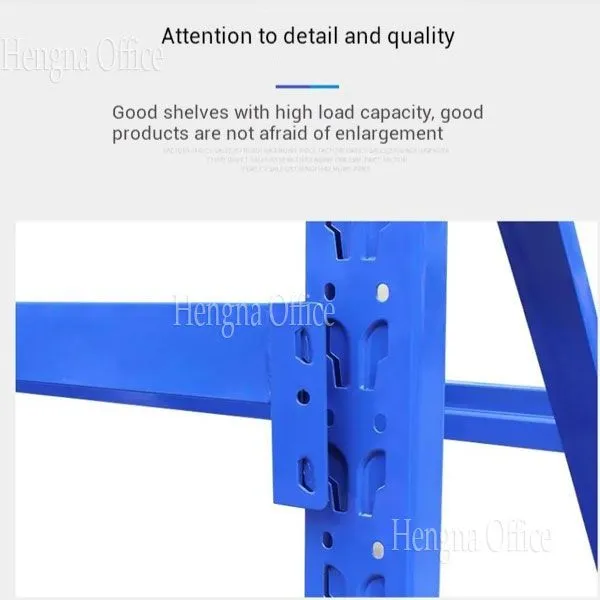

Reinforced Node Welding: The connection points where beams, braces, and uprights meet undergo double-pass welding and are often reinforced with gusset plates. This creates monolithic joints capable of handling the torsional stresses caused by off-center loading.
Optional Reinforced Decking: For the heaviest, most uneven items (engine blocks, metal coils), we offer 3mm diamond-pattern steel plate decking or composite wood-and-steel laminate boards that eliminate sagging and provide a solid, continuous bearing surface.
Application Scenarios: Conquering the Toughest Bulk Storage Challenges
| Bulk Storage Material | Traditional Storage Risk | Hengna Heavy Load Solution & Configuration |
|---|---|---|
| Industrial Drums & Barrels (Chemicals, Lubricants) | High point load from single drum. Risk of roll-off. |
Configuration: Lower shelves with containment lip options. Use steel plate decking. Why it Works: High point-load capacity of beam/deck combo. Lip prevents movement. |
| Dense, Boxed Parts (Metal Castings, Automotive Brake Rotors) | Extreme weight per cubic foot. Cardboard boxes can fail, creating shifting load. |
Configuration: Medium-height shelves. Use wire mesh containment panels on sides. Why it Works: System rated for the full dense weight. Mesh contains any box failure, maintaining load distribution. |
| Bagged Materials (Sand, Fertilizer, Polymer Resins) | Load settles and shifts. Creates outward pressure on shelf fronts. |
Configuration: Deeper shelves. Front-facing beam reinforcements. Why it Works: Reinforced front beam resists bending from bulging bags. High capacity handles total settled weight. |
| Long, Heavy Stock (Metal Bars, Pipes, Lumber) | Creates a bending moment across the center of the shelf. |
Configuration: Wider bays. Close-spaced secondary beams running front-to-back. Why it Works: Secondary beams provide continuous support along the length of the stock, preventing shelf deflection. |
| Machinery & Heavy Equipment Parts | Irregular shapes, extreme weight, high value. |
Configuration: Low, heavy-duty “banker rack” style (2-3 tiers). Custom decking. Why it Works: Ultra-low center of gravity and maximum per-shelf capacity provides safe, stable storage for critical assets. |
Safety & Compliance Framework: Exceeding the Baseline
Our design philosophy incorporates key principles from global storage safety standards:
RMI (Rack Manufacturers Institute) Principles: While not a pallet rack, our design follows RMI’s rigorous approach to load application, safety factors, and connection design.

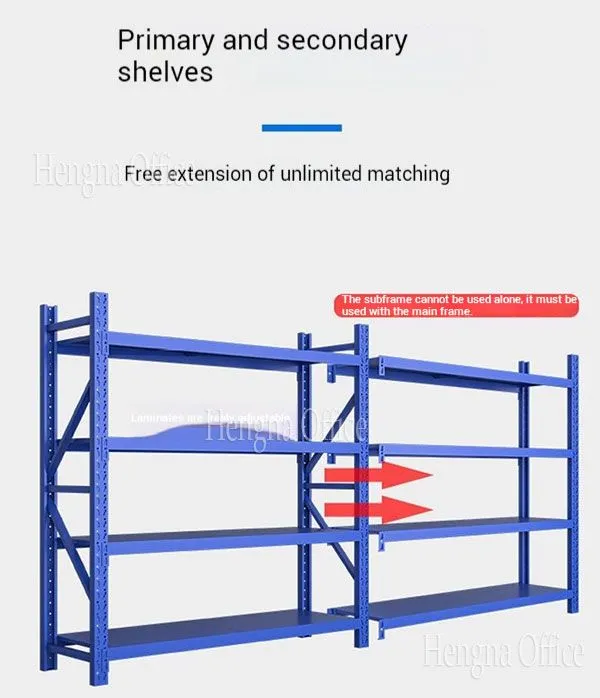

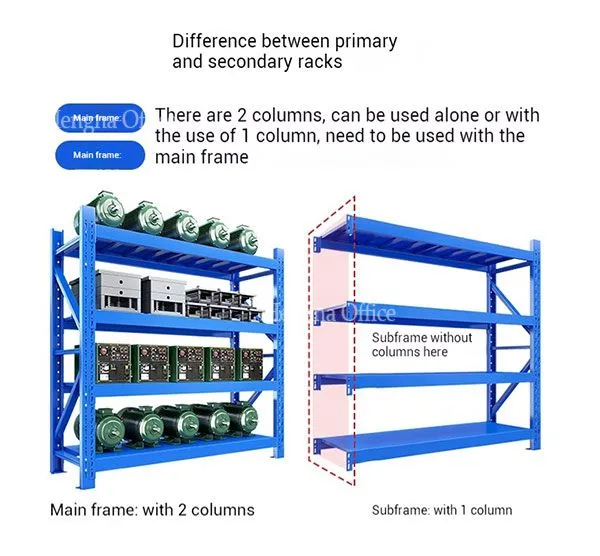

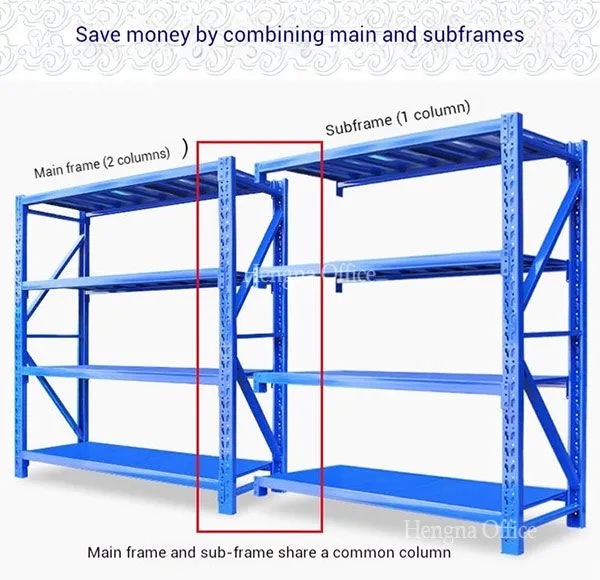

Seismic Considerations: For regions with seismic activity, our Main/Auxiliary frame system, when properly anchored and configured, offers superior lateral stability compared to isolated units.
Total Cost of Ownership: True Rating vs. False Promise
Evaluating cost requires a full risk assessment, not just a price tag.
Scenario: Storing 40,000 kg of bulk engine parts.
Option A: “Economy” Racks with Inflated Ratings
Purchase Price: $
Risk: Collapse of 2 bays due to overloading. Cost: Inventory Loss ($80,000) + Cleanup/Downtime ($20,000) + Potential OSHA Fines ($15,000) = $115,000+.
Effective TCO: Catastrophic.
Option B: Hengna Heavy Load System with Verified Ratings
Purchase Price: $$$ (Higher initial investment)
Risk: Near zero. Systems operates safely at specified load.
Additional Benefit: Enables higher, safer storage density, potentially reducing warehouse footprint needs.
Effective TCO: Predictable, safe, and optimizing.
Technical Specifications: The Parameters of Strength
Structural Steel: Grade S355JR / A572 or equivalent.
Beam Profile: 2.5mm thick, one-piece cold-rolled steel. Box-style or step-beam design.
Upright Column: 1.5mm - 2.0mm thick, with reinforced punch patterns.
Verified Load Capacity Range (Per Shelf): 500kg, 800kg, 1000kg, 1500kg+ (as configured and certified).
Safety Factor: Minimum 1.5:1 (Working Load to Ultimate Failure).
Surface Protection: 7-Stage pretreatment and powder coating (120μm+). Optional galvanization for extreme environments.
Anchoring: Mandatory for all heavy-load configurations. Anchor kit included.
Built to Bear the Trust, Built to Bear the Weight
The Hengna Heavy Load Steel Shelf System is a covenant of safety and performance. It replaces the anxiety of potential failure with the confidence of engineered certainty. In an industry rife with overstated claims, we choose the harder path of verifiable truth, because the cost of being wrong is unacceptably high.
Frequently Asked Questions (FAQs)
Q1: You provide load test reports, but how do you ensure the batch I receive matches the tested sample's quality?
A: We implement batch-based quality control. Each batch of steel comes with its material certification. Key load-bearing components (like beams) undergo online dimensional and thickness sampling. Finished products are subject to load simulation tests—random units are pulled from the line and pressurized to their rated capacity to check deflection against safety standards. These internal quality records are traceable. For large orders, clients can arrange for third-party inspection and load testing before shipment.
Q2: For storing oil drums or chemical barrels, are there special recommendations or accessories?
A: We strongly recommend using our steel corrugated or solid sheet shelves instead of wire mesh to prevent the barrel from catching or leaks dripping to lower levels. Additionally, installing a front safety bar or guardrail is crucial. This adjustable metal bar across the front of the shelf effectively prevents drums from rolling or falling off. For flammable chemicals, ensure storage complies with all local safety regulations.
Q3: How should I place items with very uneven weight distribution (e.g., one end much heavier)?
A: This is a common challenge in bulk storage. The golden rule is: always position the heaviest part closest to the rack's upright, as the uprights are the primary load-bearing points. Avoid concentrating weight at the center of the beam span. For long, unevenly weighted items, consider adding extra intermediate support, such as an additional beam on the same level or spanning the item across two adjacent, securely connected rack units at the same height.
Stop Gambling with Your Inventory and Safety.
Contact us with your most demanding storage challenge. Provide the weights, dimensions, and photos of what you need to store. We will not only quote a system—we will provide the engineering data that proves it will work.
