The Hengna Expandable Industrial Racking System is engineered as a living, breathing storage ecosystem that grows and morphs in lockstep with your business. Its foundational innovation—the Main Frame and Sub-Frame combination—is more than a design feature; it is a scalability strategy encoded in steel, specifically architected for the unique pressures of e-commerce logistics.
This system understands that an e-commerce warehouse’s layout is a temporary map, constantly redrawn by sales data. It replaces the costly, disruptive cycle of “rip and replace” with a seamless, modular plug-and-expand philosophy. For 3PL providers, direct-to-consumer brands, and omnichannel retailers, this isn’t just shelving—it’s a scalable capital asset that reduces risk and future-proofs your operational footprint.
The E-Commerce Storage Scalability Crisis: Growth vs. Gridlock
Traditional warehouse racking creates painful friction points that stifle growth:
Forecasting Paralysis: Over-investing in fixed, large-scale racking for projected growth ties up capital. Under-investing leads to immediate chaos and costly emergency expansions.
Disruptive Expansion: Adding more traditional bays requires empty floor space, often necessitating a complete shutdown and relocation of an entire zone—a massive cost in labor and lost picking hours.
Inefficient Slotting: Fixed bay sizes struggle to accommodate the wildly varying dimensions of e-commerce SKUs, from phone cases to dog food bags to yoga mats, leading to wasted vertical space (“honeycombing”).
Rigid Workflow: The physical layout cannot easily adapt to new picking strategies (e.g., shifting from batch to zone picking) or automation integration.
Our Expandable System is engineered to turn these rigid barriers into flexible advantages.
Architectural Innovation: The Scalability Engine Explained

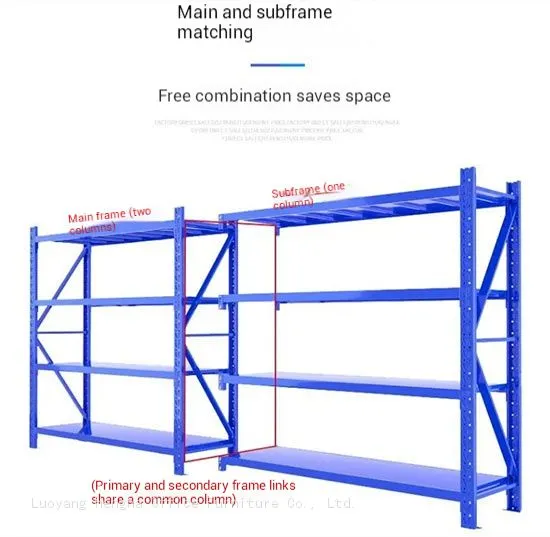

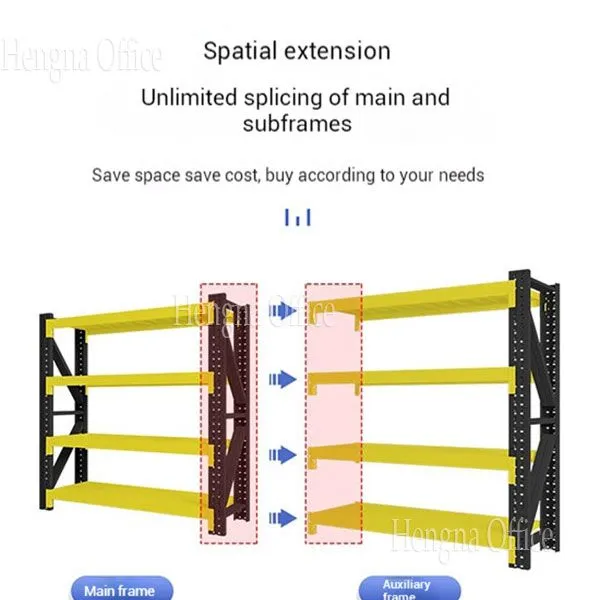

1. Main/Sub Frame Combo: The Ultimate Linear Expansion Solution
* The Mechanism: The system is built from two interoperable components:
* Main Frame: A complete, free-standing unit with two robust columns, a base, and cross-braces. It is the anchor.
* Sub-Frame (Auxiliary Frame): A single-column unit designed to attach directly to the side of a Main Frame or another Sub-Frame, leveraging the existing structure for support.
* The Scalability Impact: This allows you to expand your storage linearly along a wall or into the room without adding a new set of freestanding uprights for every bay. You start with what you need today and add bays seamlessly tomorrow, like adding links to a chain.
2. Tool-Free Height Adjustment: Dynamic SKU Slotting

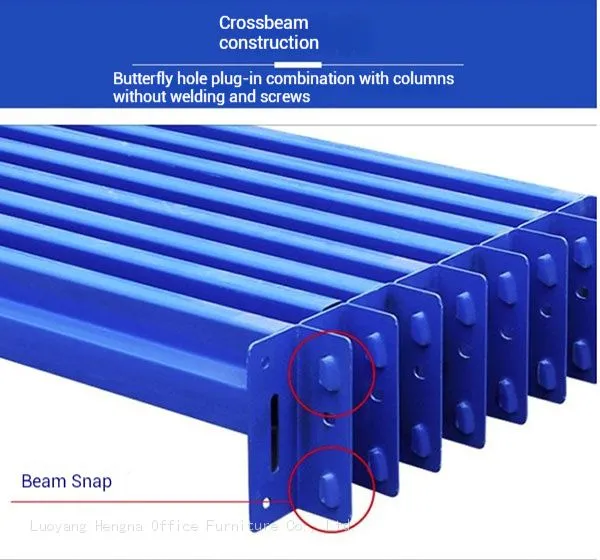

* Feature: All beams use a snap-on connector that locks into uprights punched at 25mm or 50mm intervals.
* Benefit: Your warehouse team can re-slot in real-time. When a bestseller’s packaging changes or a new seasonal product arrives, shelves can be reconfigured in minutes without tools, maintaining optimal space utilization and pick-face efficiency.
3.Fulfillment-Centric Durability

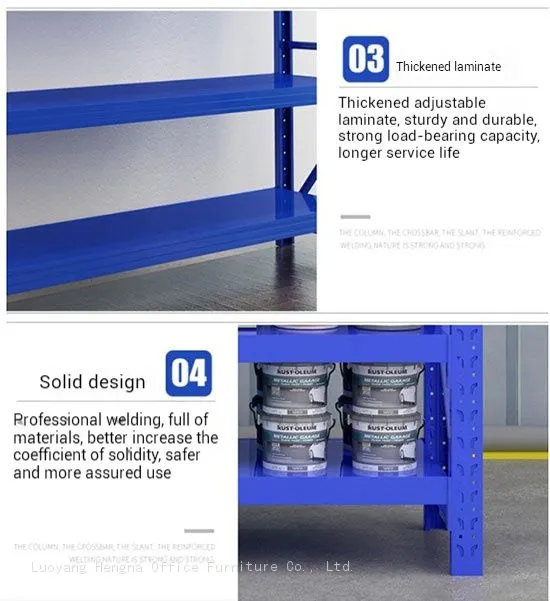

* Feature: Built with thickened beams (2.0mm) and reinforced welding at joints to withstand the constant impact from carts, totes, and the rapid loading/unloading cycles of pick-and-pack operations.
* Benefit: Provides unwavering stability in a high-activity environment, protecting both inventory and personnel. The multi-layer anti-rust coating ensures longevity despite environmental humidity fluctuations common in large warehouses.
Application Journey: From Startup to Scale
| Growth Stage | Business Pain Point | Hengna Expandable System Configuration | Operational Outcome |
|---|---|---|---|
| Stage 1: Startup / D2C Brand | Limited capital, uncertain growth trajectory. Need to look professional without over-committing. | Start with a small cluster of Main Frames (e.g., 4 units creating 4 bays). Use highly adjustable shelves. | Low-Risk Entry: Professional storage that instills confidence. Easy to reconfigure as initial product lines evolve. |
| Stage 2: High-Growth / Series A | SKU count exploding. Sales peaks (e.g., Black Friday) strain capacity. Need to scale storage fast. | Use the Main/Sub Frame combo to add bays rapidly to existing runs. Create dedicated zones: one for fast-moving, one for slow-moving. | Agile Scaling: Add 10 new bays in a weekend with minimal labor and disruption. Handle 300% order volume spikes. |
| Stage 3: Mature / 3PL Fulfillment | Managing hundreds of clients with diverse products. Need maximum density and flexibility for constant client onboarding/offboarding. | Implement long, continuous "storage walls" using Main+Sub frames. Design standardized but reconfigurable bay modules for different client profiles. | Optimized Asset Utilization: Achieve the highest possible storage density. Quickly reformat sections of the warehouse for new client contracts. |
| Stage 4: Automation-Integrated | Integrating AMRs (Autonomous Mobile Robots) or conveyor for goods-to-person picking. Need racking that interfaces seamlessly. | The clean, vertical profile of the Main/Sub system provides clear navigation paths for robots. Consistent dimensions allow for reliable automated inventory management. | Future-Ready Infrastructure: The racking acts as a stable, predictable "city grid" for automated systems, protecting your automation investment. |
Total Cost of Ownership Analysis: Scalability vs. Economics
A 5-year projection for a growing e-commerce business adding 10 bays per year:
| Cost Factor | Traditional Fixed Racking (All Main Frames) | Hengna Expandable System (Main+Sub) | 5-Year Advantage for Hengna |
|---|---|---|---|
| Year 1 (10 Bays) | High initial outlay for all uprights. | Lower initial cost. Buy only needed Main Frames + some Sub-Frames. | ~20% Lower Capex in Year 1. |
| Years 2-5 (Expansion) | High cost per new bay (full upright set). High labor to install/disrupt. | Low incremental cost. Add Sub-Frames to existing ends. Minimal labor (snap-on). | ~35% Lower Expansion Capex, ~60% Lower Expansion Labor. |
| Floor Space Efficiency | Less efficient (more uprights). | More efficient (fewer uprights, more clear space). | ~15% More Effective Storage Volume per sqm. |
| Reconfiguration Cost | Very High (near impossible). | Negligible (tool-free adjustment). | Enables continuous optimization at near-zero cost. |
| The expandable system shifts storage from a high, periodic capital expense to a smooth, operational one, aligning cost with actual growth. |
Technical Specifications for Fulfillment Operations
System Architecture: Main Frame + Sub-Frame (Auxiliary Frame) Modular System.
Expansion Method: Linear, tool-free connection of Sub-Frames to existing structure.
Beam Load Capacity: 300kg - 800kg per pair (ideal for stacked totes or cartons).

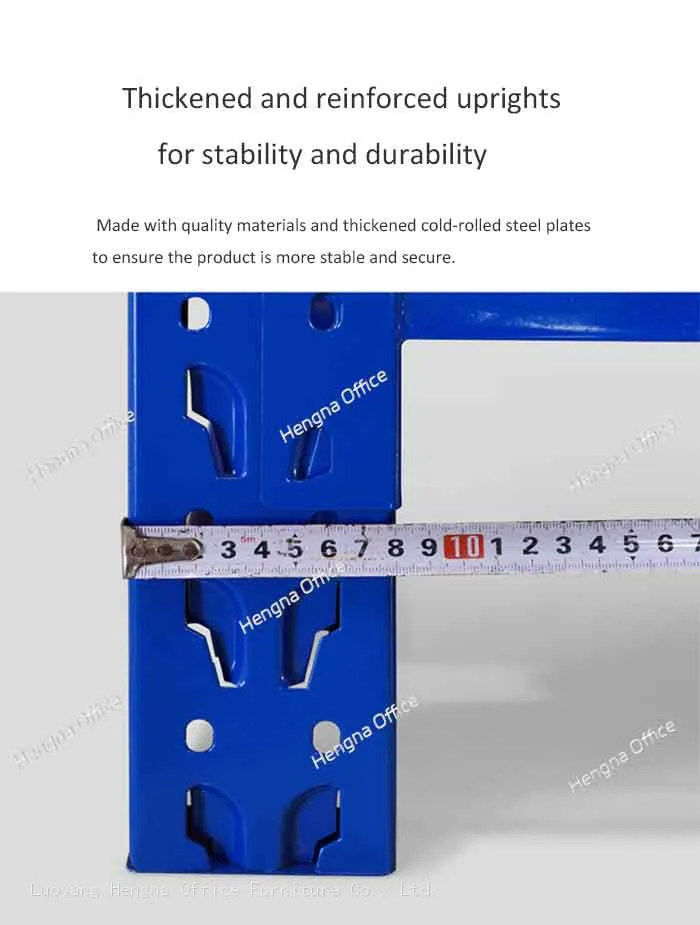

Upright Design: Pre-punched for 25mm/50mm adjustments. Reinforced at connection points.
Compatibility: Designed to work with standard warehouse accessories: wire decking, bin rails, dividers, label holders.
Color Coding: Available in multiple colors to facilitate zone management (e.g., red for high-priority, blue for returns).
Your Growth, Powered by Your Racking
The Hengna Expandable Industrial Racking System is the physical manifestation of agile logistics. It transforms storage from a static, depreciating fixture into a dynamic, appreciating capability. It empowers you to scale on your terms, respond to data-not guesses, and continuously optimize your fulfillment engine without punitive costs or downtime.
Frequently Asked Questions (FAQs)
Q1: When my business grows and I need to add an "Auxiliary Frame," do I have to empty or move the existing rack?
A: Essentially, no. This is a key advantage of the Main/Auxiliary system. To expand, simply align the new Auxiliary Frame unit with the upright at the end of your existing row (whether it's a Main or another Auxiliary Frame) and connect it using the side connectors (typically bolts or specific clips). This process only requires access to the very end section and does not disrupt the rest of the rack's inventory or operation. You can scale up with minimal interruption to workflow.
Q2: Can this system integrate with a Warehouse Management System (WMS) or inventory software?
A: Absolutely. Its clear, modular structure is an ideal physical foundation for digital management. You can assign unique location codes (e.g., A-01-02-03 for Aisle A, Bay 1, Level 2, Position 3) to each rack, level, and even bin. These codes can be labeled on the racks and easily mapped within your WMS, enabling precise inventory tracking, faster cycle counts, and efficient order picking.
Q3: If my business model changes and I need to dismantle or relocate some racks, is it straightforward?
A: Very straightforward. Thanks to the modular, non-permanently welded design, disassembly and relocation are much simpler than with traditional welded racks. Using basic tools (or sometimes by hand, depending on the design), you can disconnect the frames, remove beams and shelves, and transport the uprights in sections. This offers tremendous flexibility for warehouse reconfiguration or business relocation, maximizing asset reuse and minimizing moving costs.
Stop Predicting. Start Adapting.
Schedule a consultation with our e-commerce logistics specialists. Bring your current warehouse layout and growth forecast. We will provide a scalability roadmap and phased 3D modeling showing how our system can evolve with you from Day 1 to Year 5 and beyond.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
