Help CenterSmall Plastisol PVC Cap Molding Machine (Automatic, 200–300 Molds/Plate)
Related Products
-
Automatic PVC Dip Coating Machine for 8mm×14mm Small CapsUS$ 2000 - 40000MOQ: 1 Set -
Greenhouse Wiggle Wire Making Machine, Pvc-coated Wiggle Wire MachineUS$ 2000 - 40000MOQ: 1 Set
-
PVC Plastisol Production Equipment, Used to Produce Pvc Plastisol LiquidUS$ 2000 - 40000MOQ: 1 Set
-
Precision-Engineered PVC Plastisol Production Equipment Machine, Mixing TanksUS$ 2000 - 40000MOQ: 1 Set
-
Liquid PVC Plastisol Mixing Equipment MachinesUS$ 2000 - 40000MOQ: 1 Set
Engineered for High-Density Small Cap Production
For manufacturers of small PVC caps (8mm diameter, 14mm length), low mold capacity per machine is a major bottleneck. The PECOAT Full-Automatic Dip PVC Mold Machine addresses this with a high-density mold base plate design: 495mm-length plates hold 200–300 molds (thanks to the caps’ compact size), doubling output compared to standard machines with larger mold spacing.
Intelligent Design for Stability & Safety
This machine is built around three core pillars:
1. Intelligent Energy-Saving: The 30kW total power balances performance with low energy consumption, critical for long production runs.
2. Stable Durability: Heavy-duty construction (5330mm×1200mm×1100mm size) ensures consistent operation in 24/7 industrial settings.
3. Safety First: Leakage protection, power-off safeguards, and fault early warning systems reduce operational risks—essential for compliance with industrial safety standards.
Automated Workflow: From Preheating to Demolding
Gone are the days of manual plastic immersion and cooling. This machine’s fully automated process includes:
1. Mold Preheating: Ensures optimal plastic adhesion.
2. Precision Immersion: Controls coating thickness for uniform 8mm×14mm caps.
3. Water Cooling & Demolding: Rapid cooling (no manual intervention) preserves cap shape and accelerates cycles.
Only 1 inspection/30–40 minutes is required, freeing up labor for other tasks.
Technical Details at a Glance
Feature |
Specification |

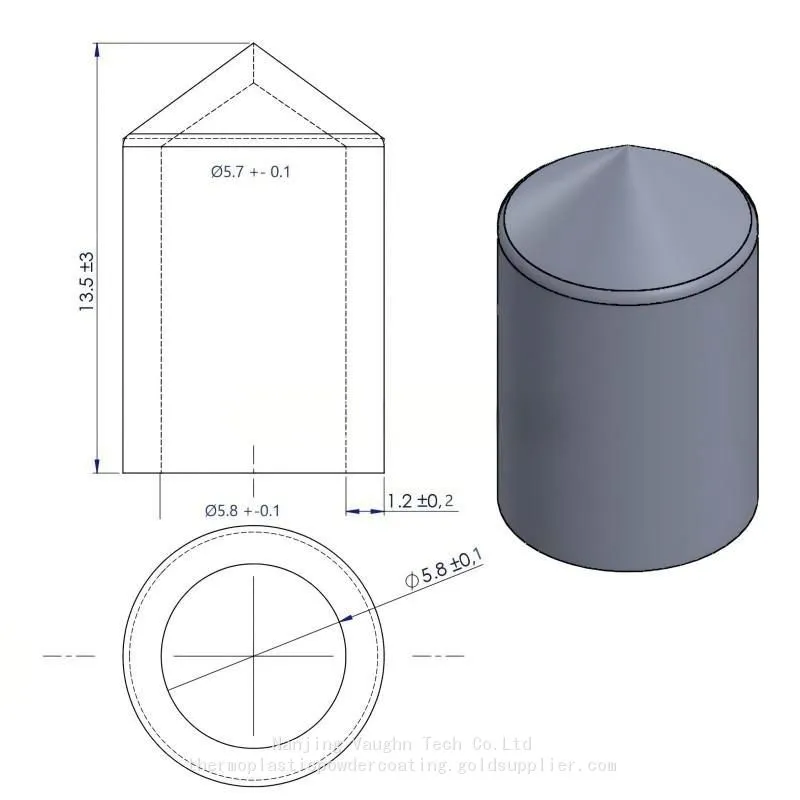

Caps Size |
8mm (diameter) × 14mm (length) |
Molds per Base Plate |
200–300 pieces |
Cycle Time |
3–4 minutes per plate |
Material Tank Capacity |
800mm×600mm×160mm |
Power Supply |
30kW (total power) |
Ideal for Packaging & Component Industries
Small PVC caps are widely used in electronics, pharmaceuticals, and beverage packaging—applications that demand precision and consistency. This machine’s automated coating process ensures every cap meets strict dimensional (8mm×14mm) and quality standards, reducing rejection rates and customer complaints.
With a 20–25 day lead time, it’s easy to integrate into your production line. Reach out to discuss mold customization or bulk order discounts.
