Help CenterThermal Flame Spraying Machine for Thermoplastic Powder
Related Products
-
Thermoplastic Powder Fire Flame Spraying Coating Equipment for Metal PartsUS$ 1000 - 5000MOQ: 1 Set -
Thermal Flame Spray Coating Gun Machine for Metal Parts Structure AnticorrosionUS$ 1000 - 5000MOQ: 1 Set
-
Greenhouse Zigzag Wiggle Wires Plastic Coated Spring Wire, Length 186 196 200cm,Spring Wire-lock for Greenhouse FilmUS$ 10 - 50MOQ: 50 Bags
-
Weather-Resistant Greenhouse Zigzag Wiggle Wires Durable Spring Wire-Locks for Secure Film FixationUS$ 10 - 50MOQ: 50 Bags
-
Multi-Color Greenhouse Zigzag Wiggle Wires Easy-to-Install Spring Wire-Locks for Film & Shade NettingUS$ 10 - 50MOQ: 50 Bags

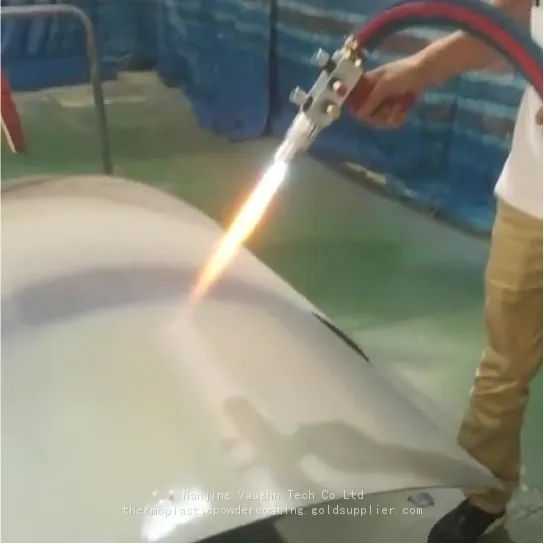

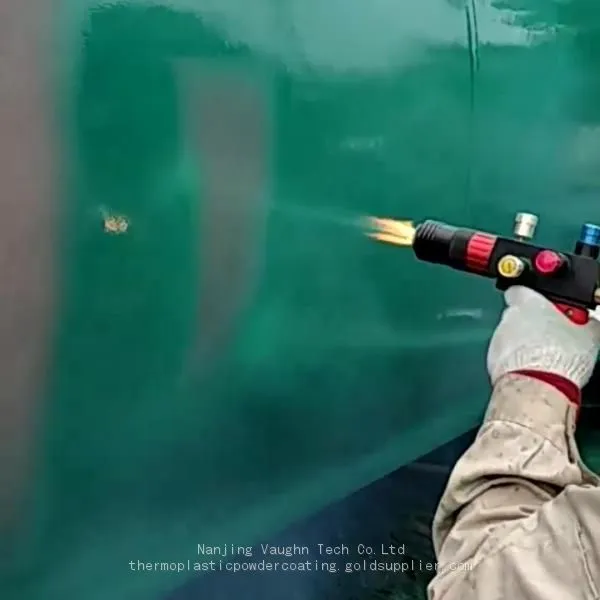

Thermal Flame Spraying Machine for thermoplastic Powder is equipped with a unique wheeled stainless steel high capacity powder feeder that allows for simultaneous use of two spray guns. It features a whirlwind fluidized bed powder supply structure with an adjustable venturi powder absorber and a powder cleaner. The continuous addition of powder to the feeder ensures long-term, stable, and consistent operation of the spray gun. The specially designed air mixing mode and double-layer protection structure of the spray gun prevent any tempering during the spraying process. It enables fast application of EAA, EVA,PO, PE, epoxy as well as other thermoplastic and thermoset plastic powders. A single spray can create a coating thickness ranging from 0.5mm to 5mm.

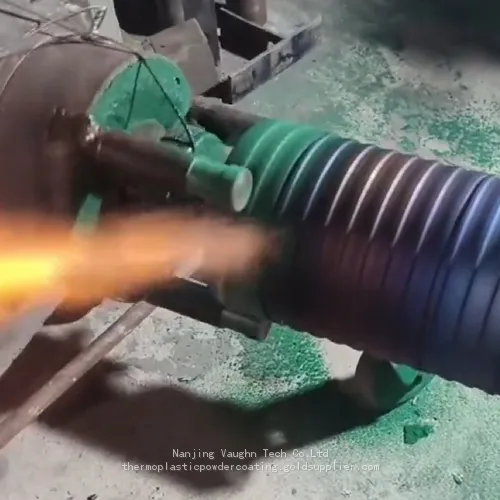

The spray gun is designed for special gas mixing mode and double layer protective gas structure, and there will be no tempering in the spraying process. It can quickly spray ethylene-acrylic acid copolymer EAA, ethylene-vinyl acetate copolymer EVA, polyolefin PO, polyethylene PE, cross-linked polyethylene, epoxy powder, chlorinated polyether, nylon series, fluoropolymer powder and other thermoplastic powder and thermosetting plastic powder on-site construction. One spraying can form a coating of about 0.5-5mm, It is suitable for the construction of chemical installations, large containers, storage tanks, oil and gas pipelines and other on-site construction.
Equipment Composition
High-power flame spray gun, powder feeder, regulating valve.
Users are required to provide their own 0.9m3/min air compressor, oxygen, acetylene, oxyacetylene pressure reduction meter, and pipeline.
Features
The coating is thick, ensuring durability and protection. The operation is simple and user-friendly. The equipment is lightweight and portable, facilitating easy transportation.
Advantages include:
low cost as there is no need for specialized spraying or drying rooms. Additionally, the equipment’s portability allows for on-site construction without limitations based on workpiece size or shape.
It can be applied under various environmental conditions such as 100% relative humidity and low temperatures.
Compatible with a wide range of matrix materials including steel, concrete, etc., allowing for versatile applications.
The coating offers repairability; small defects can be easily fixed by heating the surface while larger defects can be re-sprayed entirely if needed.
Powder and color changes are effortless to implement.
