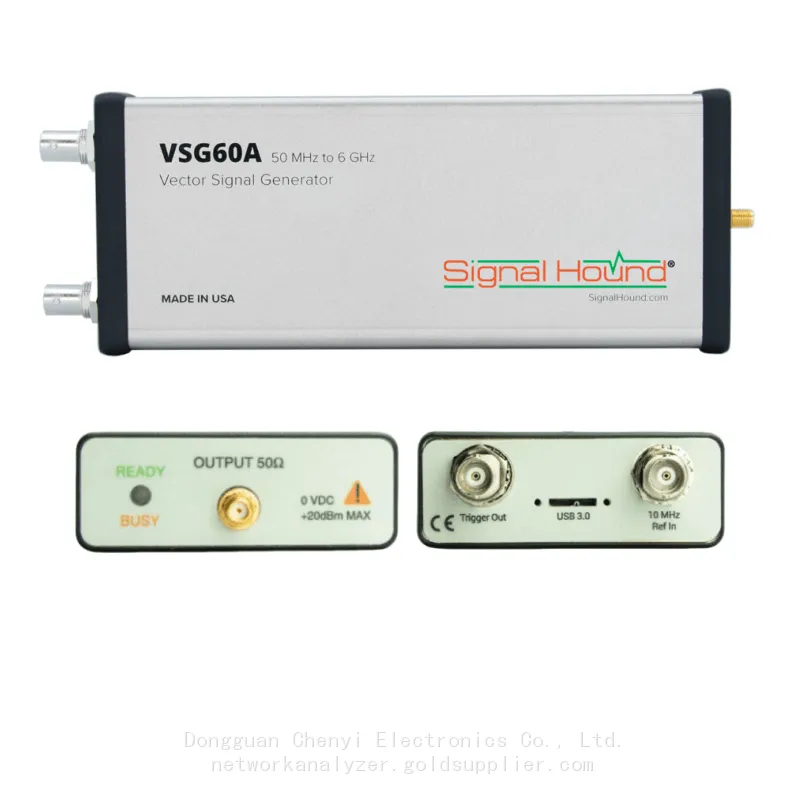

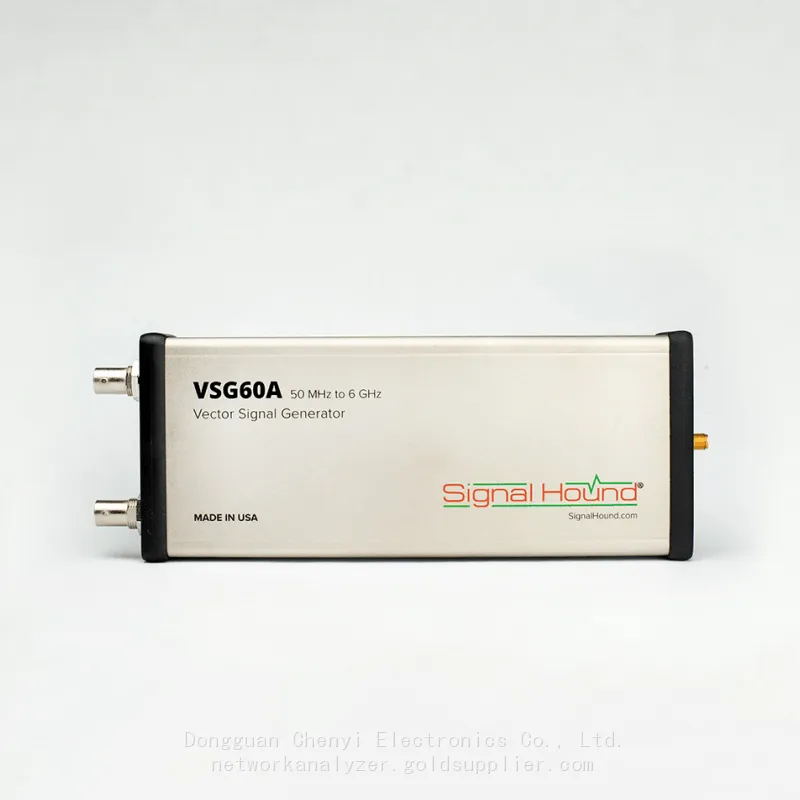

Signal Hound VSG60A 50 MHz to 6 GHz GHz Vector Signal Generator
he VSG60A features a low phase noise, agile local oscillator with 200 µs switch time, enabling frequency hopping spread spectrum testing. A dual 14-bit DAC runs at 2x or 3x the I/Q symbol rate using digital oversampling to provide a flat, clean baseband; and a digitally adjustable internal VCTCXO ensures frequency errors are kept to a minimum over temperature, or an external 10 MHz input may be used for zero ppm frequency error. A trigger output is also available to synchronize your VSG60A with other test equipment.
Product Details
Available modulation types
LTE, 802.11a/n/ac/ax, Bluetooth LE, Custom OFDM, 16/64/256/1024-QAM, 2/4/8/16-PSK, 2/4/8/16-FSK, ASK, GMSK, AWGN channels, Ramp/Chirp, Stepped sweep, Multi-tone, Pulse, FM, AM, CW, Arbitrary/Custom.
Digital modulation impairments
Custom channel response, AWGN, Sample rate error, frequency and level offset, I/Q offset, spectrum inversion.
Other features
Use the API to continuously stream custom I/Q data to the VSG60A at arbitrary sample rates up to 51.2 MSPS. Use the external trigger output to synchronize multiple instruments for complex measurement setups. Take advantage of the 10MHz timebase input to ensure frequency coordination between all lab equipment.
All features
•RF Frequency Range: 50 MHz to 6 GHz
May be used down to 30 MHz
•Amplitude range: -55 dBm to +7 dBm
May be used from -85 dBm to +10 dBm with reduced performance
•Arbitrary I/Q sample rates from 12.5 kSPS to 51.2 MSPS
•Stream waveforms of virtually any size from your PC or laptop
•Agile, low phase noise LO with 200 µs switching time
•Amplitude, mixer balance, and DC offset corrected over frequency and temperature
•Digital oversampling in the FPGA, baseband filtering, and harmonic filtering across full operating range
•USB-powered
•Powerful software and API included
•Typical EVM: 0.3% (1 GHz carrier, 1 MSPS QAM16, alpha 0.35, raised cosine)

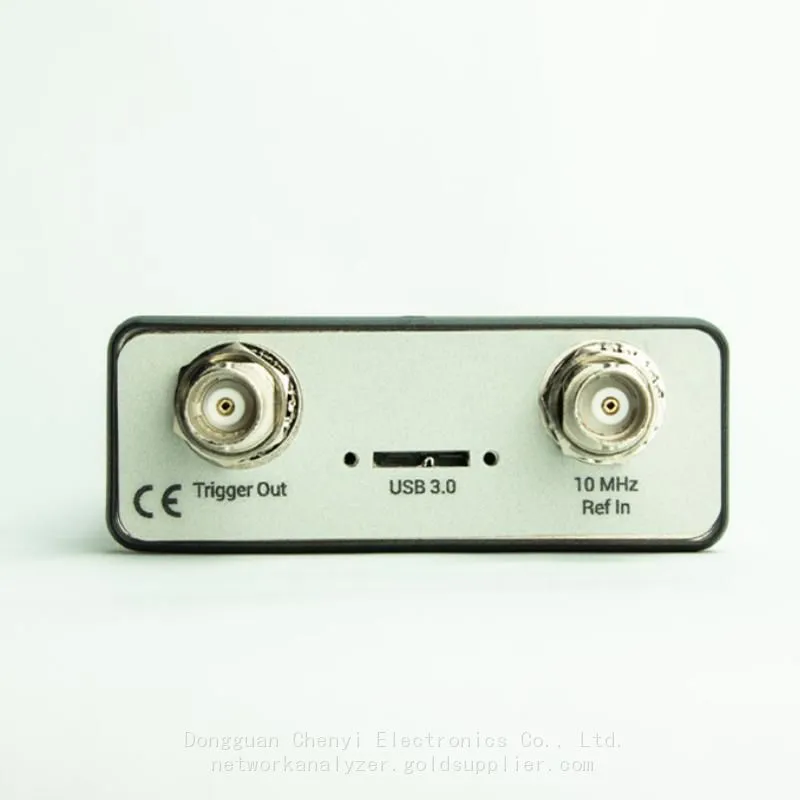

•External 10 MHz input and trigger output
•Under 9 inches long, and under 1 lb.
Size & Weight
Device dimensions
Version：
Weight： .82 lb (.4 kg)
Dimensions：8.63" x 3.19" x 1.19" (21.9 x 8.1 x 3 cm)
Product-in-packaging dimensions
Version：
Weight： 1.54 lb (.7 kg)
Dimensions：10.25" x 5.44" x 3.13" (26.04 x 13.8 x 7.95 cm)
