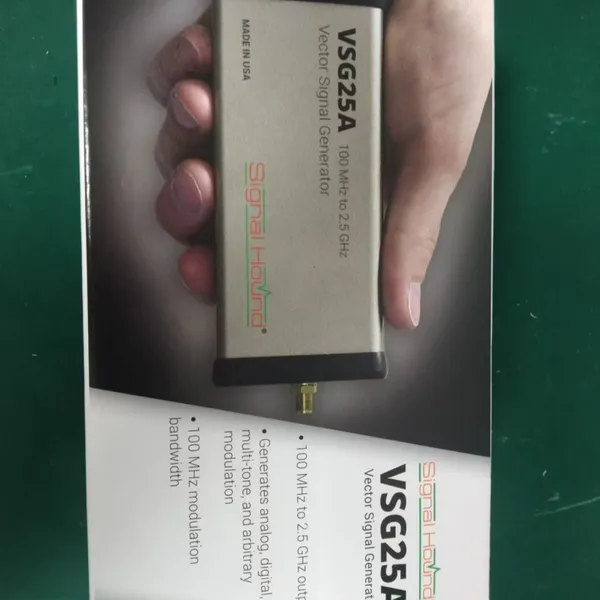

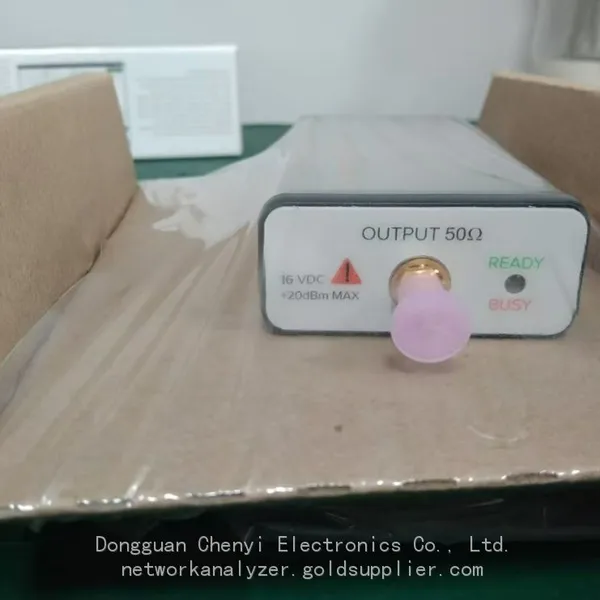

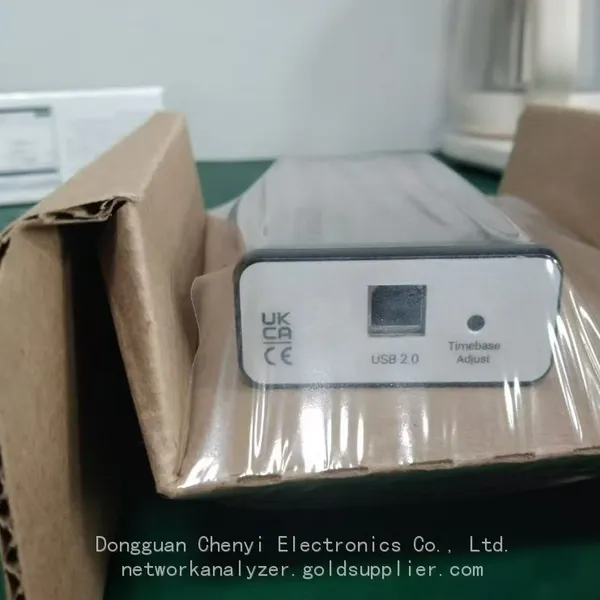

In Stock Signal Hound VSG25A Vector Signal Generator 2.7GHz Low Pass Filter Harmonic Suppression New
The VSG25A is a 100 MHz to 2.5 GHz vector signal generator, featuring a 12-bit I/Q baseband arbitrary waveform
generator which can be clocked at virtually any frequency from 54 kHz to 180 MHz, and includes a 4096×16 bit pattern
buffer for built-in or custom modulation.
Product Details
The VSG25A hardware features a 12-bit I/Q baseband arbitrary waveform generator which can be clocked at virtually any
frequency from 54 kHz to 180 MHz, and includes a 4096×16 bit pattern buffer for built-in or custom modulation.
The included software automatically generates:
•CW: 100 MHz to 2.5 GHz, -40 dBm to +10 dBm
Unspecified operation down to 80 MHz, or -70 dBm to +13 dBm
•AM / FM: 30 Hz to 40 MHz modulation rates, sine, triangle, square, ramp
•Pulse: 6 ns to 25 ms width, 12 ns to 1 second period
•Multi-tone: Up to 1023 tones with optional center notch
Use random phase + notch for Noise Power Ratio testing
Use parabolic phase for best signal / noise
•PSK: BPSK, DBPSK, QPSK, OQPSK, DQPSK, π/4 DQPSK, 8-PSK, D8PSK, 16-PSK
4k to 45M symbols per second
Optional raised cosine, root raised cosine filtering
Up to 512 symbols, streamed continuously in a loop
Binary symbol editor features 1-click insertion of PN7 / PN9 sequences
•QAM: QAM-16, QAM-64, QAM-256 (same features as PSK)
•ASK / FSK: 4k to 45M symbols per second
Optional Gaussian filtering
Up to 512 symbols, streamed continuously in a loop
•Sweep
•Arbitrary Custom Modulation
Load a CSV file with I and Q values, specify center frequency, amplitude, pattern length (up to 2048),
pattern period (up to 65535), and clock rate.
The VSG25A vector signal generator does have some limitations. The pattern buffer is small and cannot be
upgraded. There is no reconstruction filter on the I/Q baseband, resulting in out-of-band spurious signals,
and there is a single 2.7 GHz low pass filter on the RF output, so 3rd harmonics below 3.6 GHz may need to
be filtered externally. If these are not show-stoppers for you, the VSG25A is an unbeatable value.
Size & Weight
Device dimensions
Version：
Weight： .28 lbs (.13 kg)
Dimensions：5.5" x 2.25" x 1.04" (13.5 x 5.7 x 2.6 cm)
Product-in-packaging dimensions
Version：
Weight： .96 lbs (.44 kg)
Dimensions：9.25" x 5.44" x 3.13" (23.5 x 13.8 x 7.95 cm)
